Lie Cheat & Steal to build Hyper-Fast Applications using Event-Driven Architecture
1 like3,390 views
The document discusses the development of hyper-fast applications using asynchronous and event-driven architectures, emphasizing user experience and application speed as critical factors. It contrasts traditional service-oriented architecture (SOA) with event-driven architecture (EDA), highlighting EDA's advantages in handling latency and improving reliability. Key techniques and challenges for implementing EDA, such as event failure and sequencing, are outlined to demonstrate how to ensure applications can respond quickly and effectively.
![Synchronous Processing
[4]
Client
Browser
[1]
[2]
[3]
[5]
Server Side Components
Each Component Response Time
[1]100ms + [2]100ms + [3]100ms + [4]100ms + [5]100ms
Client Response time = 500ms](https://image.slidesharecdn.com/event-drivenarchitecture-140206091315-phpapp01/85/Lie-Cheat-Steal-to-build-Hyper-Fast-Applications-using-Event-Driven-Architecture-28-320.jpg)
![Asynchronous Processing
4
Client
Browser
1
2
3
5
Server Side Components
Client Response time [1] = 100ms
Async Processing Background Processing time = 400ms
[2]100ms + [3]100ms + [4]100ms + [5]100ms](https://image.slidesharecdn.com/event-drivenarchitecture-140206091315-phpapp01/85/Lie-Cheat-Steal-to-build-Hyper-Fast-Applications-using-Event-Driven-Architecture-29-320.jpg)
Lie Cheat & Steal to build Hyper-Fast Applications using Event-Driven Architecture
- 1. Lie Cheat Steal to build Hyper-Fast Applications - using Asynchronous & Event-Driven Architecture - Naresh Chintalcheru
- 2. Google Search 2 million search results in just 0.15 seconds
- 3. Facebook Even if you have 1000 friends the message will be posted instantaneous.
- 4. Twitter Even if you have 20,000 followers the tweet will be instantaneous.
- 5. Pinterest The picture is already uploaded before you pin it.
- 6. Common What is common in all these lies, cheats & steals ?

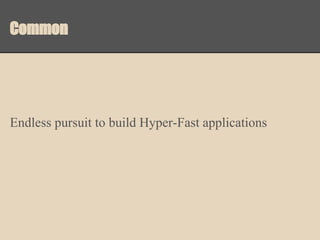

- 7. Common Endless pursuit to build Hyper-Fast applications
- 8. Users ● End of the day users don’t care about the background processing system as long as they are reliable ● Most of them including majority of IT guys don't even know about lies

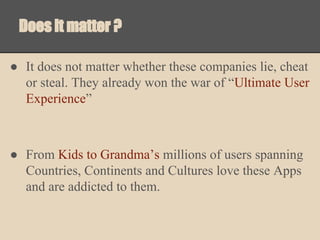

- 9. Does it matter ? ● It does not matter whether these companies lie, cheat or steal. They already won the war of “Ultimate User Experience” ● From Kids to Grandma’s millions of users spanning Countries, Continents and Cultures love these Apps and are addicted to them.
- 10. 2013 Experian Report : User Time Spent Marketingprofs.com
- 11. Unfortunate for Business Applications ● Every hour users spend on internet only 3 minutes is spent on Business Applications ● Users spend more time on Social and Entertainment Apps. ● Unfortunately User Experience and Application Speed expectations are already set by these applications
- 12. Business Applications Focus Customer facing Business Application should focus on User Experience and Application Speed
- 13. Business Applications Focus User Experience will be taken care by the Graphic Designers and Interface Design Analysts
- 14. Business Applications Focus Much more complicated is Application Speed
- 15. Speed The Google Search, Facebook, Twitter and Pinterest Application Speed is so fast ???
- 16. Speed Application Speed is so fast ??? or ... Speed Perception

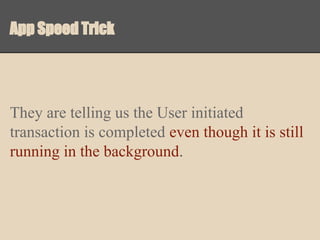

- 17. App Speed Trick They are telling us the User initiated transaction is completed even though it is still running in the background.
- 18. Asynchronous Techniques Asynchronous Techniques UI Level, Application Level and Service Level

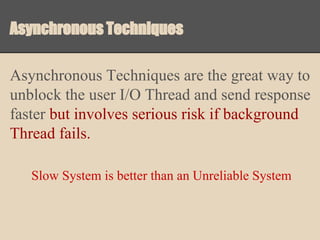

- 20. Asynchronous Techniques Asynchronous Techniques are the great way to unblock the user I/O Thread and send response faster but involves serious risk if background Thread fails. Slow System is better than an Unreliable System
- 21. Business Applications Majority of the Business Applications in various industries use SOA (Service-Oriented Architecture) in the enterprise Application Architecture & Infrastructure Architecture
- 22. SOA Problems using SOA in the Online Applications
- 23. SOA Service-Oriented Architecture has serious latency issues might make applications slow

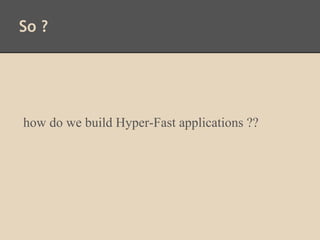

- 24. So ? how do we build Hyper-Fast applications ??
- 25. Event-Driven Fix the risks involved with Asynchronous Processing, SOA and Cloud using Event-Driven Architecture (EDA)

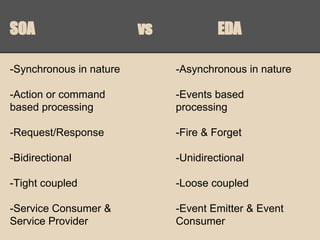

- 26. SOA vs EDA -Synchronous in nature -Asynchronous in nature -Action or command based processing -Events based processing -Request/Response -Fire & Forget -Bidirectional -Unidirectional -Tight coupled -Loose coupled -Service Consumer & Service Provider -Event Emitter & Event Consumer
- 28. Synchronous Processing [4] Client Browser [1] [2] [3] [5] Server Side Components Each Component Response Time [1]100ms + [2]100ms + [3]100ms + [4]100ms + [5]100ms Client Response time = 500ms
- 29. Asynchronous Processing 4 Client Browser 1 2 3 5 Server Side Components Client Response time [1] = 100ms Async Processing Background Processing time = 400ms [2]100ms + [3]100ms + [4]100ms + [5]100ms
- 30. Asynchronous Processing Issues x 4 Client Browser 1 2 3 5 Server Side If one background component fails the user will not know that the transaction is failed. Challenge of handling server-side failures
- 31. Event-Driven Architecture 3 Client Browser 1 1 2 Event Manager Bus Server Side Components Using Event-Driven Architecture 4
- 32. Event Manager Bus ● Event Mgr Bus is a Guarantee Delivery System ● Verifies all events are successfully executed ● If any event fails, it will place the event in the failed event queue and retries until it is successful
- 33. Request Processing : Order Placed Example 3 Client Browser 1 2 1 Event Manager Bus Server Side Synchronous Input Validation Asynchronous Product Inventory check Update Product DB Update Order DB Charge Credit Card Send Email 4
- 34. Request Processing : Order Placed Example 3 Client Browser 1 2 1 4 Event Manager Bus Server Side Synchronous Asynchronous Input Validation Update Product DB Product Inventory check Update Order DB Charge Credit Card Send Email Based on the need & system reliability adjust the Sync Vs Async processing
- 35. Handling Event-Driven issues ● Event Failure ● Event Ordering or Sequencing ● Eventual Consistency
- 36. Event Sequencing ● The challenges of Event sequencing can be solved using a common ID (e.g., AccountNumber, PolicyNumber and OrderNumber) ● Eventual consistency can be handled using Event Tailing
- 37. Event-Driven Architecture Carefully implementing Event-Driven Architecture on top of SOA makes System High Available, Failureaware and applications Hyper-Fast response time. At the same time not all applications are meant for Event-Driven Solutions.
