Fast Insight from Fast Data: Integrating ClickHouse and Apache Kafka
4 likes3,672 views
This document discusses using Kafka as a messaging system with ClickHouse for high throughput and low latency data ingestion. It provides an overview of Kafka and how it can be used with ClickHouse, including creating Kafka topics, Kafka and ClickHouse tables, materialized views to transfer data, and best practices. It also covers alternatives to the ClickHouse Kafka engine and the roadmap for further improving the Kafka integration.
Fast Insight from Fast Data: Integrating ClickHouse and Apache Kafka
- 1. © 2020, Altinity LTD© 2019, Altinity LTD
- 2. © 2020, Altinity LTD Introductions www.altinity.com Software and services provider for ClickHouse Major committer and community sponsor in US and Western Europe Robert Hodges (CEO) >30 years DBMS plus virtualization & security Mikhail Filimonov (Engineer) Kafka Engine maintainer and ClickHouse committer
- 3. © 2020, Altinity LTD What’s Kafka? (And why use it with ClickHouse)
- 4. © 2020, Altinity LTD Kafka Broker Kafka is messaging on steroids Topic: Readings Partitions Producer Producer Consumer Consumer Consumer Group Replicas
- 5. © 2020, Altinity LTD ClickHouse is not a slouch either Understands SQL Runs on bare metal to cloud Shared nothing architecture Uses column storage Parallel and vectorized execution Scales to many petabytes Is Open source (Apache 2.0) a b c d a b c d a b c d a b c d And it’s really fast!

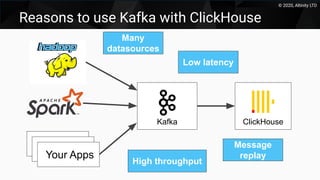

- 6. © 2020, Altinity LTD Reasons to use Kafka with ClickHouse Kafka Apps ClickHouse AppsYour Apps Many datasources High throughput Low latency Message replay
- 7. © 2020, Altinity LTD Reading data from Kafka
- 8. © 2020, Altinity LTD Standard flow from Kafka to ClickHouse Topic Contains messages Kafka Table Engine Encapsulates topic within ClickHouse Materialized View Fetches Rows MergeTree Table Stores Rows
- 9. © 2020, Altinity LTD Create inbound Kafka topic kafka-topics --bootstrap-server kafka-headless:9092 --topic readings --create --partitions 6 --replication-factor 3
- 10. © 2020, Altinity LTD Create target table CREATE TABLE readings ( readings_id Int32 Codec(DoubleDelta, LZ4), time DateTime Codec(DoubleDelta, LZ4), date ALIAS toDate(time), temperature Decimal(5,2) Codec(T64, LZ4) ) Engine = MergeTree PARTITION BY toYYYYMM(time)

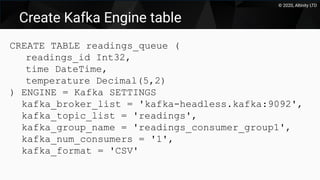

- 11. © 2020, Altinity LTD Create Kafka Engine table CREATE TABLE readings_queue ( readings_id Int32, time DateTime, temperature Decimal(5,2) ) ENGINE = Kafka SETTINGS kafka_broker_list = 'kafka-headless.kafka:9092', kafka_topic_list = 'readings', kafka_group_name = 'readings_consumer_group1', kafka_num_consumers = '1', kafka_format = 'CSV'
- 12. © 2020, Altinity LTD Create materialized view to transfer data CREATE MATERIALIZED VIEW readings_queue_mv TO readings AS SELECT readings_id, time, temperature FROM readings_queue;
- 13. © 2020, Altinity LTD Writing data to Kafka
- 14. © 2020, Altinity LTD Standard flow from ClickHouse to Kafka Topic Contains messages Kafka Table Engine Encapsulates topic within ClickHouse INSERT
- 15. © 2020, Altinity LTD Create outbound Kafka topic kafka-topics --bootstrap-server kafka-headless:9092 --topic events --create --partitions 6 --replication-factor 3
- 16. © 2020, Altinity LTD Create Kafka Engine table CREATE TABLE events ( time DateTime, severity String, content String ) ENGINE = Kafka SETTINGS kafka_broker_list = kafka-headless.kafka:9092', kafka_topic_list = 'events', kafka_group_name = 'events_consumer_group1', kafka_format = 'CSV'

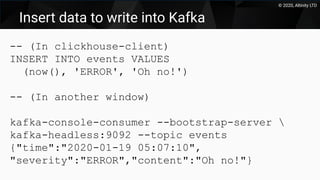

- 17. © 2020, Altinity LTD Insert data to write into Kafka -- (In clickhouse-client) INSERT INTO events VALUES (now(), 'ERROR', 'Oh no!') -- (In another window) kafka-console-consumer --bootstrap-server kafka-headless:9092 --topic events {"time":"2020-01-19 05:07:10", "severity":"ERROR","content":"Oh no!"}
- 18. © 2020, Altinity LTD Kafka Tips and Tricks
- 19. © 2020, Altinity LTD Kafka table engine internals ClickHouse Server Kafka Table Engine readings_queue librdkafka Kafka Broker Topic readings Settings kafka_broker_list kafka_topic_list ... kafka_num_consumers = 1 Config.xml <!-- Global config --> <kafka> <debug>cgrp</debug> ... </kafka> <!-- Topic config --> <kafka_readings> <retry_backoff_ms>250</retry_backoff_ms> </kafka_readings>
- 20. © 2020, Altinity LTD Overall best practices ● Use ClickHouse version 19.16.10 or newer ● For HA you should have at least min.insync.replicas+1 brokers. ○ Typical scenario: 3 brokers, replication factor = 3, min.insync.replicas = 2 ● To consume your topic in parallel you need to have enough partitions (you can’t have more consumers than partitions, otherwise some of them will do nothing). You can try for example 2*num_of_consumers ● If you need to get ‘coordinates’ of consumed messages use virtual columns: ○ _topic, _partition, _timestamp, _key, _offset ○ Just use the in MV, w/o declaring in Engine=Kafka table
- 21. © 2020, Altinity LTD Overall best practices ● When you have many Kafka tables - increase background_schedule_pool_size (monitor BackgroundSchedulePoolTask) ● If consuming performance is too low - don’t use num_consumers (keep it 1), but create a separate table with Engine=Kafka and MV streaming data to the same target. ● To set rdkafka options - add to <kafka> section in config.xml or preferably use a separate file in config.d/ ○ https://github.com/edenhill/librdkafka/blob/master/CONFIGURATION.md

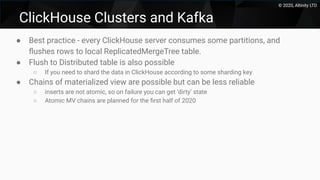

- 22. © 2020, Altinity LTD ClickHouse Clusters and Kafka ● Best practice - every ClickHouse server consumes some partitions, and flushes rows to local ReplicatedMergeTree table. ● Flush to Distributed table is also possible ○ If you need to shard the data in ClickHouse according to some sharding key ● Chains of materialized view are possible but can be less reliable ○ inserts are not atomic, so on failure you can get ‘dirty’ state ○ Atomic MV chains are planned for the first half of 2020
- 23. © 2020, Altinity LTD Rewind / fast-forward / replay ● Step 1: Detach kafka tables in clickhouse ● Step 2: kafka-consumer-groups.sh --bootstrap-server kafka:9092 --topic topic:0,1,2 --group id1 --reset-offsets --to-latest --execute ○ More samples: https://gist.github.com/filimonov/1646259d18b911d7a1e8745d6411c0cc ● Step: Attach kafka tables back See also configuration settings: <kafka> <auto_offset_reset>smallest</auto_offset_reset> </kafka>
- 24. © 2020, Altinity LTD How batching from Kafka stream works Important settings: kafka_max_block_size, stream_poll_timeout_ms, stream_flush_interval_ms 1. Batch poll (time limit: stream_poll_timeout_ms 500ms, messages limit: kafka_max_block_size 65536) 2. Parse messages. If we have enough data (rows limit: kafka_max_block_size 65536) or reach time limit (stream_flush_interval_ms 7500ms) - flush it to target MV, if no - repeat step 1. 3. Commit happen after writing data to MV (commit after write = at-least-once) 4. On any error during that process kafka client is restarted (leading to rebalance - leave the group and get back in few seconds)
- 25. © 2020, Altinity LTD Alternatives to the ClickHouse Kafka Engine
- 26. © 2020, Altinity LTD Loading data via a client application Kafka ClickHouse Java Connector Home-built client
- 27. © 2020, Altinity LTD Other approaches to consider ● If you like the Java Stack & use something from that stack already - you can stream Kafka topic to ClickHouse JDBC ○ Apache NiFi ○ Apache Storm ○ Kafka Streams ● A new entrant, not tested: https://github.com/housepower/clickhouse_sinker
- 28. © 2020, Altinity LTD Kafka Feature Roadmap and Wrap-up
- 29. © 2020, Altinity LTD Roadmap ● 2020 near-term Kafka improvements ○ Eliminate duplicates due to topic rebalancing ○ Filling key for inserts (to allow partitioning), also timestamps ○ Better error processing ○ Exactly once semantics ○ AVRO format ○ Introspection - system.kafka, metrics & events ● Long-term Kafka work ○ Fix performance issues including efficient consumer support ○ Support for other messaging systems (need to decide which ones) ○ Give us your thoughts! File issues on Github or contact Altinity directly if you have feature requests
- 30. © 2020, Altinity LTD Thank you! Special Offer: Contact us for a 1-hour consultation Presenters: rhodges@altinity.com mfilimonov@altinity.com Visit us at: https://www.altinity.com Free Consultation: https://blog.altinity.com/offer
