- 1. Fault Tolerance at Speed Todd L. Montgomery @toddlmontgomery StoneTor
- 2. InfoQ.com: News & Community Site • Over 1,000,000 software developers, architects and CTOs read the site world- wide every month • 250,000 senior developers subscribe to our weekly newsletter • Published in 4 languages (English, Chinese, Japanese and Brazilian Portuguese) • Post content from our QCon conferences • 2 dedicated podcast channels: The InfoQ Podcast, with a focus on Architecture and The Engineering Culture Podcast, with a focus on building • 96 deep dives on innovative topics packed as downloadable emags and minibooks • Over 40 new content items per week Watch the video with slide synchronization on InfoQ.com! https://www.infoq.com/presentations/ aeron-cluster-raft/
- 3. Purpose of QCon - to empower software development by facilitating the spread of knowledge and innovation Strategy - practitioner-driven conference designed for YOU: influencers of change and innovation in your teams - speakers and topics driving the evolution and innovation - connecting and catalyzing the influencers and innovators Highlights - attended by more than 12,000 delegates since 2007 - held in 9 cities worldwide Presented at QCon San Francisco www.qconsf.com
- 4. About me…
- 5. What type of Fault Tolerance? What is Clustering? Why Aeron? Design for Speeding Up?
- 6. What type of Fault Tolerance? What is Clustering? Why Aeron? Design for Speeding Up? Efficiency
- 8. We seem to assume efficiency/security/quality/etc. is a “special” characteristic added … later… if at all
- 10. Service Client
- 11. Service Client
- 18. Fault Tolerance of State
- 20. Contiguous Log with Snapshot & Replay
- 21. 1 2 3 4 5 6 X …
- 27. Service ServiceService Log ArchiveLog Archive Log Archive
- 28. Replicated State Machines https://en.wikipedia.org/wiki/State_machine_replication
- 29. Each Replicated Service Same event log Same input ordering Log replicated locally Replicated State Machines
- 30. Checkpoints / Snapshots Event in the log “Rolling” up previous log events Replicated State Machines
- 31. When should a service “consume” (or process) a log event?
- 32. Service ServiceService ArchiveArchive Archive 1 2 3 4 5 6 1 2 3 4 5 6 71 2
- 33. Once processed, Event can not be altered Only process once event is stable
- 34. Raft Consensus Event must be recorded at majority of Replicas before being consumed by any Replica Replicated State Machines https://raft.github.io/
- 35. Service ServiceService ArchiveArchive Archive 1 2 3 4 5 6 1 2 3 4 5 6 71 2
- 36. Service ServiceService ArchiveArchive Archive 1 2 3 4 5 6 1 2 3 4 5 6 71 2
- 37. Strong Leader Elected member of the Cluster Orders Input Disseminates Consensus Raft
- 38. Service ServiceService Archive ArchiveArchive Consensus ConsensusConsensus
- 39. Raft is An algorithm with formal verification Replicated State Machines
- 40. Raft is not A specification Nor A complete system Replicated State Machines
- 41. More than Raft Leader timestamps events Async, not RPC-based Timers The Real World
- 42. Service ServiceService Archive ArchiveArchive Consensus ConsensusConsensus *Leader Client
- 43. Benefits
- 44. Determinism Log is immutable Log can be played, stopped, & replayed Each event is timestamped Services restarted from snapshot & log Benefits
- 45. What Can You Do?
- 46. Distributed Key/Value Store Distributed Timers Distributed Locks
- 47. Matching Engines Order Management Market Surveillance P&L, Risk, … Finance
- 48. Venue Ticketing / Reservations Auctions Beyond Hint - a contended database is a good indicator
- 49. Why Aeron?
- 50. Efficient reliable UDP unicast, UDP multicast, and IPC message transport Java, C/C++, C#, Go Aeron https://github.com/real-logic/Aeron
- 51. And a little bit more… Very fast Archival & Replay Aeron https://github.com/real-logic/Aeron
- 53. All communications Aeron publications & subscriptions Aeron archival & replay Aeron shared counters
- 54. Consensus based on Aeron stream position
- 55. Batching Critical to efficient operation Optimizing pipelined throughput
- 56. Flow Control Critical to correct operation
- 58. Cache Hit/Miss Ratios Branch Prediction Allocation Rates Garbage Collection Inlining Optimizations
- 59. Not… Yet…
- 60. Ownership, Dependency, & Coupling Complexity Layers of Abstraction (ain’t free) Resource Management
- 61. Closer… But… Still. Not. Yet.
- 62. "AmdahlsLaw" by Daniels220 at English Wikipedia - Own work based on: File:AmdahlsLaw.png. Licensed under CC BY-SA 3.0 via Wikimedia Commons

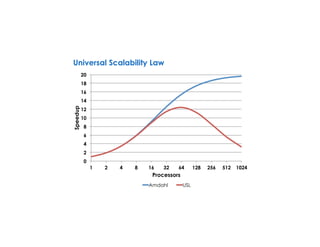

- 63. Universal Scalability Law 0 2 4 6 8 10 12 14 16 18 20 1 2 4 8 16 32 64 128 256 512 1024 Speedup Processors Amdahl USL
- 64. Breakdown Interactions Fundamental Sequential Operations
- 65. Ingress Message, Sequence, Disseminate Client Follower X Leader Ingress Follower Y Log (multicast or serial unicast) Member Status Log Event Log Event
- 66. Followers Append Client Follower X Leader Ingress Follower Y Log (multicast or serial unicast) Member Status Append Position Append Position
- 67. Commit Message Client Follower X Leader Ingress Follower Y Log (multicast or serial unicast) Member Status Commit Position Commit Position
- 68. Breakdown Interactions Pipeline-able Operation & Batching
- 69. FollowerLeader Log (multicast or serial unicast) Member Status Commit Position @4096 Append Position @6912 Log Event @8192 Stream Positions Archive Position @8096 Archive Position @7168 Store locally asynchronous to Position processing by Consensus, & Log processing by Service Batching: Log, Appends, Commits
- 70. Doesn’t this Complicate Recovery?
- 71. Follower Recovery Positions Archive Position @8096 Archive Position @7168 A synchronous system doesn’t make this complexity go away! Election still needs to assert state of the cluster & locally catch-up Follower Follower Archive Position @7584 Commit Position @4096 Commit Position @4064 Commit Position @4032 Service Position @4096 Service Position @4064 Service Position @3776
- 72. Limitations of Efficiency Throughput & Latency
- 73. Client FollowersLeader Ingress Log (multicast or serial unicast) Member Status Commit Position Append Position Log Event Client to Service A: 0.5 RTT Client to Service Ox: 1 RTT Client to Service A (on Commit): 1.5 RTT Client to Service Ox (on Commit): 2 RTT Constant Delay Network Service A Service Ox Round-Trip Time (RTT)
- 74. Client to Service A: 50ns Client to Service Ox: 100ns Client to Service A (on Commit): 150ns Client to Service Ox (on Commit): 200ns Limits from Constant Delay Shared Memory RTT <100ns Client to Service A: 50us Client to Service Ox: 100us Client to Service A (on Commit): 150us Client to Service Ox (on Commit): 200us DC RTT <100us Client to Service A: 5us Client to Service Ox: 10us Client to Service A (on Commit): 15us Client to Service Ox (on Commit): 20us Rack (Kernel Bypass) RTT <10us
- 75. Measured Latency at Throughput RTT(us) 0 75 150 225 300 Percentile Min 0.50 0.90 0.99 0.9999 0.999999 Max 100K msgs/sec 200K msgs/sec Intel Xeon Gold 5118 (2.30GHz, 12 cores) 32GB DDR4 2400 MHz ECC RAM Intel Optane SSD 900P Series 480GB SolarFlare X2522-PLUS 10GbE NIC All servers are connected to an Arista 7150S CentOS Linux 7.7, kernel 4.4.195-1.el7.elrepo.x86_64 tuned for low-latency workload. Courtesy Mark Price Single client session, bursts of 20x 200B messages, 3-node cluster, Service(s) echo(es) the payload back.
- 76. Takeways Efficiency is part of design Power of a timestamped, replicated log Replicated State Machines
- 77. Current Status Aeron Archiving - fully supported Aeron Clustering - pre-release Sponsored by https://weareadaptive.com/
- 79. Aeron: https://github.com/real-logic/Aeron Twitter: @toddlmontgomery Thank You! Questions? StoneTor
- 80. Watch the video with slide synchronization on InfoQ.com! https://www.infoq.com/presentations/ aeron-cluster-raft/
