Finding All Maximal Cliques in Very Large Social Networks
0 likes690 views
The document presents a method for finding maximal cliques in very large social networks, discussing community detection and maximal clique enumeration (MCE). It outlines a distributed MCE approach that optimizes performance by leveraging different algorithms and addressing challenges posed by hub nodes. The study emphasizes the importance of graph sparsity and introduces future work that includes consideration of graph semantics for identifying various community structures.
![Distributed MCE
Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 5
[Cheng et al., KDD 2012][Cheng et al., SIGMOD 2010]
Block size m (Max number of nodes) = 5
A
J
H
F
D
D
U
S
W
E
E
S D
GY](https://image.slidesharecdn.com/presentazione-socoda-160321162851/85/Finding-All-Maximal-Cliques-in-Very-Large-Social-Networks-6-320.jpg)
![Distributed MCE
Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 6
[Cheng et al., KDD 2012][Cheng et al., SIGMOD 2010]
Block size m (Max number of nodes) = 5
A
J
H
F
D
D
U
S
W
E
E
S D
GY](https://image.slidesharecdn.com/presentazione-socoda-160321162851/85/Finding-All-Maximal-Cliques-in-Very-Large-Social-Networks-7-320.jpg)
![Distributed MCE
Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 7
[Cheng et al., KDD 2012][Cheng et al., SIGMOD 2010]
Block size m (Max number of nodes) = 5
A
J
H
F
D
D
U
S
W
E
E
S D
GY](https://image.slidesharecdn.com/presentazione-socoda-160321162851/85/Finding-All-Maximal-Cliques-in-Very-Large-Social-Networks-8-320.jpg)
![Distributed MCE
Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 8
[Cheng et al., KDD 2012][Cheng et al., SIGMOD 2010]
Block size m (Max number of nodes) = 5
A
J
H
F
Z R
P
D
L
E
S
W
U
X
G
Y](https://image.slidesharecdn.com/presentazione-socoda-160321162851/85/Finding-All-Maximal-Cliques-in-Very-Large-Social-Networks-9-320.jpg)
![Distributed MCE
Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 9
[Cheng et al., KDD 2012][Cheng et al., SIGMOD 2010]
Block size m (Max number of nodes) = 5
A
J
H
F
D
Z R
P
D E
E
S X
GY
D
L
S
W
U](https://image.slidesharecdn.com/presentazione-socoda-160321162851/85/Finding-All-Maximal-Cliques-in-Very-Large-Social-Networks-10-320.jpg)
![Distributed MCE
Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 10
[Cheng et al., KDD 2012][Cheng et al., SIGMOD 2010]
Block size m (Max number of nodes) = 5
A
J
H
F
D
Z R
P
D E
E
S X
GY
D
L
S
W
U](https://image.slidesharecdn.com/presentazione-socoda-160321162851/85/Finding-All-Maximal-Cliques-in-Very-Large-Social-Networks-11-320.jpg)
![Distributed MCE
Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 11
[Cheng et al., KDD 2012][Cheng et al., SIGMOD 2010]
Block size m (Max number of nodes) = 5
A
J
H
F
D
Z R
P
D E
E
S
X
GY
D
L
S
W
U
D E
S
undetected cliques](https://image.slidesharecdn.com/presentazione-socoda-160321162851/85/Finding-All-Maximal-Cliques-in-Very-Large-Social-Networks-12-320.jpg)
![The Block Size Effect
Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 13
* Taken from [Cheng et al., KDD 2012]
efficiency vs completeness/correcteness](https://image.slidesharecdn.com/presentazione-socoda-160321162851/85/Finding-All-Maximal-Cliques-in-Very-Large-Social-Networks-14-320.jpg)
Finding All Maximal Cliques in Very Large Social Networks
- 1. Finding All Maximal Cliques in Very Large Social Networks 16 March 2016, EDBT 2016, Bordeaux, France Alessio Conte°, Roberto De Virgilio§ , Antonio Maccioni§ , Maurizio Patrignani§ , Riccardo Torlone§ °Università di Pisa § Università Roma Tre
- 2. Social Network Analysis Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 1
- 3. Community Detection Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 2
- 4. Cliques Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 3 A J H F Z A J A J F A J H F
- 5. Maximal Clique Enumeration (MCE) Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 4 A J H H F D D E S E Y E G S U S W
- 6. Distributed MCE Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 5 [Cheng et al., KDD 2012][Cheng et al., SIGMOD 2010] Block size m (Max number of nodes) = 5 A J H F D D U S W E E S D GY
- 7. Distributed MCE Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 6 [Cheng et al., KDD 2012][Cheng et al., SIGMOD 2010] Block size m (Max number of nodes) = 5 A J H F D D U S W E E S D GY
- 8. Distributed MCE Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 7 [Cheng et al., KDD 2012][Cheng et al., SIGMOD 2010] Block size m (Max number of nodes) = 5 A J H F D D U S W E E S D GY
- 9. Distributed MCE Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 8 [Cheng et al., KDD 2012][Cheng et al., SIGMOD 2010] Block size m (Max number of nodes) = 5 A J H F Z R P D L E S W U X G Y
- 10. Distributed MCE Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 9 [Cheng et al., KDD 2012][Cheng et al., SIGMOD 2010] Block size m (Max number of nodes) = 5 A J H F D Z R P D E E S X GY D L S W U
- 11. Distributed MCE Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 10 [Cheng et al., KDD 2012][Cheng et al., SIGMOD 2010] Block size m (Max number of nodes) = 5 A J H F D Z R P D E E S X GY D L S W U
- 12. Distributed MCE Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 11 [Cheng et al., KDD 2012][Cheng et al., SIGMOD 2010] Block size m (Max number of nodes) = 5 A J H F D Z R P D E E S X GY D L S W U D E S undetected cliques
- 13. Hub Nodes Effect Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 12 Block size m (Max number of nodes) = 5 A J H F Z R P D L E S W U X G Y
- 14. The Block Size Effect Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 13 * Taken from [Cheng et al., KDD 2012] efficiency vs completeness/correcteness
- 15. Overview of the Approach Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 14 G = (N, E) C = c1 , c2 , ..., cn 1st level decomposition Induced graph2nd level decomposition FIND MAX CLIQUES FIND MAX CLIQUES Block analysis Nf Nh Block 1 Block z... U Cf Ch
- 16. 1st Level Decomposition Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 15 Separate hubs from the rest of nodes in N - according to a maximum block size m 1st level decomposition FIND MAX CLIQUES Nf Nh G = (N, E) A J H F Z R P L W U X G Y D E S
- 17. 1st Level Decomposition - Lemma Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 16 The set of all maximal cliques C of G can be obtained by computing Cf and Ch alone - C = Cf U Ch - Cf is the set of cliques with at least one node in Nf - Ch is the set of cliques with all the nodes in Nh - proof of this Lemma is in our paper
- 18. 2nd Level Decomposition Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 17 2nd level decomposition FIND MAX CLIQUES Nf Block 1 Block z...
- 19. 2nd Level Decomposition Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 18 Kernel node Border nodeKernel node Visited node B1 A J H 2nd level decomposition FIND MAX CLIQUES Nf Block 1 Block z...
- 20. 2nd Level Decomposition Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 19 Kernel node Border nodeKernel node Visited node B1 A J H 2nd level decomposition FIND MAX CLIQUES Nf Block 1 Block z...
- 21. 2nd Level Decomposition Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 20 Kernel node Border nodeKernel node Visited node B1 A J H F D 2nd level decomposition FIND MAX CLIQUES Nf Block 1 Block z...
- 22. 2nd Level Decomposition Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 21 Kernel node Border nodeKernel node Visited node
- 23. Maximal Clique Enumeration Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 22 There are many algorithms for MCE - no one outperforms the others - but each has specific advantages Tomita et al. Eppstein et al.... FIND MAX CLIQUES Block analysis Block 1 Block z... Cf
- 24. Block Analysis Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 23 We determine the best-fit MCE algorithm on each block Block analysis Select best-fit Tomita et al. Eppstein et al.... Cf Block FIND MAX CLIQUES Block analysis Block 1 Block z... Cf
- 25. Decision Tree Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 24
- 26. Recursion Over Hub Nodes Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 25 Induced graph FIND MAX CLIQUES FIND MAX CLIQUES Nh Ch
- 27. Recursion Over Hub Nodes Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 26 The induced graph of the hub nodes is recursively processed B12 D E S Kernel node Border nodeKernel node Visited node Induced graph FIND MAX CLIQUES FIND MAX CLIQUES Nh Ch
- 28. Convergence Guarantee Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 27 Given a degeneracy of the graph lower than the block size, the whole process converges Theorem. Let G be a graph and let Gi , with i=1, 2, 3, ... be a sequence of subgraphs of G such that G1 = G and Gi , for i > 1 is the graph induced by the nodes of Gi−1 of degree greater or equal than m. Let the degeneracy d of G be strictly less than m + 1. 1. There is a value q such that all Gj , with j ≥ q, are empty graphs. 2. There exists a graph with n nodes for which q is Ω(n).
- 29. Degeneracy and Sparsity Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 28 A measure of the sparsity of a graph - it is the highest value d for which the network contains a d-core. A d-core is obtained by recursively removing nodes with degree less than d - degeneracy is typically < 100 on scale-free real graphs - facebook has a degeneracy ~ 54
- 30. Experiments: Decomposition Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 29
- 31. Experiments: the Block Size Effect Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 30
- 32. Experiments: Decision Tree Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 31
- 33. Experiments: Effectiveness Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 32
- 34. Conclusion Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 33 Approach for computing maximal cliques over an arbitrarily large graph - taking advantage of distributed computation - leveraging on the advantages of different existing algorithms for MCE Completeness and correcteness are not compromised by hub nodes - unlike state-of-the-art

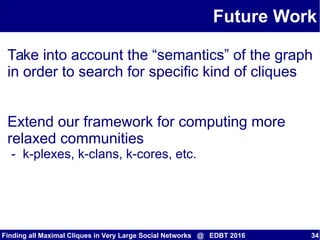

- 35. Future Work Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 34 Take into account the “semantics” of the graph in order to search for specific kind of cliques Extend our framework for computing more relaxed communities - k-plexes, k-clans, k-cores, etc.
- 36. Thanks For The Attention Finding all Maximal Cliques in Very Large Social Networks @ EDBT 2016 35
