Functions with heap and stack
Download as PPTX, PDF0 likes331 views
This document discusses the differences between the stack and heap in computer memory. The stack stores function parameters and local variables sequentially and follows LIFO order. The heap is reserved for dynamic memory allocation using malloc() and freed using free(). The stack has faster access but limited size, while the heap has no size limit but slower access and requires manual memory management. Examples are provided to illustrate how variables are stored in each.
![Example for Stack
#include <stdio.h>
double multiplyByTwo (double input) {
double twice = input * 2.0;
return twice;
}
int main (int argc, char *argv[])
{
int age = 30;
double salary = 12345.67;
double myList[3] = {1.2, 2.3, 3.4};
printf("double your salary is %.3fn",
multiplyByTwo(salary));
return 0;
}](https://image.slidesharecdn.com/functionswithheapandstack-140530063236-phpapp01/85/Functions-with-heap-and-stack-7-320.jpg)
![Example for Heap
#include <stdio.h>
#include <stdlib.h>
double *multiplyByTwo (double *input) {
double *twice = malloc(sizeof(double));
*twice = *input * 2.0;
return twice;
}
int main (int argc, char *argv[])
{
int *age = malloc(sizeof(int));
*age = 30;
double *salary = malloc(sizeof(double));
*salary = 12345.67;
double *myList = malloc(3 * sizeof(double));
myList[0] = 1.2;
myList[1] = 2.3;
myList[2] = 3.4;
double *twiceSalary = multiplyByTwo(salary);
printf("double your salary is %.3fn", *twiceSalary);
free(age);
free(salary);
free(myList);
free(twiceSalary);
return 0;
}](https://image.slidesharecdn.com/functionswithheapandstack-140530063236-phpapp01/85/Functions-with-heap-and-stack-9-320.jpg)
Functions with heap and stack
- 2. MohammedRazi K razikallayi@gmail.com www.facebook.com/razikallayi twitter.com/razikallayi in.linkedin.com/in/razikallayi +91 97467 30324 Functions With Heap And Stack
- 3. Disclaimer: This presentation is prepared by trainees of baabtra as a part of mentoring program. This is not official document of baabtra –Mentoring Partner Baabtra-Mentoring Partner is the mentoring division of baabte System Technologies Pvt . Ltd

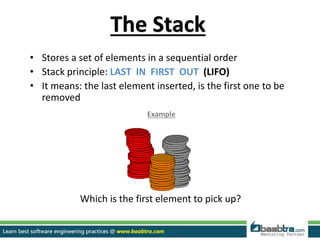

- 4. • Stores a set of elements in a sequential order • Stack principle: LAST IN FIRST OUT (LIFO) • It means: the last element inserted, is the first one to be removed Which is the first element to pick up? The Stack Example
- 5. • When a function declares a new variable, it is pushed onto the stack. • And when it exits, all of the variables pushed by that function, are freed (means deleted). • So that region of memory becomes available for other stack variables. Stack in functions
- 6. public int factorial (int x) { if (x > 1) { //recursive case: return factorial(x-1) * x; } else /*base case*/ return 1; } Factorial(3){ If(3>1){ return factorial (2)*3 Factorial(2){ If(2>1){ return factorial (1)*2 Factorial(1){ If(1>1){ return 1; Example of Stack in recursive function 1 2 Final output: 6
- 7. Example for Stack #include <stdio.h> double multiplyByTwo (double input) { double twice = input * 2.0; return twice; } int main (int argc, char *argv[]) { int age = 30; double salary = 12345.67; double myList[3] = {1.2, 2.3, 3.4}; printf("double your salary is %.3fn", multiplyByTwo(salary)); return 0; }
- 8. The Heap • The heap is an area of memory reserved for dynamic memory allocation. • Dynamic memory can be allotted by calling the malloc( ) function in C. • When this memory is no longer needed it can be freed up by calling free( ) . • Once the memory is freed it can reused by future allocations. • The location and size of the heap are set at compile time.

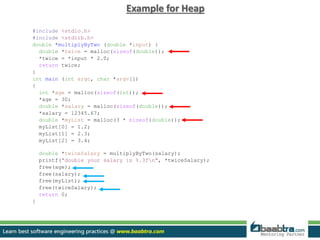

- 9. Example for Heap #include <stdio.h> #include <stdlib.h> double *multiplyByTwo (double *input) { double *twice = malloc(sizeof(double)); *twice = *input * 2.0; return twice; } int main (int argc, char *argv[]) { int *age = malloc(sizeof(int)); *age = 30; double *salary = malloc(sizeof(double)); *salary = 12345.67; double *myList = malloc(3 * sizeof(double)); myList[0] = 1.2; myList[1] = 2.3; myList[2] = 3.4; double *twiceSalary = multiplyByTwo(salary); printf("double your salary is %.3fn", *twiceSalary); free(age); free(salary); free(myList); free(twiceSalary); return 0; }
- 10. Both programs will show output as : double your salary is 24691.340
- 11. Stack • very fast access • don't have to explicitly de-allocate variables • space is managed efficiently by CPU, memory will not become fragmented • local variables only • limit on stack size (OS-dependent) • variables cannot be resized Stack vs Heap Pros and Cons
- 12. Heap • variables can be accessed globally • no limit on memory size • (relatively) slower access • no guaranteed efficient use of space, memory may become fragmented over time as blocks of memory are allocated, then freed • you must manage memory (you're in charge of allocating and freeing variables) • variables can be resized using realloc() Stack vs Heap Pros and Cons

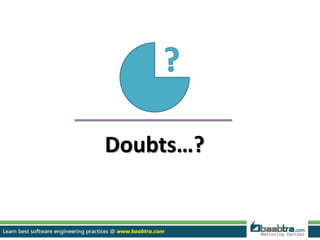

- 13. Doubts…?
- 14. thank you
