Genode Programming

Genode OS Framework
Programming Environment

Norman Feske
<norman.feske@genode-labs.com>

Outline

1. Source tree overview

2. Build system

3. Run scripts

4. Inter-process communication

5. Client-server example

Genode OS Framework Programming Environment 2

Outline


2. Build system

3. Run scripts

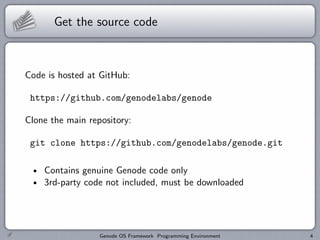

Get the source code

Code is hosted at GitHub:

https://github.com/genodelabs/genode

Clone the main repository:

git clone https://github.com/genodelabs/genode.git

Contains genuine Genode code only
3rd-party code not included, must be downloaded


Repositories

Foster modular code base instead of one big tree

For a given project, only a subset of repositories is relevant
→ Helps to focus attention to relevant parts
→ Clean organization defeats ad-hoc solutions


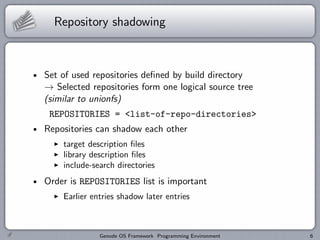

Repository shadowing

Set of used repositories defined by build directory
→ Selected repositories form one logical source tree
(similar to unionfs)
REPOSITORIES = <list-of-repo-directories>
Repositories can shadow each other
target description files
library description files
include-search directories
Order is REPOSITORIES list is important
Earlier entries shadow later entries


Repositories shadowing (II)


Repositories in practice

Tweak existing components without breaking existing code

Want to add code? → Simply introduce a new repository
Can be hosted outside the mainline Genode tree
Use a revision control system of your choice


Specs

Source repositories → coarse grained modularity
Challenges:
Multiple kernels
Multiple hardware platforms
Different flavours of implementations
ifndef-endif yields frustration, messes up test coverage
Build specs → fine grained modularity


Specs: Build targets express their needs

Examples:
Speciﬁc peripheral (device driver)
Particular property of CPU architecture if code is not generic
only 32-bit
only arm v7a
Licensing conditions
Example, target.mk ﬁle
REQUIRES = x86
...


Specs: Build directory deﬁnes build properties

Spec values characterize the build
Example <build-dir>/etc/specs.conf
SPECS = genode foc_panda
High-level spec values reﬁned to low-level spec values


Specs: Reﬁnement


Specs: Steering the build process

Traverse <repos>/mk/spec-<value>.mk files
Platform-specific build settings (CFLAGS ...)
Include more specialized spec-<value>.mk files

Match target’s REQUIRES against build-dir’s SPECS

Prefer specialized libraries:
<repo>/lib/mk/blit.mk generic library
<repo>/lib/mk/x86 32/blit.mk specialized library


Specs: Benefits

→ No preprocessor-based configuration
→ No artificial abstractions (architecture, platform, cpu, ...)
→ Easy to extend
→ Easy to configure


Anatomy of a repository

Directory Description
doc/ Documentation, specific for the repository
etc/ Default configuration of the build process
include/ Globally visible header files
src/ Source codes and target build descriptions
lib/mk/ Library build descriptions

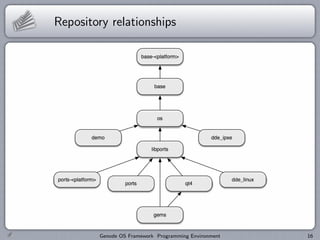

Repository relationships


Integration of 3rd-party source code

Download and integrate a kernel:

make -C <genode-dir>/base-nova prepare

Works uniformly for all kernels!


Integration of 3rd-party source code

Ported applications and libraries reside in libports and ports.
List available 3rd-party libraries:

make -C libports

Download and integrate a set of libraries:

make -C libports prepare PKG=’libc freetype’

...a lot to explore


Outline


2. Build system

3. Run scripts




Tool chain

Needed because
C++ support libraries normally require a libc
We need C++ support
We don’t want to depend on a libc
Multi-threading support is OS-speciﬁc
Linux TLS
Limit varienty of tool-chain related errors
Compiler versions
Linux distributions
→ http://genode.org/download/tool-chain

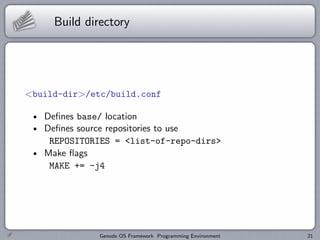

Build directory

<build-dir>/etc/build.conf

Defines base/ location
Defines source repositories to use
REPOSITORIES = <list-of-repo-dirs>
Make flags
MAKE += -j4

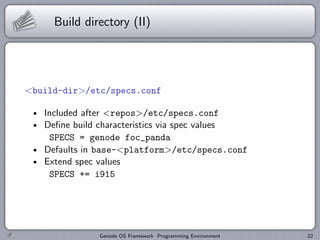

Build directory (II)

<build-dir>/etc/specs.conf

Included after <repos>/etc/specs.conf
Deﬁne build characteristics via spec values
SPECS = genode foc_panda
Defaults in base-<platform>/etc/specs.conf
Extend spec values
SPECS += i915


Build directory (III)

<build-dir>/Makefile
symlink to
<genode-dir>/tool/builddir/build.mk
Front end of the build system


Build directory creation tool

<genode-dir>/tool/create builddir
Creates templates for a variety of supported platforms:

create_builddir nova_x86_32 BUILD_DIR=/tmp/build

Revisit generated build.conf:
Enable repositories
Add make ﬂags as desired


Building targets

Single target

make <rel-dir-to-target>

Example:

make drivers/atapi

Looks for target.mk within <repos>/src/drivers/atapi
Tests REQUIRES agains SPECS
Builds all libraries the target depends on
Builds target


Building targets (II)

Tree of targets

make <rel-dir>

Example:

make drivers

Builds all targets within <repos>/src/drivers.

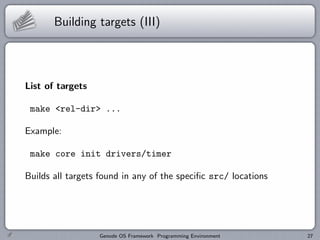

Building targets (III)

List of targets

make <rel-dir> ...

Example:

make core init drivers/timer

Builds all targets found in any of the speciﬁc src/ locations


Outline


2. Build system

3. Run scripts

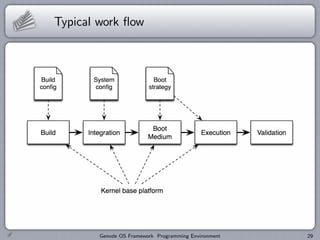

Typical work ﬂow


Run script

build "core init test/printf"
create_boot_directory
install_config {
<config>
<parent-provides>
<service name="LOG"/>
</parent-provides>
<default-route>
<any-service> <parent/> </any-service>
</default-route>
<start name="test-printf">
<resource name="RAM" quantum="1M"/>
</start>
</config> }
build_boot_image "core init test-printf"
append qemu_args "-nographic -m 64"
run_genode_until {-1 = -1 = -1} 10


Run script (II)

Located at <repos>/run/<script-name>.run
Executable from within the build directory
make run/<script-name>

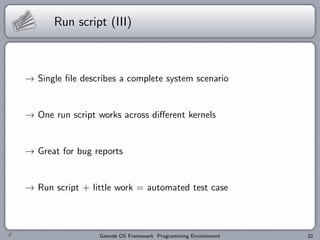

Run script (III)

→ Single ﬁle describes a complete system scenario

→ One run script works across diﬀerent kernels

→ Great for bug reports

→ Run script + little work = automated test case

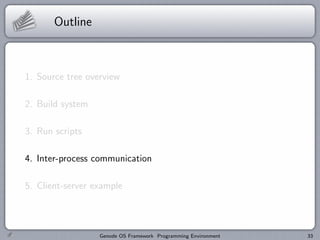

Outline


2. Build system

3. Run scripts




Remote procedure calls (RPC)


Remote procedure calls: Classes

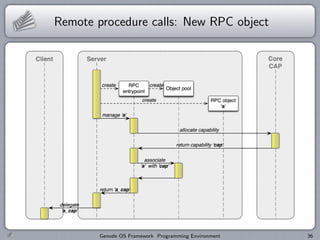

Remote procedure calls: New RPC object


Remote procedure calls: Invocation


Shared memory


Asynchronous notiﬁcations

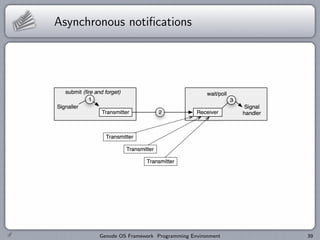

Asynchronous notiﬁcations (II)


Mechanisms combined

RPC + shared memory
→ Synchronous bulk data (transaction)

Signalling + dataspace
→ Asynchronous bulk data (streaming)


Synchronous bulk data transfer

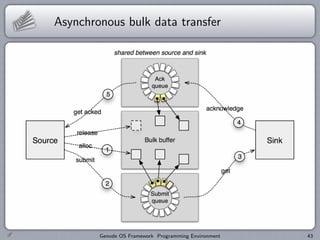

Asynchronous bulk data transfer


Packet stream example


Outline


2. Build system

3. Run scripts

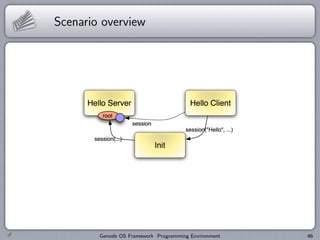

Scenario overview


Classes overview

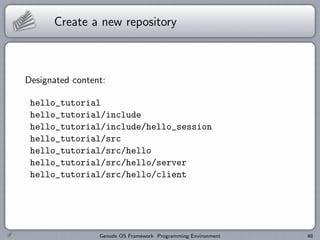

Create a new repository

Designated content:

hello_tutorial
hello_tutorial/include
hello_tutorial/include/hello_session
hello_tutorial/src
hello_tutorial/src/hello
hello_tutorial/src/hello/server
hello_tutorial/src/hello/client

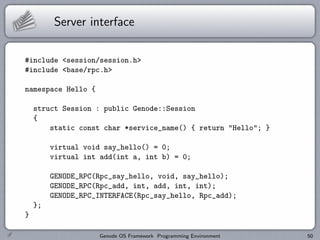

Server interface


Server interface

#include <session/session.h>
#include <base/rpc.h>

namespace Hello {

struct Session : public Genode::Session
{
static const char *service_name() { return "Hello"; }

virtual void say_hello() = 0;
virtual int add(int a, int b) = 0;

GENODE_RPC(Rpc_say_hello, void, say_hello);
GENODE_RPC(Rpc_add, int, add, int, int);
GENODE_RPC_INTERFACE(Rpc_say_hello, Rpc_add);
};
}


Server-side interface implementation

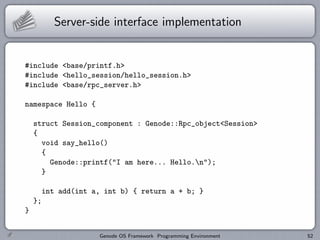

Server-side interface implementation

#include <base/printf.h>
#include <hello_session/hello_session.h>
#include <base/rpc_server.h>

namespace Hello {

struct Session_component : Genode::Rpc_object<Session>
{
void say_hello()
{
Genode::printf("I am here... Hello.n");
}

int add(int a, int b) { return a + b; }
};
}


Server-side root interface


Server-side root interface

#include <root/component.h>

namespace Hello {

struct Root_component : Genode::Root_component<Session_component>
{
Session_component *_create_session(const char *args)
{
return new (md_alloc()) Session_component();
}

Root_component(Genode::Rpc_entrypoint *ep,
Genode::Allocator *allocator)
: Genode::Root_component<Session_component>(ep, allocator)
{ }
};
}


Server main program

#include <base/sleep.h>
#include <cap_session/connection.h>

int main(void)
{
using namespace Genode;

Cap_connection cap;
Sliced_heap md_alloc(env()->ram_session(), env()->rm_session());

enum { STACK_SIZE = 4096 };
Rpc_entrypoint ep(&cap, STACK_SIZE, "hello_ep");

Hello::Root_component hello_root(&ep, &md_alloc);
env()->parent()->announce(ep.manage(&hello_root));
sleep_forever();
return 0;
}

Server build description ﬁles

src/hello/server/target.mk
TARGET = hello_server
SRC_CC = main.cc
LIBS = cxx env server


Client main program

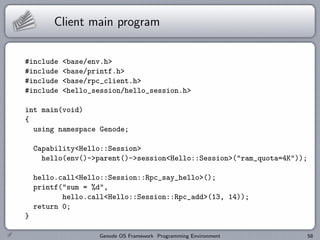

Client main program

#include <base/env.h>
#include <base/rpc_client.h>

int main(void)
{

Capability<Hello::Session>
hello(env()->parent()->session<Hello::Session>("ram_quota=4K"));

hello.call<Hello::Session::Rpc_say_hello>();
printf("sum = %d",
hello.call<Hello::Session::Rpc_add>(13, 14));
return 0;
}

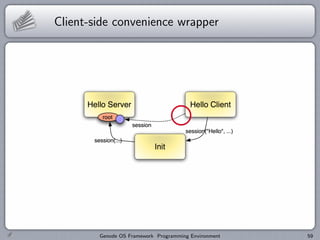

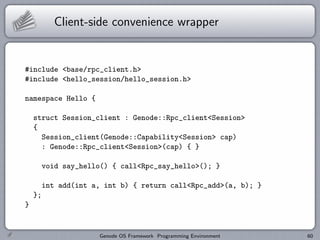

Client-side convenience wrapper


Client-side convenience wrapper

#include <base/rpc_client.h>

namespace Hello {

struct Session_client : Genode::Rpc_client<Session>
{
Session_client(Genode::Capability<Session> cap)
: Genode::Rpc_client<Session>(cap) { }

void say_hello() { call<Rpc_say_hello>(); }

int add(int a, int b) { return call<Rpc_add>(a, b); }
};
}


Client-side connection object


Client-side connection object

#include <hello_session/client.h>
#include <base/connection.h>

namespace Hello {
struct Connection : Genode::Connection<Session>, Session_client
{
Connection()
:
Genode::Connection<Hello::Session>(session("ram_quota=4K")),
Session_client(cap())
{ }
};
}


Simpliﬁed client main program

#include <base/env.h>
#include <hello_session/connection.h>

int main(void)
{

Hello_connection hello;
hello.say_hello();
printf("sum = %d", hello.add(13, 14));
return 0;
}


Client build description ﬁle

src/hello/client/target.mk
TARGET = hello_client
SRC_CC = main.cc
LIBS = cxx env


Run script

build { core init hello }
create_boot_directory
install_config {
<config>
<parent-provides>
<service name="CAP"/> <service name="LOG"/>
</parent-provides>
<default-route>
<any-service> <parent/> <any-child/> </any-service>
</default-route>
<start name="hello_server">
<provides> <service name="Hello"/> </provides>
</start>
<start name="hello_client">
</start>
</config>}
build_boot_image { core init hello_client hello_server }
run_genode_until forever

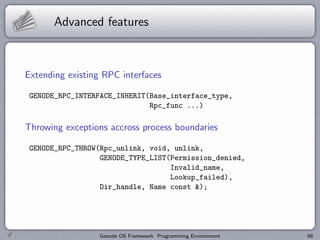

Advanced features

Extending existing RPC interfaces

GENODE_RPC_INTERFACE_INHERIT(Base_interface_type,
Rpc_func ...)

Throwing exceptions accross process boundaries

GENODE_RPC_THROW(Rpc_unlink, void, unlink,
GENODE_TYPE_LIST(Permission_denied,
Invalid_name,
Lookup_failed),
Dir_handle, Name const &);


Observations

RPC stub code generated by C++ compiler

No external tools needed

No language boundary to conquer

Type safety


Thank you

What we covered today Coming up next...
Programming environment Components
1. Source tree overview 1. Classes of components
2. Build system 2. Uniﬁed conﬁguration
3. Run scripts concept
4. Inter-process communication 3. Session routing
5. Client-server example 4. Components overview

More information and resources:
http://genode.org


Genode Programming

More Related Content

Similar to Genode Programming (20)

More from Vasily Sartakov (17)

Recently uploaded (20)

Genode Programming
