Computer Architecture
Lecture 17: GPU Programming
Dr. Juan Gómez Luna
Prof. Onur Mutlu
ETH Zürich
Fall 2019
21 November 2019

Agenda for Today
 GPU as an accelerator
 Program structure
 Bulk synchronous programming model

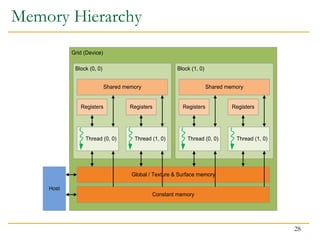

 Memory hierarchy and memory management
 Performance considerations
 Memory access

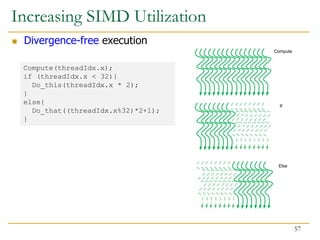

 SIMD utilization

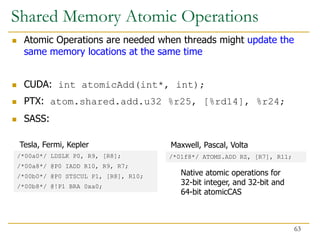

 Atomic operations
 Data transfers

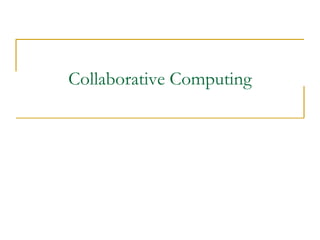

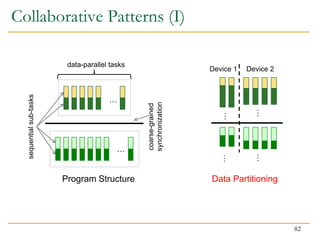

 Collaborative computing
2

Recommended Readings
 CUDA Programming Guide
 https://docs.nvidia.com/cuda/cuda-c-programming-
guide/index.html
 Hwu and Kirk, “Programming Massively Parallel Processors,”
Third Edition, 2017
3

Recall: NVIDIA GeForce GTX 285
 NVIDIA-speak:
 240 stream processors
 “SIMT execution”
 Generic speak:
 30 cores
 8 SIMD functional units per core
Slide credit: Kayvon Fatahalian 5

NVIDIA GeForce GTX 285 “core”
…
= instruction stream decode
= SIMD functional unit, control
shared across 8 units
= execution context storage
= multiply-add
= multiply
64 KB of storage
for thread contexts
(registers)

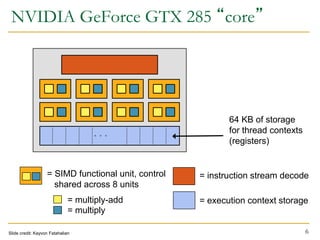

NVIDIA GeForce GTX 285 “core”
…
64 KB of storage
for thread contexts
(registers)
 Groups of 32 threads share instruction stream (each group is
a Warp)
 Up to 32 warps are simultaneously interleaved
 Up to 1024 thread contexts can be stored

NVIDIA GeForce GTX 285
Tex
Tex
Tex
Tex
Tex
Tex
Tex
Tex
Tex
Tex
… … …
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
30 cores on the GTX 285: 30,720 threads

0
2000
4000
6000
8000
10000
12000
14000
16000
0
1000
2000
3000
4000
5000
6000
GTX285
(2009)
GTX480
(2010)
GTX780
(2013)
GTX980
(2014)
P100 (2016) V100 (2017)
GFLOPS
#Stream
Processors
Stream Processors GFLOPS
Recall: Evolution of NVIDIA GPUs
9

Recall: NVIDIA V100
 NVIDIA-speak:
 5120 stream processors
 “SIMT execution”
 Generic speak:
 80 cores
 64 SIMD functional units per core
 Specialized Functional Units for Machine Learning (tensor
”cores” in NVIDIA-speak)
10

Recall: NVIDIA V100 Block Diagram
80 cores on the V100
https://devblogs.nvidia.com/inside-volta/
11

Recall: NVIDIA V100 Core
15.7 TFLOPS Single Precision
7.8 TFLOPS Double Precision
125 TFLOPS for Deep Learning (Tensor ”cores”)
12
https://devblogs.nvidia.com/inside-volta/

Food for Thought
 What is the main bottleneck in GPU programs?
 “Tensor cores”:
 Can you think about other operations than matrix multiplication?
 What other applications could benefit from specialized cores?
 Compare and contrast GPUs vs other accelerators (e.g., systolic
arrays)
 Which one is better for machine learning?
 Which one is better for image/vision processing?
 What types of parallelism each one exploits?
 What are the tradeoffs?
13

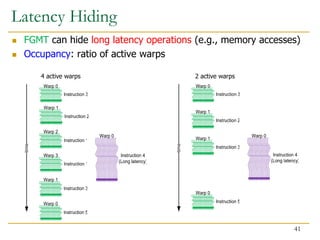

Recall: Latency Hiding via Warp-Level FGMT
 Warp: A set of threads that
execute the same instruction
(on different data elements)
 Fine-grained multithreading
 One instruction per thread in
pipeline at a time (No
interlocking)
 Interleave warp execution to
hide latencies
 Register values of all threads stay
in register file
 FGMT enables long latency
tolerance
 Millions of pixels
14
Decode
RF
RF
RF
ALU
ALU
ALU
D-Cache
Thread Warp 6
Thread Warp 1
Thread Warp 2
Data
All Hit?
Miss?
Warps accessing
memory hierarchy
Thread Warp 3
Thread Warp 8
Writeback
Warps available
for scheduling
Thread Warp 7
I-Fetch
SIMD Pipeline
Slide credit: Tor Aamodt

Recall: Warp Execution
15
32-thread warp executing ADD A[tid],B[tid]  C[tid]
C[1]
C[2]
C[0]
A[3] B[3]
A[4] B[4]
A[5] B[5]
A[6] B[6]
Execution using
one pipelined
functional unit
C[4]
C[8]
C[0]
A[12] B[12]
A[16] B[16]
A[20] B[20]
A[24] B[24]
C[5]
C[9]
C[1]
A[13] B[13]
A[17] B[17]
A[21] B[21]
A[25] B[25]
C[6]
C[10]
C[2]
A[14] B[14]
A[18] B[18]
A[22] B[22]
A[26] B[26]
C[7]
C[11]
C[3]
A[15] B[15]
A[19] B[19]
A[23] B[23]
A[27] B[27]
Execution using
four pipelined
functional units
Slide credit: Krste Asanovic
Time
Space
Time

16
Lane
Functional Unit
Registers
for each
Thread
Memory Subsystem
Registers for
thread IDs
0, 4, 8, …
Registers for
thread IDs
1, 5, 9, …
Registers for
thread IDs
2, 6, 10, …
Registers for
thread IDs
3, 7, 11, …
Recall: SIMD Execution Unit Structure

Recall: Warp Instruction Level Parallelism
Can overlap execution of multiple instructions
 Example machine has 32 threads per warp and 8 lanes
 Completes 24 operations/cycle while issuing 1 warp/cycle
17
W3
W0
W1
W4
W2
W5
Load Unit Multiply Unit Add Unit
time
Warp issue

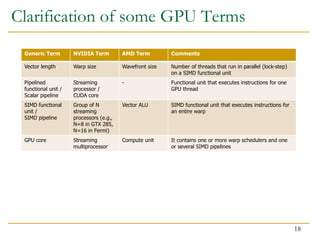

Clarification of some GPU Terms
18
Generic Term NVIDIA Term AMD Term Comments
Vector length Warp size Wavefront size Number of threads that run in parallel (lock-step)
on a SIMD functional unit
Pipelined
functional unit /
Scalar pipeline
Streaming
processor /
CUDA core
- Functional unit that executes instructions for one
GPU thread
SIMD functional
unit /
SIMD pipeline
Group of N
streaming
processors (e.g.,
N=8 in GTX 285,
N=16 in Fermi)
Vector ALU SIMD functional unit that executes instructions for
an entire warp
GPU core Streaming
multiprocessor
Compute unit It contains one or more warp schedulers and one
or several SIMD pipelines

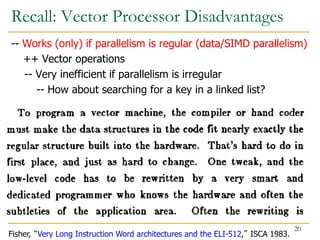

Recall: Vector Processor Disadvantages
-- Works (only) if parallelism is regular (data/SIMD parallelism)
++ Vector operations
-- Very inefficient if parallelism is irregular
-- How about searching for a key in a linked list?
20
Fisher, “Very Long Instruction Word architectures and the ELI-512,” ISCA 1983.

General Purpose Processing on GPU
 Easier programming of SIMD processors with SPMD
 GPUs have democratized High Performance Computing (HPC)
 Great FLOPS/$, massively parallel chip on a commodity PC
 Many workloads exhibit inherent parallelism
 Matrices
 Image processing
 Deep neural networks
 However, this is not for free
 New programming model
 Algorithms need to be re-implemented and rethought
 Still some bottlenecks
 CPU-GPU data transfers (PCIe, NVLINK)
 DRAM memory bandwidth (GDDR5, GDDR6, HBM2)
 Data layout
21

CPU vs. GPU
 Different design philosophies
 CPU: A few out-of-order cores
 GPU: Many in-order FGMT cores
22
Slide credit: Hwu & Kirk

GPU Computing
 Computation is offloaded to the GPU
 Three steps
 CPU-GPU data transfer (1)
 GPU kernel execution (2)
 GPU-CPU data transfer (3)
CPU
memory
CPU
cores
Matrix
GPU
memory
GPU
cores
Matrix
1
3
2
23

 CPU threads and GPU kernels
 Sequential or modestly parallel sections on CPU
 Massively parallel sections on GPU
Serial Code (host)
. . .
. . .
Parallel Kernel (device)
KernelA<<< nBlk, nThr >>>(args);
Serial Code (host)
Parallel Kernel (device)
KernelB<<< nBlk, nThr >>>(args);
Traditional Program Structure
24

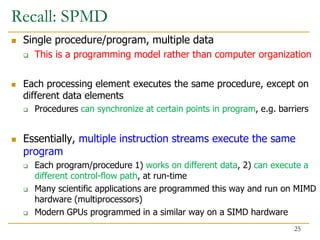

Recall: SPMD
 Single procedure/program, multiple data
 This is a programming model rather than computer organization
 Each processing element executes the same procedure, except on
different data elements
 Procedures can synchronize at certain points in program, e.g. barriers
 Essentially, multiple instruction streams execute the same
program
 Each program/procedure 1) works on different data, 2) can execute a
different control-flow path, at run-time
 Many scientific applications are programmed this way and run on MIMD
hardware (multiprocessors)
 Modern GPUs programmed in a similar way on a SIMD hardware
25

CUDA/OpenCL Programming Model
 SIMT or SPMD
 Bulk synchronous programming
 Global (coarse-grain) synchronization between kernels
 The host (typically CPU) allocates memory, copies data,
and launches kernels
 The device (typically GPU) executes kernels
 Grid (NDRange)
 Block (work-group)
 Within a block, shared memory, and synchronization
 Thread (work-item)
26

Transparent Scalability
 Hardware is free to schedule thread blocks
Device
Block 0 Block 1
Block 2 Block 3
Block 4 Block 5
Block 6 Block 7
Kernel grid
Block 0 Block 1
Block 2 Block 3
Block 4 Block 5
Block 6 Block 7
Device
Block 0 Block 1 Block 2 Block 3
Block 4 Block 5 Block 6 Block 7
Each block can execute in any order relative to other blocks.
time
27
time

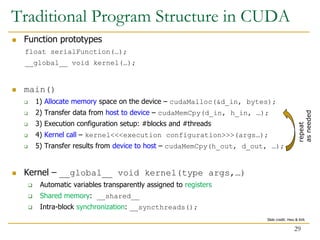

 Function prototypes
float serialFunction(…);
__global__ void kernel(…);
 main()
 1) Allocate memory space on the device – cudaMalloc(&d_in, bytes);
 2) Transfer data from host to device – cudaMemCpy(d_in, h_in, …);
 3) Execution configuration setup: #blocks and #threads
 4) Kernel call – kernel<<<execution configuration>>>(args…);
 5) Transfer results from device to host – cudaMemCpy(h_out, d_out, …);
 Kernel – __global__ void kernel(type args,…)
 Automatic variables transparently assigned to registers
 Shared memory: __shared__
 Intra-block synchronization: __syncthreads();
repeat
as
needed
Traditional Program Structure in CUDA
29

CUDA Programming Language
 Memory allocation
cudaMalloc((void**)&d_in, #bytes);
 Memory copy
cudaMemcpy(d_in, h_in, #bytes, cudaMemcpyHostToDevice);
 Kernel launch
kernel<<< #blocks, #threads >>>(args);
 Memory deallocation
cudaFree(d_in);
 Explicit synchronization
cudaDeviceSynchronize();
30

Indexing and Memory Access
 Images are 2D data structures
 height x width
 Image[j][i], where 0 ≤ j < height, and 0 ≤ i < width
Image[0][1]
Image[1][2]
31
0 1 2 3 4 5 6 7
0
1
2
3
4
5
6
7

Image Layout in Memory
 Row-major layout
 Image[j][i] = Image[j x width + i]
Image[0][1] = Image[0 x 8 + 1]
Image[1][2] = Image[1 x 8 + 2]
32
Stride = width

Indexing and Memory Access: 1D Grid
 One GPU thread per pixel
 Grid of Blocks of Threads
 gridDim.x, blockDim.x
 blockIdx.x, threadIdx.x
Block 0
Block 0
Thread
0
Thread
1
Thread
2
Thread
3
blockIdx.x
threadIdx.x
blockIdx.x * blockDim.x +
threadIdx.x
6 * 4 + 1 = 25
33

Indexing and Memory Access: 2D Grid
 2D blocks
 gridDim.x, gridDim.y
Block (0, 0)
blockIdx.x = 2
blockIdx.y = 1
Row = blockIdx.y *
blockDim.y + threadIdx.y
Row = 1 * 2 + 1 = 3
threadIdx.x = 1
threadIdx.y = 0
Col = blockIdx.x *
blockDim.x + threadIdx.x
Col = 0 * 2 + 1 = 1
Image[3][1] = Image[3 * 8 + 1]
34

Brief Review of GPU Architecture (I)
 Streaming Processor Array
 Tesla architecture (G80/GT200)
35

Brief Review of GPU Architecture (II)
 Streaming Multiprocessors (SM)
 Streaming Processors (SP)
 Blocks are divided into warps
 SIMD unit (32 threads)
…
t0 t1 t2 … t31
…
…
t0 t1 t2 … t31
…
Block 0’s warps Block 1’s warps
…
t0 t1 t2 … t31
…
Block 2’s warps
36
NVIDIA Fermi architecture

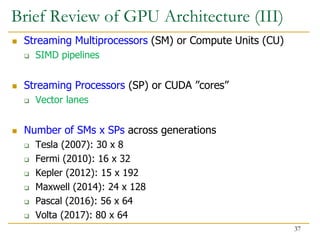

Brief Review of GPU Architecture (III)
 Streaming Multiprocessors (SM) or Compute Units (CU)
 SIMD pipelines
 Streaming Processors (SP) or CUDA ”cores”
 Vector lanes
 Number of SMs x SPs across generations
 Tesla (2007): 30 x 8
 Fermi (2010): 16 x 32
 Kepler (2012): 15 x 192
 Maxwell (2014): 24 x 128
 Pascal (2016): 56 x 64
 Volta (2017): 80 x 64
37

Performance Considerations
 Main bottlenecks
 Global memory access
 CPU-GPU data transfers
 Memory access
 Latency hiding
 Occupancy
 Memory coalescing
 Data reuse
 Shared memory usage
 SIMD (Warp) Utilization: Divergence
 Atomic operations: Serialization
 Data transfers between CPU and GPU
 Overlap of communication and computation
39

Latency Hiding
 FGMT can hide long latency operations (e.g., memory accesses)
 Occupancy: ratio of active warps
4 active warps 2 active warps
41

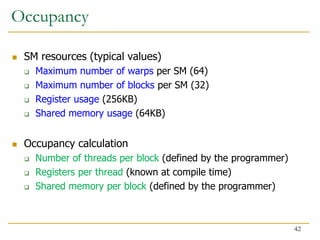

Occupancy
 SM resources (typical values)
 Maximum number of warps per SM (64)
 Maximum number of blocks per SM (32)
 Register usage (256KB)
 Shared memory usage (64KB)
 Occupancy calculation
 Number of threads per block (defined by the programmer)
 Registers per thread (known at compile time)
 Shared memory per block (defined by the programmer)
42

 When accessing global memory, we want to make sure
that concurrent threads access nearby memory locations
 Peak bandwidth utilization occurs when all threads in a
warp access one cache line
Md Nd
WIDTH
WIDTH
Thread 1
Thread 2
Not coalesced Coalesced
Memory Coalescing
43

Uncoalesced Memory Accesses
M2,0
M1,1
M1,0
M0,0
M0,1
M3,0
M2,1M3,1
M2,0
M1,0
M0,0 M3,0 M1,1
M0,1 M2,1M3,1 M1,2
M0,2 M2,2M3,2
M1,2
M0,2 M2,2M3,2
M1,3
M0,3 M2,3M3,3
M1,3
M0,3 M2,3M3,3
M
T1 T2 T3 T4
Time Period 1
T1 T2 T3 T4
Time Period 2
Access
direction
in Kernel
code
…
44

Coalesced Memory Accesses
M2,0
M1,1
M1,0
M0,0
M0,1
M3,0
M2,1 M3,1
M2,0
M1,0
M0,0 M3,0 M1,1
M0,1 M2,1 M3,1 M1,2
M0,2 M2,2 M3,2
M1,2
M0,2 M2,2 M3,2
M1,3
M0,3 M2,3 M3,3
M1,3
M0,3 M2,3 M3,3
M
T1 T2 T3 T4
Time Period 1
T1 T2 T3 T4
Time Period 2
Access
direction
in Kernel
code
…
45

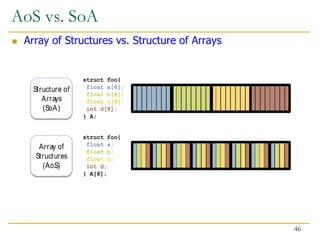

AoS vs. SoA
 Array of Structures vs. Structure of Arrays
Tenemos 2 data layouts principales (AoS y SoA) y uno nuevo propuesto (A
ASTA permite transformar uno en otro más rápidamente y facilita hacerlo in-place
ahorrar memoria. En la siguiente figura se ven los tres:
Data Layout Alternatives
Array of
Structures
(AoS)
Array of
Structure of
Tiled Array
(ASTA)
struct foo{
float a;
float b;
float c;
int d;
} A[8];
struct foo{
float a[4];
float b[4];
float c[4];
int d[4];
} A[2];
Structure of
Arrays
(SoA)
struct foo{
float a[8];
float b[8];
float c[8];
int d[8];
} A;
Layout Conversion and Transposition 46

CPUs Prefer AoS, GPUs Prefer SoA
 Linear and strided accesses
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
1 2 4 8 16 32 64 128 256 512 1024
Throughput
(GB/s)
Stride (Structure size)
GPU
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
1 2 4 8 16 32 64 128 256 512 1024
Throughput
(GB/s) Stride (Structure size)
1CPU 2CPU 4CPU
AMD Kaveri A10-7850K
GPU CPU
47
Sung+, “DL: A data layout transformation system for heterogeneous computing,” INPAR 2012

Data Reuse
 Same memory locations accessed by neighboring threads
for (int i = 0; i < 3; i++){
for (int j = 0; j < 3; j++){
sum += gauss[i][j] * Image[(i+row-1)*width + (j+col-1)];
}
}
48

Data Reuse: Tiling
 To take advantage of data reuse, we divide the input into tiles
that can be loaded into shared memory
__shared__ int l_data[(L_SIZE+2)*(L_SIZE+2)];
…
Load tile into shared memory
__syncthreads();
for (int i = 0; i < 3; i++){
for (int j = 0; j < 3; j++){
sum += gauss[i][j] * l_data[(i+l_row-1)*(L_SIZE+2)+j+l_col-1];
}
}
49

Shared Memory
 Shared memory is an interleaved (banked) memory
 Each bank can service one address per cycle
 Typically, 32 banks in NVIDIA GPUs
 Successive 32-bit words are assigned to successive banks
 Bank = Address % 32
 Bank conflicts are only possible within a warp
 No bank conflicts between different warps
50

Shared Memory Bank Conflicts (I)
 Bank conflict free
Bank 15
Bank 7
Bank 6
Bank 5
Bank 4
Bank 3
Bank 2
Bank 1
Bank 0
Thread 15
Thread 7
Thread 6
Thread 5
Thread 4
Thread 3
Thread 2
Thread 1
Thread 0
Bank 15
Bank 7
Bank 6
Bank 5
Bank 4
Bank 3
Bank 2
Bank 1
Bank 0
Thread 15
Thread 7
Thread 6
Thread 5
Thread 4
Thread 3
Thread 2
Thread 1
Thread 0
Linear addressing: stride = 1 Random addressing 1:1
51

Shared Memory Bank Conflicts (II)
 N-way bank conflicts
2-way bank conflict: stride = 2 8-way bank conflict: stride = 8
Thread 11
Thread 10
Thread 9
Thread 8
Thread 4
Thread 3
Thread 2
Thread 1
Thread 0
Bank 15
Bank 7
Bank 6
Bank 5
Bank 4
Bank 3
Bank 2
Bank 1
Bank 0
Thread 15
Thread 7
Thread 6
Thread 5
Thread 4
Thread 3
Thread 2
Thread 1
Thread 0
Bank 9
Bank 8
Bank 15
Bank 7
Bank 2
Bank 1
Bank 0
x8
x8
52

Reducing Shared Memory Bank Conflicts
 Bank conflicts are only possible within a warp
 No bank conflicts between different warps
 If strided accesses are needed, some optimization
techniques can help
 Padding
 Randomized mapping
 Rau, “Pseudo-randomly interleaved memory,” ISCA 1991
 Hash functions
 V.d.Braak+, “Configurable XOR Hash Functions for Banked
Scratchpad Memories in GPUs,” IEEE TC, 2016
53

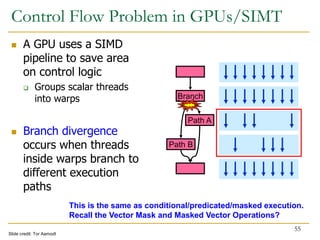

Control Flow Problem in GPUs/SIMT
 A GPU uses a SIMD
pipeline to save area
on control logic
 Groups scalar threads
into warps
 Branch divergence
occurs when threads
inside warps branch to
different execution
paths
55
Branch
Path A
Path B
Branch
Path A
Path B
Slide credit: Tor Aamodt
This is the same as conditional/predicated/masked execution.
Recall the Vector Mask and Masked Vector Operations?

SIMD Utilization
 Intra-warp divergence
Compute(threadIdx.x);
if (threadIdx.x % 2 == 0){
Do_this(threadIdx.x);
}
else{
Do_that(threadIdx.x);
}
Compute
If
Else
56

Increasing SIMD Utilization
 Divergence-free execution
Compute(threadIdx.x);
if (threadIdx.x < 32){
Do_this(threadIdx.x * 2);
}
else{
Do_that((threadIdx.x%32)*2+1);
}
Compute
If
Else
57

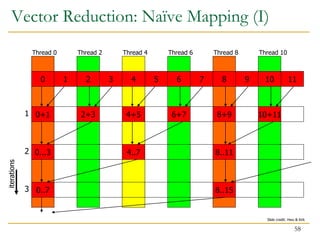

Vector Reduction: Naïve Mapping (I)
0 1 2 3 4 5 7
6 10
9
8 11
0+1 2+3 4+5 6+7 10+11
8+9
0...3 4..7 8..11
0..7 8..15
1
2
3
iterations
Thread 0 Thread 8
Thread 2 Thread 4 Thread 6 Thread 10
58

Vector Reduction: Naïve Mapping (II)
 Program with low SIMD utilization
__shared__ float partialSum[]
unsigned int t = threadIdx.x;
for (int stride = 1; stride < blockDim.x; stride *= 2) {
__syncthreads();
if (t % (2*stride) == 0)
partialSum[t] += partialSum[t + stride];
}
59

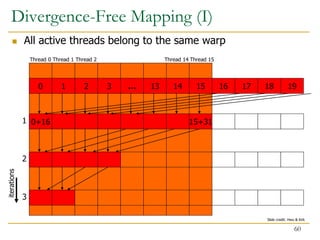

Divergence-Free Mapping (I)
 All active threads belong to the same warp
Thread 0
0 1 2 3 … 13 15
14 18
17
16 19
0+16 15+31
1
2
3
Thread 1 Thread 2 Thread 14 Thread 15
iterations
60

Divergence-Free Mapping (II)
 Program with high SIMD utilization
__shared__ float partialSum[]
unsigned int t = threadIdx.x;
for (int stride = blockDim.x; stride > 1; stride >> 1){
__syncthreads();
if (t < stride)
partialSum[t] += partialSum[t + stride];
}
61

 Atomic Operations are needed when threads might update the
same memory locations at the same time
 CUDA: int atomicAdd(int*, int);
 PTX: atom.shared.add.u32 %r25, [%rd14], %r24;
 SASS:
/*00a0*/ LDSLK P0, R9, [R8];
/*00a8*/ @P0 IADD R10, R9, R7;
/*00b0*/ @P0 STSCUL P1, [R8], R10;
/*00b8*/ @!P1 BRA 0xa0;
/*01f8*/ ATOMS.ADD RZ, [R7], R11;
Native atomic operations for
32-bit integer, and 32-bit and
64-bit atomicCAS
Tesla, Fermi, Kepler Maxwell, Pascal, Volta
Shared Memory Atomic Operations
63

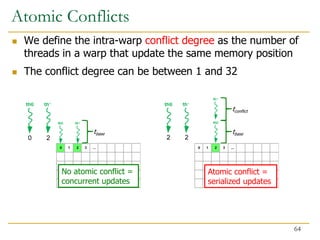

 We define the intra-warp conflict degree as the number of
threads in a warp that update the same memory position
 The conflict degree can be between 1 and 32
tbase
tconflict
Shared memory
Shared memory
tbase
No atomic conflict =
concurrent updates
Atomic conflict =
serialized updates
Atomic Conflicts
64

Histogram Calculation
 Histograms count the number of data instances in disjoint
categories (bins)
for (each pixel i in image I){
Pixel = I[i] // Read pixel
Pixel’ = Computation(Pixel) // Optional computation
Histogram[Pixel’]++ // Vote in histogram bin
}
Atomic additions
65

Histogram Calculation of Natural Images
 Frequent conflicts in natural images
66

Optimizing Histogram Calculation
 Privatization: Per-block sub-histograms in shared memory
Block 0’s sub-histo Block 1’s sub-histo Block 2’s sub-histo Block 3’s sub-histo
Global memory
Final histogram
Shared memory
67
Gomez-Luna+, “Performance Modeling of Atomic Additions on GPU Scratchpad
Memory,” IEEE TPDS, 2013.

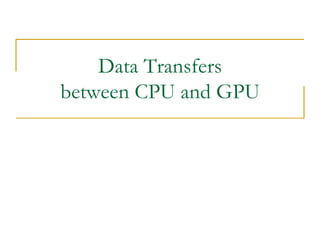

Data Transfers
between CPU and GPU

Data Transfers
 Synchronous and asynchronous transfers
 Streams (Command queues)
 Sequence of operations that are performed in order
 CPU-GPU data transfer
 Kernel execution
 D input data instances, B blocks
 GPU-CPU data transfer
 Default stream
69

Asynchronous Transfers
 Computation divided into nStreams
 D input data instances, B blocks
 nStreams
 D/nStreams data instances
 B/nStreams blocks
 Estimates tT +
tE
nStreams
tE +
tT
nStreams
tE >= tT (dominant kernel) tT > tE (dominant transfers)
70

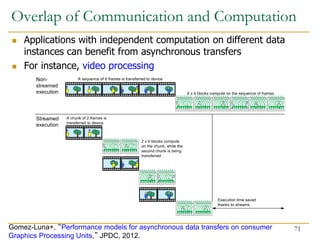

 Applications with independent computation on different data
instances can benefit from asynchronous transfers
 For instance, video processing
Overlap of Communication and Computation
71
Gomez-Luna+, “Performance models for asynchronous data transfers on consumer
Graphics Processing Units,” JPDC, 2012.

Summary
 GPU as an accelerator
 Program structure
 Bulk synchronous programming model
 Memory hierarchy and memory management
 Performance considerations
 Memory access
 Latency hiding: occupancy (TLP)
 Memory coalescing
 Data reuse: shared memory
 SIMD utilization
 Atomic operations
 Data transfers
72

// Allocate input
malloc(input, ...);
cudaMalloc(d_input, ...);
cudaMemcpy(d_input, input, ..., HostToDevice); // Copy to device memory
// Allocate output
malloc(output, ...);
cudaMalloc(d_output, ...);
// Launch GPU kernel
gpu_kernel<<<blocks, threads>>> (d_output, d_input, ...);
// Synchronize
// Copy output to host memory
cudaMemcpy(output, d_output, ..., DeviceToHost);
Review
 Device allocation, CPU-GPU transfer, and GPU-CPU transfer
 cudaMalloc();
 cudaMemcpy();
74

Unified Memory (I)
 Unified Virtual Address
 Since CUDA 6.0: Unified memory
 Since CUDA 8.0 + Pascal: GPU page faults
75

// Allocate input
malloc(input, ...);
cudaMallocManaged(d_input, ...);
memcpy(d_input, input, ...); // Copy to managed memory
// Allocate output
cudaMallocManaged(d_output, ...);
// Synchronize
Unified Memory (II)
 Easier programming with Unified Memory
 cudaMallocManaged();
76

 Case studies using CPU and GPU
 Kernel launches are asynchronous
 CPU can work while waits for GPU to finish
 Traditionally, this is the most efficient way to exploit
heterogeneity
// Allocate input
malloc(input, ...);
cudaMalloc(d_input, ...);
cudaMemcpy(d_input, input, ..., HostToDevice); // Copy to device memory
// Allocate output
malloc(output, ...);
cudaMalloc(d_output, ...);
// CPU can do things here
// Synchronize
// Copy output to host memory
cudaMemcpy(output, d_output, ..., DeviceToHost);
Collaborative Computing Algorithms
77

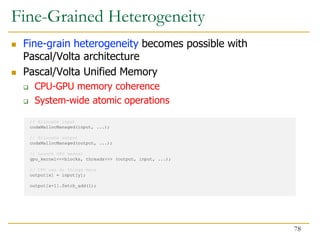

 Fine-grain heterogeneity becomes possible with
Pascal/Volta architecture
 Pascal/Volta Unified Memory
 CPU-GPU memory coherence
 System-wide atomic operations
// Allocate input
cudaMallocManaged(input, ...);
// Allocate output
cudaMallocManaged(output, ...);
gpu_kernel<<<blocks, threads>>> (output, input, ...);
// CPU can do things here
output[x] = input[y];
output[x+1].fetch_add(1);
Fine-Grained Heterogeneity
78

Since CUDA 8.0
 Unified memory
cudaMallocManaged(&h_in, in_size);
 System-wide atomics
old = atomicAdd_system(&h_out[x], inc);
79

Since OpenCL 2.0
 Shared virtual memory
XYZ * h_in = (XYZ *)clSVMAlloc(
ocl.clContext, CL_MEM_SVM_FINE_GRAIN_BUFFER, in_size, 0);
 More flags:
CL_MEM_READ_WRITE
CL_MEM_SVM_ATOMICS
 C++11 atomic operations
(memory_scope_all_svm_devices)
old = atomic_fetch_add(&h_out[x], inc);
80

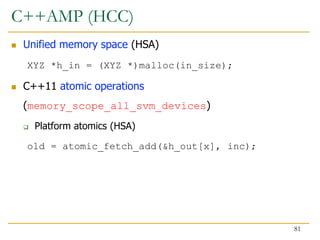

C++AMP (HCC)
 Unified memory space (HSA)
XYZ *h_in = (XYZ *)malloc(in_size);
 C++11 atomic operations
(memory_scope_all_svm_devices)
 Platform atomics (HSA)
old = atomic_fetch_add(&h_out[x], inc);
81

…
…
data-parallel tasks
sequential
sub-tasks
coarse-grained
synchronization
Program Structure Data Partitioning
…
…
Device 1 Device 2
…
…
Collaborative Patterns (I)
82

…
…
data-parallel tasks
sequential
sub-tasks
coarse-grained
synchronization
Program Structure
…
…
Device 1 Device 2

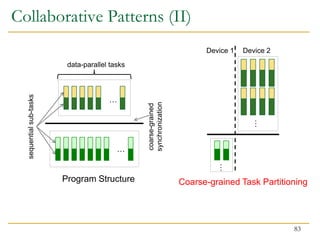

Coarse-grained Task Partitioning
Collaborative Patterns (II)
83

…
…
data-parallel tasks
sequential
sub-tasks
coarse-grained
synchronization
Program Structure Fine-grained Task
Partitioning
Device 1 Device 2
…
…
…
…
…
…
Collaborative Patterns (III)
84

SM#0 SM#1
CPU
core#0
Block
0
Block
1
Block
2
Block
3
CPU
core#1
CPU
core#2
CPU
core#3
0 0 0 0 0 0
... 0 0 0 0 0 0
...
0 0 0 0 0 0
...
malloc(CPU image);
cudaMalloc(GPU image);
cudaMemcpy(GPU image, CPU image, ...,
Host to Device);
malloc(CPU histogram);
memset(CPU histogram, 0);
cudaMalloc(GPU histogram);
cudaMemset(GPU histogram, 0);
// Launch CPU threads
cudaMemcpy(GPU histogram, DeviceToHost);
// Launch CPU threads for merging
Histogram (I)
 Previous generations: separate CPU and GPU histograms
are merged at the end
85

cudaMallocManaged(Histogram);
cudaMemset(Histogram, 0);
// Launch GPU kernel (atomicAdd_system)
SM#0 SM#1
CPU
core#0
Block
0
Block
1
Block
2
Block
3
CPU
core#1
CPU
core#2
CPU
core#3
0 0 0 0 0 0
...
Histogram (II)
 System-wide atomic operations: one single histogram
86

Bézier Surfaces (I)
 Bézier surface: 4x4 net of control points
87

Bézier Surfaces (II)
 Parametric non-rational formulation
 Bernstein polynomials
 Bi-cubic surface m = n = 3
88

Bézier Surfaces (III)
 Collaborative implementation
 Tiles calculated by GPU blocks or CPU threads
 Static distribution
89

// Allocate control points
malloc(control_points, ...);
generate_cp(control_points);
cudaMalloc(d_control_points, ...);
cudaMemcpy(d_control_points, control_points, ..., HostToDevice); // Copy to device memory
// Allocate surface
malloc(surface, ...);
cudaMalloc(d_surface, ...);
std::thread main_thread (run_cpu_threads, control_points, surface, ...);
gpu_kernel<<<blocks, threads>>> (d_surface, d_control_points, ...);
// Synchronize
main_thread.join();
// Copy gpu part of surface to host memory
cudaMemcpy(&surface[end_of_cpu_part], d_surface, ..., DeviceToHost);

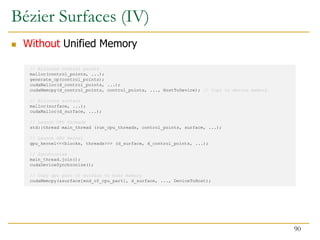

Bézier Surfaces (IV)
 Without Unified Memory
90

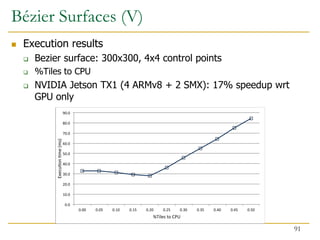

 Execution results
 Bezier surface: 300x300, 4x4 control points
 %Tiles to CPU
 NVIDIA Jetson TX1 (4 ARMv8 + 2 SMX): 17% speedup wrt
GPU only
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50
Execu
on
me
(ms)
%Tiles to CPU
Bézier Surfaces (V)
91

// Allocate control points
malloc(control_points, ...);
generate_cp(control_points);
cudaMalloc(d_control_points, ...);
cudaMemcpy(d_control_points, control_points, ..., HostToDevice); // Copy to device memory
// Allocate surface
cudaMallocManaged(surface, ...);
std::thread main_thread (run_cpu_threads, control_points, surface, ...);
gpu_kernel<<<blocks, threads>>> (surface, d_control_points, ...);
// Synchronize
main_thread.join();
Bézier Surfaces (VI)
 With Unified Memory (Pascal/Volta)
92

 Static vs. dynamic implementation
 Pascal/Volta Unified Memory: system-wide atomic operations
while(true){
if(threadIdx.x == 0)
my_tile = atomicAdd_system(tile_num, 1); // my_tile in shared memory; tile_num in UM
__syncthreads(); // Synchronization
if(my_tile >= number_of_tiles) break; // Break when all tiles processed
...
}
Bézier Surfaces (VII)
93

Benefits of Collaboration
 Data partitioning improves performance
 AMD Kaveri (4 CPU cores + 8 GPU CUs)
4
16
64
256
1024
4096
Execution
Time
(
ms
)
12x12 (300x300)
8x8 (300x300)
4x4 (300x300)
Bézier Surfaces
(up to 47% improvement over GPU only)
best
94

 Matrix padding
 Memory alignment
 Transposition of near-square matrices
 Traditionally, it can only be performed out-of-place
Padding
Padding (I)
95

 Matrix size: 4000x4000, padding = 1
GPU only
0
20
40
60
80
100
120
0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.55 0.60
Execu
on
me
(ms)
%CPU workload
Padding (II)
96

1
GPU temporary
location
1
1
Coherent
memory
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Adjacent synchronization:
CPU and GPU
In-place implementation will
be possible
Flags
CPU temporary
location
In-Place Padding
97

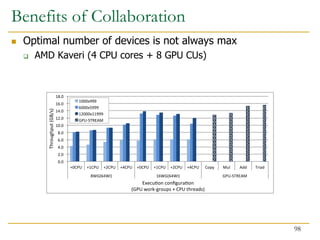

 Optimal number of devices is not always max
98

2 1 3 0 0 1 3 4 0 0 2 1
2 1 3 1 3 4 2 1
Predicate: Element > 0
Input
Output
Stream compaction
Stream Compaction (I)
 Stream compaction
 Saving memory storage in sparse data
 Similar to padding, but local reduction result (non-zero
element count) is propagated
99

0
2
4
6
8
10
12
14
0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.55 0.60
Execu
on
me
(ms)
%CPU workload
Stream Compaction (II)
 Array size: 2 MB, Filtered items = 50%
GPU only
100

 Data partitioning improves performance
8
32
128
512
Execution
Time
(
ms
)
1
0.5
0
Stream Compaction
best
101

Breadth-First Search
 Small-sized and big-sized frontiers
 Top-down approach
 Kernel 1 and Kernel 2
 Atomic-based block synchronization
 Avoids kernel re-launch
 Very small frontiers
 Underutilize GPU resources
 Collaborative implementation
102

SM#0 SM#1
Block
0
Block
1
Block
2
Block
3
Block
2n
Block
2n
Block
2n
Block
2n
Block
4
SM#0 SM#1
Block
0
Block
1
Block
2
Block
3
Block
2n
Block
2n
Block
2n
Block
2n
Block
4
Atomic-Based Block Synchronization (I)
 Combine Kernel 1 and Kernel 2
 We can avoid kernel re-launch
 We need to use persistent thread blocks
 Kernel 2 launches (frontier_size / block_size) blocks
 Persistent blocks: up to (number_SMs x max_blocks_SM)
103

// GPU kernel
const int gtid = blockIdx.x * blockDim.x + threadIdx.x;
while(frontier_size != 0){
for(node = gtid; node < frontier_size; node += blockDim.x*gridDim.x){
// Visit neighbors
// Enqueue in output queue if needed (global or local queue)
}
// Update frontier_size
// Global synchronization
}
Atomic-Based Block Synchronization (II)
 Code (simplified)
104

const int tid = threadIdx.x;
const int gtid = blockIdx.x * blockDim.x + threadIdx.x;
atomicExch(ptr_threads_run, 0);
atomicExch(ptr_threads_end, 0);
int frontier = 0;
...
frontier++;
if(tid == 0){
atomicAdd(ptr_threads_end, 1); // Thread block finishes iteration
}
if(gtid == 0){
while(atomicAdd(ptr_threads_end, 0) != gridDim.x){;} // Wait until all blocks finish
atomicExch(ptr_threads_end, 0); // Reset
atomicAdd(ptr_threads_run, 1); // Count iteration
}
if(tid == 0 && gtid != 0){
while(atomicAdd(ptr_threads_run, 0) < frontier){;} // Wait until ptr_threads_run is updated
}
__syncthreads(); // Rest of threads wait here
...
Atomic-Based Block Synchronization (III)
 Global synchronization (simplified)
 At the end of each iteration
105

Collaborative Implementation (I)
 Motivation
 Small-sized frontiers underutilize GPU resources
 NVIDIA Jetson TX1 (4 ARMv8 CPUs + 2 SMXs)
 New York City roads
106

Collaborative Implementation (II)
 Choose the most appropriate device
CPU GPU
small frontiers
processed on
CPU
large frontiers
processed on
GPU
107

 Choose CPU or GPU depending on frontier size
 CPU threads or GPU kernel keep running while the
condition is satisfied
// Host code
if(frontier_size < LIMIT){
}
else{
}
}
Collaborative Implementation (III)

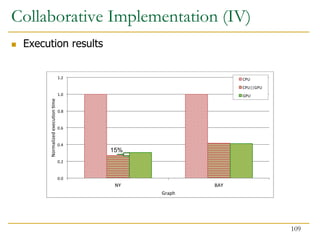

108

15%
Collaborative Implementation (IV)
109

// Host code
}
else{
// Copy from host to device (queues and synchronization variables)
// Copy from device to host (queues and synchronization variables)
}
}
Collaborative Implementation (V)
 Without Unified Memory
 Explicit memory copies
110

// Host code
}
else{
}
}
Collaborative Implementation (VI)
 Unified Memory
 cudaMallocManaged();
 Easier programming
 No explicit memory copies
111

Collaborative Implementation (VII)
 CPU/GPU coherence
 System-wide atomic operations
 No need to re-launch kernel or CPU threads
 Possibility of CPU and GPU working on the same frontier
112

 SSSP performs more computation than BFS
16
128
1024
8192
65536
524288
Execution
Time
(
ms
)
NE
NY
UT
Single Source Shortest Path
113

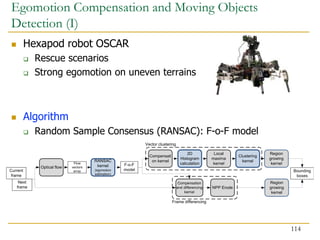

Egomotion Compensation and Moving Objects
Detection (I)
 Hexapod robot OSCAR
 Rescue scenarios
 Strong egomotion on uneven terrains
 Algorithm
 Random Sample Consensus (RANSAC): F-o-F model
114

Egomotion Compensation and Moving Objects
Detection (II)
115

While (iteration < MAX_ITER){
Fitting stage (Compute F-o-F model) // SISD phase
Evaluation stage (Count outliers) // SIMD phase
Comparison to best model // SISD phase
Check if best model is good enough and iteration >= MIN_ITER // SISD phase
}
SISD and SIMD phases
 RANSAC (Fischler et al. 1981)
 Fitting stage picks two flow
vectors randomly
 Evaluation generates motion
vectors from F-o-F model, and
compares them to real flow
vectors
116

Collaborative Implementation
 Randomly picked vectors: Iterations are independent
 We assign one iteration to one CPU thread and one GPU block
117

https://chai-benchmarks.github.io

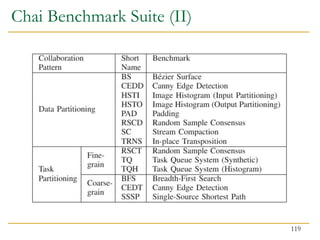

Chai Benchmark Suite (I)
 Collaboration patterns
 8 data partitioning benchmarks
 3 coarse-grain task partitioning benchmarks
 3 fine-grain task partitioning benchmarks
118

We did not cover the following slides in lecture.
These are for your preparation for the next lecture.

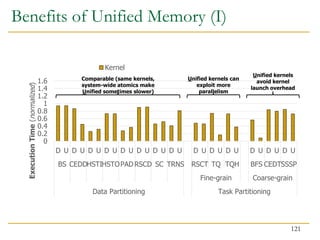

Benefits of Unified Memory (I)
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
D U D U D U D U D U D U D U D U D U D U D U D U D U D U
BS CEDDHSTIHSTOPADRSCD SC TRNS RSCT TQ TQH BFS CEDTSSSP
Fine-grain Coarse-grain
Data Partitioning Task Partitioning
Execution
Time
(
normalized
)
Kernel
Comparable (same kernels,
system-wide atomics make
Unified sometimes slower)
Unified kernels can
exploit more
parallelism
Unified kernels
avoid kernel
launch overhead
121

Benefits of Unified Memory (II)
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
Execution
Time
(
normalized
)
Kernel Copy Back & Merge Copy To Device
Unified versions avoid copy overhead
122

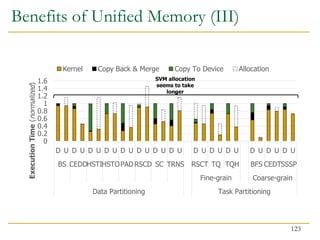

Benefits of Unified Memory (III)
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
Execution
Time
(
normalized
)
Kernel Copy Back & Merge Copy To Device Allocation
SVM allocation
seems to take
longer
123

Benefits of Collaboration on FPGA (I)
0.0
0.2
0.4
0.6
0.8
1.0
1.2
C F C F C F C F C F C F C F C F
CPU FPGA Data Task CPU FPGA Data Task
Single device Collaborative Single device Collaborative
Stratix V Arria 10
Execution
Time
(s)
Idle
Copy
Compute
Case Study:
Canny Edge
Detection
Source: Collaborative Computing for Heterogeneous Integrated Systems. ICPE’17
Vision Track.
Similar
improvement
from data and
task partitioning
124

Benefits of Collaboration on FPGA (II)
Case Study:
Random
Sample
Consensus
0
5
10
15
20
25
30
35
40
45
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
Execution
Time
(ms)
Data Partitioning (Stratix V)
Task Partitioning (Stratix V)
Data Partitioning (Arria 10)
Task Partitioning (Arria 10)
Source: Collaborative Computing for Heterogeneous Integrated Systems. ICPE’17
Vision Track.
Task partitioning
exploits disparity in
nature of tasks
125

Benefits of Collaboration on FPGA (III)
126
 Sitao Huang, Li-Wen Chang, Izzat El Hajj, Simon Garcia De Gonzalo, Juan Gomez-Luna, Sai Rahul
Chalamalasetti, Mohamed El-Hadedy, Dejan Milojicic, Onur Mutlu, Deming Chen, and Wen-mei Hwu,
"Analysis and Modeling of Collaborative Execution Strategies for Heterogeneous CPU-
FPGA Architectures"
Proceedings of the 10th ACM/SPEC International Conference on Performance Engineering (ICPE),
Mumbai, India, April 2019.
[Slides (pptx) (pdf)]
[Chai CPU-FPGA Benchmark Suite]

Conclusions
 Possibility of having CPU threads and GPU blocks
collaborating on the same workload
 Or having the most appropriate cores for each workload
 Easier programming with Unified Memory or Shared Virtual
Memory
 System-wide atomic operations in NVIDIA Pascal/Volta and
HSA
 Fine-grain collaboration
127

gpuprogram_lecture,architecture_designsn

More Related Content

Similar to gpuprogram_lecture,architecture_designsn (20)

Recently uploaded (20)

gpuprogram_lecture,architecture_designsn
