groovy databases

Working with Databases and Groovy
Dr Paul King
Groovy Lead for Object Computing Inc.
@paulk_asert
http://slideshare.net/paulk_asert/groovy-databases
https://github.com/paulk-asert/groovy-databases

Contents
• groovy.sql.Sql
• Connecting to a database
• Writing to a database
• Reading from a database
• Stored Procedures
• Advanced Reading/Writing
• groovy.sql.DataSet
• MongoDB
• Neo4j
2

groovy.sql.Sql
• Groovy-friendly higher-level API sitting over JDBC
3

Connecting to a database…
• Sql.newInstance
• assumes driver is on the classpath
• other newInstance variants available
4
import groovy.sql.Sql
def url = 'jdbc:hsqldb:mem:marathon'
def user = 'sa'
def password = ''
def driver = 'org.hsqldb.jdbcDriver'
def sql = Sql.newInstance(url, user, password, driver)
// use 'sql' instance
sql.close()

…Connecting to a database…
• Some variations
5
Advanced
def sql = Sql.newInstance(
url: 'jdbc:hsqldb:mem:marathon',
user: 'sa',
password: '',
driver: 'org.hsqldb.jdbcDriver',
cacheStatements: true,
resultSetConcurrency: CONCUR_READ_ONLY
)
Sql.withInstance(url, user, password, driver) {
}
// no close() required
@Grab('org.hsqldb:hsqldb:2.3.3')
@GrabConfig(systemClassLoader=true)
// ...

…Connecting to a database…
• new Sql() constructor
• if you have a DataSource or existing Connection or Sql instance
• Likely to be the preferred approach with JDK9 Jigsaw
6
import org.hsqldb.jdbc.JDBCDataSource
def dataSource = new JDBCDataSource(
database: 'jdbc:hsqldb:mem:marathon',
user: 'sa', password: '')
def sql = new Sql(dataSource)
sql.close()

…Connecting to a database
• new Sql() constructor (cont'd)
7
@Grab('org.hsqldb:hsqldb:2.3.3')
@Grab('commons-dbcp:commons-dbcp:1.4')
import org.apache.commons.dbcp.BasicDataSource
def url = 'jdbc:hsqldb:mem:marathon'
def driver = 'org.hsqldb.jdbcDriver'
def dataSource = new BasicDataSource(
driverClassName: driver, url: url,
username: 'sa', password: '')
def sql = new Sql(dataSource)
sql.close()
Advanced

Writing to a database…
8
def DDL = '''
DROP TABLE Athlete IF EXISTS;
CREATE TABLE Athlete (
athleteId INTEGER GENERATED BY DEFAULT AS IDENTITY,
firstname VARCHAR(64),
lastname VARCHAR(64),
dateOfBirth DATE,
);
'''
sql.execute(DDL)
sql.execute '''
INSERT INTO Athlete (firstname, lastname, dateOfBirth)
VALUES ('Paul', 'Tergat', '1969-06-17')
'''

…Writing to a database
9
def data = [first: 'Khalid', last: 'Khannouchi', birth: '1971-12-22']
sql.execute """
VALUES (${data.first},${data.last},${data.birth})
"""
String athleteInsert = 'INSERT INTO Athlete (firstname, lastname) VALUES (?,?)'
def keys = sql.executeInsert athleteInsert, ['Ronaldo', 'da Costa']
assert keys[0] == [2]
def rowsUpdated = sql.executeUpdate '''
UPDATE Athlete SET dateOfBirth='1970-06-07' where lastname='da Costa'
'''
assert rowsUpdated == 1
sql.execute "delete from Athlete where lastname = 'Tergat'"
Advanced

Reading from a database…
10
sql.query('SELECT firstname, lastname FROM Athlete') { resultSet ->
while (resultSet.next()) {
print resultSet.getString(1)
print ' '
println resultSet.getString('lastname')
}
}
sql.eachRow('SELECT firstname, lastname FROM Athlete') { row ->
println row[0] + ' ' + row.lastname
}

…Reading from a database
11
def first = sql.firstRow('SELECT lastname, dateOfBirth FROM Athlete')
def firstString = first.toMapString().toLowerCase()
assert firstString == '[lastname:tergat, dateofbirth:1969-06-17]'
List athletes = sql.rows('SELECT firstname, lastname FROM Athlete')
println "There are ${athletes.size()} Athletes:"
println athletes.collect { "$it.FIRSTNAME ${it[-1]}" }.join(", ")
assert sql.firstRow('SELECT COUNT(*) as num FROM Athlete').num == 3

Invoking Stored Procedures…
12
def FULL_DLL = '''
dateOfBirth DATE
);
DROP INDEX idx IF EXISTS;
CREATE INDEX idx ON Athlete (athleteId);
DROP TABLE Run IF EXISTS;
CREATE TABLE Run (
runId INTEGER GENERATED BY DEFAULT AS IDENTITY,
distance INTEGER, -- in meters
time INTEGER, -- in seconds
venue VARCHAR(64),
when TIMESTAMP,
fkAthlete INTEGER,
CONSTRAINT fk FOREIGN KEY (fkAthlete)
REFERENCES Athlete (athleteId) ON DELETE CASCADE
);
'''
sql.execute FULL_DLL
Advanced
Athlete
athleteId
firstname
lastname
dateOfBirth
Run
runId
distance
time
venue
when
fkAthlete

…Invoking Stored Procedures…
• And assume some data has been populated …
• We've refactored our previous insert code into some helper methods.
13
insertAthlete('Paul', 'Tergat', '1969-06-17')
insertAthlete('Khalid', 'Khannouchi', '1971-12-22')
insertAthlete('Ronaldo', 'da Costa', '1970-06-07')
insertRun(2, 4, 55, 'Berlin', '2003-09-28', 'Tergat')
insertRun(2, 5, 38, 'London', '2002-04-14', 'Khannouchi')
insertRun(2, 5, 42, 'Chicago', '1999-10-24', 'Khannouchi')
insertRun(2, 6, 05, 'Berlin', '1998-09-20', 'da Costa')

14
db.execute '''
CREATE FUNCTION SELECT_ATHLETE_RUN ()
RETURNS TABLE (lastname VARCHAR(64), venue VARCHAR(64), whenRun DATE)
READS SQL DATA
RETURN TABLE (
select Athlete.lastname, Run.venue, Run.whenRun
from Athlete, Run
where Athlete.athleteId = Run.fkAthlete
order by whenRun
)
'''
db.eachRow('CALL SELECT_ATHLETE_RUN()') {
println "$it.lastname $it.venue $it.whenRun"
} da Costa Berlin 1998-09-20
Khannouchi Chicago 1999-10-24
Khannouchi London 2002-04-14
Tergat Berlin 2003-09-28

15
db.execute '''
CREATE FUNCTION FULL_NAME (p_lastname VARCHAR(64))
RETURNS VARCHAR(100)
READS SQL DATA
BEGIN ATOMIC
declare ans VARCHAR(100);
SELECT CONCAT(firstname, ' ', lastname) INTO ans
FROM Athlete WHERE lastname = p_lastname;
return ans;
END
'''
assert db.firstRow("{? = call FULL_NAME(?)}", ['Tergat'])[0] == 'Paul Tergat'

…Invoking Stored Procedures
16
db.execute '''
CREATE PROCEDURE CONCAT_NAME (OUT fullname VARCHAR(100),
IN first VARCHAR(50), IN last VARCHAR(50))
BEGIN ATOMIC
SET fullname = CONCAT(first, ' ', last);
END
'''
db.call("{call CONCAT_NAME(?, ?, ?)}", [Sql.VARCHAR, 'Paul', 'Tergat']) {
fullname -> assert fullname == 'Paul Tergat'
}

Advanced Reading…
• Rowset metadata
17
def dump(sql, tablename) {
println " CONTENT OF TABLE ${tablename} ".center(40, '-')
sql.eachRow('SELECT * FROM ' + tablename) { rs ->
def meta = rs.getMetaData()
if (meta.columnCount <= 0) return
for (i in 0..<meta.columnCount) {
print "${i}: ${meta.getColumnLabel(i + 1)}".padRight(20) // counts from 1
print rs[i]?.toString() // counts from 0
print "n"
}
println '-' * 40
}
}

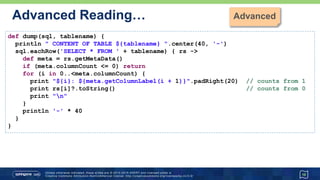

…Advanced Reading…
18
def dump(sql, tablename) {
println " CONTENT OF TABLE ${tablename} ".center(40, '-')
sql.eachRow('SELECT * FROM ' + tablename) { rs ->
def meta = rs.getMetaData()
if (meta.columnCount <= 0) return
for (i in 0..<meta.columnCount) {
print "${i}: ${meta.getColumnLabel(i + 1)}".padRight(20) // counts from 1
print rs[i]?.toString() // counts from 0
print "n"
}
println '-' * 40
}
} ----------------------- CONTENT OF TABLE Athlete -----------------------
ATHLETEID FIRSTNAME LASTNAME DATEOFBIRTH
------------------------------------------------------------------------
1 Paul Tergat 1969-06-17
2 Khalid Khannouchi 1971-12-22
3 Ronaldo da Costa 1970-06-07

…Advanced Reading…
19
def dump2(sql, tablename) {
def printColNames = { meta ->
def width = meta.columnCount * 18
println " CONTENT OF TABLE ${tablename} ".center(width, '-')
(1..meta.columnCount).each {
print meta.getColumnLabel(it).padRight(18)
}
println()
println '-' * width
}
def printRow = { row ->
row.toRowResult().values().each {
print it.toString().padRight(18) }
println()
}
sql.eachRow('SELECT * FROM ' + tablename, printColNames, printRow)
}
metadata
closure

…Advanced Reading
• Pagination
20
qry = 'SELECT * FROM Athlete'
assert sql.rows(qry, 1, 4)*.lastname ==
['Tergat', 'Khannouchi', 'da Costa', 'Gebrselassie']
['Makau', 'Radcliffe', 'Ndereba', 'Takahashi']
['Loroupe', 'Kristiansen']

Advanced Writing…
• Simple transaction support
21
sql.withTransaction {
insertAthlete('Haile', 'Gebrselassie', '1973-04-18')
insertAthlete('Patrick', 'Makau', '1985-03-02')
}
Advanced

…Advanced Writing…
• Batching of ad-hoc SQL statements
22
sql.execute "delete from Athlete where lastname = 'Tergat'"
sql.withBatch { stmt ->
stmt.addBatch '''
VALUES ('Paul', 'Tergat', '1969-06-17')'''
stmt.addBatch """
INSERT INTO Run (distance, time, venue, when, fkAthlete)
SELECT 42195, ${2*60*60+4*60+55}, 'Berlin', '2003-09-28',
athleteId FROM Athlete WHERE lastname='Tergat'"""
}
//22/04/2013 6:34:59 AM groovy.sql.BatchingStatementWrapper processResult
//FINE: Successfully executed batch with 2 command(s)

…Advanced Writing…
• Batching with a prepared statement
23
def qry = 'INSERT INTO Athlete (firstname, lastname, dateOfBirth) VALUES (?,?,?);'
sql.withBatch(3, qry) { ps ->
ps.addBatch('Paula', 'Radcliffe', '1973-12-17')
ps.addBatch('Catherine', 'Ndereba', '1972-07-21')
ps.addBatch('Naoko', 'Takahashi', '1972-05-06')
ps.addBatch('Tegla', 'Loroupe', '1973-05-09')
ps.addBatch('Ingrid', 'Kristiansen', '1956-03-21')
}
// If logging is turned on:
// 20/04/2013 2:18:10 AM groovy.sql.BatchingStatementWrapper processResult
// FINE: Successfully executed batch with 3 command(s)
// 20/04/2013 2:18:10 AM groovy.sql.BatchingStatementWrapper processResult
// FINE: Successfully executed batch with 2 command(s)

…Advanced Writing
• Named parameters (two variants) and named-ordinal parameters
24
@Canonical class Athlete { String first, last, dob }
def ndereba = new Athlete('Catherine', 'Ndereba', '1972-07-21')
def takahashi = new Athlete('Naoko', 'Takahashi')
def takahashiExtra = [dob: '1972-05-06']
def loroupe = [first: 'Tegla', last: 'Loroupe', dob: '1973-05-09']
def insertPrefix = 'INSERT INTO Athlete (firstname, lastname, dateOfBirth) VALUES '
sql.execute insertPrefix + ' (?.first,?.last,?.dob)', ndereba
sql.execute insertPrefix + ' (?1.first,?1.last,?2.dob)', takahashi, takahashiExtra
sql.execute insertPrefix + ' (:first,:last,:dob)', loroupe
sql.execute insertPrefix + ' (:first,:last,:dob)', first: 'Ingrid',
last: 'Kristiansen', dob: '1956-03-21'

Topics
• groovy.sql.Sql
 groovy.sql.DataSet
• MongoDB
• Neo4j

groovy.sql.DataSet
• Allows any table within an RDBMS to appear as if it
was a Java-like collection of POGOs
• Can be thought of as a poor man's object-relational
mapping system
• Has some smarts for lazy execution of database
queries
• Not meant to be as sophisticated as hibernate
26

DataSet example…
27
def athletes = sql.dataSet('Athlete')
athletes.each { println it.firstname }
athletes.add(
firstname: 'Paula',
lastname: 'Radcliffe',
dateOfBirth: '1973-12-17'
)
athletes.each { println it.firstname }
def runs = sql.dataSet('AthleteRun').findAll { it.firstname == 'Khalid' }
runs.each { println "$it.lastname $it.venue" }
Paul
Khalid
Ronaldo
Paul
Khalid
Ronaldo
Paula
Khannouchi London
Khannouchi Chicago

…DataSet example
28
def query = athletes.findAll { it.firstname >= 'P' }
query = query.findAll { it.dateOfBirth > '1970-01-01' }
query = query.sort { it.dateOfBirth }
query = query.reverse()
println query.sql
println query.parameters
println query.rows()*.firstname // One SQL query here!
select * from Athlete where firstname >= ? and dateOfBirth > ? order by dateOfBirth DESC
[P, 1970-01-01]
[Paula, Ronaldo]

Overcoming groovy.sql.DataSet limitations
29
def DLL_WITH_VIEW = '''
dateOfBirth DATE
);
DROP INDEX idx IF EXISTS;
CREATE INDEX idx ON Athlete (athleteId);
DROP TABLE Run IF EXISTS;
CREATE TABLE Run (
runId INTEGER GENERATED BY DEFAULT AS IDENTITY,
distance INTEGER, -- in meters
time INTEGER, -- in seconds
venue VARCHAR(64),
when TIMESTAMP,
fkAthlete INTEGER,
CONSTRAINT fk FOREIGN KEY (fkAthlete)
REFERENCES Athlete (athleteId) ON DELETE CASCADE
);
DROP VIEW AthleteRun IF EXISTS;
CREATE VIEW AthleteRun AS
SELECT * FROM Athlete LEFT OUTER JOIN Run
ON fkAthlete=athleteId;
'''
db.execute DLL_WITH_VIEW

Topics
• groovy.sql.Sql
 MongoDB
• Neo4j

MongoDB…
31
@Grab('com.gmongo:gmongo:1.3')
import com.gmongo.GMongo
import com.mongodb.util.JSON
import groovy.transform.Field
@Field db = new GMongo().getDB('athletes')
db.athletes.drop()
db.athletes << [first: 'Paul', last: 'Tergat', dob: '1969-06-17', runs: [
[distance: 42195, time: 2 * 60 * 60 + 4 * 60 + 55,
venue: 'Berlin', when: '2003-09-28']
]]
def insertAthlete(first, last, dob) {
db.athletes << [first: first, last: last, dob: dob]
}

…MongoDB…
32
def insertRun(h, m, s, venue, date, lastname) {
db.athletes.update(
[last: lastname],
[$addToSet: [runs: [distance: 42195,
time: h * 60 * 60 + m * 60 + s,
venue: venue, when: date]]]
)
}
insertAthlete('Khalid', 'Khannouchi', '1971-12-22')
insertAthlete('Ronaldo', 'da Costa', '1970-06-07')
insertRun(2, 5, 38, 'London', '2002-04-14', 'Khannouchi')
insertRun(2, 5, 42, 'Chicago', '1999-10-24', 'Khannouchi')
insertRun(2, 6, 05, 'Berlin', '1998-09-20', 'da Costa')

…MongoDB…
33
def radcliffe = """{
first: 'Paula',
last: 'Radcliffe',
dob: '1973-12-17',
runs: [
{distance: 42195, time: ${2 * 60 * 60 + 15 * 60 + 25},
venue: 'London', when: '2003-04-13'}
]
}"""
db.athletes << JSON.parse(radcliffe)
assert db.athletes.count == 4
db.athletes.find().each {
println "$it._id $it.last ${it.runs.size()}"
}
516b15fc2b10a15fa09331f2 Tergat 1
516b15fc2b10a15fa09331f3 Khannouchi 2
516b15fc2b10a15fa09331f4 da Costa 1
516b15fc2b10a15fa09331f5 Radcliffe 1

…MongoDB
34
def londonAthletes = db.athletes.find('runs.venue': 'London')*.first
assert londonAthletes == ['Khalid', 'Paula']
def youngAthletes = db.athletes.aggregate(
[$project: [first: 1, dob: 1]],
[$match: [dob: [$gte: '1970-01-01']]],
[$sort: [dob: -1]]
)
assert youngAthletes.results()*.first == ['Paula', 'Khalid', 'Ronaldo']

Topics
• groovy.sql.Sql
• MongoDB
 Neo4j

…Neo4j…
37
@Grab('org.neo4j:neo4j-kernel:2.1.4')
@Grab('com.tinkerpop.gremlin:gremlin-groovy:2.5.0')
//@Grab('com.tinkerpop.blueprints:blueprints-neo4j-graph:2.5.0')
@Grab('com.tinkerpop.blueprints:blueprints-neo4j-graph:2.5.0;transitive=false')
@Grab('com.tinkerpop.blueprints:blueprints-core:2.5.0')
//@Grab('codehaus-stax:stax:1.1.1')
//@GrabResolver('https://repository.jboss.org/nexus/content/repositories/thirdparty-releases')
@GrabExclude('org.codehaus.groovy:groovy')
import com.tinkerpop.blueprints.Graph
import com.tinkerpop.blueprints.impls.neo4j.Neo4jGraph
//import com.tinkerpop.blueprints.util.io.graphml.GraphMLWriter
import com.tinkerpop.gremlin.groovy.Gremlin
import groovy.transform.Field
import org.neo4j.graphdb.traversal.Evaluators
import org.neo4j.kernel.EmbeddedGraphDatabase
import org.neo4j.graphdb.*
import org.neo4j.kernel.Traversal
import org.neo4j.kernel.Uniqueness
@Field graphDb = new EmbeddedGraphDatabase("athletes")
enum MyRelationshipTypes implements RelationshipType { ran, supercedes }

…Neo4j…
38
// some optional metaclass syntactic sugar
EmbeddedGraphDatabase.metaClass {
createNode { Map properties ->
def n = delegate.createNode()
properties.each { k, v -> n[k] = v }
n
}
}
Node.metaClass {
propertyMissing { String name, val -> delegate.setProperty(name, val) }
propertyMissing { String name -> delegate.getProperty(name) }
methodMissing { String name, args ->
delegate.createRelationshipTo(args[0], MyRelationshipTypes."$name")
}
}
Relationship.metaClass {
propertyMissing { String name, val -> delegate.setProperty(name, val) }
propertyMissing { String name -> delegate.getProperty(name) }
}

…Neo4j…
39
def insertAthlete(first, last, dob) {
graphDb.createNode(first: first, last: last, dob: dob)
}
def insertRecord(h, m, s, venue, when, athlete) {
def record = graphDb.createNode(distance: 42195,
time: h * 60 * 60 + m * 60 + s, venue: venue, when: when)
athlete.won(record)
record
}
Gremlin.load()
def tx = graphDb.beginTx()
def athlete1, athlete2, athlete3, athlete4
def marathon1, marathon2a, marathon2b, marathon3, marathon4a, marathon4b

…Neo4j…
40
try {
athlete1 = graphDb.createNode()
athlete1.first = 'Paul'
athlete1.last = 'Tergat'
athlete1.dob = '1969-06-17'
marathon1 = graphDb.createNode()
marathon1.distance = 42195
marathon1.time = 2 * 60 * 60 + 4 * 60 + 55
marathon1.venue = 'Berlin'
marathon1.when = '2003-09-28'
athlete1.won(marathon1)
athlete2 = insertAthlete('Khalid', 'Khannouchi', '1971-12-22')
marathon2a = insertRecord(2, 5, 38, 'London', '2002-04-14', athlete2)
marathon2b = insertRecord(2, 5, 42, 'Chicago', '1999-10-24', athlete2)
athlete3 = insertAthlete('Ronaldo', 'da Costa', '1970-06-07')
marathon3 = insertRecord(2, 6, 5, 'Berlin', '1998-09-20', athlete3)
athlete4 = insertAthlete('Paula', 'Radcliffe', '1973-12-17')
marathon4a = insertRecord(2, 17, 18, 'Chicago', '2002-10-13', athlete4)
marathon4b = insertRecord(2, 15, 25, 'London', '2003-04-13', athlete4)

…Neo4j…
41
def venue = marathon1.venue
def when = marathon1.when
println "$athlete1.first $athlete1.last won the $venue marathon on $when"
def allAthletes = [athlete1, athlete2, athlete3, athlete4]
def wonInLondon = allAthletes.findAll { athlete ->
athlete.getRelationships(MyRelationshipTypes.won).any { record ->
record.getOtherNode(athlete).venue == 'London'
}
}
assert wonInLondon*.last == ['Khannouchi', 'Radcliffe']
marathon2b.supercedes(marathon3)
marathon2a.supercedes(marathon2b)
marathon1.supercedes(marathon2a)
marathon4b.supercedes(marathon4a)

…Neo4j…
42
println "World records following $marathon3.venue $marathon3.when:"
def t = new Traversal()
for (Path p in t.description().breadthFirst().
relationships(MyRelationshipTypes.supercedes).
evaluator(Evaluators.fromDepth(1)).
uniqueness(Uniqueness.NONE).
traverse(marathon3)) {
def newRecord = p.endNode()
println "$newRecord.venue $newRecord.when"
}
Graph g = new Neo4jGraph(graphDb)
def pretty = { it.collect { "$it.venue $it.when" }.join(', ') }
def results = []
g.V('venue', 'London').fill(results)
println 'London world records: ' + pretty(results)
results = []
g.V('venue', 'London').in('supercedes').fill(results)
println 'World records after London: ' + pretty(results)

…Neo4j
43
results = []
def emitAll = { true }
def forever = { true }
def berlin98 = { it.venue == 'Berlin' && it.when.startsWith('1998') }
g.V.filter(berlin98).in('supercedes').loop(1, forever, emitAll).fill(results)
println 'World records after Berlin 1998: ' + pretty(results)
// def writer = new GraphMLWriter(g)
// def out = new FileOutputStream("c:/temp/athletes.graphml")
// writer.outputGraph(out)
// writer.setNormalize(true)
// out.close()
tx.success()
} finally {
tx.finish()
graphDb.shutdown()
}

More Information: Groovy in Action, 2ed
44

groovy databases

More Related Content

What's hot (20)

Viewers also liked (8)

Similar to groovy databases (20)

More from Paul King (16)

Recently uploaded (20)

groovy databases
