Hardening Three - IDS/IPS Technologies

HARDENING
IDS/IPS Technologies
Salvatore Lentini
Davide Antonino Vincenzo Micale
Hardening Three
University of Catania
29 May 2017

2
Summary
●
Problems
●
Arp spoofing
●
Video with Netcat Backdoor
●
Ping out of network
●
Attempt access and Http Bruteforce
●
Tools:
●
Snort IDS/IPS
●
Suricata IDS/IPS
●
PulledPork
●
Barnyard2
●
Base
●
Some theoretical concepts
Hardening ThreeUniversity of Catania

3
First Scenario
Ping out of network
We are an Network Administrator and don’t want that someone to ping
from out of network our hosts into our network (HOME_NET)
So, we want know who execute the ping
University of Catania Hardening Three

4
Ping
Detected
sudo nano snort -c /etc/snort/snort.conf -A console -i ens38
Detected ICMP Ping
Hardening Three

5
Ping out of Network
Prevention

6
Ping out of Network
Prevention
sudo snort -c /etc/snort/snort.conf -i ens38:ens39 -Q -A console -q
Hardening Three

7
Possible problem
Did you have this error?
Don't worry. This is an IPS
then it want more memory!
You need add more memory
your virtual machine
Hardening Three

8
Video with Netcat Backdoor
●
Seems a video, but……
DEMO
Hardening ThreeUniversity of Catania Hardening Three

9
“It’s dangerous, so dangerous”
●
The file is a Self Extracting WinRar(SFX) archive
containing:
●
Video
●
Netcat
●
Caller.vbs: on execute, run Netcat on a specific port opening
the shell calling the attacker. Open the video
Hardening ThreeUniversity of Catania Hardening Three

10
Creation of the archive
●
“Compression method”: select “Store”
●
“Archiving option”: check “Create SFX archive
●
On tab “Advanced” → “SFX options”
●
On tab “General” → “Path to Extract”: “C:virus” and tick
“Absolute path”
●
On tab “Setup” → “Setup program/Run after extraction”:
“caller.vbs”
●
On tab “Modes” → “Silent mode”: tick “Hide all”
●
On tab “Update” → “Overwrite mode”: tick “Skip existing files”
●
On tab “Text and icon” → “Load SFX icon from the file”: select a
.ico file containing the video icon.

11

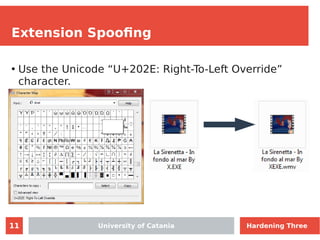

Extension Spoofing
●
Use the Unicode “U+202E: Right-To-Left Override”
character.

12
Attacker side
●
Run netcat on listen mode on the specific port
●
Wait until the victim play the fake video

13

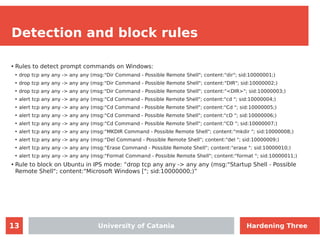

Detection and block rules
●
Rules to detect prompt commands on Windows:
●
drop tcp any any -> any any (msg:"Dir Command - Possible Remote Shell"; content:"dir"; sid:10000001;)
●
drop tcp any any -> any any (msg:"Dir Command - Possible Remote Shell"; content:"DIR"; sid:10000002;)
●
drop tcp any any -> any any (msg:"Dir Command - Possible Remote Shell"; content:"<DIR>"; sid:10000003;)
●
alert tcp any any -> any any (msg:"Cd Command - Possible Remote Shell"; content:"cd "; sid:10000004;)
●
alert tcp any any -> any any (msg:"Cd Command - Possible Remote Shell"; content:"Cd "; sid:10000005;)
●
alert tcp any any -> any any (msg:"Cd Command - Possible Remote Shell"; content:"cD "; sid:10000006;)
●
alert tcp any any -> any any (msg:"Cd Command - Possible Remote Shell"; content:"CD "; sid:10000007;)
●
alert tcp any any -> any any (msg:"MKDIR Command - Possible Remote Shell"; content:"mkdir "; sid:10000008;)
●
alert tcp any any -> any any (msg:"Del Command - Possible Remote Shell"; content:"del "; sid:10000009;)
●
alert tcp any any -> any any (msg:"Erase Command - Possible Remote Shell"; content:"erase "; sid:10000010;)
●
alert tcp any any -> any any (msg:"Format Command - Possible Remote Shell"; content:"format "; sid:10000011;)
●
Rule to block on Ubuntu in IPS mode: “drop tcp any any -> any any (msg:"Startup Shell - Possible
Remote Shell"; content:"Microsoft Windows ["; sid:10000000;)”

14
Second Scenario
Attempt of login
Now, we want to know who attempted login on our web server
University of CataniaUniversity of Catania Hardening Three

15
Traffic Analisys
In our rule we can use
this one to detect traffic

16
Attempt access
Detected
Detected Attempt of Login

17
Http Bruteforce
Our credentials

18
Http Bruteforce
Detected

19
Http Bruteforce
Prevention

20
Http Bruteforce
Snort as IPS with nft
sudo snort -Q -–daq nfq -–daq-mode inline -–daq-var queue=0 -c /etc/snort/snort.conf -A console -q
? It’s a inline modality on Linux using Netfilter
1
2
Orderexecution
Triggeredrule

21
ARP Spoofing
“ALL YOUR PACKETS ARE BELONG TO US”
DEMO

22
ARP
●
ARP(Address Resolution Protocol): bind the IP address
to the MAC address of the devices inside the LAN
A B C
Switch

23
Ping
●
Goal: A ping B
●
ARP, Request who-has 192.168.18.3 tell 192.168.18.1
●
ARP, Reply 192.168.18.3 is-at 00:0C:29:6C:54:28

24
ARP Cache
●
ARP Cache: table with the associations IP → MAC
●
The associations will be deleted periodically
●
The device will accept any ARP reply in ANY time!
●
No authenticity control of the association
IP MAC
192.168.18.3 00:0C:29:6C:54:28

25

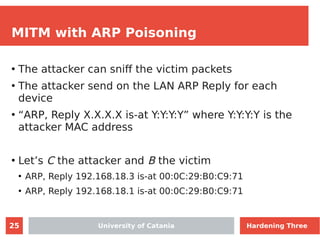

MITM with ARP Poisoning
●
The attacker can sniff the victim packets
●
The attacker send on the LAN ARP Reply for each
device
●
“ARP, Reply X.X.X.X is-at Y:Y:Y:Y” where Y:Y:Y:Y is the
attacker MAC address
●
Let’s C the attacker and B the victim
●
ARP, Reply 192.168.18.3 is-at 00:0C:29:B0:C9:71
●
ARP, Reply 192.168.18.1 is-at 00:0C:29:B0:C9:71

26
ARP Cache after the poisoning
●
A table
●
B table
IP MAC
192.168.18.3 00:0C:29:B0:C9:71
IP MAC
192.168.18.1 00:0C:29:B0:C9:71

27
ARP Cache after the poisoning -
Continue
●
The attacker need to ARP spoofing very often
●
Every packet of the victim will be seen by the
attacker
A C B

28
Ettercap
●
“Ettercap is a comprehensive suite for man in the
middle attacks.”
●
Man in the middle could be accomplished using the
-M arp mode
●
The attacker must activate the promiscous mode
●
“ettercap -T -i IF -M arp /IP_VICTIM//”

29
Run Ettercap
1) Scan the devices of the LAN
2) ARP Poisoning

30
Sniffing web navigation
●
The attacker can sniff the victim web navigation
A
Gateway
Switch
B C
Internet
ens33
ens39

31
Password sniffing
●
The victim go in a HTTP web page
●
The attacker catch Username and Password

32
IDS and the ARP spoofing
●
Suricata can’t do anything to detect an ARP spoofing
●
Snort can detect using the ARP Spoof Preprocessor

33
Snort detection ARP spoofing
●
Modify /etc/snort/snort.conf
●
Uncomment “preprocessor arpsoof”
●
For each devices of the LAN, add “preprocessor
arpspoof_detect_host: IP MAC”
●
Uncomment “include
$PREPROC_RULE_PATH/preprocessor.rules”
●
Download the preprocessor rules in the Snort website and
save it on the file
“/etc/snort/preproc_rules/preprocessor.rules”

34
Configuration of the Gateway
1)Promiscous mode: every packet will be read by the
network interface(whatever it is the destinatary of
the packet)
2)Masquerade: every packet transmitted outside
through the specific network interface will have the IP
Sender set to the gateway IP

35
Installation
and
Configuration

36
Virtual Network
●
VMware Workstation
●
No DHCP
(NAT)
INTERNET
192.168.232.1
192.168.232.0/24
192.168.232.2
192.168.248.1
192.168.248.2
192.168.248.0/24

37
Create Networks
Open Virtual Network Editor:
●
Add 2 networks
vmnet11
●
Host-Only
●
192.168.232.0
●
255.255.255.0
vmnet12
●
Host-Only
●
192.168.248.0
●
255.255.255.0
NO DHCP!

38
Router
Router (Ubuntu)
Add 2 Network Adapter
(total)
→ NAT
→ Custom: vmnet11
→ Custom: vmnet12
sudo nano /etc/network/interfaces
auto ens38
iface ens38 inet static
address 192.168.232.1
netmask 255.255.255.0
auto ens39
address 192.168.248.1
netmask 255.255.255.0
sudo nano /etc/sysctl.conf
(take off #)
net.ipv4.ip_forward=1
sudo /etc/init.d/networking restart
sudo reboot

39
Hosts
Victim (Ubuntu)
(total)
→ NAT
→ Custom: vmnet11
Attacker (Kali Linux)
(total)
→ NAT
→ Custom: vmnet12
auto eth0
iface eth0 inet static
address 192.168.232.2
netmask 255.255.255.0
gateway 192.168.232.1
auto ens38
address 192.168.248.2
netmask 255.255.255.0
gateway 192.168.248.1

40
Apache Web Server
In victim machine we must install Apache
sudo apt-get install apache2 apache2-utils
sudo su
cd /var/www/html
echo “This is victim webserver” > index.html
nano /etc/apache2/site-available/000-default.conf

41
Apache Web Server

42
Apache Web Server
htpasswd -c /etc/apache2/.htpasswd web
(insert new password for “web” user )
sudo /etc/init.d/apache2 restart
#After this configuration, disable the NAT interface

43
Configuration Snort IDS on Router
Automatic Installation on Linux
Install Snort
sudo apt-get install snort
* Put the network interface of the network that we want to defend (ens39)
* the network address (192.168.248.0/24)
Test Installation
sudo snort -V
Configuration
sudo nano /etc/snort/snort.conf
(with the automatic installation you have to modified only HOME_NET inserting the network that
you want defend)
Test Configuration
sudo snort -c /etc/snort/snort.conf
(If start the sniffing mode, it’s a good thing!)

44
Create the custom rules file
sudo touch /etc/snort/rules/custom.rules
*include custom.rules in the snort.conf
Write the rules
sudo nano /etc/snort/rules/custom.rules
In rules folder you can put other rules that
you can download from Snort site.

45
Some commands to execute snort IDS
Verbose mode
snort -v
Using configuration file and show alert on the
terminal
snort -c /etc/snort/snort.conf -A console -i ens38
Log mode
sudo snort -c /etc/snort/snort.conf -A console -i ens38 -l /var/log/snort -k ascii

46
Configuration Snort IPS
manual installation
Install dependencies
sudo su
sudo apt-get install libdnet && apt-get install build-essential && apt-get install bison flex && apt-get
install libpcap-dev && apt-get install libpcre3-dev && apt-get install libnet1-dev && apt-get install
zlib1g-dev && apt-get install libnetfilter-queue-dev # daq: nfq && apt-get install libmnl-dev && apt-
get install libnfnetlink-dev && apt-get install libnetfilter-queue-dev && apt-get install checkinstall
sudo apt-get update
sudo apt-get upgrade
Create Tmp directory
mkdir -p /tmp/snort-install/
cd /tmp/snort-install/
Download in this folder daq from the Snort Site
Download in this folder libdnet.1.11

47
Configuration Snort IPS
manual installation
Install libdnet
tar -xvf libdnet-1.11.tar.gz
./configure “CFLAGS=-fPIC”
make
sudo checkinstall -y
sudo dpkg -i libdnet-1.11-1.amd64.deb
sudo ln -s /usr/local/lib/libdnet.1.0.1 /usr/lib/libdnet.1
Install daq
(Download and Extract daq) in /tmp/snort-install/
./configure
make
sudo checkinstall -y
sudo dpkg -i daq_2.0.6-1_amd64.deb

48
Snort as IPS with AFPACKET
Enable DAQ in AFPACKET
? It’s a inline modality on Linux using two bridged interfaces

49
Installing Suricata on Windows
1) Install WinPcap from https://www.winpcap.org/install/
2) Install Suricata from https://suricata-ids.org/download/
3) Place rules into C:Program FilesSuricatarules or
C:Program Files (x86)Suricatarules
4) Modify the Suricata configuration file C:Program
FilesSuricatasuricata.yaml or C:Program Files
(x86)Suricatasuricata.yaml settings
●
Home Network
●
External Network
●
Rule Files
●
(In Windows 32 bit) Suricata Folder

50
Run Suricata on Windows
1)“Run as administrator” Prompt command
2) Run the command “suricata.exe -c suricata.yaml -i
IPHOST”
3) In C:Program FilesSuricatalogfast.log C:Program
Files (x86)Suricatafast.log contains the logs

51
Installing Suricata in IPS mode on
Ubuntu
1) On terminal: “sudo apt-get install suricata”
2) Place rules into /etc/suricata/rules
3) Modify the Suricata configuration file
/etc/suricata/suricata.yaml settings
●
Home Network
●
External Network
●
Rule Files
4) On terminal: “sudo iptables -I FORWARD -j
NFQUEUE”

52
Run Suricata on Linux IPS mode
1) Run the command “sudo suricata -c suricata.yaml -q
0”
2) /var/log/suricata/fast.log contains the logs

53
Barnyard2
●
Parsing and processing of snort log(unified2 format
file) and output it in other output:
●
Storing on database(PostgreSQL or MySql/MariaDB)
●
Talk to Sguil daemon
●
Talk to SnortSam

54
Installing Barnyard2 with
MySql/MariaDB on Ubuntu 17.04
●
sudo apt-get install mysql-server libmysqlclient-dev
mysql-client autoconf libtool
●
Set the MySql root password
●
Be sure to have libdumbnet-dev libpcap-dev bison
flex packages and to install the DAQ
●
Be sure to have the sid-msg.map file on /etc/snort
●
Be sure the custom rules have the “rev” field
●
Modify the Snort configuration file adding: “output
unified2: filename snort.u2, limit 128”

55
Installing Barnyard2 - Continue
●
Install Barnyard2:
●
wget https://github.com/firnsy/barnyard2/archive/master.tar.gz -O barnyard2-Master.tar.gz
●
tar zxvf barnyard2-Master.tar.gz
●
cd barnyard2-master
●
autoreconf -fvi -I ./m4
●
sudo ln -s /usr/include/dumbnet.h /usr/include/dnet.h
●
sudo ldconfig
●
./configure --with-mysql --with-mysql-libraries=/usr/lib/x86_64-linux-gnu
●
make
●
sudo make install
●
Put barnyard2 configuration file in Snort folder: sudo cp etc/barnyard2.conf /etc/snort/
●
Create barnyard2 log folder and file. Make them belong to Snort user and Snort Group:
●
sudo mkdir /var/log/barnyard2
●
sudo chown snort.snort /var/log/barnyard2
●
sudo touch /var/log/snort/barnyard2.waldo
●
sudo chown snort.snort /var/log/snort/barnyard2.waldo

56
Installing Barnyard2 - Continue
●
Create the Barnyard2 database using the commands preinstalled and create the
Snort user of the database. Be sure to change “PASSWORD” with a secure
password:
●
mysql -u root -p
●
mysql> create database snort;
●
mysql> use snort;
●
mysql> source schemas/create_mysql
●
mysql> CREATE USER 'snort'@'localhost' IDENTIFIED BY 'PASSWORD';
●
mysql> grant create, insert, select, delete, update on snort.* to 'snort'@'localhost';
●
mysql> exit
●
Modify barnyard2 configuration file /etc/snort/barnyard2.conf adding(Be sure to
change “PASSWORD” with the previous password): “output database: log, mysql,
user=snort password=PASSWORD dbname=snort host=localhost sensor
name=sensor01”
●
Remove others read permission of the barnyard2 file: “sudo chmod o-r
/etc/snort/barnyard2.conf”

57
Run Snort and Barnyard2
●
Run Snort: “sudo snort -u snort -g snort -c
/etc/snort/snort.conf -i INTERFACE”
●
Run Barnyard2: “sudo barnyard2 -c
/etc/snort/barnyard2.conf -d /var/log/snort -f snort.u2
-w /var/log/snort/barnyard2.waldo -g snort -u snort”

58
Installing BASE on Ubuntu 17.04
●
BASE is a PHP frontend for Barnyard2 log database
●
Permit to analyse the logs with a graphical interface
●
Install the no more supported PHP 5.6:
●
sudo add-apt-repository ppa:ondrej/php
●
sudo apt-get update
●
sudo apt-get install -y apache2 libapache2-mod-php5.6 php5.6-mysql php5.6-cli php5.6 php5.6-common
php5.6-gd php5.6-cli php-pear php5.6-xml
●
Install Pear image Graph: “sudo pear install -f --alldeps Image_Graph”
●
Install ADODB:
●
wget https://sourceforge.net/projects/adodb/files/adodb-php5-only/adodb-520-for-php5/adodb-5.20.8.tar.gz
●
tar -xvzf adodb-5.20.8.tar.gz
●
sudo mv adodb5 /var/adodb
●
sudo chmod -R 755 /var/adodb
●
Download BASE and copy on the Apache web folder:
●
wget http://sourceforge.net/projects/secureideas/files/BASE/base-1.4.5/base-1.4.5.tar.gz
●
tar xzvf base-1.4.5.tar.gz
●
sudo mv base-1.4.5 /var/www/html/base/

59
Configure BASE
●
Copy the default configuration file:
●
cd /var/www/html/base
●
sudo cp base_conf.php.dist base_conf.php
●
Modify it and set(Be sure to change “PASSWORD” with the mysql snort password):
●
$BASE_urlpath = '/base';
●
$DBlib_path = '/var/adodb/';
●
$alert_dbname = 'snort';
●
$alert_host = 'localhost';
●
$alert_port = '';
●
$alert_user = 'snort';
●
$alert_password = 'PASSWORD';
●
Remove others read permission of the BASE configuration file and make the BASE folder, subfolders and
files belong to “www-data” user and group :
●
sudo chown -R www-data:www-data /var/www/html/base
●
sudo chmod o-r /var/www/html/base/base_conf.php
●
Restart Apache: “sudo service apache2 restart”
●
Open via Browser the URL: “http://localhost/base/index.php“
●
Click to “Setup page”
●
“Create BASE AG”

60
Installing PulledPork
●
PulledPork is a tool that download automatically the Snort/Suricata rules to keep they up to date and unify every
rule files in a single one
●
Install the dependencies: “sudo apt-get install libcrypt-ssleay-perl liblwp-useragent-determined-perl”
●
Download and install PulledPork:
●
wget https://github.com/shirkdog/pulledpork/archive/master.tar.gz -O pulledpork-master.tar.gz
●
tar xzvf pulledpork-master.tar.gz
●
cd pulledpork-master/
●
sudo cp pulledpork.pl /usr/local/bin
●
sudo chmod +x /usr/local/bin/pulledpork.pl
●
sudo cp etc/*.conf /etc/snort
●
Modify the PulledPork configuration file /etc/snort/pulledpork.conf:
●
Comment or insert the Oinkcode in order to download the Oinkcode
●
Uncomment the rules you want download and comment the rules you don’t want
●
Set the version of rules “snort_version”
●
Set where to store the Snort rules (for example “snort.rules”)
●
Set where are stored the custom Snort rules
●
Set where is stored the sid-msg.map
●
Set where is stored the Snort configuration file
●
Set the distro version(in this case, Ubuntu 12.04)
●
Modify the Snort configuration file. Comment every rules and add the rule “snort.rules”
●
Run PulledPork: “sudo /usr/local/bin/pulledpork.pl -c /etc/snort/pulledpork.conf -l “

61
Snort rules
●
From
https://www.snort.org/downloads/#rule-downloads
you can download the Snort rules(rules are organized
in category in rules
●
Snort Community(free)
●
Snort Registered(free previous registration)
●
Snort Subscription(starting at 29,99 €/year)
●
From EmergingThreat
https://rules.emergingthreats.net/open/ (free)

62
Some Theoretical concepts on IDS and IPS
Concept of IDS was developed by James P. Anderson on 15
April in 1980 in his technical rapport
An IDS or an IPS is a system that it was developed to detect
typical signs of an intrusion. An IDS is similar to an anti-theft, it
see the bad traffic but does not block it. An IPS is an IDS but with
the behavior of a firewall.
Both see until the Application layer of the packets
●
NIDS/NIPS
●
HIDS/HIPS
●
Anomaly detection (“behavior based”)
●
Misuse detection (“Signatures based”)

63
Thanks
IDS/IPS Technologies
Hardening three
29 May 2017

Hardening Three - IDS/IPS Technologies

More Related Content

What's hot (20)

Similar to Hardening Three - IDS/IPS Technologies (20)

More from Salvatore Lentini (7)

Recently uploaded (20)

Hardening Three - IDS/IPS Technologies
