The document outlines the development of the HAREQL tool for querying HBase, emphasizing its user-friendly interface and SQL support for NoSQL databases. It highlights features such as multi-cluster support, a powerful query engine, and compatibility with the Hadoop ecosystem. The HARE client's integration with Hive metadata enhances performance and usability for big data applications.
hbaseconasia2017: HareQL：快速HBase查詢工具的發展過程
- 1. HareQL：快速HBase查詢工具的發展過程 Development of HBase Client and HareQL Mon-Fong Mike Jiang 江孟峰 Kuan-Yu Hubert Fan-Chiang 范姜冠宇 Tienyu Rebecca Lin 林恬伃
- 2. Providing IT solutions • System development for big data solutions • Smart manufacturing related services • Financial data systems • Telecommunication data systems • We are the Cloudera certificated professional services team 2 About Us Big data Product since 2011 •Hare Data platform •2013 HSP Innovative Product Award •2014 Golden Award of the TOP 100 Innovative Products •Cloudera Certified Technology (Only one in Taiwan)
- 3. What is Hare It’s a NoSQL Database which is based on HBase Support SQL to HBase directly Provide DBMS-like Web UI Provide JDBC/ODBC and Restful Service
- 4. Why Hare ? Easy • Click and start to use it • Friendly user interface • To involve your big data rapidly Comfortable • SQL language supported • Data type management • Multi-Cluster in one client Faster • Quick access to the data in HBase • Powerful query engine for better performance Compatible • Based on the Hadoop/HBase System • Highly compatible in ecosystem
- 5. Features Easy use (Web UI) Easy install Friendly UI One Client ; Many Clusters (Connection Manager) Bulkload UI Meta Manager (Schema Manager) Relation between HBase Table and Hive Table HareQL (High Speed SQL Query in HBase) JDBC Driver ODBC Driver (not support sentry) Restful Services
- 6. Software Stack Hadoop HBaseHive Spark Solr Cloud Security KerberosSentry Indexing Hare Core HBase Client Restful Service JDBC ODBC (No Sentry) Spark Monitor HDFS Client
- 8. HareQL Hive: MapReduce We replace MapReduces in Hive to HBase coprocessors. We call the language “HareQL”. HareQL has some advantages as below. Low- latency Query HBase table directly High performance
- 10. HareQL Architecture Hive Parser make us support HiveQL
- 11. Final Reducer Hive Flow Parser Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer AST QB OP Tree OP Tree Task Tree Task Tree Advance Parser HareSemantic Analyzer Hare Coprocessor Execution QB Execution Plan Task Plan Map Result Hare Flow Result From Hive to Hare

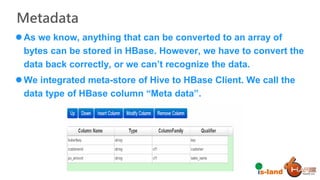

- 12. Metadata As we know, anything that can be converted to an array of bytes can be stored in HBase. However, we have to convert the data back correctly, or we can’t recognize the data. We integrated meta-store of Hive to HBase Client. We call the data type of HBase column “Meta data”.
- 13. When to get Metadata ? Advance Parser HareSemanticAnalyzer Hare Coprocessor QB Task Plan Hive Meta Hare Meta
- 14. Hare Restful Service Table manipulation Row manipulation Bulkload data Sending SQL Scanning Metadata manipulation
- 18. Schema Design in HBase • Designed the row key according to the access request 18
- 19. Application – Yieldata - Easy Selection - Smart Filter - Clear View of the Dataset
- 20. Yieldata – Root Cause Ranking
- 21. Thank you • is-land Systems Inc. • Company：www.is-land.com.tw • Big Data：www.HareDB.com • Email：service@haredb.com • Addr : 新竹科學園區展業二路4號3樓
