hashdays 2011: Tobias Ospelt - Reversing Android Apps - Hacking and cracking Android apps is easy
- 1. Reversing Android Apps Hacking and cracking Android apps is easy Tobias Ospelt
- 2. Agenda • Issues (in the past) • Android security / code concept • Techniques for pentesters / reverse engineers • My experiences and the general quality of apps
- 3. My approach • Bought HTC Desire/Bravo with Android 2.0 (now 2.2.0) in 2010 • Finding security related issues
- 4. Issues (in the past?)
- 7. CircumvenNng lock screen • Poor lock screen implementaNon – Home buPon mashing, not all brands<= 2.2 – Back buPon during call, not all brands <= 2.0 – Plug into car dock, unknown – Gmail address & password „null“, unknown • Lock screen not acNvated • USB debug on (adb shell) • Associated Google account • OpenRecovery, Milestone <= 2.1 • Acquire physical memory (forensic tools)
- 8. Android or Google? • Android is Open Source – Google is the strong force behind it • Google Market is not (it‘s Google‘s) • You can create your own market
- 9. Google Market – a feel free environment
- 10. Malware • Malware in the Google Market – DroidDream aka Rootcager • Other malware (o]en in Chinese markets) – Bgserv, Pjabbs, Geinimi, FakePlayer, GingerMaster, Zeus, SpyEye
- 11. Bring malware to the mobile • Convince users (aka put on market) • XSS on Google Market website • App without permissions installs apps with permissions – Angry Birds extra level malware, fixed – Browser vulnerability (cookie stealing), < 2.3.5 – New technique going to be released in November • Oberheide/Lanie, Source Barcelona
- 12. Android Browser • Puts nice liPle bookmark pics on your SD card
- 13. Other issues • Facebook-‐App V. 1.6 is able to read/write/edit SMS/MMS • Plain authenNcaNon tokens, fixed • SMS receiver incorrect, fixed • Htclogger, HTC only • App reversing • Many more
- 14. Nuclear chain of command... xkcd.com
- 15. ... is similar to the Android chain of security
- 16. My situaNon • Bought HTC Desire in 2010 • SNll on Android 2.2.0, means: – Screen lock circumvenNon (buPon mashing) – Vulnerable to DroidDream malware – Browser vulnerability • Cookie stealing / XSS • Can be used to install apps
- 17. Android security / code concept
- 18. Android code • Write app in Java and HTML/Javascript (Android SDK) – The obvious approach – Most apps from the Google Market – Easy to decompile/disassemble/reassemble • Write app in ARM naNve code (Android NDK) – Together with Java code – ARM Assembler Reverse Engineering and JNI • Use a framework/generator – appmakr.com – PhoneGap – Others?
- 19. Techniques for pentesters / reverse engineers
- 20. 1. Gemng hundrets of Android Apps (apk files)
- 21. Obvious download approach • Open market app on mobile • Click app and install • SCP apk file from phone à Too slow, not enough space on mobile, etc
- 22. How to download all Android apps • Connect mobile to laptop Wi-‐Fi with airbase-‐ ng / dnsmasq • Use iptables to redirect to local Burp – thx Android for not having a proxy opNon • BurpExtender to save responses with apk files • Send mobile a HTTP 404 not found
- 23. Install all apps? • One HTTPS request to market.android.com • Change the app name – com.google.android.youtube • Modified w3af spider / regex plugin – Search for terms A ... ZZ on market.android.com – No restricNons (e.g. captcha) as in Google search • Wrote script that sends HTTPS requests with app name
- 25. Metadata • About 300’000 apps in market • Crawled about 10’000 app names • Successfully downloaded and decompiled about 3’500 apps (about 15 GB) – Took about 3 days to download all these apps
- 27. The apktool disassembled structure • Apk unzipped à apktool disassembled +assets +assets +res +res +drawable +drawable -icon.png -icon.png +layout +layout -main.xml -main.xml +values +values -strings.xml -strings.xml +META-INF -AndroidManifest.xml -AndroidManifest.xml -classes.dex +smali +com +... -apktool.yml
- 28. Two approaches • Disassembling to smali – Similar to Jasmin syntax (Java assembler code) – Apktool • Correct smali code • Didn’t use dexdump/dedexer • Decompiling to Java – Dex2Jar + Java-‐Decompiler • SomeNmes incorrect Java code
- 29. Disassembling how-‐to • Apktool me$ java -jar apktool.jar d app.apk output-folder
- 31. Reassembling how-‐to • Apktool me$ echo "change something" change something me$ java -jar apktool.jar b output-folder/ fake.apk […] me$ keytool -genkey -alias someone -validity 100000 - keystore someone.keystore […] me$ jarsigner -keystore someone.keystore fake.apk someone me$ adb install fake-app.apk
- 32. 3. Other techniques for pentesters
- 33. Heap dump me$ su me# ps | grep kee 949 10082 183m S com.android.keepass 960 0 1964 S grep kee me# kill -10 949 me# grep password /data/misc/heap-dump-tm1312268434- pid949.hprof thisisasecretpassword • In Android > 2.3 – BuPon in DDMS tool or call android.os.Debug.dumpHprofData(fileName)
- 34. Invoking AcNviNes • AcNviNes are basically user interfaces – „one screen“ me$ dumpsys package > packages.txt me$ am start -n com.android.keepass/ com.keepassdroid.PasswordActivity • Fortunately this example doesn‘t work
- 35. Tons of other tools • Androguard • Apkinspector – GUI combining apktool, dex2jar, a Java decompiler, byte code, etc. • DED • androidAuditTools • Smartphonesdumbapps • Taintdroid (Privacy issues) • Android Forensic Toolkit • viaExtract • More
- 36. Experiences when decompiling/ disassembling 3‘500 apps Finding security related issues
- 37. Metadata • About 3’500 apps – 2’300 unique email addresses – 1’000 «fuck» – Several twiPer / facebook / flickr / geocaching API keys
- 39. Hashing and encrypNon – a short best pracNces refresh • Secure algorithms/implementaNons • Random, long salts/keys • Hashing – Separate salt for every hash – Several hashing rounds • E.g. hash(hash( ... hash(pwd+salt)+salt ... )) • EncrypNon – Keep the key secret
- 41. Key: MSB always 0 r sending passwords in HTTPS Used f o
- 42. rver that in-‐ Used t o signalise the se ame goods wer e purchased g
- 45. Obfuscated code o calls this „ah“ constructor? Wh
- 46. Obfuscated code • 4 greps later... • c.f includes the key – c.f calls a.bs(key) • a.bs calls a.ah(key) – a.ah uses the key and locale variables for encrypNon • We know all the input data for the encrypNon rouNne • It‘s symmetric crypto • We can decrypt „it“ (whatever it might be)
- 47. TestXXXXX.java • Yeah, let’s copy/paste a test email!
- 48. TestXXXXX2.java • And credenNals for the test server...
- 49. Some apps I looked at more closely (it’s gemng worse)
- 50. App 1 -‐ banking app • Who really wants banking on the mobile? • A lot of banking apps! Yay! • App 1 – No obfuscaNon + can easily be recompiled – App simply shows the website – Hides the URL and SSL cert/lock from the user – Can only be used with mTAN
- 51. App 2 • Server had self-‐signed SSL cerNficate • SSL MITM Dump: /usernam e=B1436A 13E85D20 F2428D6E 232C2B93 FE....pa ssword=2 C30F3866 016E6C59 52655C06 400BCC6. imei=405 23204606 E450... ... Wow, it’s e ncrypted... need a key Don’t we for that?
- 52. App 2 • AES key public byte[] cryptKey42 = {-31, -21, 4, 24, -21, 54, -63, -40, -38, 61, -47, -115, -95, -36, -142, 64, 53, 120, -85, -96, -69, 85, 81, 16, -36, 80, -102, 95, -20, 110, 36, -11};
- 53. App 3 – root detecNon private boolean deviceRoot(){ try{ Runtime.getRuntime().exec("su"); return true; } catch (IOException localIOException){ return false; } }
- 54. App 3 – CircumvenNng root detecNon • Not necessary
- 55. App 4 – Another root detecNon public static boolean isDeviceRooted(){ File f = new File(“/system/sbin/su”) return f.exists() }

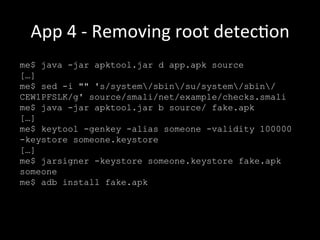

- 56. App 4 -‐ Removing root detecNon me$ java -jar apktool.jar d app.apk source […] me$ sed -i "" 's/system/sbin/su/system/sbin/ CEW1PFSLK/g' source/smali/net/example/checks.smali me$ java -jar apktool.jar b source/ fake.apk […] me$ keytool -genkey -alias someone -validity 100000 -keystore someone.keystore […] me$ jarsigner -keystore someone.keystore fake.apk someone me$ adb install fake.apk
- 57. App 4 – Was that a good method to remove the root detecNon? • Altering the app – No updates • We only want to fail that simple check
- 58. App 4 -‐ Prevent root detecNon root stays r o ot! me$ adb shell $ su # cd /system/bin/; mount -o remount,rw -o rootfs rootfs /; mount -o remount,rw -o yaffs2 /dev/block/mtdblock3 /system # echo $PATH /sbin:/system/sbin:/system/bin:/system/xbin # mv /system/sbin/su /system/xbin/
- 59. A special secret key • 445 apps use the same AES key – byte[] a = { 10, 55, -‐112, -‐47, -‐6, 7, 11, 75, -‐7, -‐121, 121, 69, 80, -‐61, 15, 5 }
- 60. Google Ads • Encrypt last known locaNon – All locaNon providers (GPS, Wifi, ...) • Send via the „uule“ JSON parameter • NoNfied Google on the 23th of June – No response yet • To be honest I haven‘t seen the „uule“ parameter in my network yet
- 61. Google Ads • Why didn‘t they use asymmetric crypto?
- 62. Countermeasures • Use asymmetric crypto instead of symmetric when transferring data to a server • Store hashes/session tokens instead of passwords • Good obfuscaNon is Security Through Obscurity • Pentest your apps • Know the limitaNons – root stays root
- 63. References • hPp://designora.com/graphics/android-‐logo/ • hPp://blog.duosecurity.com/2011/05/when-‐angry-‐birds-‐aPack-‐android-‐ediNon/ • hPp://jon.oberheide.org/blog/2011/03/07/how-‐i-‐almost-‐won-‐pwn2own-‐via-‐xss/ • hPp://www.h-‐online.com/open/news/item/Android-‐apps-‐send-‐unencrypted-‐authenNcaNon-‐token-‐1243968.html • hPps://www.infosecisland.com/blogview/13459-‐Google-‐Sued-‐for-‐SurrepNNous-‐Android-‐LocaNon-‐Tracking.html • hPp://www.h-‐online.com/open/news/item/Android-‐malware-‐acNvates-‐itself-‐through-‐incoming-‐calls-‐1253807.html • hPp://www.slideshare.net/bsideslondon/bsideslondon-‐spo#text-‐version • hPps://www.hashdays.ch/assets/files/slides/burns_android_security_the%20fun%20details.pdf • hPps://theassurer.com/p/756.html • hPp://thomascannon.net/blog/2011/02/android-‐lock-‐screen-‐bypass/ • hPp://www.symantec.com/content/en/us/about/media/pdfs/symc_mobile_device_security_june2011.pdf? om_ext_cid=biz_socmed_twiPer_facebook_marketwire_linkedin_2011Jun_worldwide_mobilesecuritywp • hPp://www.xkcd.com/898 • hPp://www.madaxeman.com/general/2009/11/lost-‐phone.html • hPp://thomascannon.net/projects/android-‐reversing/ • hPp://www.infsec.cs.uni-‐saarland.de/projects/android-‐vuln/ • hPp://www.madaxeman.com/general/2009/11/lost-‐phone.html • hPp://www.heise.de/mobil/meldung/Android-‐verschickt-‐SMS-‐an-‐falsche-‐Empfaenger-‐2-‐Update-‐1162685.html • hPp://blog.duosecurity.com/2011/09/android-‐vulnerabiliNes-‐and-‐source-‐barcelona/
- 64. Thx! • TwiPer: floyd_ch • hPp://floyd.ch
