- 1. HDMI HIGH DEFINITION MULTIMEDIA INTERFACE
- 2. INTRODUCTION It is a connector between high definition devices such as Blu-ray disc, a video game console to a compatible digital audio or video monitor such as digital television.
- 3. GENERAL HDMI encodes the video data into TMDS for transmission digitally over HDMI. TMDS is a channel which carries video, and/or audio through one of three modes; 1. Video Data Period: The pixel of an active video are transmitted. 2. Data Instant Period: Audio are transmitted with a series of packets.
- 4. 3. Control Period: Occurs between video and data island periods. Different versions of HDMI have been introduced, from HDMI 1.0 to 1.3. Same cable is being used but there is difference in throughput.
- 5. HDMI VS DVI DVI used for carrying digital video on modern computer monitors and graphic cards. HDMI is backward compatible with DVI and vice versa; but Audio and remote control features of HDMI will not be available. Without support of HDCP on display, the signal source, prevent end user from viewing or recording certain restricted contents.
- 8. SPECIFICATIONS The are electrical and mechanical requirements of the cable and connectors. Connectors: HDMI specifications include three connectors intended for different markets. Standard type A HDMI connectors has 19 pins with bandwidth to support SDTV, EDTV & HDTV modes. A high resolution type B HDMI 1.0 connector has 29 pin.
- 9. which allows to carry an expanded video channel for use with very high resolution displays. A type C mini connector, intended for portable devices but has the same 19 pins. Cable: HDMI cables are available for type A to type C. It is used to carry video, audio and devices controlling signals.

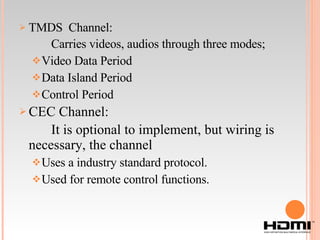

- 10. TMDS Channel: Carries videos, audios through three modes; Video Data Period Data Island Period Control Period CEC Channel: It is optional to implement, but wiring is necessary, the channel Uses a industry standard protocol. Used for remote control functions.
- 11. Is a one-wire bidirectional serial bus. Defined in HDMI 1.0, updated in HDMI 1.2a and again in 1.3a.
- 12. VERSIONS HDMI 1.0: December 2002 Single cable digital audio/video connection, maximum of 4.9 Gbits/sec. HDMI 1.1: May 2004 Added support for DVD audio. HDMI 1.2: August 2005 Added support for one bit Audio, used on super audio CDs, up to 8 channels.
- 13. The availability of HDMI type A connector. HDMI 1.2a: December 2005 Fully specifies consumer electronics control (CEC) features. HDMI 1.3: June 2006 Increased bandwidth to 10.2 Gbits/sec. Availability of a new mini-connector for devices (type C).
- 14. HDMI 1.3a: November 2006 Cable modification for type C. Source termination is recommended. HDMI 1.3b: Testing specification (happening) released on 26 march 2007.
- 15. CABLE LENGTH No specific cable length. HDMI 1.3 introduces 2 kinds of cables to reduce the confusion about which cable supports which video format. Category 1: Standard or HDTV 28, AWG about 5 meter long Category 2: High speed/greater than HDTV Higher quality, 24 AWG about 12-15 meter.
- 16. HDMI & HD OPTICAL MEDIA PLAYER HD DVD, Blu-ray disc uses Dolby Digital plus, Dolby True HD and DTS-HD master Audio having very high bitrates. HD DVD, Blu-ray permit “interactive audio”.
- 17. CRITICISM Connector are not robust as previous display connectors. Tripping over a cable plugged into an HDMI port can easily damage the port. Lack of security mechanism built on connectors and plug are more prone to physical and/ or electrical damage.
