How big is your data
0 likes931 views
The document discusses memory usage of Java objects. It explains that the memory needed to store objects goes beyond just the data and includes an object header overhead as well as memory for things like references to other objects. Wrapping primitives in their object equivalents like Integer can significantly increase memory usage compared to using the primitives directly. Other collections like ArrayList can also use 5x more memory than just storing the raw data. Special collections like Trove can reduce these overheads.
![BACK TO COLLECTIONS
Collection (10 M ints) Overhead
Pure data 0
int[] ~0
Integer[] 5x (200M)
Integer[] (valueOf) <5x (200M)
Lets run intro again.
ArrayList<Integer>(10M) <5x (200M)
ArrayList<Integer>() 5.15x (205M)
HashSet<Integer>() 13.7x (547M)
HashSet<Integer>(10M) 13.7x (547M)
Monday, April 1, 13](https://image.slidesharecdn.com/howbigisyourdata-130401003757-phpapp02/85/How-big-is-your-data-21-320.jpg)
How big is your data
- 1. Nikita Salnikov-Tarnovski HOW MUCH MEMORY DO YOUR OBJECTS REALLY NEED? Monday, April 1, 13
- 2. WHO AM I Master Developer at Plumbr We solve memory leaks ... for now Giving you the exact location of the leak with enough information to fix it The foundation is based on machine learning Ongoing effort Monday, April 1, 13
- 3. MORE PLUMBR trained on 500,000 memory snapshots From 3,000 different applications Finding 88% of the existing leaks. 20,000 monthly unique visitors in our site 400 monthly downloads 1700+ leaks discovered Monday, April 1, 13
- 4. AGENDA What’s the deal? How to measure Primitives References Collections Monday, April 1, 13
- 5. INTRO How much space is needed to store 10M integers in a set in Java? Hint: 4 bytes * 10 000 000 = 40 MB Monday, April 1, 13
- 6. SHALLOW VS DEEP You can measure shallow size of the object Or deep size of the subgraph starting with the object Or retained size of the subgraph dominated by the object Monday, April 1, 13
- 7. RETAINED SIZE r(O1)=O1+O2+O3+O4 r(O3)=O3+O4 r(O2)=O2 r(O4)=O4 Monday, April 1, 13
- 8. SIZE OF AN OBJECT An overhead of being an Object Call it object header constant on a given JVM Data primitives arrays pointers to other objects plus all this from superclasses Monday, April 1, 13
- 9. HOW TO MEASURE Manually, based on JLS/JVM spec Memory measurer SizeofAgent http://sourceforge.net/projects/sizeof/ Javaspecialists.eu issue 142 https://github.com/shipilev/java-object-layout Monday, April 1, 13
- 10. HANDS ON • Lets measure java.lang.Object Monday, April 1, 13
- 11. ALIGNMENT 8 byte alignment Monday, April 1, 13
- 12. JAVA.LANG.OBJECT 8 bytes @ 32 bit JVM 12 bytes @ 64 bit JVM Monday, April 1, 13
- 13. PRIMITIVES Type Java Language Spec (JLS) byte 1 byte short 2 bytes int 4 bytes long 8 bytes char 2 bytes float 4 bytes double 8 bytes boolean 1 bit Monday, April 1, 13
- 14. HANDS ON Lets measure primitives Monday, April 1, 13
- 15. PRIMITIVES Type JLS JVM cost byte 1 byte 1..8 bytes short 2 bytes 2..8 bytes int 4 bytes 4..8 bytes long 8 bytes 8 bytes char 2 bytes 2..8 bytes float 4 bytes 4..8 bytes double 8 bytes 8 bytes boolean 1 bit 1..8 bytes Monday, April 1, 13
- 16. WRAPPER OBJECTS Type JLS JVM cost Wrapper* byte 1 byte 1..8 bytes 16 bytes short 2 bytes 2..8 bytes 16 bytes int 4 bytes 4..8 bytes 16 bytes long 8 bytes 8 bytes 24 bytes char 2 bytes 2..8 bytes 16 bytes float 4 bytes 4..8 bytes 16 bytes double 8 bytes 8 bytes 24 bytes boolean 1 bit 1..8 bytes 16 bytes * 64 bit JVM objects, thus adding 12 bytes Monday, April 1, 13
- 17. INTERMISSION 10 000 000 ints as Integer objects = 10 000 000 * 16 = 160 000 000 bytes 160 MB of stuff worth of 40 MB of data! Monday, April 1, 13
- 18. OBJECT REFERENCES: QUIZ What is the size of an instance of this class: class With2Members { Object x = null; Object y = null } 16 bytes? 24 bytes? 32 bytes? Monday, April 1, 13
- 19. QUIZ: ANSWER 32 bit 8 + 4 + 4 = 16 64 bit +CompressedOOPs (Xmx < 32g) 12 + 4 + 4 = 20 (align) → 24 64 bit –CompressedOOPs (Xmx > 32g) 12 + 8 + 8 = 28 (align) → 32 Monday, April 1, 13

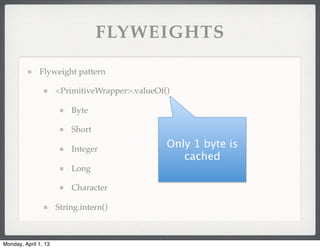

- 20. FLYWEIGHTS Flyweight pattern <PrimitiveWrapper>.valueOf() Byte Short Integer Only 1 byte is cached Long Character String.intern() Monday, April 1, 13
- 21. BACK TO COLLECTIONS Collection (10 M ints) Overhead Pure data 0 int[] ~0 Integer[] 5x (200M) Integer[] (valueOf) <5x (200M) Lets run intro again. ArrayList<Integer>(10M) <5x (200M) ArrayList<Integer>() 5.15x (205M) HashSet<Integer>() 13.7x (547M) HashSet<Integer>(10M) 13.7x (547M) Monday, April 1, 13
- 22. TROVE Collection (10 M ints) Size Pure data 40 000 000 (40M) TIntArrayList ~1.05x (42M) TIntArrayList(10M) ~0 (40M) TIntHashSet ~3.3x (131M) TIntHashSet(10M) ~2.6x (105M) Monday, April 1, 13
- 23. MORE Collection (10 M ints) Size Pure data 40 000 000 (40M) fastutil IntOpenHashSet ~2.1x (83M) org.a.c.c.p. ArrayIntList ~1.4x (55M) hppc.IntIntOpenHashMap ~3.8x (150M) cern.colt.map.OpenIntIntHashMap ~6.5x (260M) Monday, April 1, 13
