This document discusses how to measure everything by collecting a million metrics per second with minimal developer overhead. It describes using the StatsD, Graphite, and CollectD tools to collect and visualize metrics from applications, services and infrastructure. Specific techniques are provided for instrumenting applications, Apache, Varnish, and other systems to capture metrics and send them to StatsD and Graphite for storage and visualization.
![STATSD CONFIGURATION
{ graphite: {
globalPrefix: stats.$env.$cluster_name,
globalSuffix: require(‘os').hostname().split('.')[0],
legacyNamespace: false,
},
percentThreshold: [ 95, 99 ],
deleteIdleStats: true,
}
https://github.com/etsy/statsd/blob/master/exampleConfig.js](https://image.slidesharecdn.com/howtomeasureeverything-puppetconf2014-140926124119-phpapp02/85/How-to-Measure-Everything-A-Million-Metrics-Per-Second-with-Minimal-Developer-Overhead-PuppetCo-29-320.jpg)
![DATA RETENTION
[default]
pattern = .*
priority = 110
retentions = 10:6h,60:15d,600:5y
xFilesFactor = 0
http://graphite.readthedocs.org/en/latest/config-carbon.html#storage-schemas-conf](https://image.slidesharecdn.com/howtomeasureeverything-puppetconf2014-140926124119-phpapp02/85/How-to-Measure-Everything-A-Million-Metrics-Per-Second-with-Minimal-Developer-Overhead-PuppetCo-32-320.jpg)
![COST
Optimize for adoption rates in your organization by
eliminating cost as a constraint
http://www.examiner.com/images/blog/wysiwyg/image/money].jpg](https://image.slidesharecdn.com/howtomeasureeverything-puppetconf2014-140926124119-phpapp02/85/How-to-Measure-Everything-A-Million-Metrics-Per-Second-with-Minimal-Developer-Overhead-PuppetCo-37-320.jpg)
![BASIC APP USING STDLIB
$ sample-app -h
[…]
!
logging:
--log-level {info,debug,critical,warning,error}
Verbosity of logging. (default: warning)
stats:
--stats Enable sending statistics to statsd. (default: False)
--stats-host STATS_HOST
Statsd host to send statistics to. (default: localhost)
--stats-port STATS_PORT
Statsd port to send statistics to. (default: 8125)
--stats-environment STATS_ENVIRONMENT
Statsd environment. (default: dev)
https://staticfiles.krxd.net/foss/docs/pypi/krux-stdlib/](https://image.slidesharecdn.com/howtomeasureeverything-puppetconf2014-140926124119-phpapp02/85/How-to-Measure-Everything-A-Million-Metrics-Per-Second-with-Minimal-Developer-Overhead-PuppetCo-46-320.jpg)
How to Measure Everything: A Million Metrics Per Second with Minimal Developer Overhead - PuppetCo
- 1. HOWTO MEASURE EVERYTHING A million metrics per second with minimal developer overhead ! Jos Boumans - @jiboumans http://www.imagemediapartners.com/Portals/20286/images/MeasuringTape-s.jpg
- 2. RIPE NCC Engineering manager for RIPE Database http://www.ripe.net/db
- 3. CANONICAL http://lukeroberts.deviantart.com/art/Destroy-Ubuntu-93235775 Engineering manager for Ubuntu Server 10.04 & 10.10 http://www.ubuntu.com/business/server/overview
- 4. KRUX VP of Operations & Infrastructure http://www.krux.com/
- 5. SOME OF OUR CUSTOMERS
- 7. AVERAGE DATA EVENTS / SEC http://investor.fb.com/results.cfm http://www.statisticbrain.com/twitter-statistics/ http://stats.wikimedia.org/EN/TablesPageViewsMonthlyCombined.htm 0 35,000 70,000 105,000 140,000 Twitter: NewTweets Wikipedia: PageViews Facebook: Messages Sent Krux: New Data Points

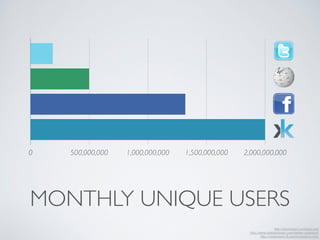

- 8. MONTHLY UNIQUE USERS 0 500,000,000 1,000,000,000 1,500,000,000 2,000,000,000 http://reportcard.wmflabs.org/ http://www.statisticbrain.com/twitter-statistics/ http://newsroom.fb.com/company-info/
- 9. DATA IS EVERYTHING Always know what’s going on http://perpetual-wonder.com/blog/wp-content/uploads/2012/09/Where-do-we-go-from-here.jpg
- 10. UNIQUE METRICS Unique metrics received, per second
- 11. METRICS &VISUALIZATION … and a little bit of monitoring http://getfit101.files.wordpress.com/2012/04/visualization.jpg
- 12. VISUALIZATION MATTERS Humans are good at patterns & shapes http://1.bp.blogspot.com/-CO-8FK9bohE/T89rD8dTyEI/AAAAAAAAAEE/YUZ00v_filk/s1600/live_like_it_matters_by_mythirll-d3iqcxt.jpg
- 13. INSIGHT MATTERS We consider it a core competence http://yourselfseries.com/teens/files/2013/05/suicide_bonus_Insight_final.jpg
- 14. SHOW EVERYONE And better yet, encourage people to add their own http://www.kissimmee.org/ftp/KCC/events/views/images/crowd_cheer.jpg
- 15. THE BOTTOM LINE
- 16. KEY CHARACTERISTICS … of our metrics collection http://www.fullcirclefeedback.com.au/resources/wp-content/uploads/2014/01/Key-skills-and-characteristics-of-good-HR-leaders.jpg
- 17. WHATTOVISUALIZE Pick your operational KPIs http://1.bp.blogspot.com/-nrB1A9hamEk/UVZui_JUG1I/AAAAAAAAAdI/zGqHuanZNVU/s1600/missed-opportunities.jpg
- 18. REQUEST & ERROR RATES The baseline for everything else
- 19. WORST RESPONSETIMES Track the worst upper 95th & upper 99th across a cluster
- 20. TRACK EVENTS Did a code change or batch job cause a change in behaviour?
- 21. CAPACITY /THRESHOLDS How much traffic can your service sustain?
- 22. SINGLE SERVICE OVERVIEW Create a single graph for every service
- 23. WHATTO CAPTURE Everything. No, really. http://arkansasagnews.uark.edu/monarchs95.jpg
- 24. INFRASTRUCTURE Everything needed to create, capture and act on a million metrics per seconds http://discussamerica.org/remer-blog/images/Freeway_Interchange2.jpg
- 25. GRAPHITE, STATSD & COLLECTD TheTrifecta
- 27. STATSD Simple stats collector service https://github.com/etsy/statsd http://codeascraft.com/2011/02/15/measure-anything-measure-everything/ https://wwwx.cs.unc.edu/~sparkst/howto/network_tuning.phphttp://emps.exeter.ac.uk/media/universityofexeter/emps/eisa/exista-splash.jpg
- 28. STATSD NAMING SCHEME stats. # to distinguish from events $environment. # prod, dev, etc $cluster_name. # api-ash, www-dub, etc $application. # webapp, login, etc $metric_name_here. # any key the app wants $hostname # node the stat came from
- 29. STATSD CONFIGURATION { graphite: { globalPrefix: stats.$env.$cluster_name, globalSuffix: require(‘os').hostname().split('.')[0], legacyNamespace: false, }, percentThreshold: [ 95, 99 ], deleteIdleStats: true, } https://github.com/etsy/statsd/blob/master/exampleConfig.js
- 30. GRAPHITE Metric store & Graph UI http://graphite.wikidot.com/ http://graphite.readthedocs.org/en/latest/
- 31. GRAPHITE SETUP At least one graphite server per data center
- 32. DATA RETENTION [default] pattern = .* priority = 110 retentions = 10:6h,60:15d,600:5y xFilesFactor = 0 http://graphite.readthedocs.org/en/latest/config-carbon.html#storage-schemas-conf
- 33. STANDARD AGGREGATIONS # Average & Sum for timers <prefix>.timers.<key>._totals.ash.<type>.avg (10) = avg <<prefix>>.timers.<<key>>.<node>.<type> ! <prefix>.timers.<key>._totals.ash.<type>.sum (10) = sum <<prefix>>.timers.<<key>>.<node>.(?!upper|lower)<type> ! # Min / Max for Lower / Upper <prefix>.timers.<key>._totals.ash.upper (10) = max <<prefix>>.timers.<<key>>.<node>.upper ! <prefix>.timers.<key>._totals.ash.lower (10) = min <<prefix>>.timers.<<key>>.<node>.lower http://graphite.readthedocs.org/en/latest/config-carbon.html#aggregation-rules-conf
- 34. PERFORMANCE First problem: IOPS Second problem: CPU http://www.organisationscience.com/styled-6/files/dt-improved-performance.jpg
- 35. GRAPHITE ALTERNATIVES Circonus:All the insights you ever wanted Zabbix: OSS self hosted monitoring http://circonus.com http://zabbix.com https://github.com/lyft/circonus-statsd-backend https://github.com/dlecocq/statsd-zabbix
- 36. GRAPHITE.JS Custom dashboards using jQuery https://github.com/prestontimmons/graphitejs http://dashboarddude.com/blog/2013/01/23/dashboards-for-graphite/
- 37. COST Optimize for adoption rates in your organization by eliminating cost as a constraint http://www.examiner.com/images/blog/wysiwyg/image/money].jpg
- 38. INSTRUMENTATION Instrument your infrastructure, not just your apps http://2.bp.blogspot.com/-bL9D8VMtor4/TiNBDEJmvOI/AAAAAAAAByc/Y0Uc3GVPNl0/s400/SeminaGestaoPessoasOrquestraROB4428.jpg
- 39. APACHE Use mod_statsd to capture stats directly from the Apache request http://kaleidos.net/files/images/apache318x260.png http://httpd.apache.org/ https://github.com/jib/mod_statsd
- 40. BASIC CONFIGURATION <Location /api> Statsd On StatsdPrefix apache </Location> https://github.com/jib/mod_statsd/blob/master/DOCUMENTATION $ curl http://localhost/api/foo?id=42 ! Stat: apache.api.foo.GET.200:31|ms
- 41. VARNISH use libvmod-statsd & libvmod-timers to capture stats directly from theVarnish request http://www.adammalone.net/sites/default/files/styles/blog_image/public/varnish-bunny.png?itok=1bBDTA1A https://www.varnish-cache.org/ https://github.com/jib/libvmod-statsd
- 42. BASIC CONFIGURATION # pseudo code import statsd; import timers; sub vcl_deliver { statsd.timing( $backend + # from req.backend $hit_miss + # from obj.hits $resp_code, # from obj.status timers. req_response_time() ); } https://github.com/jib/libvmod-statsd/blob/master/README.rst http://jiboumans.wordpress.com/2013/02/27/realtime-stats-from-varnish/
- 43. SAMPLE GRAPH The request per second & response time graphs are coming straight from varnish
- 44. PYTHON Create a base library in your language of choice https://pypi.python.org/pypi?%3Aaction=search&term=krux&submit=search
- 45. KRUX-STDLIB $ pip install krux-stdlib https://staticfiles.krxd.net/foss/docs/pypi/krux-stdlib/
- 46. BASIC APP USING STDLIB $ sample-app -h […] ! logging: --log-level {info,debug,critical,warning,error} Verbosity of logging. (default: warning) stats: --stats Enable sending statistics to statsd. (default: False) --stats-host STATS_HOST Statsd host to send statistics to. (default: localhost) --stats-port STATS_PORT Statsd port to send statistics to. (default: 8125) --stats-environment STATS_ENVIRONMENT Statsd environment. (default: dev) https://staticfiles.krxd.net/foss/docs/pypi/krux-stdlib/
- 47. BASIC APP USING STDLIB class App(krux.cli.Application): def __init__(self): ### Call to the superclass to bootstrap. super(Application, self).__init__( name = 'sample-app') def run(self): stats = self.stats log = self.logger ! with stats.timer('run'): log.info('running...') ... https://staticfiles.krxd.net/foss/docs/pypi/krux-stdlib/ https://pypi.python.org/pypi?%3Aaction=search&term=krux&submit=search
- 48. CLI echo ‘events.deploy.appname:1|c’ | nc localhost -u 8125
- 49. JAVASCRIPT Use a simple HTTP endpoint to send stats
- 50. PUPPET Use the Puppet module graphite-report to send Puppet reporting data directly to Graphite http://docs.puppetlabs.com/guides/reporting.html https://github.com/krux/puppet-module-graphite-report
