How to recover password on the cisco catalyst fixed configuration layer 2&layer 3 switches

http://blog.router-switch.com/

How to Recover Password

On the Cisco Catalyst Fixed Configuration Layer 2&Layer 3Switches？

This document describes the password recovery procedure for the Cisco Catalyst
Layer 2 fixed configurationswitches 2900XL/3500XL, 2940, 2950/2955, 2960, and
2970 Series, as well as the Cisco Catalyst Layer 3fixed configuration switches 3550,
3560, and 3750 Series.

Recovering Password on the Cisco Catalyst Layer 2and Layer 3 fixed
configuration switches step by step:
1. Attach a terminal or PC with terminal emulation (for example, Hyper Terminal) to
the console port of the switch.
Use the following terminal settings:
o Bits per second (baud): 9600
o Data bits: 8
o Parity: None
o Stop bits: 1
o Flow Control: Xon/Xoff
Note: For additional information on cabling and connecting a terminal to the console
port, refer to Connecting a Terminal to the Console Port on Catalyst Switches.

2. Unplug the power cable.

3. Power the switch and bring it to the switch: prompt:
For 2900XL, 3500XL, 2940, 2950, 2960, 2970, 3550, 3560, and 3750 series
switches, do this:
Hold down the mode button located on the left side of the front panel, while you
reconnect the power cable to the switch.
Catalyst Switch Series LED Behavior and Mode Button Release Action
Release the Mode button when the LED above Port1x goes
2900XL, 3500XL, 3550
out.
Release the Mode button after approximately 5 seconds
2940, 2950 when the Status (STAT) LED goes out. When you release
the Mode button, the SYST LED blinks amber.
Release the Mode button when the SYST LED blinks amber
2960, 2970 and then turns solid green. When you release the Mode
button, the SYST LED blinks green.
Release the Mode button after approximately 15 seconds
3560, 3750 when theSYST LED turns solid green. When you release the
Mode button, theSYST LED blinks green.
http://www.router-switch.com/


Note: LED position may vary slightly depending on the model.

Catalyst 3524XL

Catalyst 2950-24

For 2955 series switches only:
The Catalyst 2955 series switches do not use an external mode button for password
recovery. Instead the switch boot loader uses the break-key detection to stop the
automatic boot sequence for the password recovery purposes. The break sequence is
determined by the terminal application and operating system used. Hyperterm
running on Windows 2000 uses Ctrl + Break. On a workstation running UNIX, Ctrl-C is
the break key. For more information, refer to Standard Break Key Sequence
Combinations During Password Recovery.

The example below uses Hyperterm to break into switch: mode on a 2955.
C2955 Boot Loader (C2955-HBOOT-M) Version 12.1(0.0.514), CISCO
DEVELOPMENTTEST
VERSION
Compiled Fri 13-Dec-02 17:38 by madison
WS-C2955T-12 starting...
Base ethernet MAC Address: 00:0b:be:b6:ee:00


Xmodem file system is available.
Initializing Flash...
flashfs[0]: 19 files, 2 directories
flashfs[0]: 0 orphaned files, 0 orphaned directories
flashfs[0]: Total bytes: 7741440
flashfs[0]: Bytes used: 4510720
flashfs[0]: Bytes available: 3230720
flashfs[0]: flashfsfsck took 7 seconds.
...done initializing flash.
Boot Sector Filesystem (bs:) installed, fsid: 3
Parameter Block Filesystem (pb:) installed, fsid: 4

*** The system willautoboot in 15 seconds ***
Send break character to prevent autobooting.

!--- Wait until you see this message before
!--- you issue the break sequence.
!--- Ctrl+Breakis entered using Hyperterm.

The system has been interrupted prior to initializing the flash file system to finish
loading the operating system software:

flash_init
load_helper
boot
switch:
4. Issue the flash_init command.
switch: flash_init
Initializing Flash...
flashfs[0]: 143 files, 4 directories
flashfs[0]: 0 orphaned files, 0 orphaned directories
flashfs[0]: Total bytes: 3612672
flashfs[0]: Bytes used: 2729472
flashfs[0]: Bytes available: 883200
flashfs[0]: flashfsfsck took 86 seconds
....done Initializing Flash.
Boot Sector Filesystem (bs:) installed, fsid: 3
Parameter Block Filesystem (pb:) installed, fsid: 4
switch:

!--- This output is from a 2900XL switch. Output from
!--- other switches will vary slightly.


5. Issue the load_helper command.
switch: load_helper
switch:
6. Issue the dir flash: command.
Note: Make sure to type a colon ":" after the dir flash.
The switch file system is displayed:
switch: dir flash:
Directory of flash:/
2 -rwx 1803357<date>c3500xl-c3h2s-mz.120-5.WC7.bin

!--- This is the current version of software.

4 -rwx 1131<date>config.text

!--- This is the configuration file.

5 -rwx 109<date> info
6 -rwx 389<date>env_vars
7 drwx 640<date> html
18 -rwx 109<date>info.ver
403968 bytes available (3208704 bytes used)
switch:

!--- This output is from a 3500XL switch. Output from
!--- other switches will vary slightly.

7. Type rename flash:config.text flash:config.old to rename the configuration file.
switch: rename flash:config.textflash:config.old
switch:

!--- The config.text file contains the password
!--- definition.

8. Issue the boot command to boot the system.
switch: boot
Loading
"flash:c3500xl-c3h2s-mz.120-5.WC7.bin"...###############################
##################################################################
##################################################################
##################
File "flash:c3500xl-c3h2s-mz.120-5.WC7.bin" uncompressed and installed, entry
po
int: 0x3000


executing...

!--- Output suppressed.
!--- This output is from a 3500XL switch. Output from other switches
!--- will vary slightly.

9. Enter "n" at the prompt to abort the initial configuration dialog.
--- System Configuration Dialog ---
At any point you may enter a question mark '?' for help.
Use ctrl-c to abort configuration dialog at any prompt.
Default settings are in square brackets '[]'.
Continue with configuration dialog? [yes/no]: n

!--- Type "n" for no.

Press RETURN to get started.

!--- Press Return or Enter.

Switch>

!--- The Switch> prompt is displayed.

10. At the switch prompt, type en to enter enable mode.
Switch>en
Switch#

11. Type rename flash:config.old flash:config.text to rename the configuration file
with its original name.
Switch#renameflash:config.oldflash:config.text
Destination filename [config.text]


Switch#

12. Copy the configuration file into memory.
Switch#copyflash:config.textsystem:running-config
Destination filename [running-config]?


1131 bytes copied in 0.760 secs
Sw1#


The configuration file is now reloaded.

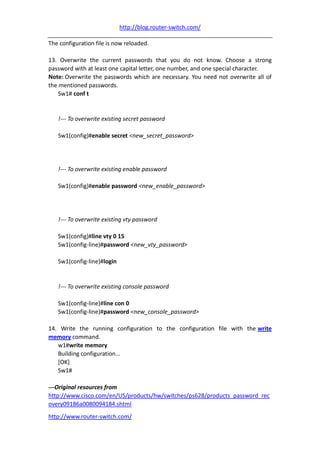

13. Overwrite the current passwords that you do not know. Choose a strong
password with at least one capital letter, one number, and one special character.
Note: Overwrite the passwords which are necessary. You need not overwrite all of
the mentioned passwords.
Sw1# conf t

!--- To overwrite existing secret password

Sw1(config)#enable secret <new_secret_password>

!--- To overwrite existing enable password

Sw1(config)#enable password <new_enable_password>

!--- To overwrite existing vty password

Sw1(config)#line vty 0 15
Sw1(config-line)#password <new_vty_password>

Sw1(config-line)#login

!--- To overwrite existing console password

Sw1(config-line)#line con 0
Sw1(config-line)#password <new_console_password>

14. Write the running configuration to the configuration file with the write
memory command.
w1#write memory
Building configuration...
[OK]
Sw1#

---Original resources from
