Html / CSS Presentation

Lunch & Learn: CSS
Oct 23 & 30 2013 // bswift

What we will talk about:
Front-end vs Back-end coding at bswift
Defining HTML, CSS and Javascript
How the client stylesheets work
Examples
Tools

SERVER

page.html

page.html

page.html

A static website is a group of self-contained,
individual pages (or page), sent to the browser from
the server one-page-at-a-time.

.net

SERVER

page.html

SQL databases
HTML

Dyamic web content is built when it is requested,
by the user directly, or programmatically while
a user is on a page (e.g., facebook updates).
Most websites contain both static and dynamic elements.

front-end

SERVER
REQUEST

HTML
CSS
Javascript

thanks!

Can I have
a webpage,
please?

.net

SQL databases

back-end “recipe”

SERVER
RESPONSE

Server-side / Client-side
aka

Back End / Front-end

.net
.asp
SQL

page.html

SERVER

BROWSER
style.css

etc
script.js

Client-side (front-end) coding includes HTML, CSS
and Javascript. This just means that our code will be
downloaded from the server and then compiled
entirely in the browser.

Three layers of web design:
Structure, Style, Behavior

BEHAVIOR
Javascript

PRESENTATION
CSS
Imagery

STRUCTURE
HTML markup
Site planning

Three layers of web design

Markup Language
A markup language is a
set of markup tags.
The purpose of the tags is to
group and describe page content.

Markup Language
Without any markup to give your content structure, the
browser renders unformatted and unstyled text, also
known as “plain text”.

Markup Language
HTML tags give structure and meaning to your content.
“Semantic markup” refers to the use of meaningful tags to
describe content (e.g. using header tags for header content).

Markup Language
Once your content is marked up, the browser applies built-in
default styles to the tags. While you can override these styles
with css, your marked up, non-css styled document should be
readable and have a clear hierarchy.

EXCEPTION

<!DOCTYPE html>
The doctype is not actually a tag,
but a declaration, telling the browser
what kind of html you are using. The
doctype above declares HTML 5.

<html></html>

The <html> element defines
the whole HTML document.

<head></head>
The <head> element contains special
elements that instruct the browser
where to find stylesheets, provide meta
info, and more.

<body></body>

The <body> element contains
the document content (what is shown
inside the browser window).

Nesting
The use of our first three tags (html, head and body),
introduces and important concept: Nesting, which is when
tags “wrap” other tags. When you create markup, you should
indicate nesting by indenting the nested tags with 2 spaces
(preferred) or a tab.
<html>
<head> </head>
<body>
<h1></h1>
<p></p>
</body>
</html>

Document Hierarchy: Parents, children and siblings
Just as in a genealogy tree, the family hierarchy is described in
terms of relationships. All elements in the document have a
parent (up to ‘document’, which is at the top), and may have
children (nested inside) or siblings (placed alongside).

<parent x>
<child and sibling y> </child and sibling y>
<child and sibling z> </child and sibling z>
</parent x>

The ‘address’ of an element
The document hierarchy provides us with an ‘address’ for each
element.

in the div with class “client-text-container”, make all of the h2
elements orange and 24px.

Anatomy of an Element

<tag>Content</tag>
An HTML element includes both
the HTML tag and everything between
the tag (the content).


<tag>Content</tag>
Tags normally come in pairs. The
first tag is the start tag, and the second
tag is the end tag.


<h1>Main Headline</h1>
HTML has a defined set of tag
names (also called keywords) that
the browser understands.

The essential element tags
Primary
Structure
html

Structural
Elements
(block)

Formatting
Elements
(inline)

head

p

em

body

br
h1 – h6
ul
ol
a
(div)

i
strong

Head
Elements
title
meta
link

b
q
blockquote
(span)


<html lang=”en”></html>
Most elements can have attributes,
which provides additional information
about the element.


<div class=”left-nav”></div>
Attributes always follow the same
format: name=”value”. You can use
either single or double quotes.

The essential attributes

link

<link rel=”stylesheet” type-”text/css” href=”stylesheet/styles.css”>


<img src=”images/image.jpg” alt=”Sam”>

a

<a href=”http://colum.edu”>My school</a>

The Stylesheet
A stylesheet is a set of rules defining
how an html element will be “presented”
in the browser.
These rules are targeted to specific
elements in the html document.

The Cascade
The “cascade” part of CSS is a set of rules
for resolving conflicts with multiple CSS
rules applied to the same elements.
For example, if there are two rules defining
the color or your h1 elements, the rule that
comes last in the cascade order will
“trump” the other.

low importance

Browser stylesheet

high importance

Linked (external) stylesheet

Embedded (internal) stylesheet

Inline (internal) Styles

Inheritance
Most elements will inherit many style properties
from their parent elements by default.
HTML

relationship

<body>
<div>
<ul>
<li></li>
</ul>
</div>
</body>

parent of site
parent of ul and li, child of body
parent of li, child of div and body
child of ul, div, and body

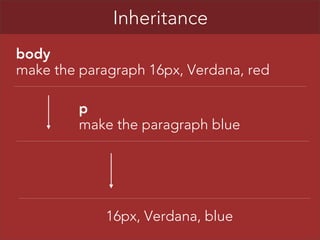

Inheritance
body
make the paragraph 16px, Verdana, red
p
make the paragraph blue

16px, Verdana, blue

Specificity
Shortly after styling your first html elements,
you will find yourself wanting more control over
where your styles are applied.
This is where specificity comes in.
Specificity refers to how specific your selector is
in naming an element.

Specificity
body
make the paragraph 16px, Verdana, red
p
make the paragraph blue
p.pink
make the paragraph pink
16px, Verdana, pink

HTML

<div id=”plan-2323”>
<p>Here is some text.</p>
<p>Hide this text.</p>
<div>

<div id=”plan-2323”>
<p>Here is some text.</p>
<p class=”hideclass”>Hide this text.</p>
<div>
CSS

#plan-2323.hideclass {display: none}

CSS Syntax

Syntax = the rules for how to write the language

Three terms for describing your styles:

CSS rule
CSS selector
CSS declaration

CSS Rule

selector {property: value;}
declaration

Every style is defined by a selector and
a declaration. The declaration contains at least
one property/value pair.Together they are
called a CSS Rule.

CSS Selector
body {font-family: Arial, Helvetica}
p {color: #666666}
h1 {font-size: 24px}
a {color: blue}

The selector associates css rules with
HTML elements.

CSS Selector
p {
color: red
}

The selector is typed in front of the declaration,
with a space separating it and the opening
curly-bracket (aka curly-brace).
Typically, extra spaces and returns are added as
shown for the sake of readability.

CSS Selector
h1,h2,h3,h4 {
font-weight: bold
}

You can apply styles to multiple selectors in the
same rule by separating the selectors with
commas.

CSS Declaration
p {
property: value
}

The declaration is always defined in a property/
value pair. The two are separated by a colon.
How you define the properties will affect how
HTML elements are displayed.

CSS Declaration
p {
font-family: Arial, sans-serif;
font-size: 14px;
color: #666666;
}

You can apply multiple declarations to a
selector(s) by separating the delcarations with
semi-colons.

p

Type (element)

#

ID

.

Class

Type (element) Selectors
body {declaration}
p {declaration}
h1 {declaration}
ul {declaration}

The simplest selector is the type selector, which
targets an html element by name.

The essential selector types (elements)
Primary
Structure
html

Body
Elements
p

Formatting
Elements
em

body

br

i

h1 – h6
ul
ol
a
div

strong
b
q
blockquote
span

ID Selectors
CSS

#logo {declaration}
HTML

<img id=”logo” src=”” alt=””>

An ID is an html attribute that is added to your
html markup. You reference that ID in your css
with a hash.

Class Selectors
CSS

.ingredients {declaration}
HTML

<ul class=”ingredients”>

A class is an html attribute that is added to your
html markup. You reference that ID in your css
with a period.

IDs vs Classes

The most important difference between IDs
and classes is that there can be only one ID
on a page, but multiple classes.
An ID is more specific than a class.
An element can have both an ID and
multiple classes.

IDs vs Classes

ID: #344-34-4344
Class: Male
Class: Employee

ID: #123-54-9877
Class: Female
Class: Employee

Descendant Selectors
CSS

#sidebar .author {declaration}
HTML

<div id=”sidebar”>
<p class=”author”></p>
</div>

A space between two selectors indicates a
descendant selector. In the example above, the
style is targeted to an element with the class
“author” inside the id “sidebar”.

Multiple classes
CSS

.ingredients.time {declaration}
HTML

<div class=”ingredients time”>
<h1></h1>
</div>

Elements can have multiple classes, giving you
more control. The are written in the CSS in the
exact order they appear in the html, with no
spaces.

Common uses:

Hiding elements
Tweaking specific text styles
Branding

Some things you can change with CSS
colors
type
type size
backgrounds
spacing
sizes
borders
positions (layout)
Some things you can’t change with CSS
content
markup

Example:

Client text + Client CSS

END NOTES

You are not expected to write
your own html & css
If you do, please run it by the UX team
Apply big changes only to ‘safe’ pages
Make sure we aren’t just fixing symptoms
Don’t make changes that damage
usability / readability / legibility
