- 1. IT Infrastructure Management Service 1 Presented by Paramaguru Kandasamy 18.09.2017 @ VRS College of Engineering & Technology, Villupuram.
- 2. AGENDA 1. Components of IT Infrastructure Management 2. Windows Operating system versions 3. MS Office & Other Software's 4. Cloud Solution – Business & Personal 5. Telecommunication 6. Servers ICT Infrastructure video Link: 2
- 3. COMPONENTS OF IT INFRASTRUCTURE MANAGEMENT Network Desktop & Laptops / Workstations Operation Systems Software Backup Computers Printers / Scanners CCTV & Attendance Software Management Internet – Video Link 3
- 4. NETWORK HUB / SWITCHES / ROUTERS 4 Cisco-24 /48 port Normal / Manageable switch Video Link for explanation:
- 5. FIREWALL 5 Pala Alto Cyberoam Cisco Cheackpoint Juniper
- 6. WINDOWS OPERATING SYSTEM VERSIONS 6
- 7. MS OFFICE 7
- 8. MS OFFICE 8
- 9. OTHER SOFTWARE'S Business Applications Software: ERP, testing tool, RDP, Cloud Platform, Ticketing tools, …etc JAVA, Adobe reader, Flash, VLC, WINRAR, WINZIP, Deskpdf creator, MS Office…..etc Browsers: IE, Chrome, Mozilla..etc Remote Tools: Team Viewer, Anydesk, Dameware, Skype for Business..etc 9
- 10. CLOUD SOLUTION 10 cloud computing is the delivery of computing services—servers, storage, databases, networking, software, analytics and more—over the Internet (“the cloud”).
- 12. TOP 10 BEST CLOUD STORAGE SERVICES OF 2017 FOR PERSONAL Dropbox -Price: 2GB free. Google Drive: 15GB free Mega: 50GB free OneDrive: 5GB free iCloud: 5GB free Box: 10GB free NextCloud: Free to install and use. Self-hosting so storage costs vary. SpiderOak:2GB free Idrive: 5GB free pCloud: 20GB free Ref link: http://www.techradar.com/news/top-10-best-cloud- storage-services-of-2017 12
- 13. TELECOMMUNICATION: EPABX: 1. CUG 2. PSTN Mobile Video Conference Skype Skype for business 13
- 14. SESSION INITIATION PROTOCOL, (SIP) Powerful and efficient communications protocol which can be used to send multimedia messages to multiple parties - allowing people around the world to communicate over the internet using their computers and mobile devices. Unlike similar services, such as PBX trunks, SIP trunks can carry all forms of media including voice, data, and video. As a result, SIP is usually preferred by companies with numerous branches or remote workers, whose employees depend heavily on multimedia communications. Compared to VoIP and other similar systems, SIP systems can be more difficult to set up and manage, making them most suitable for companies with strong IT support. 14
- 15. VOICE OVER INTERNET PROTOCOL, (VOIP) It’s communications protocol that is used to send voice messages over the internet. VoIP is a wide and rapidly expanding industry - popular apps and platforms such as Skype are increasingly using this technology. Particularly useful in small businesses with minimal locations, VoIP is a very common business protocol. 15
- 16. 16 Data center Location-1 Location-2 CCTV Room Optical fiber circuits switch switch LIU LIU CUG PSTN PSTN CUG
- 17. DIFFERENCE BETWEEN SKYPE & SKYPE FOR BUSINESS Skype that you use at home is great for smaller businesses of up to 20 employees. It is free to use, unless you want to buy credit to make calls to landlines and mobiles. Skype for Business lets you add up to 250 people to online meetings, provides enterprise-grade security, allows you to manage employee accounts, and is integrated into your Office apps. It costs $2 per month, per user. 17
- 18. 18 DIFFERENCE BETWEEN SKYPE & SKYPE FOR BUSINESS
- 19. LYNC VS SKYPE FOR BUSINESS 19
- 20. SERVERS A server operating system, also called a server OS, is an operating system specifically designed to run on servers, which are specialized computers that operate within a client/server architecture to serve the requests of client computers on the network. Examples of network operating systems include Microsoft Windows Server 2003, Microsoft Windows Server 2008, 2012 r2, UNIX, Linux, Mac OS X, Novell NetWare, and BSD…etc 20
- 21. EMAIL COMMUNICATION It is almost always used in conjunction with SMTP, or Simple Mail Transfer Protocol. POP3 is used to retrieve mail from the server (incoming) SMTP is used to send mail through the server (outgoing). IMAP, or Internet Message Access Protocol, is a newer protocol. Video link: 21
- 22. BACKUP TYPES: Full backups Incremental backups Differential backups One drive for Business: -Video Link OneDrive for Business is an integral part of Office 365 or SharePoint Server, and provides place in the cloud where you can store, share, and sync your work files. You can update and share your files from any device with OneDrive for Business. You can even work on Office documents with others at the same time. 22
- 23. WHAT IS DIFFERENTIAL BACKUP? A differential backup backs up only the files that changed since the last full back. What is incremental backup? Incremental backups also back up only the changed data, but they only back up the data that has changed since the last backup -- be it a full or incremental backup. They are sometimes called "differential incremental backups," while differential backups are sometimes called "cumulative incremental backups." 23

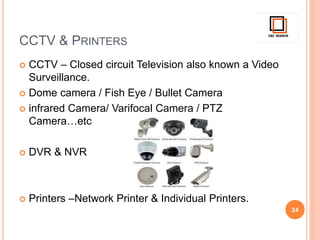

- 24. CCTV & PRINTERS CCTV – Closed circuit Television also known a Video Surveillance. Dome camera / Fish Eye / Bullet Camera infrared Camera/ Varifocal Camera / PTZ Camera…etc DVR & NVR Printers –Network Printer & Individual Printers. 24
- 25. HELPDESK & OPERATIONS Solving customers issues via chat / Email / Remote Support as per SLA. All complaints are register via Ticketing system Eg: Zoho. 25
- 26. QUESTIONS 26
- 27. FEEDBACK @ Email: paramaguruece@gmail.com / mirrorgroups2017@gmail.com, Cell: 9003770031 27
