Guided By : Mr. MANOJ M
ASSISTANT PROFESSOR
COMPUTER SCIENCE
Presented By : ABDUL MANAF
KIRAN R
PIOUS PAUL
VISHNU P.S

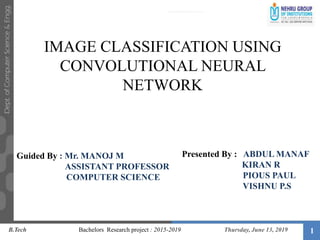

IMAGE CLASSIFICATION USING
CONVOLUTIONAL NEURAL
NETWORK
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
2
 Image classification model using a convolutional neural network with
Tensor Flow.
 A multi-category image data set has been considered for the
classification.
 The classifier train this proposed classifier to calculate the decision
boundary of the image dataset.
 The data in the real world is mostly in the form of unlabeled and
unstructured format. These unstructured images are need to be
classified .
 Thus CNN is introduced for image classification.

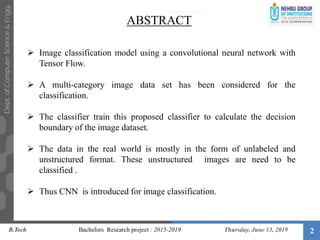

ABSTRACT
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
3

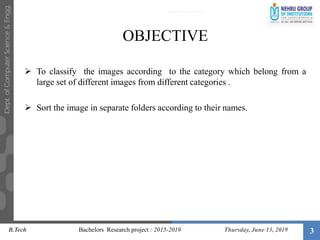

OBJECTIVE
 To classify the images according to the category which belong from a
large set of different images from different categories .
 Sort the image in separate folders according to their names.
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
4

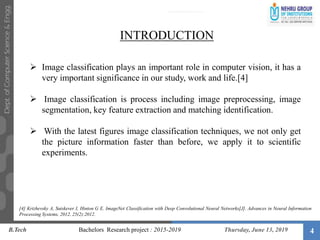

 Image classification plays an important role in computer vision, it has a
very important significance in our study, work and life.[4]
 Image classification is process including image preprocessing, image
segmentation, key feature extraction and matching identification.
 With the latest figures image classification techniques, we not only get
the picture information faster than before, we apply it to scientific
experiments.
INTRODUCTION
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
[4] Krizhevsky A, Sutskever I, Hinton G E. ImageNet Classification with Deep Convolutional Neural Networks[J]. Advances in Neural Information
Processing Systems, 2012, 25(2):2012.
5
[10] Xavier Mu ̃nozComputer Vision GroupUniversity of Gironaxmunoz@eia.udg.es, Anna BoschComputer Vision
GroupUniversity of Gironaaboschr@eia.udg.es,Image Classification using Random Forests and Ferns.
 Image classification using SUPPORT VECTOR MACHINE ,
RANDOM FOREST algorithm which is available on online
platforms.[10]
• These algorithms are highly complicated and time consuming for
processing and classifying images.
• Several key parameters should be correctly set to achieve best
classification result.
Existing system
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
PROPOSED SYSTEM
Thursday, June 13, 2019 6
 An image classifier using convolutional neural network,which use
CIFAR-10 dataset for image classification.
 Classifies the images with more accuracy.
 Classifies and save the images in separate folders according to the class
it goes.
B.Tech Bachelors Research project : 2015-2019
7
LITERATURE REVIEW

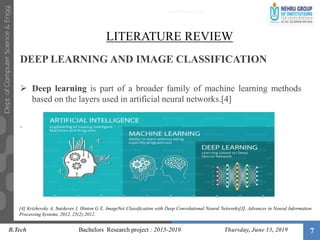

DEEP LEARNING AND IMAGE CLASSIFICATION
 Deep learning is part of a broader family of machine learning methods
based on the layers used in artificial neural networks.[4]
.
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
[4] Krizhevsky A, Sutskever I, Hinton G E. ImageNet Classification with Deep Convolutional Neural Networks[J]. Advances in Neural Information
Processing Systems, 2012, 25(2):2012.
8
LITERATURE REVIEW

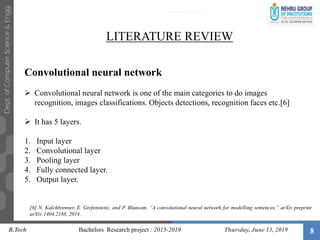

Convolutional neural network
 Convolutional neural network is one of the main categories to do images
recognition, images classifications. Objects detections, recognition faces etc.[6]
 It has 5 layers.
1. Input layer
2. Convolutional layer
3. Pooling layer
4. Fully connected layer.
5. Output layer.
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
[6] N. Kalchbrenner, E. Grefenstette, and P. Blunsom, “A convolutional neural network for modelling sentences,” arXiv preprint
arXiv:1404.2188, 2014.
9
LITERATURE REVIEW

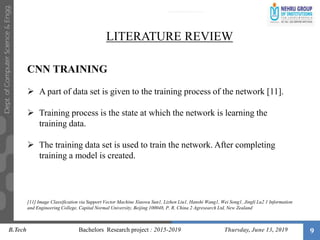

CNN TRAINING
 A part of data set is given to the training process of the network [11].
 Training process is the state at which the network is learning the
training data.
 The training data set is used to train the network. After completing
training a model is created.
[11] Image Classification via Support Vector Machine Xiaowu Sun1, Lizhen Liu1, Hanshi Wang1, Wei Song1, Jingli Lu2 1 Information
and Engineering College, Capital Normal University, Beijing 100048, P. R. China 2 Agresearch Ltd, New Zealand
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
10
LITERATURE REVIEW

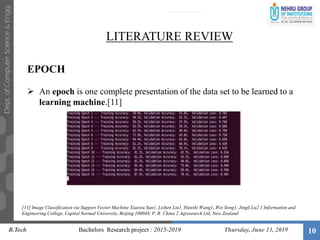

EPOCH
 An epoch is one complete presentation of the data set to be learned to a
learning machine.[11]
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
[11] Image Classification via Support Vector Machine Xiaowu Sun1, Lizhen Liu1, Hanshi Wang1, Wei Song1, Jingli Lu2 1 Information and
Engineering College, Capital Normal University, Beijing 100048, P. R. China 2 Agresearch Ltd, New Zealand
11
LITERATURE REVIEW

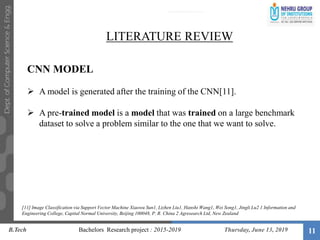

CNN MODEL
 A model is generated after the training of the CNN[11].
 A pre-trained model is a model that was trained on a large benchmark
dataset to solve a problem similar to the one that we want to solve.
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
[11] Image Classification via Support Vector Machine Xiaowu Sun1, Lizhen Liu1, Hanshi Wang1, Wei Song1, Jingli Lu2 1 Information and
Engineering College, Capital Normal University, Beijing 100048, P. R. China 2 Agresearch Ltd, New Zealand
12
LITERATURE REVIEW
CNN TESTING
 In this stage the performance of the network is measured.[13]
 The test dataset is used for the testing
 Accuracy is the closeness of actual output and desired output
 Error is the variation in between the actual output and desired output
 In deep learning, a convolutional neural network is a class of deep neural network.
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
[13] Impact of Training and Testing Data Splits on Accuracy of Time Series Forecasting in Machine Learning Ramesh Medar Vijay S.
Rajpurohit-Rashmi. B.
13
LITERATURE REVIEW

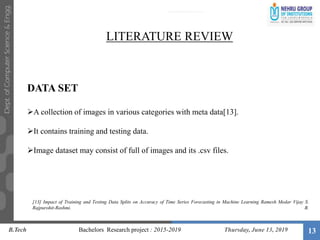

DATA SET
A collection of images in various categories with meta data[13].
It contains training and testing data.
Image dataset may consist of full of images and its .csv files.
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
[13] Impact of Training and Testing Data Splits on Accuracy of Time Series Forecasting in Machine Learning Ramesh Medar Vijay S.
Rajpurohit-Rashmi. B.
14
LITERATURE REVIEW
CIFAR-10
The CIFAR-10 dataset consists of 60000 32x32 color images in 10 classes,
with 6000 images per class. There are 50000 training images and 10000 test
images.[14]
The dataset is divided into five training batches and one test batch, each with
10000 images.
The test batch contains exactly 1000 randomly-selected images from each
class.
The training batches contain the remaining images in random order, but
some training batches may contain more images from one class than another.
Between them, the training batches contain exactly 5000 images from each
class.
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
[14] Preprocessing for Image Classification by Convolutional Neural Networks Kuntal Kumar Pal, Sudeep K. S IEEE International
Conference On Recent Trends In Electronics Information Communication Technology, May 20-21, 2016, India
15
LITERATURE REVIEW
Here are the classes in the dataset, as well as 10 random images from each:
.
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
[14] Preprocessing for Image Classification by Convolutional Neural Networks Kuntal Kumar Pal, Sudeep K. S IEEE International
Conference On Recent Trends In Electronics Information Communication Technology, May 20-21, 2016, India
16
LITERATURE REVIEW
FEATURE MAP
 The feature map is the output of one filter applied to the previous layer.
 A given filter is drawn across the entire previous layer, moved one pixel at
a time.[14]
 Each position results in an activation of the neuron and the output is
collected in the feature map.
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
[14] Preprocessing for Image Classification by Convolutional Neural Networks Kuntal Kumar Pal, Sudeep K. S IEEE International
Conference On Recent Trends In Electronics Information Communication Technology, May 20-21, 2016, India
17
LITERATURE REVIEW
PREPROCESSING
Raw data if applied to any classification methods does not produce good
accuracy as can be verified from the results we achieved.[14]
The goal is to show how much the accuracy varies with the application of
some well-known preprocessing techniques on some simple convolutional
networks.
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
[14] Preprocessing for Image Classification by Convolutional Neural Networks Kuntal Kumar Pal, Sudeep K. S IEEE International
Conference On Recent Trends In Electronics Information Communication Technology, May 20-21, 2016, India
18
LITERATURE REVIEW
NORMALIZATION
 Normalization is a technique often applied as part of data preparation for machine
learning.
B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
[14] Preprocessing for Image Classification by Convolutional Neural Networks Kuntal Kumar Pal, Sudeep K. S IEEE International
Conference On Recent Trends In Electronics Information Communication Technology, May 20-21, 2016, India
19
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019
MODULE DESCRIPTION
1. INPUT
2. TRAINING
3. CLASSIFICATION
Thursday, June 13, 2019
20
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019
MODULE DESCRIPTION
Thursday, June 13, 2019
Block diagram
21
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019 Thursday, June 13, 2019
22
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019
MODULE 1
Input image
 Computers sees an input image as array of pixels and it depends on the
image resolution.
 Based on the image resolution, it will see h x w x d( h = Height, w =
Width, d = Dimension)
Thursday, June 13, 2019
23
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019
 An image of 6 x 6 x 3 array of matrix of RGB (3 refers to RGB
values)
Thursday, June 13, 2019
24
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019
MODULE 2
CONVOLUTIONAL LAYER
 Convolution is the first layer to extract features from an input image.
 Convolution preserves the relationship between pixels by learning image
features using small squares of input data.
 It is a mathematical operation that takes two inputs such as image matrix and a
filter or kernal.
Thursday, June 13, 2019
25
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019 Thursday, June 13, 2019
SYSTEM ARCHITECTURE

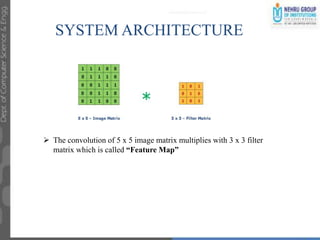

 The convolution of 5 x 5 image matrix multiplies with 3 x 3 filter
matrix which is called “Feature Map”
27
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019 Thursday, June 13, 2019
28
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019
PADDING
Sometimes filter does not fit perfectly fit the input image. We
have two options:
 Pad the picture with zeros (zero-padding) so that it fits
 Drop the part of the image where the filter did not fit. This is
called valid padding which keeps only valid part of the image.
Thursday, June 13, 2019
29
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019
NON LINEARITY (RELU)
 ReLU stands for Rectified Linear Unit for a non-linear
operation. The output is ƒ(x) = max(0,x).
 Why ReLU is important : ReLU’s purpose is to introduce non-
linearity in our ConvNet. Since, the real world data would want
our ConvNet to learn would be non-negative linear values.
Thursday, June 13, 2019
30
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019

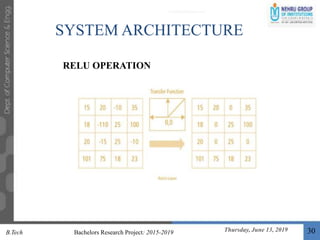

RELU OPERATION
Thursday, June 13, 2019
31
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019
POOLING LAYER
 Pooling layers section would reduce the number of parameters when
the images are too large.
 Pooling layer consider a block of input data and simply pass on
maximum value
 Hence it reduces the size of the input and require no added
parameters
Thursday, June 13, 2019
32
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019
FLATTENING
After finishing the previous two steps, we're supposed to have a pooled feature
map by now. As the name of this step implies, we are literally going to flatten
our pooled feature map into a column like in the image below.
Thursday, June 13, 2019
MODULE 3
39
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019
FLATTENING
The reason we do this is that we're going to need to insert this data into
an artificial neural network later on.
Thursday, June 13, 2019
34
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019
FULLY CONNECTED LAYER
 The layer we call as FC layer, we flattened our matrix into vector and feed it
into a fully connected layer like neural network.
Thursday, June 13, 2019
35
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019
 Fully connected layer is connected with output layer
Thursday, June 13, 2019
36
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019 Thursday, June 13, 2019
SOFTMAX FUCTION
Activation function used in the cnn.
37
SYSTEM ARCHITECTURE
B.Tech Bachelors Research Project: 2015-2019 Thursday, June 13, 2019
Output layer
 After multiple layers of convolution and padding.
 output should be in the form of a class.
 The convolution and pooling layers would only be able to extract features
and reduce the number of parameters from the original images.
 However, to generate the final output we need to apply a fully connected
layer to generate an output equal to the number of classes we need.
 Thus the output layer give the classified images.
Obtained outcome
• Image which are classified with its name.
• The probability of image to be in the other class.
Thursday, June 13, 2019 38B.Tech Main Project : 2009-2013
CONCLUSION AND FUTURE SCOPE
Thursday, June 13, 2019 39
FUTURE SCOPE
Image can be classified and keep in separate folders.
Automatic face recognition and object recognition can be used for
classifying the images automatically.
B.Tech Bachelors Research project : 2015-2019
 Implemented an image classifier using convolutional
neural network, which is more efficient for image
classification when comparing to the other methods.
 It is usefully for classifying larger number of image with
in short time.
Thursday, June 13, 2019 40
HARDWARE REQUIREMENT
Operating system: windows 8 or later.
PROCESSOR : Intel i3 6th gen or later
RAM : MIN 2 GB
HDD : MIN 40 GB
B.Tech Bachelors Research project : 2015-2019
Thursday, June 13, 2019 41
SOFTWARE REQUIREMENT
Progamming language : Python 3.7
Framework : Spyder 3.3.3
Software library : Google tensor flow
Development environment : Anaconda
For visualization : matplotlib
B.Tech Bachelors Research project : 2015-2019

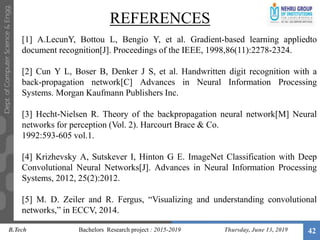

REFERENCES
Thursday, June 13, 2019 42
[1] A.LecunY, Bottou L, Bengio Y, et al. Gradient-based learning appliedto
document recognition[J]. Proceedings of the IEEE, 1998,86(11):2278-2324.
[2] Cun Y L, Boser B, Denker J S, et al. Handwritten digit recognition with a
back-propagation network[C] Advances in Neural Information Processing
Systems. Morgan Kaufmann Publishers Inc.
[3] Hecht-Nielsen R. Theory of the backpropagation neural network[M] Neural
networks for perception (Vol. 2). Harcourt Brace & Co.
1992:593-605 vol.1.
[4] Krizhevsky A, Sutskever I, Hinton G E. ImageNet Classification with Deep
Convolutional Neural Networks[J]. Advances in Neural Information Processing
Systems, 2012, 25(2):2012.
[5] M. D. Zeiler and R. Fergus, “Visualizing and understanding convolutional
networks,” in ECCV, 2014.
B.Tech Bachelors Research project : 2015-2019
REFERENCES
[6] N. Kalchbrenner, E. Grefenstette, and P. Blunsom, “A convolutional neural network
for modelling sentences,” arXiv preprint arXiv:1404.2188, 2014.
[7] O. Abdel-Hamid, A. R. Mohamed, H. Jiang, and G. Penn, “Applying convolutional
neural networks concepts to hybrid nn-hmm model for speech recognition,” in
Acoustics, Speech and Signal Processing (ICASSP), 2012 IEEE International
Conference on. IEEE, 2012, pp. 4277–4280.
[8] Y. LeCun, B. Boser, J. S. Denker, D. Henderson, R. E. Howard, W. Hubbard, and L.
D. Jackel, “Backpropagation applied to handwritten zip code recognition,” Neural
computation, vol. 1, no. 4, pp. 541–551, 1989.
[9] Y. LeCun, L. Bottou, Y. Bengio, and P. Haffner, “Gradient-based learning applied to
document recognition,” Proceedings of the IEEE, vol. 86, no. 11, pp. 2278–2324, 1998.
[10]Xavier Mu ̃nozComputer Vision GroupUniversity of Gironaxmunoz@eia.udg.es,
Anna BoschComputer Vision GroupUniversity of Gironaaboschr@eia.udg.es,Image
Classification using Random Forests and Ferns.
Thursday, June 13, 2019 43B.Tech Bachelors Research project : 2015-2019
REFERENCES
[11] Image Classification via Support Vector Machine Xiaowu Sun1, Lizhen Liu1,
Hanshi Wang1, Wei Song1, Jingli Lu2 1 Information and Engineering College, Capital
Normal University, Beijing 100048, P. R. China 2 Agresearch Ltd, New Zealand
[12]Unsupervised Deep Feature Extraction for Remote Sensing Image Classification
Adriana Romero, Carlo Gatta, and Gustau Camps-Valls, Senior Member, IEEE.
Thursday, June 13, 2019 44B.Tech Bachelors Research project : 2015-2019
[13] Impact of Training and Testing Data Splits on Accuracy of Time Series Forecasting
in Machine Learning Ramesh Medar Vijay S. Rajpurohit Rashmi B.
[14] Preprocessing for Image Classification by Convolutional Neural Networks Kuntal
Kumar Pal, Sudeep K. S IEEE International Conference On Recent Trends In
Electronics Information Communication Technology, May 20-21, 2016, India.
.
SREENSHOTS
Thursday, June 13, 2019 45
Main window : used to give dataset input
B.Tech Bachelors Research project : 2015-2019
SREENSHOTS
Thursday, June 13, 2019 46
Display statistics
B.Tech Bachelors Research project : 2015-2019
SREENSHOTS
Thursday, June 13, 2019 47

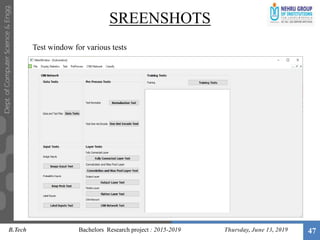

Test window for various tests
B.Tech Bachelors Research project : 2015-2019
SREENSHOTS
Thursday, June 13, 2019 48
Preprocessing
B.Tech Bachelors Research project : 2015-2019
SREENSHOTS
Thursday, June 13, 2019 49

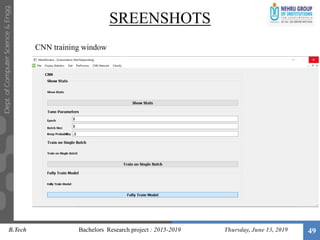

CNN training window
B.Tech Bachelors Research project : 2015-2019
SREENSHOTS
Thursday, June 13, 2019 50
Classification result of 2 epoch training
B.Tech Bachelors Research project : 2015-2019
SREENSHOTS
Thursday, June 13, 2019 51
Classification result of 10 epoch training
B.Tech Bachelors Research project : 2015-2019
SREENSHOTS
Thursday, June 13, 2019 52
Classification result of 75 epoch training
B.Tech Bachelors Research project : 2015-2019

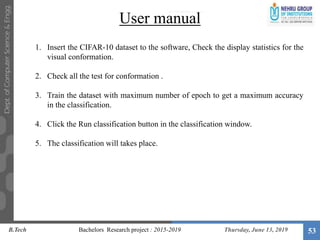

User manual
Thursday, June 13, 2019 53
1. Insert the CIFAR-10 dataset to the software, Check the display statistics for the
visual conformation.
2. Check all the test for conformation .
3. Train the dataset with maximum number of epoch to get a maximum accuracy
in the classification.
4. Click the Run classification button in the classification window.
5. The classification will takes place.
B.Tech Bachelors Research project : 2015-2019
Thank You
Thursday, June 13, 2019 54B.Tech Bachelors Research Project : 2015-2019

More Related Content

PPTX
Image classification using CNN
PPTX
Convolution Neural Network (CNN)
PPTX
Image classification with Deep Neural Networks
PPTX
Image classification using cnn
PDF
Convolutional Neural Network Models - Deep Learning
PPTX
Object detection with deep learning
PPTX
Deep learning presentation
Image classification using CNN
Convolution Neural Network (CNN)
Image classification with Deep Neural Networks
Image classification using cnn
Convolutional Neural Network Models - Deep Learning
Object detection with deep learning
Deep learning presentation

What's hot (20)

PPTX
Convolutional Neural Networks
PPTX
Image Classification using deep learning
PDF
Deep learning for medical imaging
PDF
Convolutional Neural Networks (CNN)
PDF
(2017/06)Practical points of deep learning for medical imaging
PDF
Convolutional neural network
PPTX
Convolution Neural Network (CNN)
PPTX
Deep Learning in Computer Vision
PPTX
Introduction to Deep Learning
PPTX
What Is Deep Learning? | Introduction to Deep Learning | Deep Learning Tutori...
PPTX
Convolutional Neural Network and Its Applications
PPTX
CNN Machine learning DeepLearning
PPTX
Convolutional Neural Network - CNN | How CNN Works | Deep Learning Course | S...
PDF
Emotion detection using cnn.pptx
PPTX
Feedforward neural network
PDF
Introduction to object detection
PPTX
Deep learning
PPTX
Facial Emotion Recognition: A Deep Learning approach
PPTX
1.Introduction to deep learning
PPTX
Deep Learning Tutorial
Convolutional Neural Networks
Image Classification using deep learning
Deep learning for medical imaging
Convolutional Neural Networks (CNN)
(2017/06)Practical points of deep learning for medical imaging
Convolutional neural network
Convolution Neural Network (CNN)
Deep Learning in Computer Vision
Introduction to Deep Learning
What Is Deep Learning? | Introduction to Deep Learning | Deep Learning Tutori...
Convolutional Neural Network and Its Applications
CNN Machine learning DeepLearning
Convolutional Neural Network - CNN | How CNN Works | Deep Learning Course | S...
Emotion detection using cnn.pptx
Feedforward neural network
Introduction to object detection
Deep learning
Facial Emotion Recognition: A Deep Learning approach
1.Introduction to deep learning
Deep Learning Tutorial
Ad

Similar to Image classification using convolutional neural network (20)

PDF
End-to-end deep auto-encoder for segmenting a moving object with limited tra...
PDF
seminar report kshitij on PBL presentation.pdf
PDF
Multi-Level Feature Fusion Based Transfer Learning for Person Re-Identification
PDF
MULTI-LEVEL FEATURE FUSION BASED TRANSFER LEARNING FOR PERSON RE-IDENTIFICATION
PDF
IRJET- Automated Detection of Diabetic Retinopathy using Compressed Sensing
PDF
PDF
PDF
Efficient mobilenet architecture_as_image_recognit
PDF
IRJET- Rice QA using Deep Learning
PDF
New Research Articles 2019 October Issue Signal & Image Processing An Interna...
PDF
78-ijsrr-d-2250.ebn-f.pdf
PDF
Application To Monitor And Manage People In Crowded Places Using Neural Networks
PDF
A new approachto image classification based on adeep multiclass AdaBoosting e...
PDF
January 2025 - Top 10 Read Articles in Artificial Intelligence and Applicatio...
PDF
A Literature Survey on Image Linguistic Visual Question Answering
PDF
July 2025 - Top 10 Read Articles in Artificial Intelligence and Applications ...
PDF
P-D controller computer vision and robotics integration based for student’s p...
PDF
IRJET- Deep Learning Techniques for Object Detection
PDF
Efficient content-based image retrieval using integrated dual deep convoluti...
PDF
Increamental Data Clustering
End-to-end deep auto-encoder for segmenting a moving object with limited tra...
seminar report kshitij on PBL presentation.pdf
Multi-Level Feature Fusion Based Transfer Learning for Person Re-Identification
MULTI-LEVEL FEATURE FUSION BASED TRANSFER LEARNING FOR PERSON RE-IDENTIFICATION
IRJET- Automated Detection of Diabetic Retinopathy using Compressed Sensing
Efficient mobilenet architecture_as_image_recognit
IRJET- Rice QA using Deep Learning
New Research Articles 2019 October Issue Signal & Image Processing An Interna...
78-ijsrr-d-2250.ebn-f.pdf
Application To Monitor And Manage People In Crowded Places Using Neural Networks
A new approachto image classification based on adeep multiclass AdaBoosting e...
January 2025 - Top 10 Read Articles in Artificial Intelligence and Applicatio...
A Literature Survey on Image Linguistic Visual Question Answering
July 2025 - Top 10 Read Articles in Artificial Intelligence and Applications ...
P-D controller computer vision and robotics integration based for student’s p...
IRJET- Deep Learning Techniques for Object Detection
Efficient content-based image retrieval using integrated dual deep convoluti...
Increamental Data Clustering
Ad

Recently uploaded (20)

PDF
GamePlan Trading System Review: Professional Trader's Honest Take
PDF
Advanced Soft Computing BINUS July 2025.pdf
PDF
Per capita expenditure prediction using model stacking based on satellite ima...
PDF
Chapter 3 Spatial Domain Image Processing.pdf
PDF
CIFDAQ's Market Insight: SEC Turns Pro Crypto
PDF
7 ChatGPT Prompts to Help You Define Your Ideal Customer Profile.pdf
PDF
Build a system with the filesystem maintained by OSTree @ COSCUP 2025
PDF
Shreyas Phanse Resume: Experienced Backend Engineer | Java • Spring Boot • Ka...
PDF
The Rise and Fall of 3GPP – Time for a Sabbatical?
PDF
Diabetes mellitus diagnosis method based random forest with bat algorithm
PDF
NewMind AI Weekly Chronicles - August'25 Week I
PPTX
Big Data Technologies - Introduction.pptx
PDF
Machine learning based COVID-19 study performance prediction
PDF
TokAI - TikTok AI Agent : The First AI Application That Analyzes 10,000+ Vira...
PDF
Empathic Computing: Creating Shared Understanding
PDF
Review of recent advances in non-invasive hemoglobin estimation
PPTX
VMware vSphere Foundation How to Sell Presentation-Ver1.4-2-14-2024.pptx
PPTX
MYSQL Presentation for SQL database connectivity
PPT
Teaching material agriculture food technology
PDF
Bridging biosciences and deep learning for revolutionary discoveries: a compr...
GamePlan Trading System Review: Professional Trader's Honest Take
Advanced Soft Computing BINUS July 2025.pdf
Per capita expenditure prediction using model stacking based on satellite ima...
Chapter 3 Spatial Domain Image Processing.pdf
CIFDAQ's Market Insight: SEC Turns Pro Crypto
7 ChatGPT Prompts to Help You Define Your Ideal Customer Profile.pdf
Build a system with the filesystem maintained by OSTree @ COSCUP 2025
Shreyas Phanse Resume: Experienced Backend Engineer | Java • Spring Boot • Ka...
The Rise and Fall of 3GPP – Time for a Sabbatical?
Diabetes mellitus diagnosis method based random forest with bat algorithm
NewMind AI Weekly Chronicles - August'25 Week I
Big Data Technologies - Introduction.pptx
Machine learning based COVID-19 study performance prediction
TokAI - TikTok AI Agent : The First AI Application That Analyzes 10,000+ Vira...
Empathic Computing: Creating Shared Understanding
Review of recent advances in non-invasive hemoglobin estimation
VMware vSphere Foundation How to Sell Presentation-Ver1.4-2-14-2024.pptx
MYSQL Presentation for SQL database connectivity
Teaching material agriculture food technology
Bridging biosciences and deep learning for revolutionary discoveries: a compr...

Image classification using convolutional neural network

  • 1. 1 Guided By : Mr. MANOJ M ASSISTANT PROFESSOR COMPUTER SCIENCE Presented By : ABDUL MANAF KIRAN R PIOUS PAUL VISHNU P.S IMAGE CLASSIFICATION USING CONVOLUTIONAL NEURAL NETWORK B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
  • 2. 2  Image classification model using a convolutional neural network with Tensor Flow.  A multi-category image data set has been considered for the classification.  The classifier train this proposed classifier to calculate the decision boundary of the image dataset.  The data in the real world is mostly in the form of unlabeled and unstructured format. These unstructured images are need to be classified .  Thus CNN is introduced for image classification. ABSTRACT B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
  • 3. 3 OBJECTIVE  To classify the images according to the category which belong from a large set of different images from different categories .  Sort the image in separate folders according to their names. B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
  • 4. 4  Image classification plays an important role in computer vision, it has a very important significance in our study, work and life.[4]  Image classification is process including image preprocessing, image segmentation, key feature extraction and matching identification.  With the latest figures image classification techniques, we not only get the picture information faster than before, we apply it to scientific experiments. INTRODUCTION B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019 [4] Krizhevsky A, Sutskever I, Hinton G E. ImageNet Classification with Deep Convolutional Neural Networks[J]. Advances in Neural Information Processing Systems, 2012, 25(2):2012.
  • 5. 5 [10] Xavier Mu ̃nozComputer Vision GroupUniversity of Gironaxmunoz@eia.udg.es, Anna BoschComputer Vision GroupUniversity of Gironaaboschr@eia.udg.es,Image Classification using Random Forests and Ferns.  Image classification using SUPPORT VECTOR MACHINE , RANDOM FOREST algorithm which is available on online platforms.[10] • These algorithms are highly complicated and time consuming for processing and classifying images. • Several key parameters should be correctly set to achieve best classification result. Existing system B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
  • 6. PROPOSED SYSTEM Thursday, June 13, 2019 6  An image classifier using convolutional neural network,which use CIFAR-10 dataset for image classification.  Classifies the images with more accuracy.  Classifies and save the images in separate folders according to the class it goes. B.Tech Bachelors Research project : 2015-2019
  • 7. 7 LITERATURE REVIEW DEEP LEARNING AND IMAGE CLASSIFICATION  Deep learning is part of a broader family of machine learning methods based on the layers used in artificial neural networks.[4] . B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019 [4] Krizhevsky A, Sutskever I, Hinton G E. ImageNet Classification with Deep Convolutional Neural Networks[J]. Advances in Neural Information Processing Systems, 2012, 25(2):2012.
  • 8. 8 LITERATURE REVIEW Convolutional neural network  Convolutional neural network is one of the main categories to do images recognition, images classifications. Objects detections, recognition faces etc.[6]  It has 5 layers. 1. Input layer 2. Convolutional layer 3. Pooling layer 4. Fully connected layer. 5. Output layer. B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019 [6] N. Kalchbrenner, E. Grefenstette, and P. Blunsom, “A convolutional neural network for modelling sentences,” arXiv preprint arXiv:1404.2188, 2014.
  • 9. 9 LITERATURE REVIEW CNN TRAINING  A part of data set is given to the training process of the network [11].  Training process is the state at which the network is learning the training data.  The training data set is used to train the network. After completing training a model is created. [11] Image Classification via Support Vector Machine Xiaowu Sun1, Lizhen Liu1, Hanshi Wang1, Wei Song1, Jingli Lu2 1 Information and Engineering College, Capital Normal University, Beijing 100048, P. R. China 2 Agresearch Ltd, New Zealand B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019
  • 10. 10 LITERATURE REVIEW EPOCH  An epoch is one complete presentation of the data set to be learned to a learning machine.[11] B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019 [11] Image Classification via Support Vector Machine Xiaowu Sun1, Lizhen Liu1, Hanshi Wang1, Wei Song1, Jingli Lu2 1 Information and Engineering College, Capital Normal University, Beijing 100048, P. R. China 2 Agresearch Ltd, New Zealand
  • 11. 11 LITERATURE REVIEW CNN MODEL  A model is generated after the training of the CNN[11].  A pre-trained model is a model that was trained on a large benchmark dataset to solve a problem similar to the one that we want to solve. B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019 [11] Image Classification via Support Vector Machine Xiaowu Sun1, Lizhen Liu1, Hanshi Wang1, Wei Song1, Jingli Lu2 1 Information and Engineering College, Capital Normal University, Beijing 100048, P. R. China 2 Agresearch Ltd, New Zealand
  • 12. 12 LITERATURE REVIEW CNN TESTING  In this stage the performance of the network is measured.[13]  The test dataset is used for the testing  Accuracy is the closeness of actual output and desired output  Error is the variation in between the actual output and desired output  In deep learning, a convolutional neural network is a class of deep neural network. B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019 [13] Impact of Training and Testing Data Splits on Accuracy of Time Series Forecasting in Machine Learning Ramesh Medar Vijay S. Rajpurohit-Rashmi. B.
  • 13. 13 LITERATURE REVIEW DATA SET A collection of images in various categories with meta data[13]. It contains training and testing data. Image dataset may consist of full of images and its .csv files. B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019 [13] Impact of Training and Testing Data Splits on Accuracy of Time Series Forecasting in Machine Learning Ramesh Medar Vijay S. Rajpurohit-Rashmi. B.
  • 14. 14 LITERATURE REVIEW CIFAR-10 The CIFAR-10 dataset consists of 60000 32x32 color images in 10 classes, with 6000 images per class. There are 50000 training images and 10000 test images.[14] The dataset is divided into five training batches and one test batch, each with 10000 images. The test batch contains exactly 1000 randomly-selected images from each class. The training batches contain the remaining images in random order, but some training batches may contain more images from one class than another. Between them, the training batches contain exactly 5000 images from each class. B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019 [14] Preprocessing for Image Classification by Convolutional Neural Networks Kuntal Kumar Pal, Sudeep K. S IEEE International Conference On Recent Trends In Electronics Information Communication Technology, May 20-21, 2016, India
  • 15. 15 LITERATURE REVIEW Here are the classes in the dataset, as well as 10 random images from each: . B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019 [14] Preprocessing for Image Classification by Convolutional Neural Networks Kuntal Kumar Pal, Sudeep K. S IEEE International Conference On Recent Trends In Electronics Information Communication Technology, May 20-21, 2016, India
  • 16. 16 LITERATURE REVIEW FEATURE MAP  The feature map is the output of one filter applied to the previous layer.  A given filter is drawn across the entire previous layer, moved one pixel at a time.[14]  Each position results in an activation of the neuron and the output is collected in the feature map. B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019 [14] Preprocessing for Image Classification by Convolutional Neural Networks Kuntal Kumar Pal, Sudeep K. S IEEE International Conference On Recent Trends In Electronics Information Communication Technology, May 20-21, 2016, India
  • 17. 17 LITERATURE REVIEW PREPROCESSING Raw data if applied to any classification methods does not produce good accuracy as can be verified from the results we achieved.[14] The goal is to show how much the accuracy varies with the application of some well-known preprocessing techniques on some simple convolutional networks. B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019 [14] Preprocessing for Image Classification by Convolutional Neural Networks Kuntal Kumar Pal, Sudeep K. S IEEE International Conference On Recent Trends In Electronics Information Communication Technology, May 20-21, 2016, India
  • 18. 18 LITERATURE REVIEW NORMALIZATION  Normalization is a technique often applied as part of data preparation for machine learning. B.Tech Bachelors Research project : 2015-2019 Thursday, June 13, 2019 [14] Preprocessing for Image Classification by Convolutional Neural Networks Kuntal Kumar Pal, Sudeep K. S IEEE International Conference On Recent Trends In Electronics Information Communication Technology, May 20-21, 2016, India
  • 19. 19 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 MODULE DESCRIPTION 1. INPUT 2. TRAINING 3. CLASSIFICATION Thursday, June 13, 2019
  • 20. 20 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 MODULE DESCRIPTION Thursday, June 13, 2019 Block diagram
  • 21. 21 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 Thursday, June 13, 2019
  • 22. 22 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 MODULE 1 Input image  Computers sees an input image as array of pixels and it depends on the image resolution.  Based on the image resolution, it will see h x w x d( h = Height, w = Width, d = Dimension) Thursday, June 13, 2019
  • 23. 23 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019  An image of 6 x 6 x 3 array of matrix of RGB (3 refers to RGB values) Thursday, June 13, 2019
  • 24. 24 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 MODULE 2 CONVOLUTIONAL LAYER  Convolution is the first layer to extract features from an input image.  Convolution preserves the relationship between pixels by learning image features using small squares of input data.  It is a mathematical operation that takes two inputs such as image matrix and a filter or kernal. Thursday, June 13, 2019
  • 25. 25 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 Thursday, June 13, 2019
  • 26. SYSTEM ARCHITECTURE  The convolution of 5 x 5 image matrix multiplies with 3 x 3 filter matrix which is called “Feature Map”
  • 27. 27 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 Thursday, June 13, 2019
  • 28. 28 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 PADDING Sometimes filter does not fit perfectly fit the input image. We have two options:  Pad the picture with zeros (zero-padding) so that it fits  Drop the part of the image where the filter did not fit. This is called valid padding which keeps only valid part of the image. Thursday, June 13, 2019
  • 29. 29 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 NON LINEARITY (RELU)  ReLU stands for Rectified Linear Unit for a non-linear operation. The output is ƒ(x) = max(0,x).  Why ReLU is important : ReLU’s purpose is to introduce non- linearity in our ConvNet. Since, the real world data would want our ConvNet to learn would be non-negative linear values. Thursday, June 13, 2019
  • 30. 30 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 RELU OPERATION Thursday, June 13, 2019
  • 31. 31 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 POOLING LAYER  Pooling layers section would reduce the number of parameters when the images are too large.  Pooling layer consider a block of input data and simply pass on maximum value  Hence it reduces the size of the input and require no added parameters Thursday, June 13, 2019
  • 32. 32 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 FLATTENING After finishing the previous two steps, we're supposed to have a pooled feature map by now. As the name of this step implies, we are literally going to flatten our pooled feature map into a column like in the image below. Thursday, June 13, 2019 MODULE 3
  • 33. 39 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 FLATTENING The reason we do this is that we're going to need to insert this data into an artificial neural network later on. Thursday, June 13, 2019
  • 34. 34 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 FULLY CONNECTED LAYER  The layer we call as FC layer, we flattened our matrix into vector and feed it into a fully connected layer like neural network. Thursday, June 13, 2019
  • 35. 35 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019  Fully connected layer is connected with output layer Thursday, June 13, 2019
  • 36. 36 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 Thursday, June 13, 2019 SOFTMAX FUCTION Activation function used in the cnn.
  • 37. 37 SYSTEM ARCHITECTURE B.Tech Bachelors Research Project: 2015-2019 Thursday, June 13, 2019 Output layer  After multiple layers of convolution and padding.  output should be in the form of a class.  The convolution and pooling layers would only be able to extract features and reduce the number of parameters from the original images.  However, to generate the final output we need to apply a fully connected layer to generate an output equal to the number of classes we need.  Thus the output layer give the classified images.
  • 38. Obtained outcome • Image which are classified with its name. • The probability of image to be in the other class. Thursday, June 13, 2019 38B.Tech Main Project : 2009-2013
  • 39. CONCLUSION AND FUTURE SCOPE Thursday, June 13, 2019 39 FUTURE SCOPE Image can be classified and keep in separate folders. Automatic face recognition and object recognition can be used for classifying the images automatically. B.Tech Bachelors Research project : 2015-2019  Implemented an image classifier using convolutional neural network, which is more efficient for image classification when comparing to the other methods.  It is usefully for classifying larger number of image with in short time.
  • 40. Thursday, June 13, 2019 40 HARDWARE REQUIREMENT Operating system: windows 8 or later. PROCESSOR : Intel i3 6th gen or later RAM : MIN 2 GB HDD : MIN 40 GB B.Tech Bachelors Research project : 2015-2019
  • 41. Thursday, June 13, 2019 41 SOFTWARE REQUIREMENT Progamming language : Python 3.7 Framework : Spyder 3.3.3 Software library : Google tensor flow Development environment : Anaconda For visualization : matplotlib B.Tech Bachelors Research project : 2015-2019
  • 42. REFERENCES Thursday, June 13, 2019 42 [1] A.LecunY, Bottou L, Bengio Y, et al. Gradient-based learning appliedto document recognition[J]. Proceedings of the IEEE, 1998,86(11):2278-2324. [2] Cun Y L, Boser B, Denker J S, et al. Handwritten digit recognition with a back-propagation network[C] Advances in Neural Information Processing Systems. Morgan Kaufmann Publishers Inc. [3] Hecht-Nielsen R. Theory of the backpropagation neural network[M] Neural networks for perception (Vol. 2). Harcourt Brace & Co. 1992:593-605 vol.1. [4] Krizhevsky A, Sutskever I, Hinton G E. ImageNet Classification with Deep Convolutional Neural Networks[J]. Advances in Neural Information Processing Systems, 2012, 25(2):2012. [5] M. D. Zeiler and R. Fergus, “Visualizing and understanding convolutional networks,” in ECCV, 2014. B.Tech Bachelors Research project : 2015-2019
  • 43. REFERENCES [6] N. Kalchbrenner, E. Grefenstette, and P. Blunsom, “A convolutional neural network for modelling sentences,” arXiv preprint arXiv:1404.2188, 2014. [7] O. Abdel-Hamid, A. R. Mohamed, H. Jiang, and G. Penn, “Applying convolutional neural networks concepts to hybrid nn-hmm model for speech recognition,” in Acoustics, Speech and Signal Processing (ICASSP), 2012 IEEE International Conference on. IEEE, 2012, pp. 4277–4280. [8] Y. LeCun, B. Boser, J. S. Denker, D. Henderson, R. E. Howard, W. Hubbard, and L. D. Jackel, “Backpropagation applied to handwritten zip code recognition,” Neural computation, vol. 1, no. 4, pp. 541–551, 1989. [9] Y. LeCun, L. Bottou, Y. Bengio, and P. Haffner, “Gradient-based learning applied to document recognition,” Proceedings of the IEEE, vol. 86, no. 11, pp. 2278–2324, 1998. [10]Xavier Mu ̃nozComputer Vision GroupUniversity of Gironaxmunoz@eia.udg.es, Anna BoschComputer Vision GroupUniversity of Gironaaboschr@eia.udg.es,Image Classification using Random Forests and Ferns. Thursday, June 13, 2019 43B.Tech Bachelors Research project : 2015-2019
  • 44. REFERENCES [11] Image Classification via Support Vector Machine Xiaowu Sun1, Lizhen Liu1, Hanshi Wang1, Wei Song1, Jingli Lu2 1 Information and Engineering College, Capital Normal University, Beijing 100048, P. R. China 2 Agresearch Ltd, New Zealand [12]Unsupervised Deep Feature Extraction for Remote Sensing Image Classification Adriana Romero, Carlo Gatta, and Gustau Camps-Valls, Senior Member, IEEE. Thursday, June 13, 2019 44B.Tech Bachelors Research project : 2015-2019 [13] Impact of Training and Testing Data Splits on Accuracy of Time Series Forecasting in Machine Learning Ramesh Medar Vijay S. Rajpurohit Rashmi B. [14] Preprocessing for Image Classification by Convolutional Neural Networks Kuntal Kumar Pal, Sudeep K. S IEEE International Conference On Recent Trends In Electronics Information Communication Technology, May 20-21, 2016, India. .
  • 45. SREENSHOTS Thursday, June 13, 2019 45 Main window : used to give dataset input B.Tech Bachelors Research project : 2015-2019
  • 46. SREENSHOTS Thursday, June 13, 2019 46 Display statistics B.Tech Bachelors Research project : 2015-2019
  • 47. SREENSHOTS Thursday, June 13, 2019 47 Test window for various tests B.Tech Bachelors Research project : 2015-2019
  • 48. SREENSHOTS Thursday, June 13, 2019 48 Preprocessing B.Tech Bachelors Research project : 2015-2019
  • 49. SREENSHOTS Thursday, June 13, 2019 49 CNN training window B.Tech Bachelors Research project : 2015-2019
  • 50. SREENSHOTS Thursday, June 13, 2019 50 Classification result of 2 epoch training B.Tech Bachelors Research project : 2015-2019
  • 51. SREENSHOTS Thursday, June 13, 2019 51 Classification result of 10 epoch training B.Tech Bachelors Research project : 2015-2019
  • 52. SREENSHOTS Thursday, June 13, 2019 52 Classification result of 75 epoch training B.Tech Bachelors Research project : 2015-2019
  • 53. User manual Thursday, June 13, 2019 53 1. Insert the CIFAR-10 dataset to the software, Check the display statistics for the visual conformation. 2. Check all the test for conformation . 3. Train the dataset with maximum number of epoch to get a maximum accuracy in the classification. 4. Click the Run classification button in the classification window. 5. The classification will takes place. B.Tech Bachelors Research project : 2015-2019
  • 54. Thank You Thursday, June 13, 2019 54B.Tech Bachelors Research Project : 2015-2019
