Information Highlighting

Information Highlighting Tim Ostler Cognitive Architecture Anaphora Ltd [email_address] InfoVis’99 London 16 July 1999

Summary 1 Highlighters 2 Highlighting as information visualisation 3 Past studies of visual cueing 4 User study 5 Heuristics 6 Identifying discourse markers 7 “Given” and “new” information 8 Future directions

1 Highlighters 1 Origins 2 Cognitive function 3 Highlighting for others

Highlighters 1/3 Origins 1960s: use of yellow fibre or felt pens to highlight text begins in the USA 1971: Schwan-Stabilo of West Germany launches first fluorescent highlighter pen

Highlighters 2/3 Cognitive function Highlighting feels as though it helps revising, perhaps by encoding or priming material for incorporation into long-term memory Partly confirmed by research: Hult et al. (1984) found that note-taking does involve semantic encoding

Also used to mark up a text for selective attention of another person This function chosen for study, because of clear application to information overload Conducted user study to define suitable heuristics for text selection Highlighters 3/3 Highlighting for others

2 Highlighting as information visualisation 1 Syntax highlighting 2 SeeSoft 3 TextLight 4 Readers vs. Authors

Highlighting as info visualisation 1/4 Syntax highlighting Highlighting can be seen as a means of visualising the logical or conceptual structure of a text Enhances understanding of text Guides eye to most important passages Principle is widely demonstrated by the syntax highlighting in text-editors for programmers Useful : need to visualize logical structure acute Easy : programming languages offer finite and precise set of cues for editors to detect and colour

Highlighting as info visualisation 2/4 SeeSoft One of a suite of text structure visualisation tools from team led by Stephen Eick at Lucent (formerly Bell) Laboratories Each line of code reduced to a line of single pixel thickness , coloured according to a range of user-specified criteria Thousands of lines of code can be displayed on the screen at once

Highlighting as info visualisation 3/4 TextLight TextLight Conceived as a tool to Detect certain attributes of a text’s cognitive structure Encode them in visual, non-lexical form Superimpose them in place on the corresponding text Like a GIS, can reveal attributes of its data set that would otherwise be obscured, throwing the underlying structure into high relief

Highlighting as info visualisation 4/4 Readers vs. authors For readers , no benefits from using different colours for different categories of "new" information But for authors and text analysts extending TextLight to identify text attributes is as valuable as colouring different CAD layers to architects Revealing the pattern of distribution of attributes such as readability or levels of completion like a knowledge discovery system for authors

3 Past studies on visual cueing 1 Judging importance 2 Choosing words 1 3 Choosing words 2 4 Core content 5 How many words? 6 Large variance

Herbert Dreyfus: is the ability to tell the important from the unimportant a fundamentally human cognitive operation? Perhaps, but in some genres widespread agreement on signals for different stages in a discourse So while we can’t tell what seems important for every person, we can assess what is being presented as important Past studies 1/6 Judging importance

Weakness of all research: no formal rules on which text to cue Foster (1979): 26 students and lecturers given 3400-word text and asked to underline sentences containing key ideas author trying to put over Half subjects told not to underline more than 16 sentences, half not more than 8 First case: 213 selections spanned 80 sentences, with only 9 sentences selected by 6 or more Second case: 102 selections distributed over 52 sentences, with only 2 selected by 6 or more Foster’s conclusion: difficult to identify sections for cueing Past studies 2/6 Choosing words 1

Other experiments Klare et al (1955) cued single words Dearborn et al (1949) emphasised word carrying the "peak stress" in a sentence (did not describe how word selected) Crouse & Ildstein (1972) cued statements or sentences Past studies 3/6 Choosing words 2

Past studies 4/6 “Core” content Most specific suggestions by Hershberger & Terry (1965) “ Core” content made up 1/3 of total text length: New key words Familiar key words Key statements Basic core statements Key examples Rephrasing of key statements

Crouse & Ildstein (1972) Density of cued material influences its effect Foster (1979) Optimal proportion of text to be highlighted still not established Past studies 5/6 How many words?

Fowler & Barker (1974) Pointed to the large variance (4% to 32%) observed in the proportion of text highlighted by members of the test group who were asked to highlight for themselves Rickards & August (1975) Asked to highlight passages of structural importance, test subjects all chose passages that Rickards & August considered relatively unimportant Past studies 6/6 Large variance

4 User study 1 Experimental procedure 2 Analytical procedure 3 Analysis of results 4 Observations

11 subjects provided with an 1111-word article from the financial times IT supplement, with instructions to imagine they were corporate librarians identifying the key points in an article for a board member Questionnaire sought: Subjects’ past experience of highlighting Criteria for text selection At what points made their selection Other comments User study 1/4 Experimental procedure

Article input into spreadsheet as left axis of spreadsheet spanning 1111 rows (one word per row) Along the top of the spreadsheet entered the attributes for each word (36 categories) For each word probability of lying in a highlighted passage given a decimal figure between 0 and 1 All other parameters rebased to fall between 0 and 1 Gave correlation of any given parameter with the probability that a word fell within a highlighted group of words User study 2/4 Analytical procedure

Results show wide variance in number of words highlighted Minimum of 50 (4.5%) Maximum of 396 (35.64%) (Fowler & Barker 1974: 4-32%) Marked difference between male and female subjects Males averaging 15% Females 25.5% Little correlation between part of speech/syntactic role and probability of highlighting Noticeable association with longer words User study 3/4 Analysis of results

None of subjects made highlighting decisions before having read at least one paragraph Large majority (70%) delayed highlighting until whole passage read Conclusion: decisions made at a discourse-analytical and not a strictly linguistic level User study 4/4 Observations

5 Heuristics 1 Correlation with average choice 2 Key correlations 3 Best heuristics 4 Highlighting by humans 1 5 Highlighting by humans 2 6 Highlighting by best heuristics 7 Performance of best heuristics

Average correlation between any one person’s highlighting decisions and the scores for probability of given words being highlighted was 0.44 For any individual word probability varied between 0 and 0.83 , offering clear guidelines for assessing any trial selection criteria Heuristics 1/7 Correlation with average choice

Heuristics 2/7 Key correlations

Most successful heuristics: 1 Word should be part of first statement in a discourse segment 2 Word should be part of first statement in any quote not an immediate continuation of a previous quote 3 Word should be part of a list 4 Word should be part of “solution” stage Heuristics 3/7 Best heuristics

Heuristics 4/7 Highlighting by humans 1 Areas where probability of highlighting is greater than 0.4

Heuristics 5/7 Highlighting by humans 2 Areas where probability of highlighting is greater than 0.33

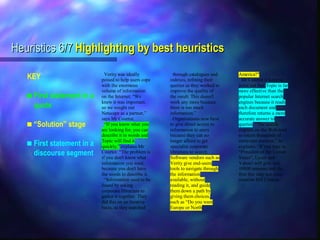

Heuristics 6/7 Highlighting by best heuristics KEY First statement in a quote “ Solution” stage First statement in a discourse segment

Best combination of heuristics produced correlation with actual highlighting probability of 0.56 (average of 0.43 for test subjects) In other words, selecting text according to specified criteria achieved a correlation that was greater than all but one of the test subjects achieved and considerably higher than the average BUT: challenge is to identify the markers denoting relevant features in a discourse Heuristics 7/7 Performance of best heuristics

6 Identifying discourse markers 1 Segments 2 Statements 3 Solution stages 4 Stage labels 5 Cue words as signals 6 “Solution” signals

Identifying discourse markers 1/6 Segments Different means of discourse segmentation beyond the scope of this paper Segments most often coincide with beginning of paragraphs, and normally begin with a proposition or assertion Most effective technique found: select opening statement in its simplest form

Identifying discourse markers 2/6 Statements Sometimes preceded or followed by a coherence relation — a question or other linguistic feature that makes proposition’s relevance to the preceding text clear Following text tends to fill out details and/or provide supporting evidence for the assertion

Identifying discourse markers 3/6 Solution stage “ Situation-problem-solution-evaluation ” structure Narrative structures Boy meets girl – boy loses girl – boy regains girl – boy & girl live happily ever after Feature articles Dogs make great pets – however they can get fleas – Winalot have now launched a new anti-flea dog food – owners have declared it a success)

Identifying discourse markers 4/6 Stage signals Hoey (1994) — elements of structure often signalled by characteristic words Stage signals as the most basic level “ Cars are a common way of getting from A to B. However , the congestion that they cause is a problem. The solution is to get people to use public transport. In this way everyone can get to work quickly.”

Identifying discourse markers 5/6 Cue words as signals Hoey (ibid.): Discourse structure essentially evaluative e.g. “If thyristors are used to control the motor of an electric car, the vehicle moves smoothly but with poor efficiency at low speeds” “ Problem” stage signalled by negative evaluation “poor” So stages can be identified by spotting cue words or phrases

Identifying discourse markers 6/6 “Solution” signals TextLight need only be concerned with “solution” signals Two examples of such signals Words to do with “ solving ”, “ developing ” or “ inventing ” Change of verb form into the present perfect tense , as in "have -ed". Tense then reverts to simple present to denote that a new situation exists as a result of the solution

7 “Given” and “new” information 1 Highlighting the new 2 Narrative stages 3 Importance 4 Intonation 5 First statement 6 Lists 7 “Solution” as “new” 8 Quasi-revision 9 Levels of “new”

“ Given” and “new” information 1/9 Highlighting the new Why were best heuristics more effective than others? Prague school (1930s) — information is composed of a mixture of “given” and “new” information Proposition: essential factor behind the choice of text to highlight is that they are all ways in which “new” information is signalled at the discourse level

"Given" and ”new" information 2/9 Narrative stages Theory supported by the fact that 80% of subjects stated that they were highlighting words that “ marked significant stages in the narrative .” This implies information that is new in the context of preceding text

“ Given” and “new” information 3/9 Importance We can argue that an idea’s perceived importance is judged according to the extent to which it is: New as opposed to given Matches a perceived gap in the structure of the reader’s domain knowledge When highlighting on behalf of others , we have to make informed judgement on how ultimate reader will define importance

“ Given” and “new” information 4/9 Intonation Halliday (1970) — in spoken discourse, intonation is used to signal to the listener what the speaker understands to be new information Could highlighting perform equivalent function?

“ Given” and “new” information 5/9 First statement First statement in a paragraph can be considered as supporting structure for the statement at the beginning of the discourse segment that contains it Operates as one of primary statements containing most of the “new” information in document

“ Given” and “new” information 6/9 Lists Lists typically act as systematic tabulation of what the author believes to be important (i.e. “new” and relevant) information Often used for predictive purposes within a discourse, or for enumerating significant points People therefore tend to identify lists as concentrated sources of meaning , and as such eligible for highlighting Speaker might very well emphasise this by counting the points off using the fingers of his hand

“ Given” and “new” information 7/9 “Solution” as “new ” Solution stages comprise “new” information: a climactic point of novelty in schema, justifying status as “highlightable” text If article modelled as histogram with columns depicting sentences plotted against new information content, highlighting like slicing across the graph using a threshold value

“ Given” and “new” information 8/9 Quasi-revision Criteria and procedure would have been different for quasi-revision Shorter range More spontaneously applied Reader has more detailed knowledge of what is “new” info for him/herself Highlighting can be done In real time With greater precision

“ Given” and “new” information 9/9 Levels of “newness” Information can also be perceived as “new” at several levels: Within a sentence , particular words can be seen as new Within a paragraph , some sentences can be interpreted as new and others as contextual or supporting information Within a discourse segment or discourse , still longer passages may be perceived as containing “new” information

6 Future directions 1 Highlighting long neglected 2 Virtues of highlighting 3 TextLight: to do

Future directions 1/3 Highlighting long neglected The study of the selection of words for highlighting previously neglected Potential of automatic highlighting as a tool to handle information overload also neglected

Future directions 2/3 Virtues of highlighters Output familiar to users Highlighting shown to be helpful in content recall Addresses issue of confidence Highlighting acts not as a censor but as a guide : non-selected text (and therefore the context) always in view Suitable as a plug-in module for other programs

Future directions 3/3 TextLight: to do Incorporate discourse segmentation algorithms Complete lexical dictionary for cue recognition Port from Prolog to Java for greater portability

TextLight URLs http://www.cogarch.demon.co.uk/textlight.html mailto:timo@cogarch.com
