Inheritance

PANIPAT INSTITUTE OF ENGINEERING AND TECHNOLOGY
OOPS Using C++ 1
OOPS Using C++ 1
1
Object Oriented Programming
Using C++
Subject Teacher:-
Dr. Shiraz Khurana

2
What is Inheritance ?
■ Reusability.
■ Is the process by which new class (or
classes are created from existing class (or
classes).
■ Derived classes have all the features of
the base class in addition to some new
features.
■ The new inheriting class is called derived
or sub class and inherited class is called
base or super class.
OOPS Using C++

3
How to inherit a class?
1. Define a base class of which all properties are to
be inherited.
2. Define a derived class as
class derived_cls_name : access-specifier
base_cls_name
{ BODY OF THE DERIVED CLASS } ;
3. Access specifier can be either public , protected
or private (if nothing is specified then default
access-specifier is private)
Access specifier also called visibility mode which
specifies whether the features of the base class
are privately or publicly derived.
OOPS Using C++

4
■ If access specifier is public
1. All public members of the base class
become public members of derived class.
2. All protected members of base class
become protected members of derived
class.
3. Private members of base class are still
private to base class ,thus not accessible to
derived class.
OOPS Using C++

5
Inheritance using public access specifier
#include"iostream.h"
#include<string.h>
class student
{ int rollno; char name[12];
public:
void get_details()
{ cout<<"enter roll no and name";
cin>>rollno>>name; }
void display()
{ cout<<"roll no is "<<rollno<<"and name is
"<<name;} }; // Base class ends here
OOPS Using C++

6
class cse_student :public student
{
char sub1[10],sub2[10];
public:
cse_student( ) // CONSTRUCTOR
{ strcpy(sub1,"OOPS");
strcpy(sub2,"PROGRAMMING");}
void sub_display()
{ cout<<"and subjects
are"<<sub1<<"and"<<sub2;
} };
OOPS Using C++

7
int main (void)
{
cse_student c1;
c1.get_details();
c1.display();
c1.sub_display();
return 0;
}
Public members of base class
are accessed as public of
derived
OOPS Using C++

8
Output
■ enter roll no and name 12 ABC
■ roll no is 12
■ and name is ABC
■ and subjects are OOPS and
PROGRAMMING
OOPS Using C++

9
■ If access specifier is private then
1. All public and protected members of base
class become private members of derived
class.
2. Private members of base class remain as
private to it and hence not accessible to
derived class.
3. All public and protected members of a class
can be accessed by its own objects using
the dot operator.
4. No member of base class is accessible to
the objects of the derived class.
OOPS Using C++

10
Inheritance using private access specifier
#include<string.h>
class student
{
int rollno; char name[12];
public:
void get_details()
cin>>rollno>>name;}
void display()
{ cout<<"roll no is "<<rollno<<"and name is"<<name;}
};
OOPS Using C++

11
class cse_student :private student
{
public:
cse_student() // CONSTRUCTOR
{ strcpy(sub1,"OOPS");
strcpy(sub2,"PROGRAMMING");
get_details();
}
void sub_display()
{ display();
// cout<<"rollno is "<<rollno; // Rollno not accessible
cout<<"and subjects are"<<sub1<<"and"<<sub2;}
};
Now private member of
cse_student
OOPS Using C++

12
int main (void)
{
cse_student c1;
//c1.get_details(); private member of
//c1.display(); base class in-accessible
c1.sub_display();
return 0;
}
OOPS Using C++

13
Output
enter roll no and name
12
neeraj
roll no is 12 and name is neeraj
and subjects are OOPS and PROGRAMMING
OOPS Using C++

14
“Protected” Access Specifier
■ A protected member of a class behaves
similar to private members ( that is
accessible only to members of the class)
BUT
■ If the class is inherited by some class then
protected members of base class may be
accessible to derived class (different from
PRIVATE MEMBERS OF BASE CLASS)
■ Thus protected members of a class are despite
being private to it can be inherited by some other
class.
OOPS Using C++

15
class student
{
protected:
int rollno; char name[12];
void get_details()
cin>>rollno>>name;}
public:
student()
{ get_details(); }
void display()
{ cout<<endl<<"roll no is "<<rollno<<"and name is
"<<name<<endl; } };
OOPS Using C++

16
class it_student :public student
{
public:
it_student()
{
strcpy(sub1,"OOPS");
strcpy(sub2,"PROGRAMMING");
get_details(); // valid as get_details is PROTECTED and
not PRIVATE
}
void display1()
{
cout<<"rollno and name are"<<rollno<<"t"<<name;
cout<<endl<<"and subjects are"<<sub1<<"and"<<sub2;
}};
OOPS Using C++

17
int main (void)
{
student s;
//s.get_details(); // get_details is private to student
s.display(); // valid being PUBLIC to student
it_student c1;
//c1.get_details(); //get_details is private to it_student
c1.display(); //valid ,display() is public to
//it_student
c1.display1();
return 0;
}
OOPS Using C++

18
Output
■ enter roll no and name123 angel
■ roll no is 123and name is angel
■ enter roll no and name45 angel2
■ rollno and name are45 angel2
and subjects are OOPS and
PROGRAMMING
OOPS Using C++

19
Inheriting a class in protected mode
■ Both public and protected members of base
class become protected members of derived
class.
■ Private members of base class remain
private to it and hence in-accessible to
derived class.
OOPS Using C++

20
Visibility of inherited members
Base class
visibility
Derived class visibilty
Public
derivation
Private
derivation
Protected
Derivation
Private Not
inherited
Not
Inherited
Not
Inherited
Protected Protected Private Protected
Public Public Private Protected
OOPS Using C++

Forms Of Inheritance
(a) Single Inheritance
(b) Multiple Inheritance
(c) Hierarchical Inheritance
(d) Multilevel Inheritance
(e) Hybrid Inheritance
OOPS Using C++ 21

22
More on inheritance….
Derived class may inherit traits from more
than one class ( multiple inheritance)
Class Z: access_specifier X, access_specifier
Y...
Y
X
Z
Multiple Inheritance
OOPS Using C++

23
Example of multiple inheritance
class X
{
protected:
int a;
public:
void getX (int m)
{
a=m;
}
void display()
{
cout<<"The number in X is
"<<a<<endl;
}
};
class Y
{
protected:
int b;
public:
void getY (int n)
{
b=n;
}
void display1()
{
cout<<"The number in Y is
"<<b<<endl;
}
};
OOPS Using C++

24
class Z: public X, public Y
{
protected:
int c;
public:
Z(int k)
{
getX(1);
getY(2);
c=k;
}
void disp()
{
display();
display1();
cout<<"the number in Z is <<c;
}
};
int main (void)
{
Z obj(3);
obj.disp();
return 0;
}
OOPS Using C++

25
Output
■ The number in X is 1
■ The number in Y is 2
■ the number in Z is 3
OOPS Using C++

26
Ambiguity
class M
{ public: void display(){cout<<“ class M”;}
};
class N
{ public: void display(){cout<<“ class N”;}
};
class P : public M , public N
{ public: void display(){cout<<“ class P”;}
};
In this case function of derived class overrides the inherited
function so when object of P calls display function it simply
calls display of P. To invoke display of M & N we use scope
resolution operator.
OOPS Using C++

27
int main ()
{
P p;
p.display();
p.M::display();
p.N::display();
p.P::display();
return 0;
}
OOPS Using C++

28
■ Inheriting one class by more than one class
leads to Hierarchical inheritance.
Z
X
W
Y
Hierarchical Inheritance
OOPS Using C++

29
Example
class college
{
protected:
char name[12];
void disp()
{
cout<<"name of college
is"<<name<<endl;}
public:
college()
{cout<<"constructor of college
is called"<<endl;
strcpy (name, "PIET");
}};
class it_dept : public college
{
int faculty;
public:
void get_faculty()
{
cout<<"enter no of faculty
members in IT" <<endl ;
cin>>faculty; }
void display()
{ disp(); // now a protected
member of it_dept
cout<<"no of teachers in IT
"<<faculty<<endl;
}
};
OOPS Using C++

30
class ece_dept : public
college
{
int faculty;
public:
void get_faculty()
{
cout<<"enter no of faculty
members in ECE"<<endl;
cin>>faculty;}
void display()
{ disp(); // now a protected
member of ece_dept
cout<<"no of teachers in
ECE "<<faculty<<endl;}};
void main()
{ it_dept C;
ece_dept E;
C.get_faculty();
E.get_faculty();
C.display();
E.display();
}
OOPS Using C++

31
OUTPUT
constructor of college is called
constructor of college is called
enter no of faculty members in IT
12
enter no of faculty members in ECE
36
name of college is PIET
no of teachers in IT 12
name of college is PIET
no of teachers in ECE 36
OOPS Using C++

32
■ Deriving one class from other derived class
leads to Multilevel inheritance.
Y
Z
Multilevel Inheritance
X
Base class
Intermediate
base class
Derived class
test
result
Student
OOPS Using C++

33
Example
class student
{
protected:
int roll_number;
public:
void get_number(int a)
{
roll_number=a;}
void put_number()
{cout<<“Roll number
is:"<<roll_number<<“n”;
}};
class test : public student
{
protected:
float sub1,sub2;
public:
void get_marks(float x, float y)
{
sub1=x;
sub2=y;}
void put_marks()
{ cout<<“Marks in sub1=
"<<sub1<<endl;
cout<<“Marks in sub2=
"<<sub2<<endl;
}
};
OOPS Using C++

34
class result : public test
{
float total;
public:
void display()
{
total=sub1+sub2;
put_number();
put_marks();
cout<<“Total ="<< total
<<endl;
}};
int main()
{
result Abc;
Abc.get_number(111);
Abc.get_marks(75.0,59.5);
Abc.display();
return 0;
}
OOPS Using C++

35
■ When more than one inheritance is used, it
is called hybrid inheritance.
Z
W
Hybrid Inheritance
Sub class of X and Y
Base class of X,Y
Sub class
of W
Sub
class of
W
Y
X
OOPS Using C++

36
Virtual base class
■ In case of hybrid inheritance shown, two
copies of W-members are created in class Z.
Int I
Int I( of W)
Int J
Int I (of W)
Int K
Int I (of X)
Int I (of Y)
Int J (of X)
Int K (of Y)
X
Z
Y
W
OOPS Using C++

37
class W
{
public:
int i;
};
class X : public W
{ public:
int j;
};
class Y: public W
{
public:
int k;
};
{
public:
int sum;
};
OOPS Using C++

38
int main (void)
{
Z obj;
obj.X::i=1;
obj.j=2;
obj.k=3;
obj.sum=obj. X::i+ obj.j+obj.k;
// obj.i will be ambiguous
cout<<"the sum is "<<obj.sum;
return 0;
}
OUTPUT
The sum is 6
OOPS Using C++

39
■ If X and Y derives class W as a virtual class
then only one copy of W-members will be
inherited by X and Y.
OOPS Using C++

40
class W
{
public:
int i;
};
class X : virtual public W
{ public:
int j;
};
class Y: public virtual W
{
public:
int k;
};
{
public:
int sum;
};
int main(void)
{
Z obj;
//obj.X::i=1;
obj.i=1;
obj.j=2;
obj.k=3;
obj.sum= obj.i + obj.j + obj.k;
cout<<"the sum is "<<obj.sum;
return 0;
}
OOPS Using C++

41
Abstract Classes
■ An abstract class is one that is not used to
create objects.
■ An abstract class is only designed to act as a
base class(to be inherited by other classes).
OOPS Using C++

42
Constructors in inheritance
■ Constructors play an important role in
initializing objects.
■ In case of inheritance the base class
constructors is first called of and then the
derived class constructor is called.
■ When base class contains only default
constructor then derived class may or may
not have the constructor.
■ When base class contains a constructor with
one or more arguments then it is mandatory
for the derived class to have a constructor and
pass the arguments to the base class
constructors.
OOPS Using C++

43
More about constructors….
■ When an object of derived class is created
In case of multi level inheritance constructors are
called in the order of their derivation.
class derived1 : public base
{ };
class derived2: public derived1 { };
That is base class constructor is called first, then
constructor for derived1 class is called, then
constructor for derived2 class is called.
OOPS Using C++

44
■ In case of multiple inheritance, constructors
are called in the order specified from left to
right .
■ class derived: public base1,public base2
then
derived d;
will create an object of derived class by calling
constructor for base classes base1 and then
base2
OOPS Using C++

45
Destructors in inheritance
■ When an object of derived class is
destroyed
1. In case of multi level inheritance
,destructors are called in the reverse order
of their derivation
class derived : public base1,public base2{ };
Then destructor for derived is called then
destructor for base2 is called then lastly
destructor defined in base1 will be called.
OOPS Using C++

46
Passing arguments to base class
■ When an object of derived class is created,
constructors of base class is also invoked.
■ If initialization of only derived class variables
are to be done then arguments to the
constructor can be passed in usual way.
■ But if base class constructor (invoked
implicitly) also require some arguments then
…….?
OOPS Using C++

47
■ Constructor of derived class should be
defined as
Derived constructor (arg_list) :
base1(arg_list1),base2(arg_list)……
{ body of the constructor }
■ Arg_list for base classes will contain those
arguments that are required by them,but are
passed while calling derived class
constructor.
OOPS Using C++

48
#include<iostream.h>
#include<conio.h>
#include<string.h>
class college
{
protected:
int id ;
char name[12];
void disp()
{
cout<<"name of college is
"<<name<<endl;
}
public:
college(int a)
{
id=a;
cout<<"constructor of college is
called"<<endl;
strcpy (name,"PIET");
}
};
class it_dept : public college
{
int faculty;
public:
it_dept (int a, int b) : college (a)
{ faculty=b; }
void display()
{ disp(); // now a protected member of
it_dept
cout<<“initialized college id is “<<id;
cout<<"no of teachers in IT “
<<faculty<<endl;
} };
int main()
{ clrscr();
it_dept C(10,12);
C.display();
return 0;
}
Argumen
t for base
construct
or
OOPS Using C++

49

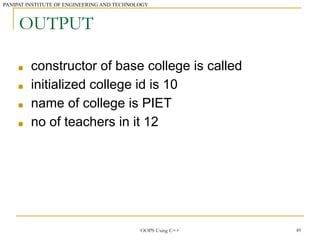

OUTPUT
■ constructor of base college is called
■ initialized college id is 10
■ name of college is PIET
■ no of teachers in it 12
OOPS Using C++

50
■ The constructors for virtual base classes are
invoked before any non virtual base classes.
METHOD OF INHERITANCE ORDER OF EXECUTION
class B : public A
{
};
class A : public B, public C
{
};
class A : public B, virtual public C
OOPS Using C++

51
Initializing the class objects
constructor (arglist) : initialization-section
{
assignment-section
}
Example: class ABC{ int a;
public : ABC(int x)
{ a=x;
cout<< “” ABC Constructor & values”<< a;}
};
class XYZ : public ABC
{ int b,c;
public: XYZ(int i, int j): a(i),b(2*j) { c=j;
cout<< “XYZ Constructor & values”<<b<<c;}
};
main()
{ XYZ x(2,3)
}
OOPS Using C++

52
Member Classes : Nesting Of classes
class alpha { };
class beta { };
class gamma
{ alpha a;
beta b;
………
};
All objects of gamma class will contain the
objects a,b; This kind of relationship is called
containership or nesting.
OOPS Using C++

Inheritance

More Related Content

What's hot (8)

Similar to Inheritance (20)

Recently uploaded (20)

Inheritance
