Instrumentation  of  Software   Systems   James  H.  Hill,  M.S.,  Ph.D.   Department  of  Computer  &  Informa;on  Science   Indiana  University-­‐Purdue  University  Indianapolis     Email:  hillj@cs.iupui.edu   Web:  hHp://www.cs.iupui.edu/~hillj     1
Learning  Objectives   •  Understand  the  different  flavors  of  soMware   instrumenta;on   •  Understand  how  dynamic  binary   instrumenta;on  works   •  Understand  how  to  write  a  dynamic  binary   instrumenta;on  tool  in  Pin  and  Pin++     2
Understanding  soMware  instrumenta;on…   GENERAL  OVERVIEW   3
Software  Instrumentation   •  Data  collec)on  is  the  process  of  preparing  and  collec;ng   data.  Its  purpose  is  to  obtain  informa;on  to  keep  on   record,  to  make  decisions  about  important  issues,  and  to   pass  informa;on  on  to  others.  –  Wikipedia       •  So,ware  instrumenta)on  is  the  primary  method  for   collec;ng  data  in  soMware  systems   •  Data  collected  while  instrumen;ng  a  system  can  be  used   to  analyze  faults,  performance  issues,  understand  system   behavior,  &  etc…       4
On  Data  Storage…   •  When you collect data, you must store it somewhere. These are the different methods for storing data, and the pros/cons associated with each method Name Method Pros Cons In  memory   storage Data  is  stored  in  local   memory  while  test   executes  &  dumped  at   end  of  test  execu;on •  Tries  to  minimize   impact  on  behavior   &  performance •  Must  account  for   memory  allocated   to  system Local  Disk Data  is  stored  on  local   disk  while  the  test  is   execu;ng   •  Persistent  storage   while  test  is   execu;ng   •  Requires  context   switch  from  test   execu;on  to  write   data  to  disk Remote   Storage Data  is  collected   periodically  locally  and   transmiHed  to  a  central   loca;on •  Persistent  storage   while  test  is   execu;ng   •  Supports  real-­‐;me   analysis  of  data •  Can  impact   network  behavior   &  performance   5
Typical  Deployment   Host  1   Host  3   Host  2   Logging Client Logging Client Logging Client 6 Logging Server DB
Our  first  instrumenta;on  technique…   INTRUSIVE  INSTRUMENTATION   7
Intrusive  Instrumentation   •  Intrusive  instrumenta)on  is  the  process  of  modifying  the   original  source  code  by  inser;ng  chunks  of  source  code  to   collect  data  for  analy;cal  purposes   •  Best  supported  by  logging  frameworks         8
Logging  Frameworks   Java  Logging  Frameworks   •  log4j  [logging.apache.org/log4j]   •  Simple  Logging  Façade  4  Java  (SLF4J)  [www.slf4j.org]   C++  Logging  Frameworks   •  log4cplus  [sourceforge.net/projects/log4cplus]   •  Log4cxx  [logging.apache.org/log4cxx]   C#  Logging  Frameworks   •  log4net  [logging.apache.org/log4net]   •  nlog  [nlog-­‐project.org]       9
A  Simple  Example…   class SensorComponent {! private int eventCount = 0;! ! public void handleRadarData (RadarData d) {! // Code that will collect information that we need! // to analyze performance later.! this.eventCount ++;! Logger.i (“Time = “ d.timeofday () + “; position: “ + ! d.position ())! }! ! public void passivate () {! Logger.i (“Number of events: “ + this.eventCount);! }! }! 10
A  Simple  Example…   class SensorComponent {! private int eventCount = 0;! ! public void handleRadarData (RadarData d) {! // Code that will collect information that we need! // to analyze performance later.! this.eventCount ++;! Logger.i (“Time = “ + d.timeofday () + “; position: “ ! + d.position ());! }! Instrumenta;on  code   ! public void passivate () {! Logger.i (“Number of events: “ + this.eventCount);! }! }! Instrumenta;on  code   11
Adding  intrusive  instrumenta;on  to  your  code…   IMPLEMENTATIONS   12
Unguarded  Implementation   class SC {! // The logger! static private Logger log = Logger.getLogger (SC.class);! ! private int counter_;! ! public void doSomething () {! log.i (“Counter: “ + this.counter_);! }! }! •  Unguarded  implementa)on  is  when  you  insert   instrumenta;on  code  directly  into  source  code  without   any  restric;ons/constraints  on  when/how  it  is  executed   13
Unguarded  Implementation   class SC {! // The logger! static private Logger log = Logger.getLogger (SC.class);! ! private int counter_;! ! public void doSomething () {! log.i (“Counter: “ + this.counter_);! }! }! Instrumenta;on  code   •  Unguarded  implementa)on  is  when  you  insert   instrumenta;on  code  directly  into  source  code  without   any  restric;ons/constraints  on  when/how  it  is  executed   14
Unguarded  Implementation   class SC {! // The logger! static private Logger log = Logger.getLogger (SC.class);! ! private int counter_;! ! public void doSomething () {! log.i (“Counter: “ + this.counter_);! }! }! Pro.    Directly  collect   data  of  interest   15
Unguarded  Implementation   class SC {! // The logger! static private Logger log = Logger.getLogger (SC.class);! ! private int counter_;! ! public void doSomething () {! log.i (“Counter: “ + this.counter_);! }! }! Con.    Overhead  associated  with   collec;ng  data  each  ;me— especially  if  call  rate  is  high   16
Unguarded  Implementation   class SC {! // The logger! static private Logger log = Logger.getLogger (SC.class);! ! private int counter_;! ! public void doSomething () {! log.i (“Counter: “ + this.counter_);! }! }! Con.    Must  construct  log   message,  even  if  log  severity  level   is  less  than  current  log  message   17
Guarded  Implementation   class SC {! // The logger! static private Logger log = Logger.getLogger (SC.class);! ! private int counter_;! ! public void doSomething () {! if (INSTRUMENT)! log.i (“Counter: “ + this.counter_);! }! }! •  Guarded  implementa)on  is  when  you  insert   instrumenta;on  code  directly  into  source  code,  but  place   restric;ons/constraints  on  when/how  it  is  executed   18
Guarded  Implementation   class SC {! // The logger! static private Logger log = Logger.getLogger (SC.class);! ! private int counter_;! Guard   ! public void doSomething () {! if (INSTRUMENT)! log.i (“Counter: “ + this.counter_);! }! }! Instrumenta;on  code   •  Guarded  implementa)on  is  when  you  insert   instrumenta;on  code  directly  into  source  code,  but  place   restric;ons/constraints  on  when/how  it  is  executed   19
Guarded  Implementation   class SC {! // The logger! Pro.  You  can  control   static private Logger log = Logger.getLogger (SC.class);! when  and  how  oMen   ! you  collect  data   private int counter_;! ! public void doSomething () {! if (INSTRUMENT)! log.i (“Counter: “ + this.counter_);! }! }! 20
Guarded  Implementation   class SC {! // The logger! static private Logger log = Logger.getLogger (SC.class);! ! private int counter_;! ! public void doSomething () {! if (INSTRUMENT)! log.i (“Counter: “ + this.counter_);! }! }! Pro.  Addresses  problem  of   construc;ng  message   unnecessarily   21
Guarded  Implementation   class SC {! // The logger! static private Logger log = Logger.getLogger (SC.class);! ! private int counter_;! ! public void doSomething () {! if (INSTRUMENT)! log.i (“Counter: “ + this.counter_);! }! }! Con.  Requires  an  extra   check  each  ;me  this  part   of  the  code  is  reached   22
Proxy  Implementation   class SC_Proxy implements SC_Interface {! // The logger! private SC sc_impl_;! ! public SC_Proxy (SC sc_impl) {! this.sc_impl_ = sc_impl;! }! ! public void doSomething () {! log.i (“Counter: “ + this.sc_impl_.getCounter ());! this.sc_impl_.doSomething ();! }! }! •  Proxy  implementa)on  is  when  you  place   instrumenta;on  code  in  a  proxy  object,  and  proxy  calls   real  implementa;on     23
Proxy  Implementation   class SC_Proxy implements SC_Interface {! // The logger! private SC sc_impl_;! Instrumenta;on  object   ! public SC_Proxy (SC sc_impl) {! this.sc_impl_ = sc_impl;! }! Instrumenta;on  code   ! public void doSomething () {! log.i (“Counter: “ + this.sc_impl_.getCounter ());! this.sc_impl_.doSomething ();! }! }! •  Proxy  implementa)on  is  when  you  place   instrumenta;on  code  in  a  proxy  object,  and  proxy  calls   real  implementa;on     24
Proxy  Implementation   Client   Impl_Interface   Inst_Proxy   Impl   •  Proxy  implementa)on  is  when  you  place   instrumenta;on  code  in  a  proxy  object,  and  proxy  calls   real  implementa;on     25

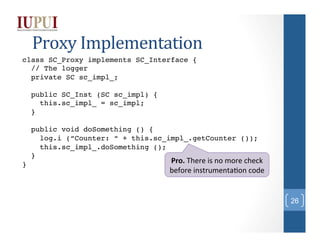

Proxy  Implementation   class SC_Proxy implements SC_Interface {! // The logger! private SC sc_impl_;! ! public SC_Proxy (SC sc_impl) {! this.sc_impl_ = sc_impl;! }! ! public void doSomething () {! log.i (“Counter: “ + this.sc_impl_.getCounter ());! this.sc_impl_.doSomething ();! }! Pro.  There  is  no  more  check   }! before  instrumenta;on  code   26
Proxy  Implementation   class SC_Proxy implements SC_Interface {! // The logger! private SC sc_impl_;! ! public SC_Proxy (SC sc_impl) {! this.sc_impl_ = sc_impl;! }! ! public void doSomething () {! log.i (“Counter: “ + this.sc_impl_.getCounter ());! this.sc_impl_.doSomething ();! }! Pro.  Instrumenta;on  code  is  not   }! mixed  with  implementa;on   27
Proxy  Implementation   Pro.  Instrumenta;on  can  be   removed  at  run;me,  and   replaced  with  real  object   Client   Impl_Interface   Inst_Proxy   Impl   28
Proxy  Implementation   Client   Impl_Interface   Inst_Proxy   Con.  Requires  more  code  to   realize  the  concept.   Impl   29
On  Aspects…   •  Aspect-­‐oriented  programming  (AOP)  is  a  programming   paradigm  that  aims  to  increase  modularity  by  allowing  the   separa;on  of  cross-­‐cukng  concerns.  AOP  forms  a  basis  for   aspect-­‐oriented  soMware  development  –  Wikipedia     •  Aspects  can  be  used  to  weave  instrumenta;on  code  and   achieve  results  similar  to  the  proxy  implementa;on  approach   •  Best  used  to  support  generic  instrumenta;on  concerns  (i.e.,   func;on  entry/exit)  instead  of  custom  instrumenta;on   concerns  (i.e.,  capturing  the  value  of  a  counter)   30
Our  second  instrumenta;on  technique…   NON-­‐INTRUSIVE  INSTRUMENTATION   31
Problems  w/  Intrusive  Instrumentation   •  Regardless  of  the  intrusive  instrumenta;on  technique  used,  you   need  the  source  code  in  order  to  instrument  the  system   •  You  MUST  understand  the  source  code   •  Intrusive  instrumenta;on  requires  a  LOT  of  upfront  planning  to   ensure  that  instrumenta;on  code  is  implemented  as  part  of  the   normal  system’s  implementa;on   •  Requirements  defining  what  data  needs  to  be  captured   •  Design  that  integrates  instrumenta;on  integrates  into  overall   system   •  Part  of  the  normal  development  process,  not  an  aMerthought   •  Hard  to  remove/modify  when  you  no  longer  need  to   instrumenta;on  and/or  requirements  change   32
Non-­‐Intrusive  Instrumentation   •  Non-­‐intrusive  instrumenta)on  is  the  process  of   collec;ng  data  from  soMware  for  analy;cal  purposes   without  modifying  the  original  source  code       33
Dynamic  Binary  Instrumentation   •  Dynamic  Binary  Instrumenta)on  (DBI)  is  a  form  of  non-­‐ intrusive  soMware  instrumenta;on  where   instrumenta;on  code  is  injected  into  a  binary  executable   at  run;me   •  Monitor  both  applica;on-­‐  and  system-­‐level  behavior   •  E.g.,  resource  usage,  system  calls,  mul;-­‐threading  behavior,   branching,  &  etc   Original Binary Binary with Injected Instrumentation Code 34
DBI  Pros  &  Cons   Pros   •  Instrumenta;on  needs  do  not  have  to  be  ;ghtly  integrated   with  development  process   •  Does  not  require  original  source  code   •  Add/remove  instrumenta;on  code  from  binary  on-­‐demand   •  Dynamically  change  behavior  as  needed  without  modifying   original  source  code   Cons   •  Some  DBI  tools  are  virtual  machines  &  can  add  unwanted   overhead   •  You  are  limited  to  the  data  points  provided  by  the  DBI  tool   35
DBI  Tools   Popular  DBI  tools:   •  Pin  –  allow  developers  to  write  Pintools,  which  are  user-­‐defined   libraries  wriHen  in  C++,  for  analyzing  user-­‐specific  concerns.   [www.pintool.org]     •  Solaris  Dynamic  Tracing  (DTrace)  –  primarily  of  Solaris  OS,  but  has   ports  to  Unix-­‐like  OS’s,  and  uses  a  scrip;ng  language  for  analyzing   user-­‐specific  concerns.  [www.dtrace.org]   •   DynamoRIO  –  Similar  to  Pin,  and  been  used  for  security,  debugging,   and  analysis  tools.  [dynamorio.org]   •  DynInst  –  is  a  mul;-­‐plamorm  run;me  code-­‐patching  library  that  is     useful  in  the  development  of  performance  measurement  tools,   debuggers,  and  simulators  [www.dyninst.org]       36
Examples  of  Pintools   •  Intel  Parallel  Studio  –  memory  debugging,  performance   analysis,  mul;threading  correctness  analysis  and   paralleliza;on  prepara;on   •  Intel  So,ware  Development  Emulator  –  enables  the   development  of  applica;ons  using  instruc;on  set   extensions  that  are  not  currently  implemented  in   hardware   •  CMP$IM  –  cache  profiler  built  using  pin   •  PinPlay  –  capture  and  determinis;c  replay  of  the  running   of  mul;threaded  programs  under  pin.  Capturing  the   running  of  a  program  helps  developers  overcome  the   non-­‐determinism  inherent  in  mul;threading   37
Hands-­‐on  examples…   WRITING  PINTOOLS   38
Writing  a  Pintool   ofstream OutFile ("inscount.out"); static UINT64 icount = 0; VOID docount() { icount++; } VOID Instruction(INS ins, VOID *v) { INS_InsertCall(ins, IPOINT_BEFORE, (AFUNPTR)docount, IARG_END); } VOID Fini(INT32 code, VOID *v) { OutFile.setf(ios::showbase); OutFile << "Count " << icount << endl; OutFile.close(); } int main(int argc, char * argv[]) { if (PIN_Init(argc, argv)) return 1; INS_AddInstrumentFunction(Instruction, 0); PIN_AddFiniFunction(Fini, 0); PIN_StartProgram(); return 0; } http://software.intel.com/sites/landingpage/pintool/docs/61206/Pin/html/ index.html#BuildingExamples 39
Writing  a  Pintool   ofstream OutFile ("inscount.out"); static UINT64 icount = 0; VOID docount() { icount++; } VOID Instruction(INS ins, VOID *v) { INS_InsertCall(ins, IPOINT_BEFORE, (AFUNPTR)docount, IARG_END); Global  variable  that  keeps   } track  of  instruc;on  count   VOID Fini(INT32 code, VOID *v) { OutFile.setf(ios::showbase); OutFile << "Count " << icount << endl; OutFile.close(); } int main(int argc, char * argv[]) { if (PIN_Init(argc, argv)) return 1; INS_AddInstrumentFunction(Instruction, 0); PIN_AddFiniFunction(Fini, 0); PIN_StartProgram(); return 0; } http://software.intel.com/sites/landingpage/pintool/docs/61206/Pin/html/ index.html#BuildingExamples 40
Writing  a  Pintool   ofstream OutFile ("inscount.out"); static UINT64 icount = 0; VOID docount() { icount++; } VOID Instruction(INS ins, VOID *v) { INS_InsertCall(ins, IPOINT_BEFORE, (AFUNPTR)docount, IARG_END); } Analysis  func;on  that   VOID Fini(INT32 code, VOID *v) { increments  instruc;on  c OutFile.setf(ios::showbase); ount   OutFile << "Count "t  << invoked  << endl; each  ;me  i is   icount OutFile.close(); } int main(int argc, char * argv[]) { if (PIN_Init(argc, argv)) return 1; INS_AddInstrumentFunction(Instruction, 0); PIN_AddFiniFunction(Fini, 0); PIN_StartProgram(); return 0; } http://software.intel.com/sites/landingpage/pintool/docs/61206/Pin/html/ index.html#BuildingExamples 41
Writing  a  Pintool   ofstream OutFile ("inscount.out"); static UINT64 icount = 0; VOID docount() { icount++; } VOID Instruction(INS ins, VOID *v) { INS_InsertCall(ins, IPOINT_BEFORE, (AFUNPTR)docount, IARG_END); } VOID Fini(INT32 code, VOID *v) { OutFile.setf(ios::showbase); OutFile << "Count Instrument  rou;ne  that  inserts   " << icount << endl; OutFile.close(); “docount”  analysis  callback  to  be   } called  before  each  instruc;on  executes   int main(int argc, char * argv[]) { if (PIN_Init(argc, argv)) return 1; INS_AddInstrumentFunction(Instruction, 0); PIN_AddFiniFunction(Fini, 0); PIN_StartProgram(); return 0; } http://software.intel.com/sites/landingpage/pintool/docs/61206/Pin/html/ index.html#BuildingExamples 42
Writing  a  Pintool   ofstream OutFile ("inscount.out"); static UINT64 icount = 0; VOID docount() { icount++; } VOID Instruction(INS ins, VOID *v) { INS_InsertCall(ins, IPOINT_BEFORE, (AFUNPTR)docount, IARG_END); } VOID Fini(INT32 code, VOID *v) { OutFile.setf(ios::showbase); OutFile << "Count " << icount << endl; OutFile.close(); } int main(int argc, char * argv[]) { if (PIN_Init(argc, argv)) return 1; Fini  rou;ne  that  executes   INS_AddInstrumentFunction(Instruction, 0); when  the  program  under   PIN_AddFiniFunction(Fini, 0); instrumenta;on  completes   PIN_StartProgram(); return 0; } http://software.intel.com/sites/landingpage/pintool/docs/61206/Pin/html/ index.html#BuildingExamples 43
Writing  a  Pintool   ofstream OutFile ("inscount.out"); static UINT64 icount = 0; VOID docount() { icount++; } VOID Instruction(INS ins, VOID *v) { INS_InsertCall(ins, IPOINT_BEFORE, (AFUNPTR)docount, IARG_END); } Bootstrapping  code  that  ini;alizes   VOID Fini(INT32 code, VOID *v) { Pin,  registers  no;fica;on  callbacks,  &   OutFile.setf(ios::showbase); OutFile << "Count " << icount << endl; instrumenta;on  rou;nes   OutFile.close(); } int main(int argc, char * argv[]) { if (PIN_Init(argc, argv)) return 1; INS_AddInstrumentFunction(Instruction, 0); PIN_AddFiniFunction(Fini, 0); PIN_StartProgram(); return 0; } http://software.intel.com/sites/landingpage/pintool/docs/61206/Pin/html/ index.html#BuildingExamples 44
On  Callback  Arguments   VOID docount() { icount++; } VOID Instruction(INS ins, VOID *v) { INS_InsertCall(ins, IPOINT_BEFORE, (AFUNPTR)docount, IARG_END); } The  insert  call  must  specify  the  number   of  arguments  &  type  of  each  argument   expected  by  the  analysis  callback   •  The  IARGLIST  must  always  end  with  IARG_END   •  Supports  tool  &  run;me  argument  types   •  Complete  list  of  arguments  types  can  be  found  at   hHp://soMware.intel.com/sites/landingpage/pintool/docs/61206/ Pin/html/ group__INST__ARGS.html#g7e2c955c99fa84246bb2bce1525b5681       45
Levels  of  Instrumentation   •  The  level  of  instrumenta;on  determines  when  and  how  oMen   an  instrument  rou;ne  is  called   •  The  instrument  rou;ne  is  called  only  once  for  each  new  object   at  the  corresponding  level  it  encounters   •  Course  grained  instrumenta;on  levels  have  access  to  fine-­‐ grained  instrumenta;on  levels  &  visa  versa     Levels  of  Instrumenta)on   •  Image  –  Executable  and  shared  library   •  Rou;ne  –  Func;on  &  method  call   •  Trace  –  Single  entrance,  mul;ple  exit  sequence  of  instruc;ons   •  Instruc;on  –  A  mnemonic  machine  instruc;on       46
Execution  Modes  of  Pin   Just-­‐In-­‐Time  (JIT)   •  Pin  generates  code  based  on  the  original   executable,  execute  generated  code,  &  regains   control  aMer  its  execu;on  for  next  set  of   instruc;ons   •  Can  add  significant  amounts  of  overhead   Probed   •  The  applica;on  runs  na;vely   •  Analysis  probe  are  place  directly  inside  the  original   code   •  Almost  no  overhead  added  from  instrumenta;on   47
Another  Pintool   ofstream OutFile ("inscount.out"); static UINT64 icount = 0; VOID docount(UINT32 c) { icount += c; } VOID Trace(TRACE trace, VOID *v) { for (BBL bbl = TRACE_BblHead(trace); BBL_Valid(bbl); bbl = BBL_Next(bbl)) { BBL_InsertCall(bbl, IPOINT_BEFORE, (AFUNPTR)docount, IARG_UINT32, BBL_NumIns(bbl), IARG_END); } VOID Fini(INT32 code, VOID *v) { OutFile.setf(ios::showbase); OutFile << "Count " << icount << endl; OutFile.close(); } int main(int argc, char * argv[]) { if (PIN_Init(argc, argv)) return 1; TRACE_AddInstrumentFunction(Trace, 0); PIN_AddFiniFunction(Fini, 0); PIN_StartProgram(); return 0; } http://software.intel.com/sites/landingpage/pintool/docs/61206/Pin/html/index.html#inscount1 48
Another  Pintool   ofstream OutFile ("inscount.out"); static UINT64 icount = 0; Makes  use  of  passing   state  to  the  callback   VOID docount(UINT32 c) { icount += c; } VOID Trace(TRACE trace, VOID *v) { for (BBL bbl = TRACE_BblHead(trace); BBL_Valid(bbl); bbl = BBL_Next(bbl)) { BBL_InsertCall(bbl, IPOINT_BEFORE, (AFUNPTR)docount, IARG_UINT32, BBL_NumIns(bbl), IARG_END); } VOID Fini(INT32 code, VOID *v) { OutFile.setf(ios::showbase); OutFile << "Count " << icount << endl; OutFile.close(); } int main(int argc, char * argv[]) { if (PIN_Init(argc, argv)) return 1; TRACE_AddInstrumentFunction(Trace, 0); PIN_AddFiniFunction(Fini, 0); PIN_StartProgram(); return 0; } http://software.intel.com/sites/landingpage/pintool/docs/61206/Pin/html/index.html#inscount1 49
Another  Pintool   ofstream OutFile ("inscount.out"); static UINT64 icount = 0; VOID docount(UINT32 c) { icount += c; } VOID Trace(TRACE trace, VOID *v) { for (BBL bbl = TRACE_BblHead(trace); BBL_Valid(bbl); bbl = BBL_Next(bbl)) { BBL_InsertCall(bbl, IPOINT_BEFORE, (AFUNPTR)docount, IARG_UINT32, BBL_NumIns(bbl), IARG_END); } VOID Fini(INT32 code, VOID *v) { OutFile.setf(ios::showbase); OutFile << "Count " << icount << endl; OutFile.close(); } Added  argument  reflec;ng  expect   parameter  in  analysis  callback   int main(int argc, char * argv[]) { if (PIN_Init(argc, argv)) return 1; TRACE_AddInstrumentFunction(Trace, 0); PIN_AddFiniFunction(Fini, 0); PIN_StartProgram(); return 0; } http://software.intel.com/sites/landingpage/pintool/docs/61206/Pin/html/index.html#inscount1 50
Another  Pintool   ofstream OutFile ("inscount.out"); static UINT64 icount = 0; VOID docount(UINT32 c) { icount += c; } VOID Trace(TRACE trace, VOID *v) { for (BBL bbl = TRACE_BblHead(trace); BBL_Valid(bbl); bbl = BBL_Next(bbl)) { BBL_InsertCall(bbl, IPOINT_BEFORE, (AFUNPTR)docount, IARG_UINT32, BBL_NumIns(bbl), IARG_END); } Instruments  at  the  trace  level,   which  can  reduce  number  of   analysis  callbacks   VOID Fini(INT32 code, VOID *v) { OutFile.setf(ios::showbase); OutFile << "Count " << icount << endl; OutFile.close(); } int main(int argc, char * argv[]) { if (PIN_Init(argc, argv)) return 1; TRACE_AddInstrumentFunction(Trace, 0); PIN_AddFiniFunction(Fini, 0); PIN_StartProgram(); return 0; } http://software.intel.com/sites/landingpage/pintool/docs/61206/Pin/html/index.html#inscount1 51
Problems  w/  Traditional  Pintools   ofstream OutFile ("inscount.out"); static UINT64 icount = 0; VOID docount(UINT32 c) { icount += c; } VOID Trace(TRACE trace, VOID *v) { for (BBL bbl = TRACE_BblHead(trace); BBL_Valid(bbl); bbl = BBL_Next(bbl)) { BBL_InsertCall(bbl, IPOINT_BEFORE, (AFUNPTR)docount, IARG_UINT32, BBL_NumIns(bbl), IARG_END); } Global  variables  make  it  hard   to  reuse  analysis  rou;nes   VOID Fini(INT32 code, VOID *v) { OutFile.setf(ios::showbase); OutFile << "Count " << icount << endl; OutFile.close(); } int main(int argc, char * argv[]) { if (PIN_Init(argc, argv)) return 1; TRACE_AddInstrumentFunction(Trace, 0); PIN_AddFiniFunction(Fini, 0); PIN_StartProgram(); return 0; } http://software.intel.com/sites/landingpage/pintool/docs/61206/Pin/html/index.html#inscount1 52
Problems  w/  Traditional  Pintools   ofstream OutFile ("inscount.out"); static UINT64 icount = 0; VOID docount(UINT32 c) { icount += c; } VOID Trace(TRACE trace, VOID *v) { for (BBL bbl = TRACE_BblHead(trace); BBL_Valid(bbl); bbl = BBL_Next(bbl)) { BBL_InsertCall(bbl, IPOINT_BEFORE, (AFUNPTR)docount, IARG_UINT32, BBL_NumIns(bbl), IARG_END); } VOID Fini(INT32 code, VOID *v) { OutFile.setf(ios::showbase); OutFile << "Count " << icount << endl; OutFile.close(); } int main(int argc, char * argv[]) { if (PIN_Init(argc, argv)) return 1; TRACE_AddInstrumentFunction(Trace, 0); PIN_AddFiniFunction(Fini, 0); PIN_StartProgram(); return 0; } Tool  developer  must  make  sure  that   number  of  parameters  in  callback   and  its  type  match  number  of   arguments  supplied  to  insert  method   http://software.intel.com/sites/landingpage/pintool/docs/61206/Pin/html/index.html#inscount1 53
Problems  w/  Traditional  Pintools   ofstream OutFile ("inscount.out"); static UINT64 icount = 0; VOID docount(UINT32 c) { icount += c; } VOID Trace(TRACE trace, VOID *v) { for (BBL bbl = TRACE_BblHead(trace); BBL_Valid(bbl); bbl = BBL_Next(bbl)) { BBL_InsertCall(bbl, IPOINT_BEFORE, (AFUNPTR)docount, IARG_UINT32, BBL_NumIns(bbl), IARG_END); } VOID Fini(INT32 code, VOID *v) { OutFile.setf(ios::showbase); OutFile << "Count " << icount << endl; OutFile.close(); } Tool  developer  must  remember   bootstrapping  process   int main(int argc, char * argv[]) { if (PIN_Init(argc, argv)) return 1; TRACE_AddInstrumentFunction(Trace, 0); PIN_AddFiniFunction(Fini, 0); PIN_StartProgram(); return 0; } http://software.intel.com/sites/landingpage/pintool/docs/61206/Pin/html/index.html#inscount1 54
Problems  w/  Traditional  Pintools   Previously  Stated  Problems   •  Global  variables  make  it  hard  to  reuse  analysis  rou;nes   •  Tool  developer  must  make  sure  that  number  of  parameters  in   callback  and  its  type  match  number  of  arguments  supplied  to   insert  method   •  Tool  developer  must  remember  bootstrapping  process     Non-­‐obvious  Problems   •  Pin  is  responsible  for  tracking  tool-­‐specific  informa;on,  which   impacts  performance   •  Hard  to  see  structure  of  Pintool,  which  results  in  spaghek   code   •  High  cycloma;c  complexity,  which  impacts  reuse   55
A  framework  for  wri;ng  high  quality  Pintools   PIN++   56
Pin++   •  A  object-­‐oriented  framework  for  wri;ng  Pintools   •  Uses  design  paHerns  to  promote  reuse  and  reduce   complexity  of  Pintools   •  Uses  template-­‐metaprogramming  to  reduce  poten;al   development  errors  and  op;mize  the  performance  of  a   Pintool  at  compile  ;me   •  Designed  to  promote  reuse  of  different  key  components   in  a  Pintool   •  Codifies  many  requirements  of  a  Pintool  so  developers   to  not  have  to  re-­‐implement  them  for  each  and  every   tool   •  e.g.,  bootstrapping,  ini;aliza;on,  registra;on,  &  etc   Public  Mirror:  hHps://github.com/hilljh82/OASIS   57
The  Structure  of  a  Pintool   •  Callbacks  are  objects  called   when  the  Pintool  is  to  analyze   data  at  an  instrumenta;on   point   •  Instruments  are  objects   called  by  Pin  when  the  Pintool   needs  to  instrument  the   element  of  interest   •  Tool  is  the  object  in  a  Pintool   that  is  responsible  for   connec;ng  the  Pin  client  with   the  instrument  objects.   58
Implementing  Example  in  Pin++   •  The  following  set  of  slides  show  how  to  implement  the  first   Pintool  we  implemented  using  the  tradi;onal  approach   using  Pin++   •  See  $OASIS_ROOT/examples/pintools  for  example  Pintools   implemented  using  Pin++   59
Pintool  in  Pin++  :  Callbacks   class docount : public OASIS::Pin::Callback <docount (void)> { public: docount (void) : count_ (0) { } void handle_analyze (void) { ++ this->count_; } UINT64 count (void) const { return this->count_; } private: UINT64 count_; }; Counter  is  contained  to  the   callback  object  (i.e.,  not  global)   60
Pintool  in  Pin++  :  Callbacks   class docount : public OASIS::Pin::Callback <docount (void)> { public: docount (void) : count_ (0) { } void handle_analyze (void) { ++ this->count_; } UINT64 count (void) const { return this->count_; } private: UINT64 count_; }; All  callbacks  implement  handle_analyze   method  where  parameter  types  are  known   at  compile  ;me   61
Pintool  in  Pin++  :  Callbacks   class docount : public OASIS::Pin::Callback <docount (void)> { public: docount (void) : count_ (0) { } void handle_analyze (void) { ++ this->count_; } UINT64 count (void) const { return Callback  IARG_TYPEs  are  specified   this->count_; } private: UINT64 count_; }; when  defining  the  callback  object   62
Examples  of  Pin++  Callbacks   •  Callback  that  takes  1  parameter   using namespace OASIS::Pin; class docount : public Callback <docount (ARG_INST_PTR)> { public: void handle_analyze (ADDRINT addr) { // do something... } // ... }; •  Callback  that  takes  2  parameters   class docount : public Callback <docount (ARG_INST_PTR, ARG_CONTEXT)> { public: void handle_analyze (ADDRINT addr, Context & ctx) { // do something... } // ... }; 63
Pintool  in  Pin++:  Instruments   class Instruction : public OASIS::Pin::Instruction_Instrument <Instruction> { public: void handle_instrument (const OASIS::Pin::Ins & ins){ ins.insert_call (IPOINT_BEFORE, &this->callback_); } UINT64 count (void) const { return this->callback_.count (); } private: docount callback_; }; 64
Pintool  in  Pin++:  Instruments   class Instruction : public OASIS::Pin::Instruction_Instrument <Instruction> { public: void handle_instrument (const OASIS::Pin::Ins & ins){ ins.insert_call (IPOINT_BEFORE, &this->callback_); } UINT64 count (void) const { return this->callback_.count (); } private: docount callback_; }; Level-­‐specific  instrument  (e.g.,  Image,   Rou;ne,  Trace,  or  Instruc;on)   Instrument  Object  Types  in  Pin++   •  Image_Instrument   •  Rou;ne_Instrument   •  Trace_Instrument   •  Instrumen;on_Instrument   65
Pintool  in  Pin++:  Instruments   class Instruction : public OASIS::Pin::Instruction_Instrument <Instruction> { public: void handle_instrument (const OASIS::Pin::Ins & ins){ ins.insert_call (IPOINT_BEFORE, &this->callback_); } UINT64 count (void) const { return this->callback_.count (); } private: docount callback_; }; Instrument  must  implement   handle_instrument  ()  method   The  parameter  type  for  this  method  depends  on  the   instrumenta;on  object  type   •  Image,  Rou;ne,  Trace,  or  Ins   66
Pintool  in  Pin++:  Instruments   class Instruction : public OASIS::Pin::Instruction_Instrument <Instruction> { public: void handle_instrument (const OASIS::Pin::Ins & ins){ ins.insert_call (IPOINT_BEFORE, &this->callback_); } UINT64 count (void) const { return this->callback_.count (); } private: docount callback_; }; Insert  call  takes  posi;on,  target   callback  object,  &  extra   arguments  for  IARG_TYPEs   67
Pintool  in  Pin++:  Instruments   class Instruction : public OASIS::Pin::Instruction_Instrument <Instruction> { public: void handle_instrument (const OASIS::Pin::Ins & ins){ ins.insert_call (IPOINT_BEFORE, &this->callback_); } UINT64 count (void) const { return this->callback_.count (); } private: docount callback_; }; Instrument  declares  one   or  more  callback  objects   68
Pintool  in  Pin++:  Tool   class inscount : public OASIS::Pin::Tool <inscount> { public: inscount (void) { this->register_fini_callback (); } void handle_fini (INT32 code) { std::ofstream fout ("inscount.out"); fout.setf (ios::showbase); fout << "Count " << this->instruction_.count () << std::endl; fout.close (); } private: Instruction instruction_; }; DECLARE_PINTOOL (inscount); // Can also use DECLARE_PINTOOL_PROBED 69
Pintool  in  Pin++:  Tool   class inscount : public OASIS::Pin::Tool <inscount> { public: inscount (void) { this->register_fini_callback (); } Subclass  from  the  tool  object   void handle_fini (INT32 code) { std::ofstream fout ("inscount.out"); fout.setf (ios::showbase); fout << "Count " << this->instruction_.count () << std::endl; fout.close (); } private: Instruction instruction_; }; DECLARE_PINTOOL (inscount); // Can also use DECLARE_PINTOOL_PROBED 70
Pintool  in  Pin++:  Tool   class inscount : public OASIS::Pin::Tool <inscount> { public: inscount (void) { this->register_fini_callback (); } void handle_fini (INT32 code) { std::ofstream fout ("inscount.out"); fout.setf (ios::showbase); Register  for  one  or  more  no;fica;ons   fout << "Count " << this->instruction_.count () << std::endl; fout.close (); } private: Instruction instruction_; }; DECLARE_PINTOOL (inscount); // Can also use DECLARE_PINTOOL_PROBED 71
Pintool  in  Pin++:  Tool   class inscount : public OASIS::Pin::Tool <inscount> { public: inscount (void) { this->register_fini_callback (); } void handle_fini (INT32 code) { std::ofstream fout ("inscount.out"); fout.setf (ios::showbase); fout << "Count " << this->instruction_.count () << std::endl; fout.close (); } Implement  corresponding   no;fica;on  on  the  tool   private: Instruction instruction_; }; DECLARE_PINTOOL (inscount); // Can also use DECLARE_PINTOOL_PROBED 72
Pintool  in  Pin++:  Tool   class inscount : public OASIS::Pin::Tool <inscount> { public: inscount (void) { this->register_fini_callback (); } void handle_fini (INT32 code) { std::ofstream fout ("inscount.out"); fout.setf (ios::showbase); Declare  one  or  more  instruments  for  the   fout << "Count " << this->instruction_.count () << std::endl; tool,  registra;on  happens  automa;cally   fout.close (); } private: Instruction instruction_; }; DECLARE_PINTOOL (inscount); // Can also use DECLARE_PINTOOL_PROBED 73
Pintool  in  Pin++:  Tool   class inscount : public OASIS::Pin::Tool <inscount> { public: inscount (void) { this->register_fini_callback (); } void handle_fini (INT32 code) { std::ofstream fout ("inscount.out"); fout.setf (ios::showbase); fout << "Count " << this->instruction_.count () << std::endl; fout.close (); } Declare  Pintool  &  ini;aliza;on  happens   automa;cally  in  correct  sequence   private: Instruction instruction_; }; DECLARE_PINTOOL (inscount); // Can also use DECLARE_PINTOOL_PROBED 74
BeneSits  of  Using  Pin++   •  No  more  need  for  global  variables   •  LiHle  to  no  need  to  pass  data  to  callbacks  via  Pin;   Instead,  data  can  be  stored  directly  in  callbacks   •  Each  component  in  Pin++  is  self-­‐contained  &  easily   reusable  in  other  Pintools   •  Improved  run;me  performance   •  Catch  run-­‐;me  errors  at  compile-­‐;me   •  Reduced  cycloma;c  complexity   75
Hands-­‐on  Demonstrations   Follow  the  following  tutorials:   •  hHps://github.com/hilljh82/OASIS/wiki/Compiling-­‐and-­‐ Installing   •  hHps://github.com/hilljh82/OASIS/wiki/Crea;ng-­‐a-­‐Pintool-­‐ using-­‐Pin   76
Concluding  Remarks   •  There  are  two  methods  of   instrumen;ng  a  soMware   system:  intrusive  &  non-­‐ intrusive   •  Dynamic  binary   instrumenta;on  is  a  powerful   approach  for  instrumen;ng   system  because  it  required  less   upfront  cost   •  Pin++  is  a  framework  designed   to  implement  high  quality   Pintools  from  reusable   components   77
Questions   78
