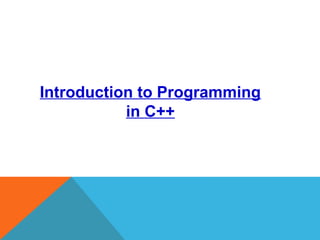

Introduction to Programming
in C++

Software Development Cycle
Compile
Link
Library routines
Other object files
Think
Edit
Load
Execute
Source Program IDE

IDEs
• Integrated Development Environments or IDEs
– Supports the entire software development cycle
• E.g. MS Visual C++, Borland, Code Warrior
• Provides all the capabilities for developing software
– Editor
– Compiler
– Linker
– Loader
– Debugger
– Viewer

What are the Key Ingredients of a Program?
• Common elements in programming languages:
– Keywords (aka reserved words)
• Defined in C++. Have a special meaning
– Programmer-defined entities
• Names made up by programmer
• Used to represent variables, functions, etc.
– Operators
• Defined in C++
• For performing arithmetic, comparison, etc. operations
– Constructs
 Defined in C++
 Sequence, selection, repetition, functions, classes, etc.
Every programming language has a syntax (or grammar) that a
programmer must observe
The syntax controls the use of the elements of the program

Object Oriented Programming
• C++ is derived from C programming language – an extension
that added object-oriented (OO) features.
- Lots of C++ syntax similar to that found in C, but there are
differences and new features.
• Popular because of the reuse of objects
– Classes – template or blueprint for an object
– Objects
– Methods
• Objects are organized in a hierarchy
– Super Classes
– Sub Classes

The Evolution of C++
• C (1972)
• ANSI Standard C (1989)
• Bjarne Stroustrup adds features of the language Simula (an
object-oriented language designed for carrying out simulations)
to C resulting in …
• C++ (1983)
• ANSI Standard C++ (1998)
• ANSI Standard C++ [revised] (2003)
• ANSI Standard C++ (2011)
• The present C++
– A general-purpose language that is in widespread use for
systems and embedded
– The most commonly used language for developing system
software such as databases and operating systems
… the future: another Standard (2014 and
2017?)

C++ - an Object-Oriented Programming Language
Other examples: C# and Java
The modern approach to developing programs
- Objects in a real-world problem are modeled as software objects
Warning: OO features were added to C++ as an “afterthought”
- It is not a “true” OO language such as C# or Java

• Program statement
– Definition, e.g. function prototype
– Declaration, e.g. variables and constants
– Action
• Executable unit - Action
– Set of program statements – may be named
– Different languages refer to named executable units by
different names
• Subroutine: Fortran and Basic
• Procedure: Pascal
• Function: C++
• Method: C++, C#, Java
Program Organization

The simplest C++ program consists of a single function named main.
The syntax of such programs is shown below:
#include <iostream>
using namespace std;
int main()
{
declaration(s)
statement(s)
return 0;
}
The portions of the program shown in blue should always be present.
The declarations specify the data that is used by the program. These
declarations can declare either constants or variables, for example.
The statements specify the algorithm for the solution to your problem.

Example – Algorithm for Converting Miles to Kilometers
• Problem Input
miles distance in miles
• Problem Output
kms distance in kilometers
• Algorithm will use Conversion Formula
1 mile = 1.609 kilometers

• Formulate the algorithm that solves the problem.
• Algorithm
1. Get the distance in miles.
2. Convert the distance to kilometers by multiplying by 1.609
3. Display the distance in kilometers.
• Now convert the algorithm to program code!

Intro in understanding to C programming .pptx

Statements
Statements are the executable “units” of a program.
Statements are the translation of an algorithm into program code.
Statements may be
- Simple – typically one line of program code
- Structured – a grouping of a number of statements
E.g. control structures; functions; etc.
Statements must be terminated with a ; symbol.

Program statements may be executed by one of three control
structures:
- Sequence – execute statements one after the other
- Selection – select which statement(s) to execute
- Repetition – repeatedly execute statement(s)
#include <iostream>
int main()
{
declaration(s)
statement(s)
return 0;
}

The #include Directive
• Preprocessor directive
• Inserts the contents of another file into the program
iostream is C++ library of input/output functions
This includes cout and cin
• Do not use ; at end of #include statement
#include <iostream>
int main()
{
declaration(s)
statement(s)
return 0;
}

The namespace Directive
This directive allows the cout and cin statements to be used in a
program without using the prefix std::
With this directive, may write
cin or cout
Otherwise, we would have to write
std::cout or std::cin
Must use ; at end of namespace directive
#include <iostream>
int main()
{
declaration(s)
statement(s)
return 0;
}

Declarations - Constants and Variables
Constants are data that having unchanging values.
Variables, as their name implies, are data whose values can change
during the course of execution of your program.
For both constants and variables, the name, the data type, and value
must be specified.
Any variable in your program must be defined before it can be used
Data type specifies whether data is integral, real, character or logical.

Constants
Syntax
const type name = expression;
The statement must include the reserved word const, which designates
the declaration as a constant declaration.
The type specification is optional and will be assumed to be integer.
Examples
const float TAXRATE = 0.0675;
const int NUMSTATES = 50;
Convention is to use uppercase letters for names of constants.

The data type of a constant may be one the types given below

A Simple, Yet Complete, C++ Program
Program producing output only
// Hello world program
#include <iostream>
int main()
{
cout << "Hello world!" << endl;
return 0;
}
Comment
Preprocessor
directives
Ends execution
of main() which ends the
program
Function
named
main()
indicates
start of the
program

Let us look at the function main()
int main()
{
cout << "Hello world!" << endl;
return 0;
}
This example introduces the notion of a text string
"Hello world!"

The basic data types supported by C++ are shown in the table
below
The three integer types allow for whole numbers of three different
sizes.
The two real types permit numbers with decimal parts with two
different amounts of precision.
Finally, there is one type for character data that consists of a single
character, and one type for logical values that are either true or false.

The cout Output Statement
• Used to display information on computer screen
• It is declared in the header file iostream
• Syntax
cout << expression;
• Uses << operator to send information to computer screen
cout << "Hello, there!";
• Can be used to send more than one item
cout << "Hello, " << "there!";

• To get multiple lines of output on screen
Either
- Use the endl function
cout << "Hello, there!" << endl;
Or
- Use n in the output string
cout << "Hello, there!n";

Example
#include <iostream>
int main()
{
cout << " * " << endl;
cout << " *** " << endl;
cout << " ***** " << endl;
cout << " * " << endl;
cout << " * " << endl;
cout << " * " << endl;
}

#include <iostream>
int main() {
double radius;
double area;
// Step 1: Set value for radius
radius = 20;
// Step 2: Compute area
area = radius * radius * 3.14159;
// Step 3: Display the area
cout << "The area is ";
cout << area << endl;
}
Example

The cin Statement
• Used to read input from keyboard
• It is declared in the header file iostream
• Syntax
cin >> variable
• Uses >> operator to receive data from the keyboard and
assign the value to a variable
• Often used with cout to display a user prompt first
• May use cin to store data in one or more variables

• Can be used to input more than one value
cin >> height >> width;
• Multiple values from keyboard must be separated by spaces
• Order is important: first value entered goes to first variable, etc.

Example Program – Use of cout to prompt user to enter some data
#include <iostream>
#include <string>
int main()
{
string name;
cout << "What is your name? ";
cin >> name;
cout << "Hello there, " << name;
return 0;
}

Names
• Used to denote language- and programmer-defined elements
within the program
• A valid name is a sequence of
– Letters (upper and lowercase)
– Digits
• A name cannot start with a digit
– Underscores
• A name should not normally start with an underscore
• Names are case sensitive
– MyObject is a different name than MYOBJECT
• There are two kinds of names
– Keywords
– Identifiers

Keywords
• Keywords are words reserved as part of the language - syntax
Example int, return, float, double
• They cannot be used to name programmer-defined elements
• They consist of lowercase letters only
• They have special meaning to the compiler

Identifiers
• Identifiers are the names given to programmer-defined entities
within the program – variables, functions, etc.
• Identifiers should be
– Short enough to be reasonable to type (single word is the norm)
• Standard abbreviations are fine
– Long enough to be understandable
• When using multiple word identifiers capitalize the first letter
of each word – but this is just a convention
• Examples
– Min
– Temperature
– CameraAngle
– CurrentNbrPoints

Example - Valid and Invalid Identifiers
IDENTIFIER VALID? REASON IF INVALID
totalSales Yes
total_Sales Yes
total.Sales No Cannot contain .
4thQtrSales No Cannot begin with digit
totalSale$ No Cannot contain $

Integer Data Types
• Designed to hold whole numbers
• Can be signed or unsigned
– 12 -6 +3
• Available in different sizes (in memory): short, int, and long
• Size of short  size of int  size of long

Floating-Point Data Types
• Designed to hold real numbers
12.45 -3.8
• Stored in a form similar to scientific notation
• All numbers are signed
• Available in different sizes (space in memory: float, double, and long
double
• Size of float  size of double  size of long double

Defining Variables
• Variables of the same type can be defined
- On separate lines:
int length;
int width;
unsigned int area;
- On the same line:
int length, width;
unsigned int area;
• Variables of different types must be in different definitions

Declaring Variables
int x; // Declare x to be an
// integer variable;
double radius; // Declare radius to
// be a double variable;
char a; // Declare a to be a
// character variable;

Variable Assignments and Initialization
Assignment
• Uses the = operator
• Has a single variable on the left side and a value (constant, variable,
or expression) on the right side
• Copies (i.e. assigns) the value on the right to the variable on the left.
(An expression is first evaluated)
• Syntax
variable = expression ;
item = 12; // constant
Celsius = (Fahrenheit - 32) * 5 / 9; // expression
y = m * x + b; // expression

Assignment Statement
int NewStudents = 6;
int OldStudents = 21;
int TotalStudents;
TotalStudents = NewStudents + OldStudents;
6
21
NewStudents
OldStudents
?
TotalStudents

Variable Assignments and Initialization
Initialization
• Initialize a variable: assign it a value when it is defined:
int length = 12;
• Or initialize it later via assignment
• Can initialize some or all variables:
int length = 12, width = 5, area;
• A variable cannot be used before it is defined

Arithmetic Operators
• Used for performing numeric calculations
Basic Arithmetic Operators

SYMBOL OPERATION EXAMPLE VALUE OF ans
+ addition ans = 7 + 3; 10
- subtraction ans = 7 - 3; 4
* multiplication ans = 7 * 3; 21
/ division ans = 7 / 3; 2
% modulus ans = 7 % 3; 1

/ Operator
• / (division) operator performs integer division if both operands are
integers
cout << 13 / 5; // displays 2
cout << 91 / 7; // displays 13
• If either operand is floating point, the result is floating point
cout << 13 / 5.0; // displays 2.6
cout << 91.0 / 7; // displays 13.0

% Operator
• % (modulus) operator computes the remainder resulting from
integer division
cout << 13 % 5; // displays 3
• % requires integers for both operands
cout << 13 % 5.0; // error

Remainder Operator
Remainder is very useful in programming.
For example, an even number % 2 is always 0 and an odd number % 2 is
always 1.
So you can use this property to determine whether a number is even or
odd.
Suppose today is Saturday and you and your friends are going to meet in
10 days. What day is in 10 days? You can find that day is Tuesday using
the following expression:
Saturday is the 6th
day in a week
A week has 7 days
After 10 days
The 2nd
day in a week is Tuesday
(6 + 10) % 7 is 2

Expressions
• Can create complex expressions using multiple mathematical
(and other) operators
• An expression can be a constant, a variable, or a combination of
constants and variables
• Can be used in assignment, with cout, and with other
statements:
area = 2 * PI * radius;
cout << "border length of rectangle is: " << 2*(l+w);

Expressions
Expressions are a grouping of variables, constants and operators.
C++ has a defined order of precedence for the order in which
operators are used in an expression
- It is not just a left-to-right evaluation
Brackets (aka parentheses) can be used to change the defined order
in which operators are used.
Example
#include <iostream>
int main()
{
cout << (1 + 2 + 3) / 3 << endl; // not the same as 1+2+3/3
return 0;
}

Expressions
• Multiplication requires an operator:
Area=lw is written as Area = l * w;
• There is no exponentiation operator:
Area=s2
is written as Area = pow(s, 2);
• Parentheses may be needed to specify the order of operations
Example
is written as m = (y2-y1) /(x2-x1);
1
2
1
2
x
x
y
y
m




Note the use of brackets to group variables into expressions and
inform the compiler the order of evaluation.
Example
m = (y2-y1) /(x2-x1);

Compound Assignment
• C++ has a set of operators for applying an operation to an
object and then storing the result back into the object
• Examples
int i = 3;
i += 4; // i is now 7 Equivalent to i = i + 4
float a = 3.2;
a *= 2.0; // a is now 6.4 Equivalent to a = a * 2.0

Shorthand Assignment Operators
Operator Example Equivalent
+= i += 8 i = i + 8
-= f -= 8.0 f = f - 8.0
*= i *= 8 i = i * 8
/= i /= 8 i = i / 8
%= i %= 8 i = i % 8

Assignment Conversions
• Floating-point expression assigned to an integer object is
truncated
• Integer expression assigned to a floating-point object is
converted to a floating-point value
• Consider
float y = 2.7;
int i = 15;
int j = 10;
i = y; // i is now 2
y = j; // y is now 10.0

Operators and Precedence
Consider m*x + b - Which of the following is it equivalent to?
 (m * x) + b - Equivalent
 m * (x + b) - Not equivalent but valid!
Operator precedence tells how to evaluate expressions
Standard precedence order
 () Evaluate first. If nested
innermost
done first
 * / % Evaluate second. If there are
several,
then evaluate from left-to-right
 + - Evaluate third. If there are
several,
then evaluate from left-to-right

Operator Precedence
• Example
20 - 4 / 5 * 2 + 3 * 5 % 4
(4 / 5)
((4 / 5) * 2)
((4 / 5) * 2) (3 * 5)
((4 / 5) * 2) ((3 * 5) % 4)
(20 -((4 / 5) * 2)) ((3 * 5) % 4)
(20 -((4 / 5) * 2)) + ((3 * 5) % 4)

Increment and Decrement Operators
• C++ has special operators for incrementing or decrementing a
variable’s value by one – “strange”effects!
• Examples
int k = 4;
++k; // k is 5
k++; // k is 6 Nothing strange so far!
BUT
int i = k++; // i is 6, and k is 7
int j = ++k; // j is 8, and k is 8

Increment and Decrement Operators
The “strange”effects appear when the operators are used in an
assignment statement
Operator Name Description
a=++var pre-increment The value in var is incremented by 1 and
this new value of var is assigned to a.
a=var++ post-increment The value in var is assigned to a and then
the value in var is incremented by 1

Operator Name Description
a=--var pre-decrement The value in var is
decremented by 1 and
this new value of var is
assigned to a.
a=var-- post-decrement The value in var is
assigned to a and then
the value in var is
decremented by 1
Similar effects for the decrement operator

Some Standard Libraries
fstream
- File stream processing
assert
- Assertion processing
iomanip
- Formatted input/output (I/O) requests
ctype
- Character manipulations
cmath
Trigonometric and logarithmic functions
Note
C++ has many other libraries

C++ cmath Library
• Typical mathematical functions
e.g. sqrt, sin, cos, log
• Function use in an assignment statement
y = sqrt(x);
Function
name
Function
argument
Function call

Some Mathematical Library Functions

Example
#include <iostream>
#include <cmath>
int main() {
cout << "Enter Quadratic coefficients: ";
double a, b, c;
cin >> a >> b >> c;
if ( (a != 0) && (b*b - 4*a*c > 0) ) {
double radical = sqrt(b*b - 4*a*c);
double root1 = (-b + radical) / (2*a);
double root2 = (-b - radical) / (2*a);
cout << "Roots: " << root1 << " " << root2;
}
else {
cout << "Does not have two real roots";
}
return 0;
}

/*
This program computes the volume (in liters) of a six-pack of
soda cans and the total volume of a six-pack and a two-
liter bottle.
*/
int main()
{
int cans_per_pack = 6;
const double CAN_VOLUME = 0.355; // Liters in a can
double total_volume = cans_per_pack * CAN_VOLUME;
cout << "A six-pack of 12 cans contains "
<< total_volume << " liters." << endl;
const double BOTTLE_VOLUME = 2; // Two-liter bottle
total_volume = total_volume + BOTTLE_VOLUME;
cout << "A six-pack and a two-liter bottle contain "
<< total_volume << " liters." << endl;
return 0;
}

Common error
Omitting a semicolon (or two)
Common Error – Omitting Semicolons
1 #include <iostream>
2
3 using namespace std;
4
5 int main()
6 {
7 cout << "Hello, World!" << endl
8 return 0;
9 }
Oh No!

Suppose you (accidentally of course) wrote:
cot << "Hello World!" << endl;
• This will cause a compile-time error and the compiler will
complain that it has no clue what you mean by cot.
The exact wording of the error message is dependent on
the compiler, but it might be something like
“Undefined symbol cot”.

Consider this:
cout << "Hollo, World!" << endl;
• Logic errors or run-time errors are errors in a program that
compiles (the syntax is correct), but executes without
performing the intended action.
not really an error?

Common Error – Using Undefined Variables
You must define a variable before you use it for the first time.
For example, the following sequence of statements would not
be legal:
double can_volume = 12 * liter_factor;
double liter_factor = 0.0296;
? ?
Statements are compiled in top to bottom order.
When the compiler reaches the first statement, it does not
know that liter_factor will be defined in the next line, and
it reports an error.

Common Error – Using Uninitialized Variables
Initializing a variable is not required, but there is always a
value in every variable, even uninitialized ones.
Some value will be there, the flotsam left over from some previous
calculation or simply the random value there
when the transistors in RAM were first turned on.
int bottles; // Forgot to initialize
int bottle_volume = bottles * 2;
What value would be output from the following statement?
cout << bottle_volume << endl; // Unpredictable
// Result is unpredictable

Common Error – Unintended Integer Division
It is unfortunate that C++ uses the same symbol: /
for both integer and floating-point division.
These are really quite different operations.
It is a common error to use integer division by accident.
Consider this segment that computes the average of three integers:
cout << "Please enter your last three test scores: ";
int s1;
int s2;
int s3;
cin >> s1 >> s2 >> s3;
double average = (s1 + s2 + s3) / 3;
cout << "Your average score is " << average << endl;



Error

What could be wrong with that?
Of course, the average of s1, s2, and s3 is
(s1+ s2+ s3) / 3
Here, however, the / does not mean division in the
mathematical sense.
It denotes integer division because
both (s1 + s2 + s3)and 3 are integers.

For example, if the scores add up to 14,
the average is computed to be 4.
WHAT?
Yes, the result of the integer division of 14 by 3 is 4
How many times does 3 evenly divide into 14?
Right!
That integer 4 is then moved into the floating-point
variable average.
So 4.0 is stored.
That’s not what we want!

The remedy is to make the numerator or denominator into
a floating-point number:
double total = s1 + s2 + s3;
double average = total / 3;
or
double average = (s1 + s2 + s3) / 3.0;

Common Error – Unbalanced Parentheses
Consider the expression
(-(b * b - 4 * a * c) / (2 * a)
What is wrong with it?
The parentheses are unbalanced.
This is very common with complicated expressions.
?

Common Error – Roundoff Errors
This program produces the wrong output:
#include <iostream>
int main()
{
double price = 4.35;
int cents = 100 * price;
// Should be 100 * 4.35 = 435
cout << cents << endl;
// Prints 434!
return 0;
}
Why?

Common Error – Roundoff Errors
• In the computer, numbers are represented in the binary
number system, not in decimal.
• In the binary system, there is no exact representation for 4.35,
just as there is no exact representation for ⅓ in the decimal
system.
• The representation used by the computer is just a little less
than 4.35, so 100 times that value is just a little less than 435.
• The remedy is to add 0.5 in order to round to the nearest
integer:
int cents = 100 * price + 0.5;

Intro in understanding to C programming .pptx

More Related Content

Similar to Intro in understanding to C programming .pptx (20)

Recently uploaded (20)

Intro in understanding to C programming .pptx
