What is Arc?
A restrictive language for describing batch and stream transformations
Transformations are modelled through:
• Values: Read-only data types (e.g. Vec[T], Stream[T], i8..i64)](https://image.slidesharecdn.com/introducingarcacommonintermediatelanguageforunifiedbatchandstreamanalytics-maxmeldrumriseklassegelja-191014105834/85/Introducing-Arc-A-Common-Intermediate-Language-for-Unified-Batch-and-Stream-Analytics-Max-Meldrum-Klas-Segeljakt-KTH-22-320.jpg)
![7
What is Arc?
A restrictive language for describing batch and stream transformations
Transformations are modelled through:
• Values: Read-only data types (e.g. Vec[T], Stream[T], i8..i64)
• Builders: Write-only data types (e.g. Appender[T])](https://image.slidesharecdn.com/introducingarcacommonintermediatelanguageforunifiedbatchandstreamanalytics-maxmeldrumriseklassegelja-191014105834/85/Introducing-Arc-A-Common-Intermediate-Language-for-Unified-Batch-and-Stream-Analytics-Max-Meldrum-Klas-Segeljakt-KTH-23-320.jpg)
![7
What is Arc?
A restrictive language for describing batch and stream transformations
Transformations are modelled through:
• Values: Read-only data types (e.g. Vec[T], Stream[T], i8..i64)
• Builders: Write-only data types (e.g. Appender[T])
• Values are written to builders, and builders are lazily materialised back into values](https://image.slidesharecdn.com/introducingarcacommonintermediatelanguageforunifiedbatchandstreamanalytics-maxmeldrumriseklassegelja-191014105834/85/Introducing-Arc-A-Common-Intermediate-Language-for-Unified-Batch-and-Stream-Analytics-Max-Meldrum-Klas-Segeljakt-KTH-24-320.jpg)
![7
What is Arc?
A restrictive language for describing batch and stream transformations
Transformations are modelled through:
• Values: Read-only data types (e.g. Vec[T], Stream[T], i8..i64)
• Builders: Write-only data types (e.g. Appender[T])
• Values are written to builders, and builders are lazily materialised back into values
➡ Dependencies between values and builders form a dataflow graph](https://image.slidesharecdn.com/introducingarcacommonintermediatelanguageforunifiedbatchandstreamanalytics-maxmeldrumriseklassegelja-191014105834/85/Introducing-Arc-A-Common-Intermediate-Language-for-Unified-Batch-and-Stream-Analytics-Max-Meldrum-Klas-Segeljakt-KTH-25-320.jpg)
![8
|source:Stream[i32],
evenSink:StreamAppender[i32],
oddSink:StreamAppender[i32]|
let mapped = result(for(source,
StreamAppender[i32],
|out, v| merge(out, v + 5)));
for(mapped, evenSink, |out, v|
if (v % 2 == 0, merge(out, v), out));
for(mapped, oddSink, |out, v|
if (v % 2 != 0, merge(out, v), out))
Arc
source
evenSink
oddSink
map(v+5)
filter(v%2==0)
filter(v%2!=0)
Arc Example](https://image.slidesharecdn.com/introducingarcacommonintermediatelanguageforunifiedbatchandstreamanalytics-maxmeldrumriseklassegelja-191014105834/85/Introducing-Arc-A-Common-Intermediate-Language-for-Unified-Batch-and-Stream-Analytics-Max-Meldrum-Klas-Segeljakt-KTH-27-320.jpg)
![10
source
evenSink
oddSink
map(v+5) then if(x%2==0)
Arc Example (Fused)
|source:Stream[i32],
evenSink:StreamAppender[i32],
oddSink:StreamAppender[i32]|
let mapped = result(for(source,
StreamAppender[i32],
|out, v| merge(out, v + 5)));
for(mapped, evenSink, |out, v|
if (v % 2 == 0, merge(out, v), out));
for(mapped, oddSink, |out, v|
if (v % 2 != 0, merge(out, v), out))
Unfused](https://image.slidesharecdn.com/introducingarcacommonintermediatelanguageforunifiedbatchandstreamanalytics-maxmeldrumriseklassegelja-191014105834/85/Introducing-Arc-A-Common-Intermediate-Language-for-Unified-Batch-and-Stream-Analytics-Max-Meldrum-Klas-Segeljakt-KTH-29-320.jpg)
![10
source
evenSink
oddSink
map(v+5) then if(x%2==0)
Arc Example (Fused)
|source:Stream[i32],
evenSink:StreamAppender[i32],
oddSink:StreamAppender[i32]|
let mapped = result(for(source,
StreamAppender[i32],
|out, v| merge(out, v + 5)));
for(mapped, evenSink, |out, v|
if (v % 2 == 0, merge(out, v), out));
for(mapped, oddSink, |out, v|
if (v % 2 != 0, merge(out, v), out))
Unfused
|source:Stream[i32],
evenSink:StreamAppender[i32],
oddSink:StreamAppender[i32]|
for(source,
{evenSink,oddSink},
|out, v|
let x = v + 5;
if (x % 2 == 0,
{merge(out.$1, x), out.$2},
{out.$1, merge(out.$2, x)}))
Fused](https://image.slidesharecdn.com/introducingarcacommonintermediatelanguageforunifiedbatchandstreamanalytics-maxmeldrumriseklassegelja-191014105834/85/Introducing-Arc-A-Common-Intermediate-Language-for-Unified-Batch-and-Stream-Analytics-Max-Meldrum-Klas-Segeljakt-KTH-30-320.jpg)
Introducing Arc: A Common Intermediate Language for Unified Batch and Stream Analytics - Max Meldrum & Klas Segeljakt, KTH
- 1. Introducing Arc Klas Segeljakt Max Meldrum @FlinkForward A Common Intermediate Language for Unified Batch and Stream Analytics
- 2. Outline • Project Introduction • The Arc Intermediate Representation (IR) • Arc Examples • Arc + Flink Integration? • Conclusions 2
- 3. The Big Picture 3 • Flink plays an important role in the data science landscape ? ? ? ? ? ?
- 4. The Big Picture 3 • Flink plays an important role in the data science landscape • Combining Flink with other frameworks can lead to interesting applications ? ? ? ? ? ?
- 5. The Big Picture 3 • Flink plays an important role in the data science landscape • Combining Flink with other frameworks can lead to interesting applications • However, there is a language barrier ? ? ? ? ? ?
- 7. Intuition 4 f1 f2 f3 • No cross-optimisation optimisation is possible, e.g. resource sharing
- 8. Intuition 4 f1 f2 f3 • No cross-optimisation optimisation is possible, e.g. resource sharing • Data movement costs ( )
- 9. Intuition 4 #Frameworks Performance f1 f2 f3 • No cross-optimisation optimisation is possible, e.g. resource sharing • Data movement costs ( )
- 10. Intuition 4 #Frameworks Performance f1 f2 f3 • No cross-optimisation optimisation is possible, e.g. resource sharing • Data movement costs ( )
- 11. Intuition 4 #Frameworks Performance f1 f2 f3 • No cross-optimisation optimisation is possible, e.g. resource sharing • Data movement costs ( ) f1 f2 f3IR IR IR
- 12. Intuition 4 #Frameworks Performance f1 f2 f3 • No cross-optimisation optimisation is possible, e.g. resource sharing • Data movement costs ( ) f1 f2 f3IR IR IR f1 + f2 + f3IR
- 13. The Arc IR 5 • Streams • Tables • Linear algebra High-level • Runners • Hardware Low-level
- 14. Arc The Arc IR 5 • Streams • Tables • Linear algebra High-level • Runners • Hardware Low-level
- 15. Arc The Arc IR 5 • Streams • Tables • Linear algebra High-level • Runners • Hardware Low-level Abstractions • Pipelines (Operators/Sources/Sinks) • User-defined Windows • Out-of-Order Processing, ...
- 16. Arc The Arc IR 5 • Streams • Tables • Linear algebra High-level • Runners • Hardware Low-level Optimisations • Compiler: Partial evaluation, ... • Dataflow: Operator fusion, fission, reordering, ... Abstractions • Pipelines (Operators/Sources/Sinks) • User-defined Windows • Out-of-Order Processing, ...
- 17. Compiler Pipeline 6 Arc (High Level IR) Frontends Logical Dataflow IR Binaries Physical Dataflow IR
- 18. Compiler Pipeline 6 Arc (High Level IR) Frontends Logical Dataflow IR Binaries Physical Dataflow IR Flink Backend Flink Frontend
- 19. 7 What is Arc?
- 20. 7 What is Arc? A restrictive language for describing batch and stream transformations
- 21. 7 What is Arc? A restrictive language for describing batch and stream transformations Transformations are modelled through:
- 22. 7 What is Arc? A restrictive language for describing batch and stream transformations Transformations are modelled through: • Values: Read-only data types (e.g. Vec[T], Stream[T], i8..i64)
- 23. 7 What is Arc? A restrictive language for describing batch and stream transformations Transformations are modelled through: • Values: Read-only data types (e.g. Vec[T], Stream[T], i8..i64) • Builders: Write-only data types (e.g. Appender[T])
- 24. 7 What is Arc? A restrictive language for describing batch and stream transformations Transformations are modelled through: • Values: Read-only data types (e.g. Vec[T], Stream[T], i8..i64) • Builders: Write-only data types (e.g. Appender[T]) • Values are written to builders, and builders are lazily materialised back into values
- 25. 7 What is Arc? A restrictive language for describing batch and stream transformations Transformations are modelled through: • Values: Read-only data types (e.g. Vec[T], Stream[T], i8..i64) • Builders: Write-only data types (e.g. Appender[T]) • Values are written to builders, and builders are lazily materialised back into values ➡ Dependencies between values and builders form a dataflow graph
- 27. 8 |source:Stream[i32], evenSink:StreamAppender[i32], oddSink:StreamAppender[i32]| let mapped = result(for(source, StreamAppender[i32], |out, v| merge(out, v + 5))); for(mapped, evenSink, |out, v| if (v % 2 == 0, merge(out, v), out)); for(mapped, oddSink, |out, v| if (v % 2 != 0, merge(out, v), out)) Arc source evenSink oddSink map(v+5) filter(v%2==0) filter(v%2!=0) Arc Example
- 28. 9 source evenSink oddSink map(v+5) filter(v%2==0) filter(v%2!=0) Arc Example source evenSink oddSink map(v+5) then if(x%2==0)
- 29. 10 source evenSink oddSink map(v+5) then if(x%2==0) Arc Example (Fused) |source:Stream[i32], evenSink:StreamAppender[i32], oddSink:StreamAppender[i32]| let mapped = result(for(source, StreamAppender[i32], |out, v| merge(out, v + 5))); for(mapped, evenSink, |out, v| if (v % 2 == 0, merge(out, v), out)); for(mapped, oddSink, |out, v| if (v % 2 != 0, merge(out, v), out)) Unfused
- 30. 10 source evenSink oddSink map(v+5) then if(x%2==0) Arc Example (Fused) |source:Stream[i32], evenSink:StreamAppender[i32], oddSink:StreamAppender[i32]| let mapped = result(for(source, StreamAppender[i32], |out, v| merge(out, v + 5))); for(mapped, evenSink, |out, v| if (v % 2 == 0, merge(out, v), out)); for(mapped, oddSink, |out, v| if (v % 2 != 0, merge(out, v), out)) Unfused |source:Stream[i32], evenSink:StreamAppender[i32], oddSink:StreamAppender[i32]| for(source, {evenSink,oddSink}, |out, v| let x = v + 5; if (x % 2 == 0, {merge(out.$1, x), out.$2}, {out.$1, merge(out.$2, x)})) Fused
- 31. 11 Arc + Flink?
- 32. • Benefits: 11 Arc + Flink?
- 33. • Benefits: • Enable stronger optimisations 11 Arc + Flink?
- 34. • Benefits: • Enable stronger optimisations • Use your other favourite libraries together with Flink 11 Arc + Flink?
- 35. • Benefits: • Enable stronger optimisations • Use your other favourite libraries together with Flink • Make life easier for data scientists 11 Arc + Flink?
- 36. The black box problem UDFs are black boxes 12 stream.map( ) .filter( ) .reduce( )
- 37. The black box problem UDFs are black boxes ➡ Flink is unaware of what is being executed inside of each black box 12 stream.map( ) .filter( ) .reduce( )

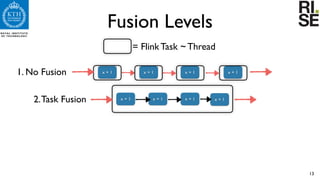

- 38. Fusion Levels 13 = Flink Task ~ Thread
- 39. Fusion Levels 13 = Flink Task ~ Thread x + 1 x + 1 x + 1 x + 11. No Fusion
- 40. Fusion Levels 13 = Flink Task ~ Thread x + 1 x + 1 x + 1 x + 11. No Fusion x + 1 x + 1 x + 1 x + 12.Task Fusion
- 41. Fusion Levels 13 = Flink Task ~ Thread x + 1 x + 1 x + 1 x + 11. No Fusion x + 1 x + 1 x + 1 x + 12.Task Fusion 3. Invocation-level Fusion x + 1 for-loop 4X
- 42. Fusion Levels 13 = Flink Task ~ Thread x + 1 x + 1 x + 1 x + 11. No Fusion x + 1 x + 1 x + 1 x + 12.Task Fusion 4. Instruction-level Fusion x + 4 3. Invocation-level Fusion x + 1 for-loop 4X
- 43. 14 Experiment Results 100 101 102 103 ExecutionTime(seconds) None Task(Flink) Invocation Instruction 50 maps on 10M elements N one Task(Flink) Invocation Instruction Optimisation level (Lower is better)
- 44. Example Frontend Code (Pandas + Beam) 15
- 45. Example Frontend Code (Pandas + Beam) 15
- 46. Example Frontend Code (Pandas + Beam) 15 import arc.beam as beam import arc.beam.transforms.window as window import arc.beam.transforms.combiners as combiners import arc.pandas as pandas
- 47. Example Frontend Code (Pandas + Beam) 15 import arc.beam as beam import arc.beam.transforms.window as window import arc.beam.transforms.combiners as combiners import arc.pandas as pandas def normalise(elements): series = pandas.Series(elements) avg = series.sum() / series.count() return series / avg
- 48. Example Frontend Code (Pandas + Beam) 15 import arc.beam as beam import arc.beam.transforms.window as window import arc.beam.transforms.combiners as combiners import arc.pandas as pandas def normalise(elements): series = pandas.Series(elements) avg = series.sum() / series.count() return series / avg p = beam.Pipeline() (p | beam.io.ReadFromText(path='input.txt').with_output_types(int) | beam.WindowInto(window.FixedWindows(size=5)) | beam.CombineGlobally(normalise) | combiners.ToList() | beam.io.WriteToText(path='output.txt')) p.run()
- 49. Example Frontend Code (Pandas + Beam) 15 import arc.beam as beam import arc.beam.transforms.window as window import arc.beam.transforms.combiners as combiners import arc.pandas as pandas def normalise(elements): series = pandas.Series(elements) avg = series.sum() / series.count() return series / avg p = beam.Pipeline() (p | beam.io.ReadFromText(path='input.txt').with_output_types(int) | beam.WindowInto(window.FixedWindows(size=5)) | beam.CombineGlobally(normalise) | combiners.ToList() | beam.io.WriteToText(path='output.txt')) p.run() ?
- 51. • Flink inspired dataflow engine built in Rust • Goals: • Common runtime for Arc applications • Support dynamic task execution • First-class support for hardware acceleration 17 Arcon: Native Arc Runner
- 52. • Arc is an IR for batch and stream programming. • By raising the level of abstraction, Arc is able to both optimise the dataflow and the code within it. 18 Conclusions Arc and experiments can be found at https://github.com/cda-group Contact info: klasseg@kth.se & mmeldrum@kth.se
- 53. References Publications: • Kroll, L., Segeljakt, K., Carbone, P., Schulte, C. and Haridi, S., 2019, June. Arc: an IR for batch and stream programming. In Proceedings of the 17th ACM SIGPLAN International Symposium on Database Programming Languages (pp. 53-58). ACM. • Meldrum, M., Segeljakt, K., Kroll, L., Carbone, P., Schulte, C. and Haridi, S., 2019, August. Arcon: Continuous and Deep Data Stream Analytics. In Proceedings of Real-Time Business Intelligence and Analytics (p. 3). ACM. 19
