414452:Elective – VI (Ethical Hacking and Security)
BE IT
Unit No. 1:
Introduction to Basics of Ethical
Hacking and Penetration Testing
Prepared By:
Mr. Salve B. S

Syllabus
Unit No. 1:
Introduction to Basics of Ethical Hacking and Penetration
Testing.
Introduction to basic Terminologies of Ethical Hacking, CIA(confidentiality,
Integrity Availability , Types of Hackers , Ethical Hacking Process, Different
tools for Ethical Hacking,
Introduction to Kali Linux, What Is a Penetration Test, Vulnerability
Assessments versus Penetration Test, Types of Penetration Testing: Network
Penetration Test, Web Application Penetration Test, Mobile Application

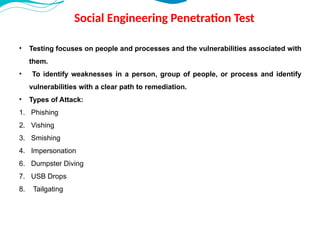

Penetration Test, Social Engineering Penetration Test, Physical Penetration
Test

Introduction to basic Terminologies of Ethical Hacking
• The first known event of hacking had taken place in 1960 at MIT and
at the same time, the term "Hacker" was originated.
• Ethical Hacking: Hacking is usually legal as long as it is being done
to find weaknesses in a computer or network system for testing
purpose.
• A computer expert who does the act of hacking is called a "Hacker".
• Types of Hacking: Website Hacking, Network Hacking, Email Hacking,
Ethical Hacking , Password Hacking, Computer Hacking

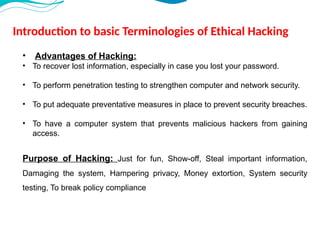

Introduction to basic Terminologies of Ethical Hacking
• Advantages of Hacking:
• To recover lost information, especially in case you lost your password.
• To perform penetration testing to strengthen computer and network security.
• To put adequate preventative measures in place to prevent security breaches.
• To have a computer system that prevents malicious hackers from gaining
access.
Purpose of Hacking: Just for fun, Show-off, Steal important information,
Damaging the system, Hampering privacy, Money extortion, System security
testing, To break policy compliance

Ethical Hacking - Hacker Types
Based on their intent of hacking a system:
• white hat (Ethical Hackers)
• black hat (crackers)
• grey hat,
• These different terms come from old Spaghetti Westerns, where
the bad guy wears a black cowboy hat and the good guy wears a
white hat.
• Based on what they hack and how they do it:
• Miscellaneous Hackers: Red Hat Hackers, Blue Hat Hackers, Elite Hackers,

Famous Hackers
Jonathan James
Jonathan James was an American hacker, illfamous as the first juvenile sent to prison for
cybercrime in United States. He committed suicide in 2008 of a self-inflicted gunshot
wound.
In 1999, at the age of 16, he gained access to several computers by breaking the
password of a server that belonged to NASA and stole the source code of the
International Space Station among other sensitive information.

Famous Hackers
Ian Murphy
Ian Murphy, also known as Captain Zap, at one point of time was having high school
students steal computer equipment for him. Ian self proclaims to have been "the first
hacker ever convicted of a crime".
Ian's career as a master hacker was fabricated in 1986 after he and his unemployed wife
decided to form some type of business.
He has a long history of computer and Internet frauds. One of his favourite games is to
forge Email headers and to send out third-party threat letters.

Famous Hackers
Mark Abene
He was one of the first hackers to openly debate and defend the positive merits of ethical
hacking as a beneficial tool to industry.
His expertise spreads across penetration studies, on-site security assessments,
secure code reviews, security policy review and generation, systems and network
architecture, systems administration and network management, among many others

Ethical Hacking - Terminologies
list of important terms used in the field of hacking.
1. Adware: software designed to force pre-chosen ads to display on your system.
2. Attack
3. Back door: hidden entry to a computing device or software that bypasses security
4. Bot : is a program that automates an action
5. Botnet: Known as zombie army, is a group of computers controlled without their owners’
knowledge.
6. Brute force attack: method to gain access to a system or website, combination of
usernames and passwords,
7. Buffer Overflow:
8. Clone phishing modification of an existing, legitimate email with a false link to trick the
recipient into providing personal information.

Ethical Hacking - Terminologies
list of important terms used in the field of hacking.
1. Denial of service attack (DoS): malicious attempt to make a server or a network
resource unavailable to users.
2. Firewall: filter designed to keep unwanted intruders outside a computer system or
network while allowing safe communication between systems and network.
3. Malware: computer viruses, worms, Trojan horses, ransomware, spyware, adware,
scareware, and other malicious programs.
4. SQL Injection
5. Threat
6. Trojan
7. Virus
8. Vulnerability − A vulnerability is a weakness which allows a hacker to compromise the

CIA (confidentiality, Integrity Availability)
• Designed to guide policies for information security within an organization.
Confidentiality
Confidentiality refers to protecting information from unauthorized access.
Integrity
means data are trustworthy, complete, and have not been accidentally altered or
modified by an unauthorized user
Availability
Availability means data are accessible when you need them.

Ethical Hacking Process
a Certified Ethical Hacker,
the entire process can be
categorized into the
following six phases.

1. Reconnaissance:
• The attacker gathers information about a target using active or passive means.
• Tools : NMAP, Hping, Maltego, and Google Dorks.
2. Scanning
• The attacker begins to actively probe a target machine or network for
vulnerabilities that can be exploited.
• The tools : Nessus, Nexpose, and NMAP.
3. Gaining Access
• The vulnerability is located and you attempt to exploit it in order to enter into
the system.
• Tool : Metasploit.
4. Maintaining Access
• The hacker has already gained access into a system.
• The hacker installs some backdoors in order to enter into the system when he
needs access in this owned system in future.
• Tool: Metasploit

5. Clearing Tracks
• An unethical activity.
• It has to do with the deletion of logs of all the activities.
6. Reporting
• To finishing the ethical hacking process.
• The Ethical Hacker compiles a report with his findings an
• Which the tools used, What is the success rate, vulnerabilities found, and
the exploit processes.

Different Tools used for Ethical Hacking
NMAP(Network Mapper) : scan large networks, network discovery
and security auditing
Nmap uses raw IP packets to determine −
• what hosts are available on the network,
• what services those hosts are offering,
• what operating systems they are running on,
• what type of firewalls are in use, and other such characteristics.

Metasploit :
• exploit tools.
• www.metasploit.com.
• It comes in two versions − commercial and free edition.
• Matasploit can be used with command prompt or with Web UI.
Operations −
• Conduct basic penetration tests on small networks
• Run spot checks on the exploitability of vulnerabilities
• Discover the network or import scan data
• Browse exploit modules and run individual exploits on hosts

Burp Suit
• used for performing security testing of web applications.
• It has various tools that work in collaboration to support the entire testing
process, from initial mapping and analysis of an application's attack surface,
through to finding and exploiting security vulnerabilities.

• Angry IP Scanner: IP address and port scanner.
• IP address and port scanner: password recovery tool for Microsoft Operating
Systems.
• Ettercap: Ethernet Capture. It is a network security tool for Man-in-the-Middle
attacks.
• EtherPeek: simplifies network analysis in a multiprotocol heterogeneous
network environment.

• SuperScan: network administrators to scan TCP ports and resolve hostnames.
QualysGuard includes a set of tools that can monitor, detect, and protect your global
network.
• WebInspect: web application security assessment tool that helps identify known
and unknown vulnerabilities within the Web application layer.
• Network Stumbler: WiFi scanner and monitoring tool for Windows

Introduction to Kali Linux
• Developed by Mati Aharoni and Devon Kearns.
• Website: https://www.kali.org/
• OS for network analysts, Penetration testers,
• It is for those who work under the umbrella of cybersecurity and analysis

What Is a Penetration Test
• A penetration test (pen test) is an authorized simulated attack
performed on a computer system to evaluate its security.
• Penetration testers use the same tools to find and demonstrate the
business impacts of weaknesses in a system.
• Penetration tests usually simulate a variety of attacks that could
threaten a business.
• Benefits:
• Find weaknesses in systems
• Determine the robustness of controls
• Support compliance with data privacy and security regulations

What Is a Penetration Test
Types of pen tests:
1. pen-box pen test: The hacker will be provided with some information ahead of
time regarding the target company’s security info.
2. Closed-box pen test - ‘single-blind’ test, the hacker is given no background
information besides the name of the target company.
3. Covert pen test - ‘double-blind’ pen test, this is a situation where almost no one in
the company is aware that the pen test is happening, including the IT and security
professionals who will be responding to the attack.
4. External pen test - the ethical hacker goes up against the company’s external-
facing technology, such as their website and external network servers.
5. Internal pen test - the ethical hacker performs the test from the company’s internal
network.

Vulnerability Assessments versus Penetration Test
S.No. Penetration Testing Vulnerability Assessments
1. This is meant for critical real-time systems.
This is meant for non-critical systems.
2.
This is ideal for physical environments and
network architecture.
This is ideal for lab environments.
3.
It is non-intrusive, documentation and
environmental review and analysis.
Comprehensive analysis and through review
of the target system and its environment.
4. It cleans up the system and gives final report.
It attempt to mitigate or eliminate the potential
vulnerabilities of valuable resources.
5.
It gathers targeted information and/or inspect
the system.
It allocates quantifiable value and significance
to the available resources.
6. It tests sensitive data collection.
It discovers the potential threats to each
resource.
7. It determines the scope of an attack.
It makes a directory of assets and resources
in a given system.

Types of Penetration Testing
The type of penetration testing normally depends on the scope and the organizational wants and
requirements

1. Black Box Penetration Testing:
• Tester has no idea about the systems that he is going
to test
• To gather information about the target network or
system
• Not examine any programming codes.

Advantages of Black Box Penetration Testing:
1. Tester need not necessarily be an expert, as it does not demand specific
language knowledge
2. Tester verifies contradictions in the actual system and the specifications
3. Test is generally conducted with the perspective of a user, not the
designer
Disadvantages of Black Box Penetration Testing:
1. Particularly, these kinds of test cases are difficult to design.
2. Possibly, it is not worth, incase designer has already conducted a test
case.
3. It does not conduct everything.

White Box Penetration Testing
• Tester has been provided with whole range of information about the
systems and/or network such as Schema, Source code, OS details, IP
address, etc.
• Examines the code coverage and does data flow testing, path testing,
loop testing, etc.
• It is also known as structural, glass box, clear box, and open box
testing.

Advantages of White Box Penetration Testing:
• It ensures that all independent paths of a module have been exercised.
• It ensures that all logical decisions have been verified along with their true
and false value.
• It discovers the typographical errors and does syntax checking.

Grey Box Penetration Testing
• A tester usually provides partial or limited information about the internal
details of the program of a system.
• It can be considered as an attack by an external hacker.
• who had gained illegitimate access to an organization's network
infrastructure documents.

Advantages of Grey Box Penetration Testing
• As the tester does not require the access of source code.
• As there is clear difference between a developer and a tester, so there is
least risk of personal conflict
• You don’t need to provide the internal information about the program
functions and other operations

Network Penetration Testing
• Network penetration tests should be performed to protect your business from
common network-based attacks.

• Physical structure of a system needs to be tested to identify the
vulnerability and risk which ensures the security in a network.
• A tester identities security flaws in design, implementation, or operation of
the respective company/organization’s network.
• The devices, which are tested by a tester can be computers, modems, or
even remote access devices, etc.

Network penetration tests should be performed to protect your
business from common network-based attacks including.
• Firewall Misconfiguration And Firewall Bypass
• Router Attacks
• DNS Level Attacks:
• Switching Or Routing Based Attacks
• SSH Attacks
• Proxy Server Attacks
• Unnecessary Open Ports Attacks
• Database Attacks
• Man In The Middle (MITM) Attacks
• FTP/SMTP Based Attacks

Web Application Penetration Testing

Tools are used for web application penetration testing:
• Astra Security Scan
• Acunetix
• HackerOne
• Burp Suite
• Browser’s Developer Tools
• NMap
• Zenmap
• ReconDog
• Nikto

Benefits of web application penetration testing:
1. It helps you satisfy compliance requirements.
2. It helps you assess your infrastructure.
3. It identifies vulnerabilities.
4. It helps confirm security policies

How is penetration testing performed for web applications?
1. Configure your tests.
2. Execute your tests.
• External penetration tests that analyse components accessible to hackers via the
internet, like web apps or websites
• Internal penetration tests that simulate a scenario in which a hacker has access to
an application behind your firewalls
3. Analyze your tests

Manual Web Application Penetration Testing
1. Information Gathering
2. Planning Analysis
3. Vulnerability Detection
4. Penetration testing
5. Reporting
6. Analyze your tests

Mobile Application Penetration Testing
The importance :
1. It is multi-layered.
2. It’s about securing user data, preserving the app’s integrity, and defending the
reputation of businesses
Tools Used:
1. Astra Security
2. ZAP (Zed Attack Proxy)
3. Burp Suite
4. Mobile Security Framework (MobSF)
5. Kali Linux NetHunter
6. Data Theorem

What is Android penetration testing?
• Mobile or Android penetration testing aims to detect security vulnerabilities and ensure
that mobile applications are not vulnerable to attacks.
• Modern Android applications are used for commercial purposes, healthcare, banking,
learning, and more.
• These mobile applications, apart from holding sensitive information, also contain
security vulnerabilities.
• Penetration testers and developers can find and fix these vulnerabilities and mitigate
security risks.

Examples of Attack:
• In 2021, the payment application Klarna suffered an application flaw that
caused users to log in to random accounts of other customers and expose
sensitive personal and credit card information.
• ParkMobile, the company behind an app for cashless parking across the
United States, is still battling a class action lawsuit from a 2021 mobile app
data breach that affected 21 million users.

Android package (APK) file structure

Android package (APK) file structure:
• It contains all the files (code and assets) that are required in order for the
Android application to run.
• METTA-INF: Contains verification information that is generated when the app is
signed.
• MANIFEST.MF: Contains a list of names/hashes (usually SHA256 in Base64) for all
the files of the APK.
• CERT.SF: Contains a list of names/hashes of the corresponding lines in the
MANIFEST.MF file.
• CERT.RSA: This file contains the public key and the signature of CERT.SF.
• Assets: Contains assets that developers bundle with the application, and can be
retrieved by the Assets Manager. These assets can be images, videos, documents,
databases, etc.

Android package (APK) file structure:
• lib: Contains native libraries with compiled code, for different device architectures.
• res: Contains predefined application resources, like XML files that define a state list of
colors, user interface layout, fonts, values, etc.
• AndroidManifest.xml: A manifest file that describes the application's package name,
activities, resources, version, etc.
• classes.dex: Contains all the java classes in a dex (Dalvik Executable) file format, to
be executed by the Android Runtime.
• resources.arsc: Contains precompiled resources. It holds information that will link the
code to resources.

Start with the OWASP Mobile Top Ten to find vulnerabilities:
• The Open Web Application Security Project (OWASP) is a nonprofit foundation that
provides security tips and methodologies mainly for web applications.
• In 2016 OWASP created their latest list of Mobile Top 10 Vulnerabilities.
1. Improper platform usage
2. Insecure data storage
3. Insecure communication
4. Insecure authentication
5. Insufficient cryptography
6. Insecure authorization
7. Poor code quality
8. Code tampering
9. Code tampering
10. Extraneous functionality

Social Engineering Penetration Test
• Testing focuses on people and processes and the vulnerabilities associated with
them.
• To identify weaknesses in a person, group of people, or process and identify
vulnerabilities with a clear path to remediation.
• Types of Attack:
1. Phishing
2. Vishing
3. Smishing
4. Impersonation
6. Dumpster Diving
7. USB Drops
8. Tailgating

1. Phishing:
It occurs via email and attempts to trick the user in to giving up sensitive information or
opening a malicious file that can infect their machine.
2. Vishing:
It occurs via phone calls. These phones calls attempt to trick the user into giving up
sensitive information.
3. Smishing
It occurs via SMS text messages. These text messages have the same intent as
phishing.
4. Impersonation
It is a method where the attacker attempts to fool a person into believing they are
someone else.
E.g. this attack would be pretending to be a delivery person. In some cases, delivery
personnel have little restrictions and can gain access to secure areas without question.

5. Dumpster Diving:
An attacker goes through not only trash but other items in plain sight, such as sticky notes
and calendars, to gain useful information about a person or organization.
6. USB Drops
It uses malicious USB’s dropped in common areas throughout a workspace. The USBs
typically contain software that, when plugged in, install malicious software that can
provide a backdoor into a system or transfer files with common file extensions.
7. Tailgating
It is used to bypass physical security measures. You typically see this method used in
locations that require a person to scan a key fob to gain entrance.

Methods Used To Perform Social Engineering Attacks:
• information gathering, victim selection, and engagement with victims..
• Common social engineering methods are active and passive reconnaissance and
open-source intelligence (OSINT).
• Active reconnaissance: an attempt to gain information about a target while engaging
with the target.
• Passive Reconnaissance: Take the help of social media sites like Facebook or
LinkedIn.
• For example, an attacker could use information of a planned vacation posted on
Facebook to know when you’ll be out of town. Once gone, they could search your
home for ways to access the company’s network.
• Open-Source Intelligence (OSINT): Refers to the type of data that has been
collected.

Steps To Performing A Social Engineering Penetration Test:
Step 1: Test Planning And Scoping
Step 2: Attack Vector Identification
Step 3: Penetration Attempts
Step 4: Reporting
A typical pen testing report consists of:
• An executive summary
• A walkthrough of technical risks found
• The potential impact of the vulnerabilities found
• The remediation options available for each vulnerability found
• Your concluding thoughts of the pen test
• Vulnerability Elimination
Step 5: Closing thoughts

Physical Penetration Test
What is Physical Penetration Test:
• An assessment of the physical security controls of an organization.
• Physical security controls include locks, fences(a barrier), security guards, cameras,
and others.
Techniques:
• RFID-Cloning
• Tailgating – Tailgating simply means using social engineering to try to get an
employee to hold the door open for you or just grab the door before it closes
• Circumventing access controls : to gain access such as crawling under or over
fences, using a metal rod to reach under the door and pull the handle, etc.
• Lock Picking

Physical Penetration Test
Who conducts penetration testing?
“Pen testing is carried out by a covert team of security experts who check an
organization’s physical security measures — how they work, whether they work — to
keep places, people, and assets safe,”

Introduction to Basics of Ethical Hacking and Penetration Testing -Unit No. 1.pptx

More Related Content

Similar to Introduction to Basics of Ethical Hacking and Penetration Testing -Unit No. 1.pptx (20)

Recently uploaded (20)

Introduction to Basics of Ethical Hacking and Penetration Testing -Unit No. 1.pptx
