Key Takeaways & Outline
Level-Zero is a close to bare-metal API for programming heterogeneous architectures.
Level-Zero is shipped as part of Intel oneAPI, but it can be used as a standalone API.
This article shows the basic architecture, what is used for and an example for dispatching
matrix multiplication on the Intel HD Graphics with SPIR-V.
After a few months using the Level-Zero API, in this article, I also show and explain the
areas I consider missing or to be improved.
1 - Introduction
Back in March 2020, Intel released a new low-level programming API for heterogeneous
computing architectures called Level-Zero. As the name implies, it is a low-level API for accessing
heterogeneous devices such as GPUs, FPGAs and other architectures to manage execution. In
this post, I will explain what it is, what can you do with it, and I will share some examples as well
as my thoughts and experience after a few months of working with it.
The Level-Zero API is shipped as part of the Intel oneAPI, which also includes a high-level parallel
programming API that implements the SYCL standard (DPC++), as well as a set of libraries and
toolkits for machine learning, deep learning, computer vision, etc.
The Level-Zero API is clearly influenced by OpenCL and Vulkan APIs and their respective
programming models, with the flexibility that Level-Zero can evolve independently and match
with the latest Intel GPU architectures.
But, what makes Level-Zero distinctive from the existing frameworks, such as OpenCL? The
Level-Zero API supports virtual functions, function pointers, unified memory, device partitioning,
instrumentation and debugging as well as control of power management, control of frequency
Introduction to Level Zero API for Heterogeneous
Programming
 Published: June 09, 2021
PhD Juan Fumero
Passionate about compilers and parallelism. Research Associate at The University of
Manchester. Runner
Follow

and hardware diagnostics, just to name a few. This level of control is very appealing for system
programming, runtime systems and compilers, making heterogeneous hardware more
programmable/accessible.
But, where does Level Zero fit in the Intel compute ecosystem? The following diagram (taken
from the Level-Zero spec 1.1.2) shows a representation of the Intel oneAPI products and Level-
Zero. At the bottom level, we can see different hardware types with the corresponding drivers
(Target Software System). This means that for GPUs, FPGAs and AI architectures, we could
potentially program them using the Level-Zero API. However, I must say that, although the spec
includes FPGAs and AI architectures, the current Intel implementation (as of June 2021) does not
include other hardware than Intel GPUs. On top of the Level-Zero API there is the oneAPI and the
DPC++ (Data Parallel C++) programming framework and all toolkits. However, we can program
directly in Level-Zero without having to code in DPC++ or use the toolkits. In this post, I will
explain the basic principles and I will show you an example.
Image source: Intel Level Zero Spec 1.1.2: https://bit.ly/3yJIOUW
2 - Level-Zero Architecture from 10000 Feet
Level-Zero has similarities with OpenCL. Thus, If you already know OpenCL, the design of Level-
Zero will sound very similar. If you are not familiarized with OpenCL, I believe the learning curve
for Level-Zero is much higher than OpenCL, since it is lower level and very verbose.
The following figure shows a high-level overview of the Level-Zero architecture, highlighting the
main components and the main Level-Zero objects. At the top level, we find the Level-Zero
driver, which is an object that represents a collection of physical devices (e.g., a collection of

GPUs). Note that, more than one driver could be available in the system (similar to OpenCL). We
can instantiate a driver object by invoking the
zeDriverGet function.

Once a driver object is instantiated, we can create contexts and device objects. A context (similar
to OpenCL) is an object that handles execution on heterogeneous devices, and is used for
managing memory, commands, launch kernels, and performing synchronization.
A device object represents a physical device in the system. Through the device object, it is
possible to query device properties, such as the memory available, the maximum number of
threads, device name, etc.
It is important to highlight two basic data types in Level-Zero: handlers, and descriptors.
Handlers represent the controller object (e.g., a context handler, a driver handler, etc). A
descriptor is an object that is used to change behaviour of a particular handler, for example,
passing flags, memory properties, synchronization properties, etc. For instance, to create a Level
Zero context:
Using the device and context objects, we can create the rest of the objects needed for running a
Level-Zero application, such as command queues and command lists, modules and kernels as
well as creating buffers and image objects.
A command queue is defined as a “logical input stream to the device”, which in turn, is tied to a
physical input stream. We can have multiple command queues associated with different input
streams. A command list represents a list of actions to be performed over a command queue. It
is possible to submit a command to different command queues through the same command list,
or even to another command list.
The following diagram (taken from the Level-Zero 1.1.2 spec), shows the relationship between
command lists and command queues. As we can see, there are two types of commands, one for
compute and one for copies. Command lists can submit commands to different command
queues. Command queues represent lower-level abstraction closer to the physical device. There
is also a special type of command queue, called a low-latency command queue that we can use
and avoid programming multiple command lists. Please, note that this is a high-level description,
and for more detailed information, refer to the spec.
// descriptor

ze_context_desc_t contextDescription = {};

contextDescription.stype = ZE_STRUCTURE_TYPE_CONTEXT_DESC;
contextDescription.flags = 0;

// handler

ze_context_handle_t context;

zeContextCreate(driverHandle, &contextDescription, &context);



Image credit: Intel Level Zero Spec: https://bit.ly/3yJIOUW
With the context and the device objects, we can also reserve memory by allocating explicit
buffers on device memory, host memory and/or shared memory, as well as by creating explicit
images (multi-dimensional and user-defined memory).
Level-Zero can also dispatch SPIR-V kernels for computing. To do so, Level-Zero provides
functions to build a SPIR-V module and create the kernel objects needed for the kernel dispatch.
I’ll show an example in the next section.
Synchronization is also an important part of Level-Zero applications. There are two types of
objects: events and fences. The use of these objects allows developers to insert barriers and fine-
tune the dependencies between commands within command lists and command queues. These
concepts are very similar to OpenCL as well.
Now that we have seen a high-level overview of the Level-Zero architecture, I will show you a
simple example: dispatching a SPIR-V kernel for running matrix multiplication on the Integrated
HD Graphics using shared memory. Existing? Let’s do this.
3 - Example: Dispatching a SPIR-V Kernel for Matrix Multiplication and
Shared Memory
A) Download Level-Zero and build the project

What do we need to run Level-Zero applications?: a) Driver support:
https://github.com/intel/compute-runtime/releases/ b) Level-Zero Loader (see instructions
below)
To build the loader and the dynamic library of Level Zero, clone the project:
And then:
Note: I am using CentOS 7.9. If you are using any Linux distro, the build process is the same. We
only need to be sure to use GCC >= 9.0. Therefore, in my case:
If you are using Windows, make sure you enable the Qspectre mitigation libraries from Visual
Studio.
Then we need to update the
PATH for the headers and dynamic libraries:
Now we are ready to start coding!
B) Level-Zero Application for Matrix Multiplication
In this section, I am going to explain the most representative parts of a Level-Zero application
using the matrix multiply as an example. My example is based on a test for Level-Zero available
on the Intel compute-runtime driver. You can also find the whole source code of the matrix-
multiply example on GitHub, in case you want to follow along and try.
First, we Initialize the driver and perform the device exploration:
git clone https://github.com/oneapi-src/level-zero


mkdir build

cd build

cmake ..

cmake --build . --config Release


scl enable devtoolset-9 bash


export CPLUS_INCLUDE_PATH=$LEVEL_ZERO_PATH/include:$CPLUS_INCLUDE_PATH

export LD_LIBRARY_PATH=$LEVEL_ZERO_PATH/build/lib:$LD_LIBRARY_PATH



Note, we use the macro
VALIDATECALL to check the status of each call:
You should ALWAYS check for errors. However, in this post, for simplicity, I will skip the error
control.
Now we can create a Level-Zero context:
The next step is to instantiate a device object. We first need to obtain the number of devices that
a driver has, and then we can create a list of devices.
// Initialization

VALIDATECALL(zeInit(ZE_INIT_FLAG_GPU_ONLY));

// Get the driver

uint32_t driverCount = 0;

VALIDATECALL(zeDriverGet(&driverCount, nullptr));

ze_driver_handle_t driverHandle;

VALIDATECALL(zeDriverGet(&driverCount, &driverHandle));


#define VALIDATECALL(myZeCall)

if (myZeCall != ZE_RESULT_SUCCESS){

std::cout << "Error at "

<< #myZeCall << ": "

<< __FUNCTION__ << ": "

<< __LINE__ << std::endl;

std::terminate();

}


// Create the context

ze_context_desc_t contextDescription = {};

contextDescription.stype = ZE_STRUCTURE_TYPE_CONTEXT_DESC;
ze_context_handle_t context;

zeContextCreate(driverHandle, &contextDescription, &context);


// Get the device

uint32_t deviceCount = 0;

zeDeviceGet(driverHandle, &deviceCount, nullptr);

ze_device_handle_t device;

zeDeviceGet(driverHandle, &deviceCount, &device);



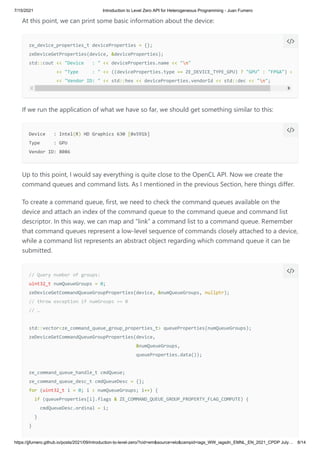

At this point, we can print some basic information about the device:
If we run the application of what we have so far, we should get something similar to this:
Up to this point, I would say everything is quite close to the OpenCL API. Now we create the
command queues and command lists. As I mentioned in the previous Section, here things differ.
To create a command queue, first, we need to check the command queues available on the
device and attach an index of the command queue to the command queue and command list
descriptor. In this way, we can map and “link” a command list to a command queue. Remember
that command queues represent a low-level sequence of commands closely attached to a device,
while a command list represents an abstract object regarding which command queue it can be
submitted.
ze_device_properties_t deviceProperties = {};

zeDeviceGetProperties(device, &deviceProperties);

std::cout << "Device : " << deviceProperties.name << "n"

<< "Type : " << ((deviceProperties.type == ZE_DEVICE_TYPE_GPU) ? "GPU" : "FPGA") <
<< "Vendor ID: " << std::hex << deviceProperties.vendorId << std::dec << "n";


Device : Intel(R) HD Graphics 630 [0x591b]

Type : GPU

Vendor ID: 8086


// Query number of groups:

uint32_t numQueueGroups = 0;

zeDeviceGetCommandQueueGroupProperties(device, &numQueueGroups, nullptr);

// throw exception if numGroups == 0

// …

std::vector<ze_command_queue_group_properties_t> queueProperties(numQueueGroups);

zeDeviceGetCommandQueueGroupProperties(device,

&numQueueGroups,

queueProperties.data());

ze_command_queue_handle_t cmdQueue;

ze_command_queue_desc_t cmdQueueDesc = {};

for (uint32_t i = 0; i < numQueueGroups; i++) {

if (queueProperties[i].flags & ZE_COMMAND_QUEUE_GROUP_PROPERTY_FLAG_COMPUTE) {

cmdQueueDesc.ordinal = i;

}

}



Now we can allocate memory using the shared memory malloc calls for Level-Zero. What we
want is to allocate three matrices (a, b and c). For simplicity, we will use 1D representation and
we will adjust indexing to access columns and rows appropriately. Since we want to use shared
memory, Level Zero provides two memory descriptors that define how memory will be accessed
from the host and device sides.
We can now do the malloc for matrix A, B and C:
How we can access the buffer on the host side:
// Create a command queue

cmdQueueDesc.index = 0;

cmdQueueDesc.mode = ZE_COMMAND_QUEUE_MODE_ASYNCHRONOUS;

zeCommandQueueCreate(context, device, &cmdQueueDesc, &cmdQueue);

// Create a command list

ze_command_list_handle_t cmdList;

ze_command_list_desc_t cmdListDesc = {};

cmdListDesc.commandQueueGroupOrdinal = cmdQueueDesc.ordinal;

zeCommandListCreate(context, device, &cmdListDesc, &cmdList);

// Create two buffers

const uint32_t items = 1024;

constexpr size_t allocSize = items * items * sizeof(int);
ze_device_mem_alloc_desc_t memAllocDesc;

memAllocDesc.flags = ZE_DEVICE_MEM_ALLOC_FLAG_BIAS_UNCACHED;

memAllocDesc.ordinal = 0;

ze_host_mem_alloc_desc_t hostDesc;

hostDesc.flags = ZE_HOST_MEM_ALLOC_FLAG_BIAS_UNCACHED;


void *sharedA = nullptr;

zeMemAllocShared(context,

&memAllocDesc,

&hostDesc,

allocSize,

1,

device,

&sharedA));


memset(sharedA, val, allocSize);


// device ptr
// host ptr

https://jjfumero.github.io/posts/2021/09/introduction-to-level-zero/?cid=em&source=elo&campid=iags_WW_iagsdn_EMNL_EN_2021_CPDP Ju… 10/14

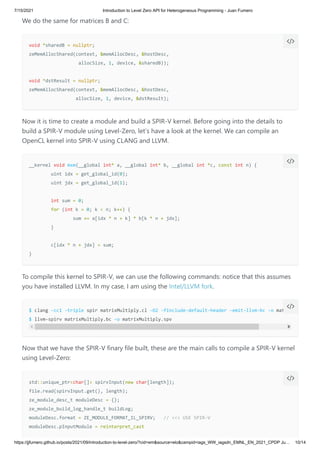

We do the same for matrices B and C:
Now it is time to create a module and build a SPIR-V kernel. Before going into the details to
build a SPIR-V module using Level-Zero, let’s have a look at the kernel. We can compile an
OpenCL kernel into SPIR-V using CLANG and LLVM.
To compile this kernel to SPIR-V, we can use the following commands: notice that this assumes
you have installed LLVM. In my case, I am using the Intel/LLVM fork.
Now that we have the SPIR-V finary file built, these are the main calls to compile a SPIR-V kernel
using Level-Zero:
void *sharedB = nullptr;

zeMemAllocShared(context, &memAllocDesc, &hostDesc,

allocSize, 1, device, &sharedB));

void *dstResult = nullptr;

zeMemAllocShared(context, &memAllocDesc, &hostDesc,

allocSize, 1, device, &dstResult);


__kernel void mxm(__global int* a, __global int* b, __global int *c, const int n) {

uint idx = get_global_id(0);

uint jdx = get_global_id(1);

int sum = 0;

for (int k = 0; k < n; k++) {

sum += a[idx * n + k] * b[k * n + jdx];

}

c[idx * n + jdx] = sum;

}


$ clang -cc1 -triple spir matrixMultiply.cl -O2 -finclude-default-header -emit-llvm-bc -o matrix
$ llvm-spirv matrixMultiply.bc -o matrixMultiply.spv


std::unique_ptr<char[]> spirvInput(new char[length]);

file.read(spirvInput.get(), length);

ze_module_desc_t moduleDesc = {};

ze_module_build_log_handle_t buildLog;

moduleDesc.format = ZE_MODULE_FORMAT_IL_SPIRV; // <<< USE SPIR-V

moduleDesc.pInputModule = reinterpret_cast


// __global__ (CUDA)
// threadIdx.x ?
// blockIdx.x ?

https://jjfumero.github.io/posts/2021/09/introduction-to-level-zero/?cid=em&source=elo&campid=iags_WW_iagsdn_EMNL_EN_2021_CPDP Jul… 11/14
If there are any errors during the SPIR-V module creation, we can inspect the
buildLog object.
For details, please see the code on GitHub. Let’s now create the kernel object. This is a very
similar process for OpenCL.
Now we are ready to dispatch the kernel. To do so, we need to setup the number of threads to
deploy and the number of blocks. Note that we can first suggest to Level-Zero the number of
threads to deploy for a specific kernel, and then set the threads based on the suggestions:
Here you might notice that the block size we choose is not the one that is finally setup. The
Level-Zero driver might choose better values. For example, in my case, even though I suggest
32x32 block sizes, the driver sets 256x1. By changing these values, you might see how
performance drops, or increases. For example, if I choose 32x1, I get 10x over the C++ sequential
code. But if I choose 256x1, I get 14x. Feel free to experiment with these values, but from my
experience, Level-Zero will give you a good block size.
As follows, we set up the arguments to the kernel and we launch it from the command list.
<const uint8_t*>(spirvInput.get());

moduleDesc.inputSize = length;

moduleDesc.pBuildFlags = "";

auto status = zeModuleCreate(context, device, &moduleDesc, &module, &buildLog);

ze_kernel_desc_t kernelDesc = {};

kernelDesc.pKernelName = "mxm"; // Name of the Kernel.

zeKernelCreate(module, &kernelDesc, &kernel);


uint32_t groupSizeX = 32u;
uint32_t groupSizeY = 32u;
uint32_t groupSizeZ = 1u;

zeKernelSuggestGroupSize(kernel, items, items, 1U, &groupSizeX, &groupSizeY, &groupSizeZ));

zeKernelSetGroupSize(kernel, groupSizeX, groupSizeY, groupSizeZ));


// Push arguments

zeKernelSetArgumentValue(kernel, 0, sizeof(dstResult), &dstResult);

zeKernelSetArgumentValue(kernel, 1, sizeof(sharedA), &sharedA);

zeKernelSetArgumentValue(kernel, 2, sizeof(sharedB), &sharedB);

zeKernelSetArgumentValue(kernel, 3, sizeof(int), &items);

// Kernel thread-dispatch

ze_group_count_t dispatch;

dispatch.groupCountX = items / groupSizeX;

dispatch.groupCountY = items / groupSizeY;



Note that we haven’t performed explicit data transfers between host and device. This is because
we are using shared memory. Therefore, there is no need to perform data transfers before the
kernel launch.
Since the kernel dispatch is a non-blocking call, to complete the execution of commands within a
command list, we need to close the list and force execution over the command queue:
Done! Now we should have the results available on the host side (shared memory).
If we run the application, by default is running 1024x1024 matrix multiplication, we will get
something similar to this:
What we have done with this example is to explain the main parts of a Level-Zero application
and to dispatch a SPIR-V kernel using shared memory. You can view the whole source code on
GitHub.
4 - What do I currently miss from Level-Zero?
dispatch.groupCountZ = 1;

// Launch kernel on the GPU

zeCommandListAppendLaunchKernel(cmdList, kernel, &dispatch, nullptr, 0, nullptr);

// Close list abd submit for execution

zeCommandListClose(cmdList));

zeCommandQueueExecuteCommandLists(cmdQueue, 1, &cmdList, nullptr);

zeCommandQueueSynchronize(cmdQueue, std::numeric_limits<uint64_t>::max());


$ ./mxm

Device : Intel(R) HD Graphics 630 [0x591b]

Type : GPU

Vendor ID: 8086

#Queue Groups: 1

Group X: 256

Group Y: 1

GPU Kernel = 463028562 [ns]

SEQ Kernel = 6651558420 [ns]

Speedup = 14x

Matrix Multiply validation PASSED


// cudaDeviceSynchronize() / StreamSynchronize()

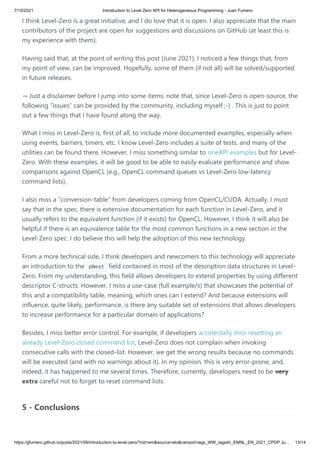

I think Level-Zero is a great initiative, and I do love that it is open. I also appreciate that the main
contributors of the project are open for suggestions and discussions on GitHub (at least this is
my experience with them).
Having said that, at the point of writing this post (June 2021), I noticed a few things that, from
my point of view, can be improved. Hopefully, some of them (if not all) will be solved/supported
in future releases.
→ Just a disclaimer before I jump into some items: note that, since Level-Zero is open-source, the
following “issues” can be provided by the community, including myself ;-) . This is just to point
out a few things that I have found along the way.
What I miss in Level-Zero is, first of all, to include more documented examples, especially when
using events, barriers, timers, etc. I know Level-Zero includes a suite of tests, and many of the
utilities can be found there. However, I miss something similar to oneAPI examples but for Level-
Zero. With these examples, it will be good to be able to easily evaluate performance and show
comparisons against OpenCL (e.g., OpenCL command queues vs Level-Zero low-latency
command lists).
I also miss a “conversion-table” from developers coming from OpenCL/CUDA. Actually, I must
say that in the spec, there is extensive documentation for each function in Level-Zero, and it
usually refers to the equivalent function (if it exists) for OpenCL. However, I think it will also be
helpful if there is an equivalence table for the most common functions in a new section in the
Level-Zero spec. I do believe this will help the adoption of this new technology.
From a more technical side, I think developers and newcomers to this technology will appreciate
an introduction to the
pNext field contained in most of the description data structures in Level-
Zero. From my understanding, this field allows developers to extend properties by using different
descriptor C-structs. However, I miss a use-case (full example/s) that showcases the potential of
this and a compatibility table, meaning, which ones can I extend? And because extensions will
influence, quite likely, performance, is there any suitable set of extensions that allows developers
to increase performance for a particular domain of applications?
Besides, I miss better error control. For example, if developers accidentally miss resetting an
already Level-Zero closed command list, Level-Zero does not complain when invoking
consecutive calls with the closed-list. However, we get the wrong results because no commands
will be executed (and with no warnings about it). In my opinion, this is very error-prone, and,
indeed, it has happened to me several times. Therefore, currently, developers need to be very
extra careful not to forget to reset command lists.
5 - Conclusions

Level-Zero is a low-level, close to bare-metal API developed by Intel and shipped as part of the
oneAPI toolkits. This new API allows developers to fine-control the application for heterogeneous
hardware, especially for GPUs, allowing the use of virtual functions, function pointers, efficient
and fine-tune memory management, or even control the power and firmware.
This post has shown a high-level introduction to the Intel Level-Zero API. It first showed a
general introduction and an overview of the programming model. Then it showed a step by step
example for dispatching a SPIR-V kernel on Intel HD graphics using Level-Zero. Finally, it
highlighted some remarks about what I consider missing in Level-Zero, and which parts I would
like to see the community contributing to this project.
I do believe the Level-Zero API is a great way to access heterogeneous hardware, controlled by
runtimes, OS and system software, giving developers the possibility of fine-tuning applications to
maximise resource utilization and portability of high-level applications when running on
heterogeneous hardware.
Acks
I would like to thank Athanasios Stratikopoulos for the constructive feedback on this article.
 Tags: GPGPU Heterogeneous Programming level-zero

Introduction to Level Zero API for Heterogeneous Programming : NOTES

More Related Content

What's hot (20)

Similar to Introduction to Level Zero API for Heterogeneous Programming : NOTES (20)

More from Subhajit Sahu (20)

Recently uploaded (20)

Introduction to Level Zero API for Heterogeneous Programming : NOTES
