Introduction to Software Engineering

Chapter 2
Process Models
1
Software Engineering: A Practitioner’s Approach, 7/e
by Roger S. Pressman
Slides copyright © 1996, 2001, 2005, 2009 by Roger S. Pressman
Software Engineering Report
By Majane Padua
Introduction to Software Engineering

Social Learning Process
• Software is embodied knowledge that is initially dispersed,
tacit and incomplete.
• In order to convert knowledge into software, dialogues are
needed between users and designers, between designers and
tools to bring knowledge into software.
• Software development is essentially an iterative social
learning process, and the outcome is “software capital”.
2

What / who / why is
Process Models?
 What: Go through a series of predictable steps--- a road map that helps you
create a timely, high-quality results.
 Who: Software engineers and their managers, clients also. People adapt the
process to their needs and follow it.
 Why: Provides stability, control, and organization to an activity that can if left
uncontrolled, become quite chaotic. However, modern software engineering
approaches must be agile and demand ONLY those activities, controls and
work products that are appropriate.
 What Work products: Programs, documents, and data
 What are the steps: The process you adopt depends on the software that you
are building. One process might be good for aircraft avionic system, while an
entirely different process would be used for website creation.
 How to ensure right: A number of software process assessment mechanisms
that enable us to determine the maturity of the software process. However, the
quality, timeliness and long-term viability of the software are the best
indicators of the efficacy of the process you use.
3

Definition of Software
Process
• A framework for the activities, actions, and tasks that
are required to build high-quality software.
• SP defines the approach that is taken as software is
engineered.
• Is not equal to software engineering, which also
encompasses technologies that populate the process–
technical methods and automated tools.
4

A Generic Process Model
As we discussed before, a generic process framework for
software engineering defines five framework activities-
communication, planning, modeling, construction, and
deployment.
In addition, a set of umbrella activities- project tracking
and control, risk management, quality assurance,
configuration management, technical reviews, and others
are applied throughout the process.
Next question is: how the framework activities and the
actions and tasks that occur within each activity are
organized with respect to sequence and time? See the
process flow for answer.
6

Process Flow
Linear process flow executes each of the five
activities in sequence.
An iterative process flow repeats one or more of the
activities before proceeding to the next.
An evolutionary process flow executes the activities
in a circular manner. Each circuit leads to a more
complete version of the software.
A parallel process flow executes one or more
activities in parallel with other activities ( modeling
for one aspect of the software in parallel with
construction of another aspect of the software.
8

Identifying a Task Set
Before you can proceed with the process model, a
key question: what actions are appropriate for a
framework activity given the nature of the problem,
the characteristics of the people and the
stakeholders?
A task set defines the actual work to be done to
accomplish the objectives of a software engineering
action.
 A list of the task to be accomplished
 A list of the work products to be produced
 A list of the quality assurance filters to be applied
9

Identifying a Task Set
For example, a small software project requested by
one person with simple requirements, the
communication activity might encompass little more
than a phone all with the stakeholder. Therefore, the
only necessary action is phone conversation, the work
tasks of this action are:
 1. Make contact with stakeholder via telephone.
 2. Discuss requirements and take notes.
 3. Organize notes into a brief written statement of
requirements.
 4. E-mail to stakeholder for review and approval.
10

Example of a Task Set
for Elicitation
The task sets for Requirements gathering action for a
simple project may include:
1. Make a list of stakeholders for the project.
2. Invite all stakeholders to an informal meeting.
3. Ask each stakeholder to make a list of features and
functions required.
4. Discuss requirements and build a final list.
5. Prioritize requirements.
6. Note areas of uncertainty.
11

Example of a Task Set for Elicitation
The task sets for Requirements gathering action for a big
project may include:
1. Make a list of stakeholders for the project.
2. Interview each stakeholders separately to determine overall wants and needs.
3. Build a preliminary list of functions and features based on stakeholder input.
4. Schedule a series of facilitated application specification meetings.
5. Conduct meetings.
6. Produce informal user scenarios as part of each meeting.
7. Refine user scenarios based on stakeholder feedback.
8. Build a revised list of stakeholder requirements.
9. Use quality function deployment techniques to prioritize requirements.
10. Package requirements so that they can be delivered incrementally.
11. Note constraints and restrictions that will be placed on the system.
12. Discuss methods for validating the system.
 Both do the same work with different depth and formality.
Choose the task sets that achieve the goal and still maintain
quality and agility. 12

Process Patterns
• A process pattern
• describes a process-related problem that is encountered
during software engineering work,
• identifies the environment in which the problem has been
encountered, and
• suggests one or more proven solutions to the problem.
• Stated in more general terms, a process pattern provides you
with a template [Amb98]—a consistent method for describing
problem solutions within the context of the software process.
( defined at different levels of abstraction)
1. Problems and solutions associated with a complete process
model (e.g. prototyping).
2. Problems and solutions associated with a framework
activity (e.g. planning) or
3. an action with a framework activity (e.g. project
estimating).
13

Process Pattern Types
• Stage patterns—defines a problem associated with a
framework activity for the process. It includes
multiple task patterns as well. For example,
EstablishingCommunication would incorporate the
task pattern RequirementsGathering and others.
• Task patterns—defines a problem associated with a
software engineering action or work task and
relevant to successful software engineering practice
• Phase patterns—define the sequence of framework
activities that occur with the process, even when the
overall flow of activities is iterative in nature.
Example includes SprialModel or Prototyping.
14

An Example of Process Pattern
• Describes an approach that may be applicable when stakeholders have a general idea of
what must be done but are unsure of specific software requirements.
• Pattern name. RequiremetnsUnclear
• Intent. This pattern describes an approach for building a model that can be assessed
iteratively by stakeholders in an effort to identify or solidify software requirements.
• Type. Phase pattern
• Initial context. Conditions must be met (1) stakeholders have been identified; (2) a
mode of communication between stakeholders and the software team has been
established; (3) the overriding software problem to be solved has been identified by
stakeholders ; (4) an initial understanding of project scope, basic business
requirements and project constraints has been developed.
• Problem. Requirements are hazy or nonexistent. stakeholders are unsure of what
they want.
• Solution. A description of the prototyping process would be presented here.
• Resulting context. A software prototype that identifies basic requirements. (modes
of interaction, computational features, processing functions) is approved by
stakeholders. Following this, 1. This prototype may evolve through a series of
increments to become the production software or 2. the prototype may be discarded.
• Related patterns. CustomerCommunication, IterativeDesign, IterativeDevelopment,
CustomerAssessment, RequirementExtraction. 15

Process Assessment and Improvement
SP cannot guarantee that software will be delivered on time, meet the needs, or has the desired
technical characteristics. However, the process can be assessed to ensure that it meets a set of
basic process criteria that have been shown to be essential for a successful software engineering.
•Standard CMMI Assessment Method for Process Improvement (SCAMPI) — provides a five
step process assessment model that incorporates five phases: initiating, diagnosing, establishing,
acting and learning.
•CMM-Based Appraisal for Internal Process Improvement (CBA IPI)—provides a
diagnostic technique for assessing the relative maturity of a software organization; uses the
SEI CMM as the basis for the assessment [Dun01]
•SPICE—The SPICE (ISO/IEC15504) standard defines a set of requirements for software
process assessment. The intent of the standard is to assist organizations in developing an
objective evaluation of the efficacy of any defined software process. [ISO08]
•ISO 9001:2000 for Software—a generic standard that applies to any organization that
wants to improve the overall quality of the products, systems, or services that it provides.
Therefore, the standard is directly applicable to software organizations and companies.
[Ant06]
16

Prescriptive Models
• Originally proposed to bring order to chaos.
• Prescriptive process models advocate an orderly approach to software
engineering. However, will some extent of chaos (less rigid) be beneficial
to bring some creativity?
That leads to a few questions …
• If prescriptive process models strive for structure and order (prescribe a
set of process elements and process flow), are they inappropriate for a
software world that thrives on change?
• Yet, if we reject traditional process models (and the order they imply) and
replace them with something less structured, do we make it impossible to
achieve coordination and coherence in software work?
17

The Waterfall
Model
18
It is the oldest paradigm for SE. When requirements are well
defined and reasonably stable, it leads to a linear fashion.
(problems: 1. rarely linear, iteration needed. 2. hard to state all requirements explicitly.
Blocking state. 3. code will not be released until very late.)
The classic life cycle suggests a systematic, sequential approach
to software development.

The V-Model
19
A variation of waterfall model
depicts the relationship of
quality assurance actions to
the actions associated with
communication, modeling and
early code construction
activates.
Team first moves down the left
side of the V to refine the
problem requirements. Once
code is generated, the team
moves up the right side of the
V, performing a series of tests
that validate each of the
models created as the team
moved down the left side.

The Incremental Model
• When initial requirements are reasonably well defined,
but the overall scope of the development effort precludes
a purely linear process. A compelling need to expand a
limited set of new functions to a later system release.
• It combines elements of linear and parallel process flows.
Each linear sequence produces deliverable increments of
the software.
• The first increment is often a core product with many
supplementary features. Users use it and evaluate it with
more modifications to better meet the needs.
21

Evolutionary Models
• Software system evolves over time as requirements often change
as development proceeds. Thus, a straight line to a complete end
product is not possible. However, a limited version must be
delivered to meet competitive pressure.
• Usually a set of core product or system requirements is well
understood, but the details and extension have yet to be defined.
• You need a process model that has been explicitly designed to
accommodate a product that evolved over time.
• It is iterative that enables you to develop increasingly more
complete version of the software.
• Two types are introduced, namely Prototyping and Spiral
models. 22

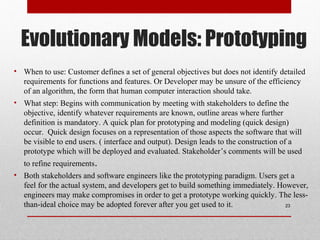

Evolutionary Models: Prototyping
• When to use: Customer defines a set of general objectives but does not identify detailed
requirements for functions and features. Or Developer may be unsure of the efficiency
of an algorithm, the form that human computer interaction should take.
• What step: Begins with communication by meeting with stakeholders to define the
objective, identify whatever requirements are known, outline areas where further
definition is mandatory. A quick plan for prototyping and modeling (quick design)
occur. Quick design focuses on a representation of those aspects the software that will
be visible to end users. ( interface and output). Design leads to the construction of a
prototype which will be deployed and evaluated. Stakeholder’s comments will be used
to refine requirements.
• Both stakeholders and software engineers like the prototyping paradigm. Users get a
feel for the actual system, and developers get to build something immediately. However,
engineers may make compromises in order to get a prototype working quickly. The less-
than-ideal choice may be adopted forever after you get used to it. 23

Evolutionary Models: Prototyping
24
Construction
of prototype
communication
Quick
plan
Modeling
Quick design
Construction
of prototype
Deployment
delivery &
feedback

Evolutionary Models: The Spiral
• It couples the iterative nature of prototyping with the controlled and systematic aspects of the waterfall
model and is a risk-driven process model generator that is used to guide multi-stakeholder concurrent
engineering of software intensive systems.
• Two main distinguishing features: one is cyclic approach for incrementally growing a system’s degree of
definition and implementation while decreasing its degree of risk. The other is a set of anchor point
milestones for ensuring stakeholder commitment to feasible and mutually satisfactory system solutions.
• A series of evolutionary releases are delivered. During the early iterations, the release might be a model or
prototype. During later iterations, increasingly more complete version of the engineered system are
produced.
• The first circuit in the clockwise direction might result in the product specification; subsequent passes
around the spiral might be used to develop a prototype and then progressively more sophisticated versions
of the software. Each pass results in adjustments to the project plan. Cost and schedule are adjusted based
on feedback. Also, the number of iterations will be adjusted by project manager.
• Good to develop large-scale system as software evolves as the process progresses and risk should be
understood and properly reacted to. Prototyping is used to reduce risk.
• However, it may be difficult to convince customers that it is controllable as it demands considerable risk
assessment expertise. 25

Evolutionary Models: The Spiral
26

Three Concerns on Evolutionary
Processes
• First concern is that prototyping poses a problem to project planning because of
the uncertain number of cycles required to construct the product.
• Second, it does not establish the maximum speed of the evolution. If the
evolution occur too fast, without a period of relaxation, it is certain that the
process will fall into chaos. On the other hand if the speed is too slow then
productivity could be affected.
• Third, software processes should be focused on flexibility and extensibility
rather than on high quality. We should prioritize the speed of the development
over zero defects. Extending the development in order to reach high quality
could result in a late delivery of the product when the opportunity niche has
disappeared.
27

Concurrent Model
• Allow a software team to represent iterative and concurrent elements of any of the
process models. For example, the modeling activity defined for the spiral model is
accomplished by invoking one or more of the following actions: prototyping, analysis
and design.
• The Figure shows modeling may be in any one of the states at any given time. For
example, communication activity has completed its first iteration and in the awaiting
changes state. The modeling activity was in inactive state, now makes a transition into
the under development state. If customer indicates changes in requirements, the
modeling activity moves from the under development state into the awaiting changes
state.
• Concurrent modeling is applicable to all types of software development and provides an
accurate picture of the current state of a project. Rather than confining software
engineering activities, actions and tasks to a sequence of events, it defines a process
network. Each activity, action or task on the network exists simultaneously with other
activities, actions or tasks. Events generated at one point trigger transitions among the
states.
28

Still Other Process
Models
• Component based development—the process to apply
when reuse is a development objective ( like spiral model)
• Formal methods—emphasizes the mathematical
specification of requirements ( easy to discover and
eliminate ambiguity, incompleteness and inconsistency)
• Aspect Oriented software development (AOSD)—
provides a process and methodological approach for
defining, specifying, designing, and constructing aspects
• Unified Process—a “use-case driven, architecture-centric,
iterative and incremental” software process closely
aligned with the Unified Modeling Language (UML) to
model and develop object-oriented system iteratively and
incrementally.
30

The Unified Process (UP)
31
inception
elaboration

Personal Software Process (PSP)
• Planning. This activity isolates requirements and develops both size and resource estimates. In
addition, a defect estimate (the number of defects projected for the work) is made. All metrics are
recorded on worksheets or templates. Finally, development tasks are identified and a project
schedule is created.
• High-level design. External specifications for each component to be constructed are developed
and a component design is created. Prototypes are built when uncertainty exists. All issues are
recorded and tracked.
• High-level design review. Formal verification methods (Chapter 21) are applied to uncover
errors in the design. Metrics are maintained for all important tasks and work results.
• Development. The component level design is refined and reviewed. Code is generated,
reviewed, compiled, and tested. Metrics are maintained for all important tasks and work results.
• Postmortem. Using the measures and metrics collected (this is a substantial amount of data that
should be analyzed statistically), the effectiveness of the process is determined. Measures and
metrics should provide guidance for modifying the process to improve its effectiveness.
34

Team Software Process (TSP)
 Build self-directed teams that plan and track their work,
establish goals, and own their processes and plans. These can
be pure software teams or integrated product teams (IPT) of
three to about 20 engineers.
 Show managers how to coach and motivate their teams and
how to help them sustain peak performance.
 Accelerate software process improvement by making CMM
Level 5 behavior normal and expected.
 The Capability Maturity Model (CMM), a measure of the effectiveness
of a software process, is discussed in Chapter 30.
 Provide improvement guidance to high-maturity
organizations.
 Facilitate university teaching of industrial-grade team skills.
35

Introduction to Software Engineering

More Related Content

What's hot (20)

Similar to Introduction to Software Engineering (20)

Recently uploaded (20)

Introduction to Software Engineering
