This document discusses Istio, an open source service mesh that provides traffic management, telemetry and security for microservices. It notes that as microservices grow in complexity, they require features like load balancing, monitoring and failure recovery. Istio addresses this by providing a service mesh layer that handles these functions and allows developers to focus on business logic rather than infrastructure. The document outlines Istio's key features such as automatic load balancing, rich routing rules, access controls, metrics and tracing. It also describes Istio's architecture, including its control plane that manages configuration and a data plane where Envoy proxies handle traffic.
Istio
- 2. About Me
- 6. Istio and Modern Cloud Deployments ❏ 1 Wave == NetflixOSS ❏ 2 Wave of Microservices ❏ Cloud Benefits ❏ Devops Struggle ❏ Multi-Cloud / Poly-Cloud ❏ Reduce Infrastructure Complexity ❏ Istio Provide Service Mesh Capabilities ❏ Solution on the Platform not on the Application ❏ Istio provide Observability ❏ Microservice developer can focus on the business rather than on the stack.
- 7. “service mesh is used to describe the network of microservices that make up such applications and the interactions between them” Service Mesh

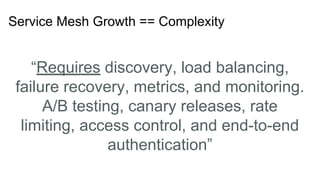

- 8. Service Mesh Growth == Complexity “Requires discovery, load balancing, failure recovery, metrics, and monitoring. A/B testing, canary releases, rate limiting, access control, and end-to-end authentication”

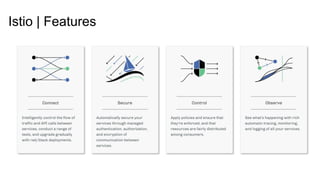

- 10. ❏ Automatic load balancing for HTTP, gRPC, WebSocket, and TCP traffic. ❏ Fine-grained control of traffic behavior with rich routing rules, retries, failovers, and fault injection. ❏ A pluggable policy layer and configuration API supporting access controls, rate limits and quotas. ❏ Automatic metrics, logs, and traces for all traffic within a cluster, including cluster ingress and egress. ❏ Secure service-to-service communication in a cluster with strong identity-based authentication and authorization. Istio | Features
- 11. Istio | Design Goals ❏ Maximize Transparency ❏ Program network layer to route traffic ❏ In k8s the proxies are injected into Pods ❏ Traffic is captured by programing iptables rules ❏ Imcrementability ❏ System Growth and Add more Features ❏ Policies Enforcements ❏ Portability ❏ Run in any cloud or on-premises ❏ Deploy on multiple cloud for redundancy for instance ❏ Policy Uniformity ❏ Police api provides great control over the mesh ❏ i.e : Quota over CPU for ML Training. Separation between proxy and Policy.
- 12. Istio | Architecture - Control Plane
- 13. Istio | Architecture - Data Plane Data Plane + MIXER
- 14. Envoy by Lyft ❏ Dynamic service discovery ❏ Load balancing ❏ TLS termination ❏ HTTP/2 and gRPC proxies ❏ Circuit breakers ❏ Health checks ❏ Staged rollouts with %-based traffic split ❏ Fault injection ❏ Rich metrics
- 15. Istio | Security Overall
- 16. Istio | Security
- 17. Istio | Reliability 99.999%, Latency and Caching
- 18. Istio | Mixer Adapters https://istio.io/docs/reference/config/policy-and-telemetry /adapters/
