Module 1: Networking Today
Instructor Materials
Introduction to Networks v7.0
(ITN)

Module 1: Networking Today
Introduction to Networks v7.0
(ITN)

13
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Module Objectives
Module Title: Networking Today
Module Objective: Explain the advances in modern technologies.
Topic Title Topic Objective
Networks Affect our Lives Explain how networks affect our daily lives.
Network Components Explain how host and network devices are used.
Network Representations and Topologies Explain network representations and how they are used in network topologies.
Common Types of Networks Compare the characteristics of common types of networks.
Internet Connections Explain how LANs and WANs interconnect to the internet.
Reliable Networks Describe the four basic requirements of a reliable network.
Network Trends Explain how trends such as BYOD, online collaboration, video, and cloud computing
are changing the way we interact.
Network Security Identify some basic security threats and solution for all networks.
The IT Professional Explain employment opportunities in the networking field.

14
1.1 Networks Affect Our
Lives

15
Communication is almost as important to us as our reliance on air, water, food, and
shelter. In today’s world, through the use of networks, we are connected like never
before.
Networking Today
Networks Connect Us

16
Networking Today
Video – The Cisco Networking Academy Learning Experience
Cisco Networking Academy: learn how we use technology to make the world a better place.

17
Networking Today
No Boundaries
• World without boundaries
• Global communities
• Human network

18
1.2 Network Components

19
Network Components
Host Roles
Every computer on a network is
called a host or end device.
Servers are computers that provide
information to end devices:
• email servers
• web servers
• file server
Clients are computers that send
requests to the servers to retrieve
information:
• web page from a web server
• email from an email server
Server
Type
Description
Email Email server runs email server software.
Clients use client software to access email.
Web Web server runs web server software.
Clients use browser software to access web pages.
File File server stores corporate and user files.
The client devices access these files.

20
Network Components
Peer-to-Peer
It is possible to have a device be a client and a server in a Peer-to-Peer Network. This type of
network design is only recommended for very small networks.
Advantages Disadvantages
Easy to set up No centralized administration
Less complex Not as secure
Lower cost Not scalable
Used for simple tasks: transferring files and sharing
printers
Slower performance

21
Network Components
End Devices
An end device is where a message originates from or where it is received. Data originates with an
end device, flows through the network, and arrives at an end device.

22
Network Components
Intermediary Network Devices
An intermediary device interconnects end devices. Examples include switches, wireless
access points, routers, and firewalls.
Management of data as it flows through a network is also the role of an intermediary
device, including:
• Regenerate and retransmit data signals.
• Maintain information about what pathways exist in the network.
• Notify other devices of errors and communication failures.

23
Network Components
Network Media
Communication across a network is carried through a medium which allows a message to
travel from source to destination.
Media Types Description
Metal wires within cables Uses electrical impulses
Glass or plastic fibers
within cables (fiber-optic
cable)
Uses pulses of light.
Wireless transmission Uses modulation of
specific frequencies of
electromagnetic waves.

24
1.3 Network Representations and
Topologies

25
Network Representations and Topologies
Network Representations
Network diagrams, often called topology
diagrams, use symbols to represent
devices within the network.
Important terms to know include:
• Network Interface Card (NIC)
• Physical Port
• Interface
Note: Often, the terms port and
interface are used interchangeably

26
Network Representations and Topologies
Topology Diagrams
Physical topology diagrams illustrate the
physical location of intermediary devices
and cable installation.
Logical topology diagrams illustrate devices,
ports, and the addressing scheme of the
network.

27
1.4 Common Types of Networks

28
Common Types of Networks
Networks of Many Sizes
• Small Home Networks – connect a few
computers to each other and the Internet
• Small Office/Home Office – enables
computer within a home or remote office
to connect to a corporate network
• Medium to Large Networks – many
locations with hundreds or thousands of
interconnected computers
• World Wide Networks – connects
hundreds of millions of computers world-
wide – such as the internet
Small Home SOHO
Medium/Large World Wide

29
LANs and WANs
Network infrastructures vary greatly in
terms of:
• Size of the area covered
• Number of users connected
• Number and types of services
available
• Area of responsibility
Two most common types of networks:
• Local Area Network (LAN)
• Wide Area Network (WAN).

30
LANs and WANs (cont.)
A LAN is a network infrastructure that spans
a small geographical area.
A WAN is a network infrastructure that spans
a wide geographical area.
LAN WAN
Interconnect end devices in a limited area. Interconnect LANs over wide geographical areas.
Administered by a single organization or
individual.
Typically administered by one or more service
providers.
Provide high-speed bandwidth to internal
devices.
Typically provide slower speed links between LANs.

31

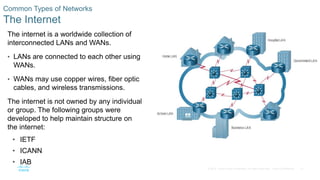

The Internet
The internet is a worldwide collection of
interconnected LANs and WANs.
• LANs are connected to each other using
WANs.
• WANs may use copper wires, fiber optic
cables, and wireless transmissions.
The internet is not owned by any individual
or group. The following groups were
developed to help maintain structure on
the internet:
• IETF
• ICANN
• IAB

32
Intranets and Extranets
An intranet is a private collection of LANs
and WANs internal to an organization that
is meant to be accessible only to the
organizations members or others with
authorization.
An organization might use an extranet to
provide secure access to their network for
individuals who work for a different
organization that need access to their
data on their network.

33
1.5 Internet Connections

34
Internet Connections
Internet Access Technologies There are many ways to connect users
and organizations to the internet:
• Popular services for home users
and small offices include
broadband cable, broadband digital
subscriber line (DSL), wireless
WANs, and mobile services.
• Organizations need faster
connections to support IP phones,
video conferencing and data center
storage.
• Business-class interconnections
are usually provided by service
providers (SP) and may include:
business DSL, leased lines, and
Metro Ethernet.

35
Home and Small Office Internet Connections
Connection Description
Cable high bandwidth, always on, internet
offered by cable television service
providers.
DSL high bandwidth, always on, internet
connection that runs over a
telephone line.
Cellular uses a cell phone network to connect
to the internet.
Satellite major benefit to rural areas without
Internet Service Providers.
Dial-up
telephone
an inexpensive, low bandwidth
option using a modem.

36
Businesses Internet Connections
Corporate business connections may
require:
• higher bandwidth
• dedicated connections
• managed services
Type of
Connection
Description
Dedicated
Leased Line
These are reserved circuits within
the service provider’s network that
connect distant offices with private
voice and/or data networking.
Ethernet
WAN
This extends LAN access technology
into the WAN.
DSL Business DSL is available in various
formats including Symmetric Digital
Subscriber Lines (SDSL).
Satellite This can provide a connection when
a wired solution is not available.

37
The Converging Network
Before converged networks, an
organization would have been
separately cabled for telephone, video,
and data. Each of these networks
would use different technologies to
carry the signal.
Each of these technologies would use a
different set of rules and standards.

38
The Converging Network (Cont.)
Converged data networks carry
multiple services on one link including:
• data
• voice
• video
Converged networks can deliver data,
voice, and video over the same
network infrastructure. The network
infrastructure uses the same set of
rules and standards.

39
Video – Download and Install Packet Tracer
This video will demonstrate the download and install process of Packet Tracer.

40
Video – Getting Started in Cisco Packet Tracer
This video will cover the following:
• Navigate the Packet Tracer interface
• Customize the Packet Tracer Interface

41
Packet Tracer – Network Representation
In this Packet tracer you will do the following:
• The network model in this activity incorporates many of the technologies that you will
master in your CCNA studies.
Note: It is not important that you understand everything you see and do in this activity.

42
1.6 Reliable Networks

43
Reliable Network
Network Architecture
Network Architecture refers to the
technologies that support the infrastructure
that moves data across the network.
There are four basic characteristics that the
underlying architectures need to address to
meet user expectations:
• Fault Tolerance
• Scalability
• Quality of Service (QoS)
• Security

44
Reliable Network
Fault Tolerance
A fault tolerant network limits the impact of
a failure by limiting the number of affected
devices. Multiple paths are required for
fault tolerance.
Reliable networks provide redundancy by
implementing a packet switched network:
• Packet switching splits traffic into
packets that are routed over a network.
• Each packet could theoretically take a
different path to the destination.
This is not possible with circuit-switched
networks which establish dedicated
circuits.

45
Reliable Network
Scalability
A scalable network can expand
quickly and easily to support
new users and applications
without impacting the
performance of services to
existing users.
Network designers follow
accepted standards and
protocols in order to make the
networks scalable.

46
Reliable Network
Quality of Service
Voice and live video transmissions
require higher expectations for those
services being delivered.
Have you ever watched a live video with
constant breaks and pauses? This is
caused when there is a higher demand
for bandwidth than available – and QoS
isn’t configured.
• Quality of Service (QoS) is the primary
mechanism used to ensure reliable
delivery of content for all users.
• With a QoS policy in place, the router
can more easily manage the flow of
data and voice traffic.

47
Reliable Network
Network Security
There are two main types of network
security that must be addressed:
• Network infrastructure security
• Physical security of network devices
• Preventing unauthorized access to
the devices
• Information Security
• Protection of the information or data
transmitted over the network
Three goals of network security:
• Confidentiality – only intended
recipients can read the data
• Integrity – assurance that the data has
not be altered with during transmission
• Availability – assurance of timely and
reliable access to data for authorized
users

48
1.7 Network Trends

49
Network Trends
Recent Trends
The role of the network must adjust
and continually transform in order to
be able to keep up with new
technologies and end user devices as
they constantly come to the market.
Several new networking trends that
effect organizations and consumers:
• Bring Your Own Device (BYOD)
• Online collaboration
• Video communications
• Cloud computing

50
Network Trends
Bring Your Own Device Bring Your Own Device (BYOD)
allows users to use their own devices
giving them more opportunities and
greater flexibility.
BYOD allows end users to have the
freedom to use personal tools to
access information and communicate
using their:
• Laptops
• Netbooks
• Tablets
• Smartphones
• E-readers
BYOD means any device, with any
ownership, used anywhere.

51
Network Trends
Online Collaboration
 Collaborate and work with others
over the network on joint projects.
 Collaboration tools including Cisco
WebEx (shown in the figure) gives
users a way to instantly connect and
interact.
 Collaboration is a very high priority
for businesses and in education.
 Cisco Webex Teams is a
multifunctional collaboration tool.
• send instant messages
• post images
• post videos and links

52
Network Trends
Video Communication
• Video calls are made to anyone, regardless of where they are located.
• Video conferencing is a powerful tool for communicating with others.
• Video is becoming a critical requirement for effective collaboration.
• Cisco TelePresence powers is one way of working where everyone,
everywhere.

53
Network Trends
Video – Cisco WebEx for Huddles

54
Network Trends
Cloud Computing
Cloud computing allows us to store personal files or backup our data on servers over the internet.
• Applications can also be accessed using the Cloud.
• Allows businesses to deliver to any device anywhere in the world.
Cloud computing is made possible by data centers.
• Smaller companies that can’t afford their own data centers, lease server and storage services from larger
data center organizations in the Cloud.

55
Network Trends
Cloud Computing (Cont.)
Four types of Clouds:
• Public Clouds
• Available to the general public through a pay-per-use model or for free.
• Private Clouds
• Intended for a specific organization or entity such as the government.
• Hybrid Clouds
• Made up of two or more Cloud types – for example, part custom and part public.
• Each part remains a distinctive object but both are connected using the same architecture.
• Custom Clouds
• Built to meet the needs of a specific industry, such as healthcare or media.
• Can be private or public.

56
Network Trends
Technology Trends in the Home
• Smart home technology is a
growing trend that allows
technology to be integrated into
every-day appliances which
allows them to interconnect with
other devices.
• Ovens might know what time to
cook a meal for you by
communicating with your calendar
on what time you are scheduled
to be home.
• Smart home technology is
currently being developed for all
rooms within a house.

57
Network Trends
Powerline Networking
• Powerline networking can
allow devices to connect to a
LAN where data network
cables or wireless
communications are not a
viable option.
• Using a standard powerline
adapter, devices can connect
to the LAN wherever there is
an electrical outlet by
sending data on certain
frequencies.
• Powerline networking is
especially useful when
wireless access points
cannot reach all the devices
in the home.

58
Network Trends
Wireless Broadband
In addition to DSL and cable, wireless is
another option used to connect homes
and small businesses to the internet.
• More commonly found in rural
environments, a Wireless Internet Service
Provider (WISP) is an ISP that connects
subscribers to designated access points or
hotspots.
• Wireless broadband is another solution for
the home and small businesses.
• Uses the same cellular technology used by a
smart phone.
• An antenna is installed outside the house
providing wireless or wired connectivity for
devices in the home.

59
1.8 Network Security

60
Network Security
Security Threats • Network security is an integral
part of networking regardless of
the size of the network.
• The network security that is
implemented must take into
account the environment while
securing the data, but still
allowing for quality of service that
is expected of the network.
• Securing a network involves
many protocols, technologies,
devices, tools, and techniques in
order to secure data and mitigate
threats.
• Threat vectors might be external
or internal.

61
Network Security
Security Threats (Cont.) External Threats:
• Viruses, worms, and Trojan
horses
• Spyware and adware
• Zero-day attacks
• Threat Actor attacks
• Denial of service attacks
• Data interception and theft
• Identity theft
Internal Threats:
• lost or stolen devices
• accidental misuse by employees
• malicious employees

62
Network Security
Security Solutions
Security must be implemented in multiple
layers using more than one security solution.
Network security components for home or
small office network:
• Antivirus and antispyware software
should be installed on end devices.
• Firewall filtering used to block
unauthorized access to the network.

63
Network Security
Security Solutions (Cont.)
Larger networks have additional security
requirements:
• Dedicated firewall system
• Access control lists (ACL)
• Intrusion prevention systems (IPS)
• Virtual private networks (VPN)
The study of network security starts with a clear
understanding of the underlying switching and
routing infrastructure.

64
1.9 The IT Professional

65
The IT Professional
CCNA
The Cisco Certified Network Associate
(CCNA) certification:
• demonstrates that you have a knowledge of
foundational technologies
• ensures you stay relevant with skills needed
for the adoption of next-generation
technologies.
The new CCNA focus:
• IP foundation and security topics
• Wireless, virtualization, automation, and
network programmability.
New DevNet certifications at the
associate, specialist and professional
levels, to validate your software
development skills.
Specialist certification validate your skills
in line with your job role and interests.

66
The IT Professional
Networking Jobs
At www.netacad.com you can click the
Careers menu and then select Employment
opportunities.
• Find employment opportunities by
using the Talent Bridge Matching
Engine.
• Search for jobs with Cisco, Cisco
partners and distributors seeking
Cisco Networking Academy students
and alumni.

67
The IT Professional
Lab – Researching IT and Networking Job Opportunities
In this lab, you will complete the following objectives:
• Research Job Opportunities
• Reflect on Research

68
1.10 Module Practice and
Quiz

69
Module Practice and Quiz
What did I learn in this module?
• Through the use of networks, we are connected like never before.
• All computers that are connected to a network and participate directly in network
communication are classified as hosts.
• Diagrams of networks often use symbols to represent the different devices and
connections that make up a network.
• A diagram provides an easy way to understand how devices connect in a large network.
• The two types of network infrastructures are Local Area Networks (LANs), and Wide Area
Networks (WANs).
• SOHO internet connections include cable, DSL, Cellular, Satellite, and Dial-up telephone.
• Business internet connections include Dedicated Leased Line, Metro Ethernet, Business
DSL, and Satellite.

70
Module Practice and Quiz
What did I learn in this module? (Cont.)
• Network architecture refers to the technologies that support the infrastructure and the
programmed services and rules, or protocols, that move data across the network.
• There are four basic characteristics of network architecture: Fault Tolerance, Scalability,
Quality of Service (QoS), and Security.
• Recent networking trends that affect organizations and consumers: Bring Your Own Device
(BYOD), online collaboration, video communications, and cloud computing.
• There are several common external and internal threats to networks.
• Larger networks and corporate networks use antivirus, antispyware, and firewall filtering, but
they also have other security requirements: Dedicated firewall systems, Access control lists
(ACL), Intrusion prevention systems (IPS), and Virtual private networks (VPN)
• The Cisco Certified Network Associate (CCNA) certification demonstrates your knowledge of
foundational technologies.

ITN_Module_1.pptx

More Related Content

Similar to ITN_Module_1.pptx (20)

Recently uploaded (20)

ITN_Module_1.pptx
