Java synchronizers

By
venkateshamurthyts@gmail.com

 Available synchronizers
 What is synchronizing
 Basic nuts and bolts(in java)
 Various synchronizers
 Examples

 ReentrantLock (lock, unlock)
 Condition (await and signal)
 Semaphore (acquire permits and release)
 Future (get -<will block initially and auto release once
isDone>)
 CyclicBarrier (await – block until a number later
auto release)
 CountDownLatch (await and countDown)

What is the similarity in all of these ???

 Similarity
 For eg: lock, acquire, get, await almost mean
threads are about to block on a condition
 Auto release, release, unlock almost mean a
thread is about to be un-blocked.
 Difference
 Some synchronizers work with a shared mode
(semaphore) and others work on per thread basis
(lock)
 Each synchronizer has a separate state/trigger on
which block and unblock occurs!

 Acquire and release shared resource on
condition Atomically
Managing state
 Acquire
while (synchronization state does not allow acquire) {
enqueue current thread if not already queued;
possibly block current thread; Means to block and
un block threads
}
dequeue current thread if it was queued;
Means to queue
 Release
and de-queue
update synchronization state; threads
if (state may permit a blocked thread to acquire)
unblock one or more queued threads;

 Features
 Blocking and non-blocking wait
 Interruptible wait.
 Timed wait
 Shared acquires and releases
 Exclusive acquire and release
 Fair and unfair notification
 Means (Basic components needed)
 Atomically manage state
 Enqueue and de-queue threads
 Means to block and un-block

 Atomicallymanaged : Use a hardware
primitive called
compareAndSetState(expected, new)
 If the actual value==expected, then assign new
value; else spin.
 Means to block and unblock:
 LockSupport.park() and LockSupport.unpark()
 Enque and de-queue
 Non blocked data structures to efficiently
manage threads into and out-of the queue.

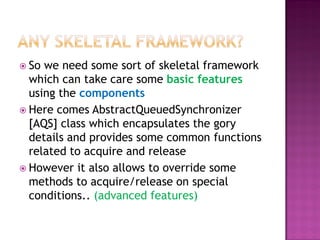

 So we need some sort of skeletal framework
which can take care some basic features
using the components
 Here comes AbstractQueuedSynchronizer
[AQS] class which encapsulates the gory
details and provides some common functions
related to acquire and release
 However it also allows to override some
methods to acquire/release on special
conditions.. (advanced features)

 Yes, All the synchronizers actually adapt a
specialized version of AQS as an inner class
called as Sync. (A beautiful example for Inner
classes)
 Synchronizer’s various methods will
ultimately map/call to one Sync class calls.
 AQS methods are overriden for different
purposes
 Different state to atomically managed
 Fair, unfair policies etc.

 tryAcquire
 tryRelease
 trySharedAcquire
 tryReleaseShared

First extend
template
class Mutex { public static void main(String[] args) {
class Sync extends final Mutex mutex = new Mutex();
AbstractQueuedSynchronizer { Runnable r1 = new Runnable() {
private static final long serialVersionUID = public void run() {
1L;
mutex.lock();
try {System.out.println("r1");
public boolean tryAcquire(int permits) {
Thread.sleep(5000);
return compareAndSetState(0, 1);
} catch (InterruptedException e) {
} e.printStackTrace();
} finally { mutex.unlock();; }
public boolean tryRelease(int permits) { }
setState(0); };
return true; Runnable r2 = new Runnable() {
} public void run() {

} mutex.lock();
try { System.out.println("r2");
Next,
private final Sync sync = new Sync();
Thread.sleep(100);

Adapter } catch (InterruptedException e)
{e.printStackTrace();
public void lock() { } finally { mutex.unlock(); }
sync.acquire(0); }
} };
new Thread(r1).start();

A classic primitive that constitutes the
method for restricting access to shared
resources
 Imagine waiting on the yellow line at
Immigration check counters (how haplessly u crib
as u are eager to be called by some one)
 Imagine bank tellers
 Some may be fair (throughput is less) and
others may be unfair!! But throughput is
more

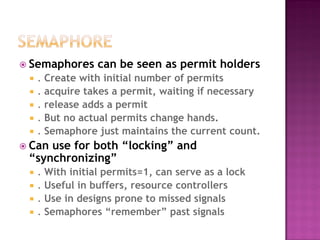

 Semaphores can be seen as permit holders
 . Create with initial number of permits
 . acquire takes a permit, waiting if necessary
 . release adds a permit
 . But no actual permits change hands.
 . Semaphore just maintains the current count.
 Canuse for both “locking” and
“synchronizing”
 . With initial permits=1, can serve as a lock
 . Useful in buffers, resource controllers
 . Use in designs prone to missed signals
 . Semaphores “remember” past signals

class ResourcePool {
FairSemaphore available =new FairSemaphore(N);
Object[] items = ... ;
public Object getItem() throws IE {
available.acquire();
return nextAvailable();
}
public void returnItem(Object x) {
If (unmark(x))
available.release();
}
synchronized Object nextAvailable();
synchronized boolean unmark(Object x);
}

A latch specifies conditions that once set
never change.
 This provides a way to start several threads
and have them wait until a signal is received
from a coordinating thread.
 Think of examination hall; while u await for
the START signal!.
 Or multi-player game before the whistle

 Execute CountDownLatchDemo.java
 Execute SemaphoreTunnel.java

A barrier offers a common point (called a
barrier point) for a set of threads to wait
for each other before continuing their
execution.
 An advantage over countdownlatch
 Can be reset and rerun repeatedly
 Once the barrier is met we could break the
barrier
 Optionally provides Post barrier routine
 Kind of split-merge (however merge will need to
wait till all splitters are done!)

 Execute CyclicBarrierDemo.java

 Exchanger simplifies the way of communicating
between threads, that is, by passing a specific
object between two threads. That's why there's
the <V> after the class name.
 Instead of using Piped streams for stream-based,
inter-thread communication (where one side
writes and the other reads),
 Exchanger relies on a single exchange method
for the transfer of one-off data between
threads.
 The Exchanger is not a general replacement for
the piped model, but their usages are similar

 Execute ExchangerDemo.java
