The document discusses cloud native communication, specifically the roles of API gateways and service meshes in managing ingress and service-to-service communications for Java applications. It emphasizes that API gateways handle external traffic and that service meshes facilitate internal communication, with patterns for implementing new communications called outside-in and balkanization. The document provides insights on app modernization, operational challenges, and offers migration tactics for transitioning to these architectural patterns.
JAX London 2019 "Cloud Native Communication: Using an API Gateway and Service Mesh with Java Apps
- 1. Cloud Native Communication: Using API Gateway and Service Mesh with Java Apps Daniel Bryant Product Architect, Datawire
- 2. tl;dr ▪ Moving to cloud and containers (cloud native) brings benefits and challenges – Ingress and service-to-service communications change ▪ API gateway handles ingress traffic: you don’t control the client ▪ Service mesh handles service-to-service comms: you influence the client ▪ You can implement new comms via two patterns – Outside-in, using an API gateway – Balkanization, using a service mesh on a segment of services
- 3. Product Architect at Datawire, Freelance Tech Consultant and Writer Java Champion, avid reader, conference tourist @danielbryantuk
- 4. Motivations: Acceleration ▪ Lead time ▪ Deployment frequency ▪ Mean time to restore (MTTR) ▪ Change fail percentage CIOs: “We want to go faster, and not fall over (and if it breaks we want to detect and fix it fast)”

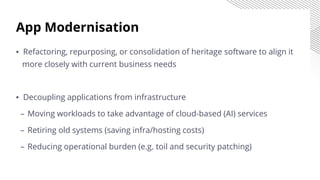

- 5. App Modernisation ▪ Refactoring, repurposing, or consolidation of heritage software to align it more closely with current business needs ▪ Decoupling applications from infrastructure – Moving workloads to take advantage of cloud-based (AI) services – Retiring old systems (saving infra/hosting costs) – Reducing operational burden (e.g. toil and security patching)
- 6. App Modernisation ▪ Microservices! ▪ Cloud! ▪ Containers! ▪ Kubernetes!
- 7. App modernisation: Not an overnight thing

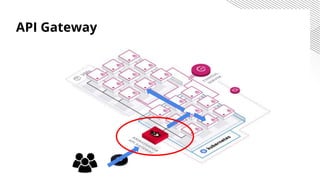

- 10. API Gateway

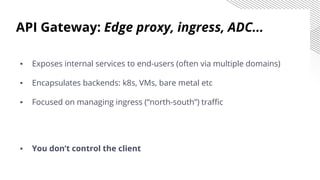

- 11. API Gateway: Edge proxy, ingress, ADC... ▪ Exposes internal services to end-users (often via multiple domains) ▪ Encapsulates backends: k8s, VMs, bare metal etc ▪ Focused on managing ingress (“north-south”) traffic ▪ You don’t control the client

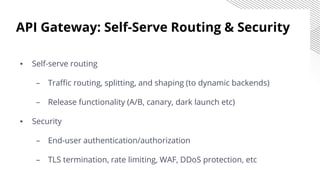

- 12. API Gateway: Self-Serve Routing & Security ▪ Self-serve routing – Traffic routing, splitting, and shaping (to dynamic backends) – Release functionality (A/B, canary, dark launch etc) ▪ Security – End-user authentication/authorization – TLS termination, rate limiting, WAF, DDoS protection, etc
- 14. API Gateway: Decisions Points Java-based Traditional Cloud Native Configuration language Java Scripts Kubernetes CRDs, YAML Typical owners Developers Ops or API team Developers & Platform Learning curve Low-Medium Medium-High Medium-High Performance (anecdotal) Low (e.g. DIY) High (e.g. Netty) High High (especially in volatile envs) Adding functionality DIY Plugins, modules Plugins, modules Biggest pain point Maintenance Coupling/cohesion Configuration New workflow (DevOps?)

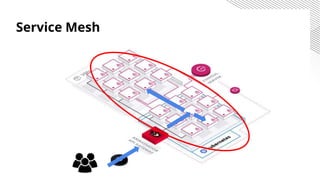

- 16. Service Mesh
- 17. “Service mesh”, you say? https://twitter.com/cesarTronLozai/status/1175327326218915840 https://twitter.com/wm/status/1173350339946274816
- 18. Service Mesh: Proxy mesh, Fabric model... ▪ Exposes internal services to internal consumers ▪ Encapsulates service infra: across k8s, VMs, bare metal etc ▪ Dynamic routing for service-to-service (“east-west”) traffic ▪ You generally control the client (or at least can influence this...)
- 21. Service Mesh: Three Pillars ▪ Observability – “Golden signals”: latency, errors, traffic, saturation (USE, RED) – Both global and service-to-service ▪ Reliability – Abstracting health checks, retries, circuit breakers etc. – Providing sane default to protect system ▪ Security – Authn/z propagation, mTLS, ACLs, network segmentation
- 22. Service Mesh: Three Pillars ▪ Observability – “Golden signals”: latency, errors, traffic, saturation (USE, RED) – Both global and service-to-service ▪ Reliability – Abstracting health checks, retries, circuit breakers etc. – Providing sane default to protect system ▪ Security – Authn/z propagation, mTLS, ACLs, network segmentation https://www.infoq.com/podcasts/

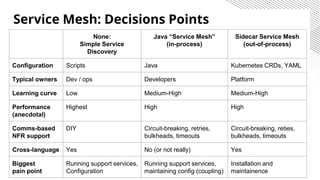

- 24. Service Mesh: Decisions Points None: Simple Service Discovery Java “Service Mesh” (in-process) Sidecar Service Mesh (out-of-process) Configuration Scripts Java Kubernetes CRDs, YAML Typical owners Dev / ops Developers Platform Learning curve Low Medium-High Medium-High Performance (anecdotal) Highest High High Comms-based NFR support DIY Circuit-breaking, retries, bulkheads, timeouts Circuit-breaking, reties, bulkheads, timeouts Cross-language Yes No (or not really) Yes Biggest pain point Running support services, Configuration Running support services, maintaining config (coupling) Installation and maintainence
- 25. Consul config
- 27. Typical Problems ▪ No clear use case ▪ Not working with the ops team… ▪ Turtles all the way down ▪ NFR-handling implemented multiple places in stack
- 28. Migration tactics ▪ Outside in – Start with a gateway – Identify a endpoint/service ▪ Balkanization – Start with a service mesh – Identify a service segment ▪ Easy install ▪ Conceptually easy to understand ▪ Less intrusive for all platforms ▪ (Potentially) higher blast radius ▪ Less new functionality ▪ Potentially high value functionality ▪ “Easy” to deploy in Kubernetes ▪ Can support multi-cluster (beta) ▪ Operationally complex ▪ (Potentially) challenging to unwind ▪ Expectation management… :-)
- 29. bit.ly/2mr58C1
- 30. Explore in browser https://instruqt.com/hashicorp/tracks/sock-shop-tutorial Hat tip to: Todd Radel, Nic Jackson & Eric Veld!
- 31. Conclusion ▪ Moving to cloud and containers (cloud native) brings benefits and challenges – Ingress and service-to-service communications change ▪ API gateway handles ingress traffic: you don’t control the client ▪ Service mesh handles service-to-service comms: you influence the client ▪ You can implement new comms via two patterns – Outside-in, using an API gateway – Balkanization, using a service mesh on a segment of services
- 32. References ▪ Context: – https://www.infoq.com/articles/api-gateway-service-mesh-app-modernisation/ ▪ Reference: – https://www.getambassador.io/user-guide/consul-connect-ambassador/ – https://www.getambassador.io/user-guide/consul/ – https://www.consul.io/docs/platform/k8s/ambassador.html – https://www.hashicorp.com/blog/hashicorp-consul-supports-microsoft-s-new-service-mesh-framework Experiment in an Instruqt sandbox: https://instruqt.com/hashicorp/tracks/sock-shop-tutorial Code examples: https://github.com/emojify-app
- 33. Copyright © 2019 HashiCorp Thanks! @danielbryantuk
- 34. Copyright © 2019 HashiCorp Bonus
- 35. App Modernisation: It’s a balancing act Bare Metal / DIY VMs Hybrid Cloud Only Private Cloud Only Public Cloud OnlyHybrid
- 37. https://blog.envoyproxy.io/service-mesh-data-plane-vs-control-plane-2774e720f7fc Control planes and data planes Data plane Control plane
- 38. Control planes: Differing use cases ▪ North-south – Unknown / untrusted clients – Limited exposure of services (Mapping) – Centralised ops ingress defaults + decentralised product team cfg ▪ East-west – Dynamic service information update required (multiple sources) – Identity required for all services (mTLS + ACLs) – “Sane” internal defaults + decentralised dev cfg
