This document discusses automated scaling of JavaEE microservice stacks. It begins by introducing the speaker and their experience with autoscaling technologies. It then explains that while simple applications can be easily scaled by increasing container replicas, scaling complex JavaEE applications requires more work. The document outlines three key aspects needed for scalable applications: using lightweight application servers adapted for containers; decomposing monolithic applications into independently scalable microservices; and using orchestration software to automate provisioning, health checks, metrics collection, and scaling. It provides examples of scaling strategies for different application components like message queues and databases. It also discusses common issues like ensuring new instances are properly registered for events and services. The document emphasizes that proper configuration of autoscaling triggers
![Example #1
Typical ScaleIn/ScaleOut events and cases
onAfterScaleOut[nodeGroup:ejb-app1] {
“call”: “registerNodeInMonitoringSystem”,
“call”: “addMemberToHazelcast”,
“call”: “call3rdPartyApiService”
}
onAfterScaleIn[nodeGroup:jsp-app2] {
“call”: “removeNodeFromMonitoringSystem”,
“call”: “removeMemberFromHazelcast”
}
THE FULL WORKING AND MORE COMPLEX CODE EXAMPLE CAN BE FOUND HERE](https://image.slidesharecdn.com/jeeconf-2017-final-170529073914/85/JEEconf-2017-34-320.jpg)
![Example #2
2. Get auth keys by instance before joining DAS
onBeforeStartService[nodeGroup:instance] {
“cmd”: “/root/scripts/pullAccessKeys.sh ${token}”
}
THE FULL WORKING AND MORE COMPLEX CODE EXAMPLE CAN BE FOUND HERE
1. Decrypt encrypted volume, that was attached on-fly
onAfterVolumeAttached[nodeGroup:instance] {
“call”: “decryptVolume”
}
3. Deprovision node from DAS if cluster was shrinked
onAfterScaleOut[nodeGroup:das] {
“cmd”: “./asadmin_proxy remove ${instance[@last].ip}”
}](https://image.slidesharecdn.com/jeeconf-2017-final-170529073914/85/JEEconf-2017-35-320.jpg)
JEEconf 2017
- 1. Automated Scaling of Microservice Stacks for JavaEE Applications by Ihor Kolodyuk
- 2. Few words about me … Driving technology direction at Jelastic Like to solve unsolvable problems Checking technology concepts on practice
- 3. Why I am here? I want to talk to you about: General autoscaling concept for JavaEE applications Real use cases. Real issues. Tricky things My goals are: Save your time if you decide you need to scale your app Share our own experience
- 4. I just deploy my application to Docker, set a number of replicas and … have it running … bla bla bla … super easy! Done! The myth
- 5. Yes, pretty easy … If you need a super scalable and clustered Hello World application …
- 6. In real life with JavaEE application we have architecture similar to this and its autoscaling becomes not a very trivial task…
- 7. The truth Legacy Application Scalable Cluster Autoscalable Cluster
- 9. At least 3 key things to make your applications scalable
- 10. First: Adapted runtime (Container + JVM + JavaEE Server) micro
- 11. Preferably, thin versions of application servers YES!NO!
- 12. micro glassfish There are various versions adapted for lightweight containers
- 13. Any specific reason to use VMs for microservices? NO!
- 14. Well…it might be, but …
- 15. What should we use instead? YES!
- 16. One container - one microservice instance YES! NO!
- 18. SORRY, Application prepared for SCALABLE microservices
- 19. Next few slides can be a bit boring for those who know… BUT Still important!!!!!!
- 20. Ideal scaling and decomposition horizontal vertical topology
- 21. Decomposition into microservice At least 2 key approaches
- 22. Logical division
- 23. Splitting bigger parts into smaller 1.Analyse metrics (NewRelic / JavaVisualVM) 2.Find a weak point (!) 3.Move this part to microservice 4.Repeat
- 25. What it typically does? CONTAINERS PROVISIONING HEALTHCHECKS METRICS GATHERING APPLICATION LIFECYCLE MANAGEMENT SCALING AUTOMATIC LOAD BALANCING SERVICE DISCOVERY & CONNECTIVITY CUSTOM SCRIPTING*
- 26. Typical triggers that are used for scaling CPU RAM HDD (disk I/O) NETWORK SERVICE FAILURE SCHEDULER
- 27. Practical part Tricky things Typical issues Examples
- 28. Tricky thing #1 In which direction to scale? horizontal vertical topology
- 29. Example #1 Message Queue Service Triggers configuration CPU RAM HDD (disk I/O) NETWORK SCHEDULER YES NO PROBABLY NO GENERAL SET GENERAL SET Scaling type HORIZONTAL Tricky place

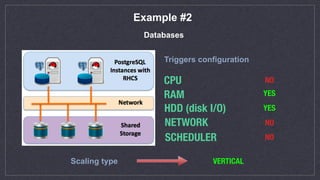

- 30. Example #2 Databases CPU RAM HDD (disk I/O) NETWORK SCHEDULER YES VERTICAL NO NO NO Scaling type Triggers configuration YES
- 31. Typical issues while scaling of database instances Takes much time to sync data Temporary locks Temporary performance degradation Hard to use auto horizontal scaling Automatic vertical scaling can be used just fine It’s better to keep spare instances underloaded (dedicated storage per instance) RESUME

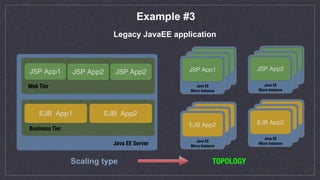

- 32. Example #3 Legacy JavaEE application TOPOLOGY Java EE Server Business Tier Web Tier JSP App1 JSP App2 JSP App2 EJB App1 EJB App2 Java EE Micro Instance JSP App1 Java EE Micro Instance JSP App1 Java EE Micro Instance JSP App1 Java EE Micro Instance JSP App1 Java EE Micro Instance JSP App1 Java EE Micro Instance JSP App2 Java EE Micro Instance JSP App1 Java EE Micro Instance JSP App1 Java EE Micro Instance EJB App2 Java EE Micro Instance JSP App1 Java EE Micro Instance JSP App1 Java EE Micro Instance EJB App2 Scaling type
- 33. Tricky thing #2 Events subscription Usually, just spinning up an extra instance is NOTenough
- 34. Example #1 Typical ScaleIn/ScaleOut events and cases onAfterScaleOut[nodeGroup:ejb-app1] { “call”: “registerNodeInMonitoringSystem”, “call”: “addMemberToHazelcast”, “call”: “call3rdPartyApiService” } onAfterScaleIn[nodeGroup:jsp-app2] { “call”: “removeNodeFromMonitoringSystem”, “call”: “removeMemberFromHazelcast” } THE FULL WORKING AND MORE COMPLEX CODE EXAMPLE CAN BE FOUND HERE
- 35. Example #2 2. Get auth keys by instance before joining DAS onBeforeStartService[nodeGroup:instance] { “cmd”: “/root/scripts/pullAccessKeys.sh ${token}” } THE FULL WORKING AND MORE COMPLEX CODE EXAMPLE CAN BE FOUND HERE 1. Decrypt encrypted volume, that was attached on-fly onAfterVolumeAttached[nodeGroup:instance] { “call”: “decryptVolume” } 3. Deprovision node from DAS if cluster was shrinked onAfterScaleOut[nodeGroup:das] { “cmd”: “./asadmin_proxy remove ${instance[@last].ip}” }
- 36. Tricky thing #3 Proper triggers configuration This tuning is a long process, so be patient
- 37. Typical problem #1 Changing the value in one place can be reflected in other places
- 38. How to deal with this? Load Testing Gathering Metrics Detect deviations in a testing loop Analyzing Metrics Edit Triggers Com pare previous results
- 39. Typical problem #2 The triggers can become outdated with new code
- 40. The fix is easy here Inject metrics collection as a part of your CI/CD step COMMIT BUILD TESTING PERFORMANCE ANALYSIS DELIVERY
- 41. Tricky thing #4 Getting rid of spare things
- 42. Typical problem #1 Network is full of useless traffic Total bandwidth Multicast | Heartbeats Useful traffic
- 43. What we can do? Avoid multicast (for members detection) Use events and static members lists Static members list Static members list Static members list Orchestrator
- 44. Typical problem #2 Some of JavaEE Servers are designed for VMs, not for containers On example of Weblogic VM VM VM VM
- 45. What is the right way to go? Just remove everything spare
- 46. LIVE demo comes here
- 47. QUESTIONS
