jQuery UI Widgets, Drag and Drop, Drupal 7 Javascript
13 likes12,476 views
The document discusses the integration of jQuery UI into Drupal 7 to enhance user interface through JavaScript, detailing the creation of various interactive widgets and managing JavaScript files effectively. It covers the use of jQuery UI features like buttons and dialogs, along with setups for draggable and droppable functionalities, while emphasizing the importance of using Drupal behaviors for these interactions. Additionally, the document provides code examples and resources for further implementation and customization.
![theme.info
name = My theme
description = Theme developed by me.
core = 7.x
engine = phptemplate
scripts[] = my_script.js](https://image.slidesharecdn.com/jqueryuidrupallondondec2011-111213025033-phpapp01/85/jQuery-UI-Widgets-Drag-and-Drop-Drupal-7-Javascript-10-320.jpg)
![hook_preprocess_page()
function mytheme_preprocess_page(&$vars, $hook) {
if (true) {
drupal_add_js(
drupal_get_path('theme', 'mytheme') . '/scriptname.js',
'theme');
$vars['scripts'] = drupal_get_js();
}
}](https://image.slidesharecdn.com/jqueryuidrupallondondec2011-111213025033-phpapp01/85/jQuery-UI-Widgets-Drag-and-Drop-Drupal-7-Javascript-12-320.jpg)
![drupal_add_library()
function dproj_form_issue_node_form_alter(&$form, $form_state,
$form_id) {
$language = $form['#node']->language;
$form['field_issue_type'][$language]['#after_build'][] =
'_dproj_button_helper';
}
function _dproj_button_helper($element, &$form_state) {
$button_js = '$("#'. $element['#id'] .'").buttonset();';
$button_js = JS_PREFIX . $button_js . JS_SUFFIX;
drupal_add_library('system', 'ui.button');
drupal_add_js($button_js, array('type' => 'inline', 'scope' =>
'footer', 'weight' => 5));
return $element;
}](https://image.slidesharecdn.com/jqueryuidrupallondondec2011-111213025033-phpapp01/85/jQuery-UI-Widgets-Drag-and-Drop-Drupal-7-Javascript-19-320.jpg)
![function dproj_form_project_node_form_alter(&$form,
$form_state, $form_id) {
$language = $form['#node']->language;
$form['field_project_desc'][$language]['#after_build'][]
= '_dproj_autoresize_helper';
}
function _dproj_autoresize_helper($element, &$form_state) {
$id = $element[0]['value']['#id']
$autoresize_js = '$("#'. $id .'").autoResize();';
$autoresize_js = JS_PREFIX . $autoresize_js . JS_SUFFIX;
drupal_add_library('dproj', 'autoresize');
drupal_add_js($autoresize_js, array('type' => 'inline',
'scope' => 'footer', 'weight' => 5));
return $element;
}](https://image.slidesharecdn.com/jqueryuidrupallondondec2011-111213025033-phpapp01/85/jQuery-UI-Widgets-Drag-and-Drop-Drupal-7-Javascript-24-320.jpg)
![path1 =
add-attendee/[uid]
path2 =
/[nid]
callback = path1 + path2
callback = add-attendee/[uid]/[nid]](https://image.slidesharecdn.com/jqueryuidrupallondondec2011-111213025033-phpapp01/85/jQuery-UI-Widgets-Drag-and-Drop-Drupal-7-Javascript-31-320.jpg)
![Drupal.behaviors.dprojdrag = {
attach: function (context, settings) {
$('.dproj-draggable', context).draggable({revert: 'invalid'});
$('.dproj-droppable', context).droppable({
hoverClass: 'drop-hover', accept: '.dproj-draggable',
drop: function (e, ui) {
$(ui.draggable).hide();
$(e.target).fadeTo('fast', 0.5);
var view_id = '.' +
$(e.target).attr('class').match(/view-dom-id-d+/)[0];
var href = Drupal.settings.basePath +
$('.callback', ui.draggable).html()
+ $('.callback', e.target).html();
$.ajax({ url: href,
success: function (data) {
$(view_id).html($(view_id, $(data)));
$(view_id).fadeTo('fast', 1);
}});}});}};](https://image.slidesharecdn.com/jqueryuidrupallondondec2011-111213025033-phpapp01/85/jQuery-UI-Widgets-Drag-and-Drop-Drupal-7-Javascript-36-320.jpg)
jQuery UI Widgets, Drag and Drop, Drupal 7 Javascript
- 1. jQuery UI in Drupal 7 Darren Mothersele @mothersele http://www.darrenmothersele.com Ivan Sutherland's Sketchpad system is demonstrated on the console of the TX-2 at MIT (1963)
- 2. jQuery UI in Drupal 7 • Using Javascript to improve UI • Javascript in Drupal 7 • jQuery UI widgets • Building complex interactions
- 3. HTML + Javascript • HTML defines a set of standard form elements • Javascript allows us to build new interactive widgets • jQuery UI provides widgets, interactions and effects
- 4. Javascript widgets • Reduce errors in data entry • Quicker/more efficient • More engaging/fun • ...
- 6. Progressive Enhancement • Create widget using jQuery • Hide old widget • Fill in value in the background • Transparent to Drupal, nice and safe • Non-js friendly
- 7. Before Active Tags • Multiple tagging methodologies • Some people just expect to use spaces • http://drupal.org/node/91074 • Character-delimited system
- 8. Active Tags • Action-delimited system • Autocomplete • Original widget hidden • http://drupal.org/project/active_tags
- 9. Javascript in Drupal 7 • Theme or Module? • Scope? • Module specific or reuseable? (Javascript Library) • How and where to include code?
- 10. theme.info name = My theme description = Theme developed by me. core = 7.x engine = phptemplate scripts[] = my_script.js
- 11. drupal_add_js($data, $options) $data is either: • path to Javascript file to include • Javascript code to include ‘inline’ • absolute path to external JS code • array of settings for Javascript $options includes type, location, caching, ...
- 12. hook_preprocess_page() function mytheme_preprocess_page(&$vars, $hook) { if (true) { drupal_add_js( drupal_get_path('theme', 'mytheme') . '/scriptname.js', 'theme'); $vars['scripts'] = drupal_get_js(); } }

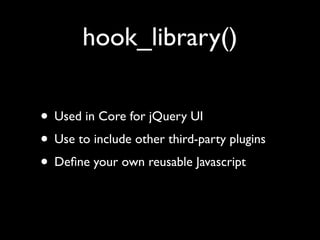

- 13. hook_library() • Used in Core for jQuery UI • Use to include other third-party plugins • Define your own reusable Javascript
- 16. Dialog Example function dproj_form_user_login_block_alter(&$form, $form_state) { drupal_add_library('system', 'ui.dialog'); $dialog_js = '$("#block-user-login").dialog({title: "User login"});'; $dialog_js = 'jQuery(document).ready(function () { (function ($) {' . $dialog_js . '}(jQuery)); });'; drupal_add_js($dialog_js, array('type' => 'inline', 'scope' => 'footer', 'weight' => 5)); }
- 19. drupal_add_library() function dproj_form_issue_node_form_alter(&$form, $form_state, $form_id) { $language = $form['#node']->language; $form['field_issue_type'][$language]['#after_build'][] = '_dproj_button_helper'; } function _dproj_button_helper($element, &$form_state) { $button_js = '$("#'. $element['#id'] .'").buttonset();'; $button_js = JS_PREFIX . $button_js . JS_SUFFIX; drupal_add_library('system', 'ui.button'); drupal_add_js($button_js, array('type' => 'inline', 'scope' => 'footer', 'weight' => 5)); return $element; }
- 22. hook_library() function dproj_library() { $path = drupal_get_path('module', 'dproj'); return array('autoresize' => array( 'title' => 'AutoResize', 'website' => 'https://github.com/...' 'version' => '1.14', 'js' => array( $path .'/jquery.autoresize.js' => array(), ), )); }
- 24. function dproj_form_project_node_form_alter(&$form, $form_state, $form_id) { $language = $form['#node']->language; $form['field_project_desc'][$language]['#after_build'][] = '_dproj_autoresize_helper'; } function _dproj_autoresize_helper($element, &$form_state) { $id = $element[0]['value']['#id'] $autoresize_js = '$("#'. $id .'").autoResize();'; $autoresize_js = JS_PREFIX . $autoresize_js . JS_SUFFIX; drupal_add_library('dproj', 'autoresize'); drupal_add_js($autoresize_js, array('type' => 'inline', 'scope' => 'footer', 'weight' => 5)); return $element; }
- 26. Building a more complex interaction • Drupal Behaviors • jQuery ui.draggable • jQuery ui.droppable • jQuery AJAX • Contrib modules: Page manager (ctools), Rules, Relation
- 27. Behaviors • Replacement for $(document).ready(); • Use attach function: (function ($) { Drupal.behaviors.exampleModule = { attach: function (context, settings) { $('.dproj', context).draggable(); } }; }(jQuery)); • AJAX safe • Detachable
- 28. Drag and Drop Draggable Droppable $.ajax() Callback
- 30. .dproj-draggable .dproj-droppable $('.dproj-draggable').draggable(); $('.dproj-droppable').droppable();
- 31. path1 = add-attendee/[uid] path2 = /[nid] callback = path1 + path2 callback = add-attendee/[uid]/[nid]
- 33. Callback argument inserted into header
- 35. <span class='callback'> add-attendee/1 </span> <span class='callback'>/20</span> callback = add-attendee/1/20
- 36. Drupal.behaviors.dprojdrag = { attach: function (context, settings) { $('.dproj-draggable', context).draggable({revert: 'invalid'}); $('.dproj-droppable', context).droppable({ hoverClass: 'drop-hover', accept: '.dproj-draggable', drop: function (e, ui) { $(ui.draggable).hide(); $(e.target).fadeTo('fast', 0.5); var view_id = '.' + $(e.target).attr('class').match(/view-dom-id-d+/)[0]; var href = Drupal.settings.basePath + $('.callback', ui.draggable).html() + $('.callback', e.target).html(); $.ajax({ url: href, success: function (data) { $(view_id).html($(view_id, $(data))); $(view_id).fadeTo('fast', 1); }});}});}};
- 45. Resources • jQuery UI • Contrib Modules http://jqueryui.com/ demos • Views • Managing Javascript in • Relation Drupal 7 http://drupal.org/node/ 756722 • Page manager • Rules
