JSON
The x in Ajax

Douglas Crockford
Yahoo! Inc.

YAHOO IS HIRING
DEVELOPERS
Ajax, PHP, DHTML/XHTML,
Javascript, CSS, Actionscript / Flash

Josie Aguada
JAGUADA@YAHOO-INC.COM

Data Interchange
• The key idea in Ajax.

• An alternative to page
replacement.

• Applications delivered as pages.

• How should the data be delivered?

History of Data Formats
• Ad Hoc

• Database Model

• Document Model

• Programming Language Model

JSON
• JavaScript Object Notation

• Minimal

• Textual

• Subset of JavaScript

JSON
• A Subset of ECMA-262 Third Edition.

• Language Independent.

• Text-based.

• Light-weight.

• Easy to parse.

JSON Is Not...
• JSON is not a document format.
• JSON is not a markup language.
• JSON is not a general serialization
format.
No cyclical/recurring structures.
No invisible structures.
No functions.

History
• 1999 ECMAScript Third Edition

• 2001 State Software, Inc.

• 2002 JSON.org

• 2005 Ajax

• 2006 RFC 4627

Languages
• Chinese
• English
• French
• German
• Italian
• Japanese
• Korean

Languages
• ActionScript • Perl
• C / C++ • Objective-C
• C# • Objective CAML
• Cold Fusion • PHP
• Delphi • Python
• E • Rebol
• Erlang • Ruby
• Java • Scheme
• Lisp • Squeak

Object Quasi-Literals
• JavaScript

• Python

• NewtonScript

Values
• Strings
• Numbers
• Booleans

• Objects
• Arrays

• null

Strings
• Sequence of 0 or more Unicode
characters
• No separate character type
A character is represented as a
string with a length of 1
• Wrapped in "double quotes"
• Backslash escapement

Numbers
• Integer
• Real
• Scientific

• No octal or hex
• No NaN or Infinity
Use null instead

null
• A value that isn't anything

Object
• Objects are unordered containers
of key/value pairs
• Objects are wrapped in { }
• , separates key/value pairs
• : separates keys and values
• Keys are strings
• Values are JSON values

struct, record, hashtable, object

Object
{"name":"Jack B. Nimble","at large":
true,"grade":"A","level":3,
"format":{"type":"rect","width":1920,
"height":1080,"interlace":false,
"framerate":24}}

Object
{
"name": "Jack B. Nimble",
"at large": true,
"grade": "A",
"format": {
"type": "rect",
"width": 1920,
"height": 1080,
"interlace": false,
"framerate": 24
}
}

Array
• Arrays are ordered sequences of
values
• Arrays are wrapped in []
• , separates values
• JSON does not talk about
indexing.
An implementation can start array
indexing at 0 or 1.

Array
["Sunday", "Monday", "Tuesday",
"Wednesday", "Thursday",
"Friday", "Saturday"]

[
[0, -1, 0],
[1, 0, 0],
[0, 0, 1]
]

Arrays vs Objects
• Use objects when the key names
are arbitrary strings.

• Use arrays when the key names
are sequential integers.

• Don't get confused by the term
Associative Array.

MIME Media Type

application/json

Character Encoding
• Strictly UNICODE.

• Default: UTF-8.

• UTF-16 and UTF-32 are allowed.

Versionless
• JSON has no version number.

• No revisions to the JSON grammar
are anticipated.

• JSON is very stable.

Rules
• A JSON decoder must accept all
well-formed JSON text.
• A JSON decoder may also accept
non-JSON text.
• A JSON encoder must only
produce well-formed JSON text.
• Be conservative in what you do,
be liberal in what you accept from
others.

Supersets
• YAML is a superset of JSON.
A YAML decoder is a JSON decoder.

• JavaScript is a superset of JSON.
A JavaScript compiler is a JSON
decoder.

• New programming languages
based on JSON.

JSON in Ajax
• HTML Delivery.

• JSON data is built into the page.
<html>...
<script>
var data = { ... JSONdata ... };
</script>...
</html>

JSON in Ajax
• XMLHttpRequest
Obtain responseText
Parse the responseText

responseData = eval(
'(' + responseText + ')');

responseData =
responseText.parseJSON();

JSON in Ajax
• Is it safe to use eval with
XMLHttpRequest?

• The JSON data comes from the
same server that vended the
page. eval of the data is no less
secure than the original html.

• If in doubt, use string.parseJSON
instead of eval.

JSON in Ajax
• Secret <iframe>
• Request data using form.submit to the
<iframe> target.
• The server sends the JSON text
embedded in a script in a document.
<html><head><script>
document.domain = 'penzance.com';
parent.deliver({ ... JSONtext ... });
</script></head></html>
• The function deliver is passed the
value.

JSON in Ajax
• Dynamic script tag hack.
• Create a script node. The src url
makes the request.
• The server sends the JSON text
embedded in a script.
deliver({ ... JSONtext ... });
• The function deliver is passed
the value.
• The dynamic script tag hack is
insecure.

JSONRequest
• A new facility.
• Two way data interchange
between any page and any server.
• Exempt from the Same Origin
Policy.
• Campaign to make a standard
feature of all browsers.

JSONRequest
function done(requestNr, value, exception) {
...
}

var request =
JSONRequest.post(url, data, done);

var request =
JSONRequest.get(url, done);

• No messing with headers.
• No cookies.
• No implied authentication.

JSONRequest
• Requests are transmitted in order.

• Requests can have timeouts.

• Requests can be cancelled.

• Connections are in addition to the
browser's ordinary two connections
per host.

• Support for asynchronous, full duplex
connections.

JSONRequest
• Tell your favorite browser maker

I want JSONRequest!
http://www.JSON.org/JSONRequest.html

ECMAScript Fourth Ed.
• New Methods:

Object.prototype.toJSONString

String.prototype.parseJSON

• Available now: JSON.org/json.js

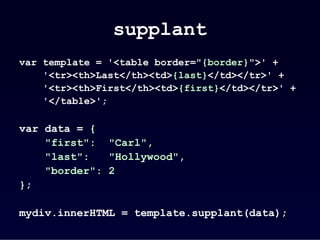

supplant
var template = '<table border="{border}">' +
'<tr><th>Last</th><td>{last}</td></tr>' +
'<tr><th>First</th><td>{first}</td></tr>' +
'</table>';

var data = {
"first": "Carl",
"last": "Hollywood",
"border": 2
};

mydiv.innerHTML = template.supplant(data);

supplant
String.prototype.supplant = function (o) {
return this.replace(/{([^{}]*)}/g,
function (a, b) {
var r = o[b];
return typeof r === 'string' ?
r : a;
}
);
};

JSONT
var rules = {
self:
'<svg><{closed} stroke="{color}" points="{points}" /></svg>',
closed: function (x) {return x ? 'polygon' : 'polyline';},
'points[*][*]': '{$} '
};

var data = {
"color": "blue",
"closed": true,
"points": [[10,10], [20,10], [20,20], [10,20]]
};

jsonT(data, rules)

<svg><polygon stroke="blue"
points="10 10 20 10 20 20 10 20 " /></svg>

http://goessner.net/articles/jsont/

function jsonT(self, rules) {
var T = {
output: false,
init: function () {
for (var rule in rules) if (rule.substr(0,4) != "self") rules["self." + rule] = rules[rule];
return this;
},
apply: function(expr) {
var trf = function (s) {
return s.replace(/{([A-Za-z0-9_$.[]'@()]+)}/g, function ($0, $1){
return T.processArg($1, expr);
})
}, x = expr.replace(/[[0-9]+]/g, "[*]"), res;
if (x in rules) {
if (typeof(rules[x]) == "string") res = trf(rules[x]);
else if (typeof(rules[x]) == "function") res = trf(rules[x](eval(expr)).toString());
} else res = T.eval(expr);
return res;
},
processArg: function (arg, parentExpr) {
var expand = function (a, e) {
return (e = a.replace(/^$/,e)).substr(0, 4) != "self" ? ("self." + e) : e;
}, res = "";
T.output = true;
if (arg.charAt(0) == "@") res = eval(arg.replace(/@([A-za-z0-9_]+)(([A-Za-z0-9_$.[]']+))/, function($0, $1, $2){
return "rules['self." + $1 + "'](" + expand($2,parentExpr) + ")";
}));
else if (arg != "$") res = T.apply(expand(arg, parentExpr));
else res = T.eval(parentExpr);
T.output = false;
return res;
},
eval: function (expr) {
var v = eval(expr), res = "";
if (typeof(v) != "undefined") {
if (v instanceof Array) {
for (var i = 0; i < v.length; i++) if (typeof(v[i]) != "undefined") res += T.apply(expr + "[" + i + "]");
} else if (typeof(v) == "object") {
for (var m in v) if (typeof(v[m]) != "undefined") res += T.apply(expr+"."+m);
} else if (T.output) res += v;
}
return res;
}
};
return T.init().apply("self");
}

Some features that make it
well-suited for data transfer
• It's simultaneously human- and machine-
readable format;
• It has support for Unicode, allowing almost
any information in any human language to be
communicated;
• The self-documenting format that describes
structure and field names as well as specific
values;
• The strict syntax and parsing requirements
that allow the necessary parsing algorithms
to remain simple, efficient, and consistent;
• The ability to represent the most general
computer science data structures: records,
lists and trees.

JSON Looks Like Data
• JSON's simple values are the same as used in
programming languages.

• No restructuring is required: JSON's
structures look like conventional
programming language structures.

• JSON's object is record, struct, object,
dictionary, hash, associate array...

• JSON's array is array, vector, sequence, list...

Arguments against JSON
• JSON Doesn't Have Namespaces.

• JSON Has No Validator.

• JSON Is Not Extensible.

• JSON Is Not XML.

JSON Doesn't Have
Namespaces
• Every object is a namespace. Its
set of keys is independent of all
other objects, even exclusive of
nesting.

• JSON uses context to avoid
ambiguity, just as programming
languages do.

Namespace
• http://www.w3c.org/TR/REC-xml-names/

• In this example, there are three occurrences of the
name title within the markup, and the name alone
clearly provides insufficient information to allow
correct processing by a software module.

<section>
<title>Book-Signing Event</title>
<signing>
<author title="Mr" name="Vikram Seth" />
<book title="A Suitable Boy" price="$22.95" />
</signing>
<signing>
<author title="Dr" name="Oliver Sacks" />
<book title="The Island of the Color-Blind"
price="$12.95" />
</signing>
</section>

Namespace
{"section":
"title": "Book-Signing Event",
"signing": [
{
"author": { "title": "Mr", "name": "Vikram Seth" },
"book": { "title": "A Suitable Boy",
"price": "$22.95" }
}, {
"author": { "title": "Dr", "name": "Oliver Sacks" },
"book": { "title": "The Island of the Color-Blind",
"price": "$12.95" }
}
]
}}

• section.title
• section.signing[0].author.title
• section.signing[1].book.title

JSON Has No Validator
• Being well-formed and valid is not
the same as being correct and
relevant.

• Ultimately, every application is
responsible for validating its
inputs. This cannot be delegated.

• A YAML validator can be used.

JSON is Not Extensible
• It does not need to be.

• It can represent any non-recurrent
data structure as is.

• JSON is flexible. New fields can
be added to existing structures
without obsoleting existing
programs.

JSON Is Not XML
• element
• objects
• attribute
• arrays • attribute string
• content
• strings • <![CDATA[ ]]>
• numbers • entities
• declarations
• booleans • schema
• stylesheets
• null
• comments
• version
• namespace

Data Interchange
• JSON is a simple, common
representation of data.

• Communication between servers
and browser clients.

• Communication between peers.

• Language independent data
interchange.

Why the Name?

• XML is not a good data
interchange format, but it is a
document standard.

• Having a standard to refer to
eliminates a lot of squabbling.

Going Meta
• By adding one level of meta-
encoding, JSON can be made to
do the things that JSON can't do.
• Recurrent and recursive
structures.
• Values beyond the ordinary base
values.

Going Meta
• Simply replace the troublesome
structures and values with an
object which describes them.

{
"$META$": meta-type,
"value": meta-value
}

Going Meta
• Possible meta-types:

"label" Label a structure
for reuse.
"ref" Reuse a structure.
"class" Associate a class
with a structure.
"type" Associate a special
type, such as Date,
with a structure.

Browser Innovation
• During the Browser War,
innovation was driven by the
browser makers.

• In the Ajax Age, innovation is
being driven by application
developers.

• The browser makers are falling
behind.

The Mashup Security
Problem
• Mashups are an interesting new
way to build applications.
• Mashups do not work when any of
the modules or widgets contains
information that is private or
represents a connection which is
private.

The Mashup Security
Problem
• JavaScript and the DOM provide
completely inadequate levels of
security.
• Mashups require a security model
that provides cooperation under
mutual suspicion.

The Mashup Security
Solution
<module id="NAME" href="URL"
style="STYLE" />

• A module is like a restricted iframe.
The parent script is not allowed access
to the module's window object. The
module's script is not allowed access
to the parent's window object.

The Mashup Security
Solution
<module id="NAME" href="URL" style="STYLE" />

• The module node presents a send
method which allows for sending a
JSON string to the module script.

• The module node can accept a receive
method which allows for receiving a
JSON string from the module script.

The Mashup Security
Solution

• Inside the module, there is a global
send function which allows for sending
a JSON string to the outer document's
script.

• Inside the module, you can define a
receive method which allows for
receiving a JSON string from the outer
document's script.

The Mashup Security
Solution

The Mashup Security
Solution

• Communiciation is permitted only
through cooperating send and
receive functions.
• The module is exempt from the
Same Origin Policy.

The Mashup Security
Solution

• Ask your favorite browser maker
for the <module> tag.

Json the-x-in-ajax1588

More Related Content

What's hot (20)

Similar to Json the-x-in-ajax1588 (20)

Recently uploaded (20)

Json the-x-in-ajax1588
