jvm/java: towards lock- free concurrency Arvind Kalyan Engineer at LinkedIn
agenda intro to concurrency & memory model on jvm reordering -> barriers -> happens-before jdk 8 concurrency primitives volatile -> atomics, collections, explicit locks, fork/join trends in this area (to make all of this practical) lock-free, STM, TM
background for control and performance, sometimes there are valid reasons to use locks (like a mutex) for concurrency control in most other situations, primitive synchronization constructs in some modules lead to unreliable & incorrect programs in most non-trivial systems that are composed over such modules the best practice, in the current state, is to write single threaded programs
‘automatic’ concurrency there are platforms that take your single threaded program and run it concurrently — most web servers do this, for example on the other hand, there are times when you really must use multiple threads
practicality concurrency control techniques have been studied for a while, but since 2005 it is being studied intensely* to make it more practical for more widespread (and safer) use simpler software techniques, and also hardware level support for those techniques are being developed before we see how to write safe code using these new techniques, let’s look into some basics * https://scholar.google.com/scholar?as_ylo=2005&q=%22software+transactional+memory%22
why concurrency control? when dealing with multiple threads, concurrency control/synchronization is necessary not only to guard critical sections from multiple threads using a mutex… but also to ensure that the memory updates (through mutable variables) are made visible to all threads ‘correctly’
memory model as a platform, jvm guarantees that ‘correctly synchronized’ programs have a very well defined memory behavior let’s look into the jvm memory model which defines those guarantees
memory model your code manipulates memory by using variables and objects the memory is separated by a few layers of caches from the cpu on a multi-core cpu when a write happens in one cpu’s cache, we need to make it visible to other cpus as well and then there is the topic of re-odering… * http://en.wikipedia.org/wiki/Memory_barrier
memory model to improve performance, the hardware (cpu, caches, …) reorders memory access using its own memory model (set of rules)* dynamically the visibility of a value in a memory location is further complicated by the code reordering performed by the compiler statically http://en.wikipedia.org/wiki/Memory_ordering
memory model the static and dynamic reordering strive to ensure an ‘as-if serial’ semantics i.e., the program appears to be executing sequentially as per the lines in your source code
memory model memory reordering is transparent in single- threaded use-cases because of that as-if- serial guarantee but logic quickly falls apart and causes surprises in incorrectly synchronized multi- threaded programs
memory model while jvm’s OOTA safety (out of thin air) guarantees that a thread always reads a value written by *some* thread, and not some value out of thin air… with all the reordering, it’s good to have a slightly stronger guarantee …
the need for memory barriers in the following code, say reader is called after writer (from different threads)
 class Reordering {
 int x = 0, y = 0;
 public void writer() {
 x = 1;
 y = 2;
 }
 public void reader() {
 int r1 = y;
 int r2 = x;
 // use r1 and r2
 }
 } in reader, even if r1 == 2, r2 can be 0 or 1 synchronization is needed if we want to control the ordering (and ensure r2 == 1) using a memory barrier
memory barrier the jvm memory model essentially defines the relationship between the variables in your code the semantics also define a partial ordering on the memory operations so certain actions are guaranteed to ‘happen before’ others
happens-before happens-before is a visibility guarantee for memory provided through synchronization such as locking, volatiles, atomics, etc …and for completeness, through Thread start() & join()
Concurrency control on jvm with JDK 8 with that background, let’s look at some specific tools & mechanisms available on the jvm & jdk 8..
Concurrency control on jvm with JDK 8 volatiles atomics concurrent collections/data-structures synchronizers fork/join framework
volatiles volatiles are typically used as a state variables across threads writing to & reading from a volatile is like releasing and acquiring a monitor (lock), respectively i.e., it guarantees a happens-before relationship not just with other volatile but also non-volatile memory
volatiles typical use of volatiles with reader and writer called from different threads:
 class VolatileExample {
 int x = 0;
 volatile boolean v = false;
 public void writer() {
 x = 42;
 v = true;
 }
 public void reader() {
 if (v == true) {
 //uses x - guaranteed to see 42.
 }
 }
 } the happens-before guarantee in jvm memory model makes it simpler to reason about the value in x, even though x is non- volatile! code: https://www.cs.umd.edu/~pugh/java/memoryModel/jsr-133-faq.html
volatiles guaranteeing happens-before relationship for non-volatile memory is a performance overhead, so like any other synchronization primitive, it must be used judiciously but, it greatly simplifies the program and by aligning the dynamic and static reordering with most programmers’ expectations
atomics atomics* extend the notion of volatiles, and support conditional updates being an extension to volatiles, they guarantee happens-before relationship on memory operations the updates are performed through a CAS cpu instruction * http://docs.oracle.com/javase/8/docs/api/java/util/concurrent/atomic/package-summary.html
atomics atomics/cas allow designing non-blocking algorithms where the critical section is around a single variable if there is more than one variable, other forms of synchronization is needed
CAS JDK 8 uses CAS for ‘lock-free’ operation at a high-level, it piggy backs on a cpu provided CAS* instruction —like lock:cmpxchg on x86 let’s see how jvm dynamically improves the performance of the hardware provided CAS *CAS: http://en.wikipedia.org/wiki/Compare-and-swap
CAS/atomics CAS in recent cpu implementations don’t assert the lock# to gain exclusive bus access, but rather rely on efficient cache-coherence protocols* — unless the memory address is not cache-line aligned even if that helps CAS to scale on many-core systems, CAS still adds a lot to local latency, sometimes nearly halting the cpu to address that local latency, a biased-locking* approach is used — where uncontended usage of atomics are recompiled dynamically to not use CAS instructions! * more about MESI: https://courses.engr.illinois.edu/cs232/sp2009/lectures/x24.pdf
 * biased locking in jvm: https://blogs.oracle.com/dave/entry/biased_locking_in_hotspot
biased-locking the biased-locking feature in jvm extends beyond atomics, and generalizes to different kinds of locking (monitor entry & exit) on the jvm
atomics before we move on, JDK 7 also provides ‘weakCompareAndSet’ atomic api, which relaxes the happens-before ordering guarantee relaxing the ordering makes it very hard to reason about the program’s execution so its use is limited to debugging counters, etc there are better ways of doing this ‘fast’ — which brings us to…
adders & accumulators under high contention, the biased locking would be spending too much time in lock revocation from a thread if we used atomics in these high contention situations, adders* help gather counts by actively reducing contention, and ‘gather’ the value only when sum() or longValue() is called * http://download.java.net/lambda/b78/docs/api/java/util/concurrent/atomic/LongAdder.html
concurrent collections the JDK also comes with a handful of lock- free collections these help in correctly synchronizing larger data sets than single variables
concurrent collections ConcurrentHashMap (CHM) uses some of the concepts listed so far and provides a lock- free read, and a mostly lock-free write in java 8 relies on a good hashCode to reduce collisions, after which it reverts to using a lock for that bin
concurrent collections CHM — in general — allows concurrent use of a Map which can be pretty useful especially to represent a shared ‘mutating’ state, and such CHM, together with adders for example, enable concurrent, lock-free, histogram generation across threads more about CHM here, ofcourse: https://docs.oracle.com/javase/8/docs/api/java/util/concurrent/package- summary.html
synchronizers let’s look at some synchronization primitives… (a.k.a. ‘source of bugs’)
synchronizers 2 major categories… coarse-grained locks are usually less performant, but are easy to code and, fine-grained locking has potential for higher performance, but is more error prone
synchronized synchronized keyword is a coarse grained locking scheme you acquire & release locks at method or block level, typically holding the lock longer than needed translates directly to jvm synchronization (intrinsic) & hardware monitor so its use is currently discouraged (might change in java9)
explicit locks Locks* enables fine-grained locking these extend intrinsic locks, and allow unconditional, polled, timed & interruptible lock acquisition allow ‘custom’ wait/notify queues (Condition*) on the same lock nice features, but … * http://docs.oracle.com/javase/8/docs/api/java/util/concurrent/locks/Lock.html
 * http://docs.oracle.com/javase/7/docs/api/java/util/concurrent/locks/Condition.html

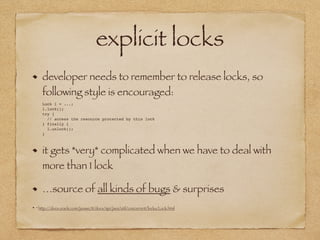

explicit locks developer needs to remember to release locks, so following style is encouraged:
 Lock l = ...;
 l.lock();
 try {
 // access the resource protected by this lock
 } finally {
 l.unlock();
 } it gets *very* complicated when we have to deal with more than 1 lock …source of all kinds of bugs & surprises * http://docs.oracle.com/javase/8/docs/api/java/util/concurrent/locks/Lock.html
ReentrantLock an implementation of Lock described earlier support fairness policy to deal with lock starvation — ‘fair’, not ‘fast’ there is nothing special in this lock to make it ‘reentrant’; all intrinsic locks are per-thread and reentrant, unlike POSIX invocation based locks * http://docs.oracle.com/javase/8/docs/api/java/util/concurrent/locks/ReentrantLock.html
a note about reentrancy reentrancy helps encapsulate locking behavior & helps write cleaner (oop) concurrent code in simpler cases (using single ‘resource’ but multiple methods) this also helps avoid deadlocks:
 class A {
 synchronized void run(){
 //..
 }
 }
 class B extends A {
 synchronized void run() {
 super.run()
 }
 } if intrinsic locks were not reentrant on jvm, the call to super.run() would be deadlocked
ReentrantLock ReentrantLock (not reentrancy in general) has some issues so it must be used with caution: causes starvation, and performs poorly when fairness is used
StampedLock supports optimistic reads & lock upgrades is not reentrant — needs the stamp, so not usable across calls to unknown methods for internal use in thread safe components, where you fully understand the data, objects & methods involved
StampedLock for very short read-only code, optimistic reads improve throughput by reducing contention useful when reading multiple fields of an object from memory without locking must call validate() later to ensure consistency
StampedLock along with optimistic reads, the lock upgrade capability enables many useful idioms:
 StampedLock sl = new StampedLock();
 double x, y;
 ..
 double distanceFromOrigin() { // A read-only method
 long stamp = sl.tryOptimisticRead();
 double currentX = x, currentY = y; // read without locking
 if (!sl.validate(stamp)) {
 stamp = sl.readLock(); // upgrade to read-lock if values are dirty
 try {
 currentX = x;
 currentY = y;
 } finally {
 sl.unlockRead(stamp);
 }
 }
 return Math.sqrt(currentX * currentX + currentY * currentY);
 }
fork/join unlike regular java.lang.Thread (which are mostly based on POSIX threads), fork/join tasks never ‘block’ for simple tasks, the overhead of constructing and/or managing a thread is more expensive than the task itself programming on fork/join, in essence, allows frameworks to optimize such tasks ‘behind the scenes’
fork/join going beyond performance, the framework does nothing to ensure concurrency control the framework is also only usable in a few scenarios where task can be easily disintegrated in a sense, this is not making it easier to create correct (and fast) programs
lambdas & streams framework available on jdk 8 for data- processing workloads looks ‘functional’ — but due to type-erasure these aren't typed ‘look’ like anonymous inner class but are fundamentally different from the ground-up — enabling jvm optimizations for concurrency & gc
lock-free we’ve looked at a few lock-free concepts at a single-variable level, using CAS and atomics, which rely on CAS and optimizations to make CAS faster…
lock-free but how do we write ‘real-world’ concurrent applications using lock-free concepts? i.e., more than just CAS?
lock-free that brings us to software transactional memory (STM)! STM is to concurrency control, what garbage- collection is to memory management
STM brings DB transaction concept to regular memory access read & write ‘as-if’ there is no contention… during commit time the system ensures sanity under the hood … no locks in the code!
STM in low contention use-cases (i.e., well- designed programs), the absence of synchronization makes execution very fast! even in poorly designed programs, the absence of locks makes it easier to focus on correctness
STM implementation multiverse[1] is a popular jvm implementation of STM (groovy and Scala/Akka use it in their STM) in essence, multiverse implements multiversion concurrency control (MVCC[2]) Clojure has a language built-in STM feature [1] http://multiverse.codehaus.org/overview.html
 [2] http://en.wikipedia.org/wiki/Multiversion_concurrency_control
STM & composability the biggest benefit of STM is composability (software reuse)
 class Account {
 private final TxnRef<Date> lastUpdate = …;
 private final TxnInteger balance = …;
 public void incBalance(int amount, Date date){
 atomic(new Runnable() {
 public void run(){
 balance.inc(amount);
 lastUpdate.set(date);
 if(balance.get() < 0) {
 throw new IllegalStateException("Not enough money");
 }
 }
 });
 }
 }
 class Teller {
 state void transfer(Account from, Account to, int amount) {
 atomic(new Runnable() {
 public void run() {
 Date date = new Date();
 from.incBalance(-amount, date);
 to.incBalance(amount, date);
 }
 });
 }
 }
STM & composability the Teller class is able to ‘compose’ over other atomic operations without knowing their internal details (i.e., what locks they use to synchronize) so if to.incBalance() fails, the memory effects of from.incBalance() are not committed so will never be visible to other threads! this is a pretty big deal…
Simplicity STM makes composing concurrent software modules appear very trivial in the absence of locks, it is easier to conceptualize the code flow the ability to code atomic operations this way essentially nullifies the challenges typically associated with concurrent programming
performance as stated earlier, stm allows optimistic execution: ‘as though’ there are no other threads running, so it increases concurrency STM synchronizes only when required and falls back to slower (serialized) executions when necessary STM performs better than explicit locks as the number of cores increase beyond 4* * http://en.wikipedia.org/wiki/Software_transactional_memory
 http://channel9.msdn.com/Shows/Going+Deep/Programming-in-the-Age-of-Concurrency-Software-Transactional-Memory
more performance apart from just software improvements, cpu makers have started looking into hardware support for TM this is an emerging area and more advances are being made, apart from Haswell, and TSX from Intel * https://software.intel.com/en-us/blogs/2012/02/07/transactional-synchronization-in-haswell
 * http://en.wikipedia.org/wiki/Transactional_Synchronization_Extensions
STM & Practicality concurrent programming is getting more practical stm brings the benefits of fine-grained locking to coarse-grained locking without using locks
Summary lock-free concurrency control techniques like STM not only make it easier to write correct code… but also allows platforms (like JVM) to make your code correct code run faster
References Being a long slideshow with dense content, I’ve put references on each slide so you can read through Reach out to me on LinkedIn if you’d like more info or just to discuss!
