Learn about AutoCAD

An Introduction to AutoCAD for Beginners

2
Introduction to AutoCAD........................................................................... 3
Upgrading from an Older Version........................................................ 6
AutoCAD vs. AutoCAD LT................................................................... 7
New Features Overview.............................................................................. 8
Documentation................................................................................. 11
Design............................................................................................... 13
Connectivity...................................................................................... 14
Customization................................................................................... 15
Mac Highlights.................................................................................. 16
User Interface Tour................................................................................... 17
Guide to AutoCAD Basics........................................................................ 20
Basics................................................................................................ 22
Viewing............................................................................................. 29
Geometry.......................................................................................... 31
Precision............................................................................................ 38
Layers................................................................................................ 43
Properties.......................................................................................... 49
Modifying......................................................................................... 55
Blocks............................................................................................... 67
Layouts............................................................................................. 71
Notes and Labels............................................................................... 77
Dimensions....................................................................................... 81
Printing............................................................................................. 86
Additional Resources................................................................................ 91
Shortcut Keys.................................................................................... 91
Enhanced Training & Certification Options......................................... 92
Table of Contents
Key enhancements
were made in AutoCAD
around documentation,
design, connectivity and
customization to help
create a better user
experience for Autodesk
customers.

4
Introduction to AutoCAD
Welcome to AutoCAD’s tutorial. With this suite of tools, you will be
able to produce high quality designs in less time, via the significant
improvements in precision and flexibility while working in both 2D
sketches and 3D modeling.
New Features
Developed based on the feedback from actual users, AutoCAD includes
the features that designers and engineers need in order to do their
best work. Richer design context and more intelligent tools clear the
way to faster, more precise design and documentation. The new smart
dimensioning feature automatically creates appropriate measurements
based on the type of objects you select. For example, angular dimensions
on circles and arcs, dimensions between parallel lines and dimensions
based on Object Snaps. Improvements to the drawing canvas produce
a stunning visual experience that makes navigating the details of your
drawing easier than ever.
Documentation has been upgraded, as well. The new Enhanced PDFs
are smaller, faster and smarter, with more searchable content. If you
are bringing a PDF into AutoCAD, there are significant enhancements
to the underlay feature which makes for quicker, more fluid panning
AutoCAD is helping users produce
quality designs in less time with
significant improvements.

5
and zooming when working with large files. The new coordination
model feature was introduced to eliminate any unnecessary guesswork.
AutoCAD also lets you confidently share your work using TrustedDWG
technology—the most accurate way to store and share design data.
Platforms and Integration Features
AutoCAD is available for both the Windows and Mac operating systems.
You’ll find mobile solutions support and cloud rendering available to you,
and if you have an AutoCAD subscription, you get access to the latest
version, as well as previous versions, additional support benefits and
cloud rendering in A360.
If you have not yet subscribed, take advantage of AutoCAD’s Free Trial
to learn more about the latest version.
SUBSCRIBE
DOWNLOAD FREE TRIAL

6
Upgrading from an Older Version
Every product released by Autodesk includes features that are the result
of learnings and feedback provided by our users. The most recent
version of AutoCAD includes improvements such as a new stunning
visual experience, enhanced documentation, and new design features. In
addition, it enables increased connectivity and customizations that allow
users to share designs and customize the user interface.
Some of the recent features that make AutoCAD well worth upgrading
include:

High-Fidelity lines and curves

Coordination model

Point cloud dynamic UCS

Point cloud geometry extraction

Smart dimensioning

Revision cloud enhancements

PDF enhancements

Optimized PDF output

Searchable text in exported PDFs

Hyperlink support in exported PDFs

Amplified powerful rendering

Customization of the user interface

7
AutoCAD vs. AutoCAD LT
AutoCAD and its lighter, more streamlined version, AutoCAD LT, are
both leading design and engineering software programs. Both offer 2D
drafting and documentation along with dozens of design, connectivity
and customization features. The primary difference between the
two versions is that AutoCAD capabilities include 3D modeling and
collaboration tools, along with several other special features.
For those unsure which product is right for them, a complete AutoCAD
vs AutoCAD LT comparison is available on the Autodesk website. Or, you
can try AutoCAD and AutoCAD LT for free, if you’d like to get hands-on
information about which product will work best for your projects.

9
New Features Overview
Key enhancements were made in AutoCAD around
documentation, design, connectivity and customization. Quite
a few of the AutoCAD basics were upgraded to create a better
user experience for Autodesk customers.
Enhanced Features
A new geometric object snap has been added so you can snap
to the centroid of a closed polygon. Command preview has been
enhanced to include the blend, erase, scale, street and rotate
commands. The DIM command has been enhanced to create
dimensions based on the type of object you select. Preview works
the same for circles and arcs when creating a diameter or radial
dimension. You also have the option to switch between Radius
and Diameter before placing the dimension. Width sizing of
dimension text is also available for adjusting text wrapping.
PDF Options were added to the Plot dialog. PDF Options support
links to external websites and files based on links added to objects
in the drawing. You can also export bookmarks for sheets and
named views so you can easily navigate between them when
viewing the PDF.
TrueType®
fonts are now searchable in PDFs and their comments.
A new CURSORBADGE system variable enables you to control
the display of cursor badges. The System Variable Monitor lets you
quickly identify changes to key system variables and then set them
to your preferred values. You can also display notifications when a
system variable has changed.
Intuitive Coordination Modeling
The Attach Coordination Model dialog has the standard insert
options, such as path, insertion point, scale, and rotation. You can
also specify whether to show or hide geometry in the model that is
the same as the geometry in the current drawing and you’ll be able
to use standard navigation commands like 3DORBIT to navigate
the attached coordination model. We added settings for color and
opacity fading to make it easier to tell the difference between your
drawing and the coordination model. Additionally, you can now:

Attach a Navisworks coordination model to a drawing.

Attach a coordination model from BIM 360 Glue to a
drawing via the BIM 360 add-on for AutoCAD.

Take advantage of Point Cloud enhancements which are
now automatically detected.

Find enhanced support for solid objects.

Utilize 3D Object Snaps to snap to inferred edges, corners,
and centerlines of point clouds to assist in modeling while
using a point cloud as reference.

Detect planar segments in point clouds using dynamic UCS,
allowing you to draw geometry directly on a point cloud.

Via the Extract Section Lines dialog, you’ll be able to specify
settings including layer, color maximum points to process,
and extraction tolerances. When the processing is complete
the geometry is created.
NEW FEATURES OVERVIEW

10
Get to Know the New Render Environment
and Exposure Palette
The render engine used in earlier releases has been replaced and
the new Render Environment and Exposure palette allow you to
apply image-based lighting and adjust photographic exposure
settings.
Image-based lighting can be used to brighten a rendered
image while also improving the contrast to areas with shadows.
Photographic exposure settings allow you to adjust the exposure
level of the light in a scene and change the white balance to
make the lighting appear cooler or warmer in color.
Once a scene has been configured, you can use the new Render
Presets Manager palette to specify both the rendering accuracy
and duration. A rendered image can be generated in the current
viewport or the Render window, and from there can be saved to
a raster image file.
NEW FEATURES OVERVIEW

11
Documentation
Documentation, a key feature of any CAD software tool, has
been improved greatly in the most recent versions of AutoCAD.
To accurately turn designs into real world structures, people in
the field rely on accurate documentation. That’s why Autodesk
improved the documentation tools in AutoCAD and AutoCAD LT.
Start New Documents or Open Existing Ones
with the New Tab Page
Start on your designs with the New Tab page. Quickly open
new and existing drawings, and access a large selection of
design elements. You’ll have the ability to open templates,
update from design feeds, or design data residing on A360
project collaboration software. For questions, select the Help
Window, which displays tool locations within the interface via an
animated arrow. This function acts as a mini AutoCAD tutorial
and is a great resource for any questions you may have.
Enjoy Enhanced PDFs
With Enhanced PDFs, notes and dimensions have been added to
reinforce the use of these PDFs as professional documentation.
Text is searchable in your PDF, and if you create sheet sets with
hyperlinks to drawings, those links are now maintained. Plotting
out a PDF is also quicker, because you have more control over
the vector raster and image quality of PDF output. The output is
the same fidelity, at only half the file size.
Sneak Previews with Smart Dimensioning
Smart dimensioning is another critical feature and it works by
automatically creating appropriate dimension notes based on the
type of objects you select. Simply pass the cursor over selected
objects to see a preview of the dimension before creating it.
View Changes More Easily with Revision
Clouds
Revision clouds help draw attention to specific areas of your
drawing that are changing. Draw revision clouds around new
changes in a drawing to quickly identify your updates. Easily
stretch, add to, and remove all parts of existing revision clouds,
and create revision clouds from almost any object. Whether your
revision cloud is rectangular, polygonal, or freehand, it’s now
easier to edit its size and shape with a grip.
A Faster, Cleaner Workspace with Ribbon
Gallery
The Ribbon gallery offers a fast and intuitive workflow for users.
To add a block to your design, use the Ribbon gallery and hover
over the ribbon for a block insertion. The Block gallery will
display thumbnails of all the blocks. From there, you can insert
your selection right away without having to use a dialog box.
NEW FEATURES OVERVIEW: DOCUMENTATION

12
Save Time with the Command Preview Tool
Another big time saver is the command preview tool, which
helps reduce the number of Undo commands you make by
letting you evaluate the potential changes of commands such
as Offset, Fillet, and Trim. The Intelligent Command Line feature
takes reviews a step further by including AutoCorrect, Adaptive
Suggestions, and Synonym Suggestions. AutoCorrect spellchecks
your input and offers suggestions from a synonym list, so you
never have to see the Command Not Found message.
Since it is much easier to view all of these new features on the
new refined interface, it also helps reduce eyestrain. It’s easier
to see fine lines, buttons, and text, which increases functionality
and productivity. Get the current version of AutoCAD today to
see how all these new features work seamlessly together.
NEW FEATURES OVERVIEW: DOCUMENTATION
Learn more about the Command Tool here.

13
Design
Lines, arcs and circles are the building blocks used to bring your
ideas to life. In previous versions of AutoCAD, what you saw on
the screen was not always as crisp as what you plotted to paper.
In this release, you’ll find many design elements that provide a
stunning visual experience for users.
Clearer Details
The details in your designs are now viewed more clearly with
visual enhancements such as Line Fading and enhanced readability
with true curves instead of line segments. With reality computing
enhanced, there is now the ability to orient your work more
precisely with the point cloud. Maneuver between horizontal and
vertical planes more quickly with Dynamic UCS. In addition, snap
to edges, intersections, corners, and centerlines can now be used
to quickly create geometry using point cloud object snaps.
Better Integration with Navisworks and BIM
360 Glue
Another new design feature allows for the ability to paste
Navisworks and BIM 360 Glue models directly inside AutoCAD.
This allows users to take advantage of Navisworks’ vast file format
support to bring models into AutoCAD from other applications.
Additionally, online maps (formerly live maps) can now be
accessed directly inside the canvas. This means that you can
capture online maps as static images and print them with your
design overlaid, or create PDFs that include the geolocation map.
Shaping Up Shapes in 2D and 3D
Isoline curves can now be extracted through a specified point on
a surface or face of a solid to determine the contour lines of any
shape. The tool displays a preview of the resulting spline before
you pick the point. You can specify the direction of the isolines,
either in the U or V direction.
Previously you were limited to clicking inside a bounded area to
select multiple objects, but no longer. Now you can select 2D
and 3D curves for a quick and easy PressPull operation. These 3D
free-form design tools help generate design ideas in almost any
form imaginable. PressPull faces, edges, and vertices to model
complex shapes and add smooth surfaces. Solid, mesh, and
surface modeling give you flexibility and control when designing
in 3D. The navigation bar includes frequently used tools such as
steering wheels, view cube, and show motion, as well as pan,
zoom, and orbit.
If you need to analyze the continuity, curvature, and draft of
3D solids and surfaces, then the surface tool was made for
you. The Zebra analysis projects stripes onto a 3D model to
analyze surface continuity. Use the new viewport controls to
change viewport settings, views, and visual styles directly on the
viewport canvas.
NEW FEATURES OVERVIEW: DESIGN

14
Connectivity
Collaboration is essential, so making an AutoCAD that helps
designers communicate with other project team members was
essential. The result is an integrated AutoCAD that works across
connected desktop, cloud, and mobile solutions. For example,
you can view, create, edit, and share AutoCAD drawings on a
mobile device or web browser via the AutoCAD 360 mobile and
web app.
The design and the conversation happen in the same place, but
when it’s time to submit your final drawing, you have a choice.
You can keep the comments intact or strip them using built-in
tools in the eTransmit and File Save workflows. TrustedDWG
technology helps ensure that all the elements in your drawings,
and the relationship between those elements, are maintained.
All AutoCAD products use this technology to store and share
design and documentation files.
AutoCAD helps save valuable time by importing models from
Inventor 3D CAD software directly into the AutoCAD model
space environment. You can more easily share and reuse CAD
files with PDF support within AutoCAD software. By using the
materials library, you have access to hundreds of visually rich,
predefined surface materials.
NEW FEATURES OVERVIEW: CONNECTIVITY

15
Customization
Flexibility has always been an AutoCAD virtue. The software’s
open architecture allows for customization that readily adapts to
your needs. Fortunately, if something goes wrong, there is also a
failsafe in the form of a Sysvar monitor. This monitor will prevent
unwanted changes to your system settings, especially if it could
affect your drafting work.
The exchange app was created as a marketplace for general
productivity tools, as well as a place for various applications
for specific disciplines to share information. With this platform,
users can find peer-generated apps and tools that allow them
to use AutoCAD with settings that fit their needs. Designers
and engineers can also easily sync their custom preferences and
support files on multiple machines.
Lastly by offering a customizable and expandable user interface,
companies can expand and change their interface to meet the
needs of their entire company. For help during this process, the
Autodesk Developer Network training and support can answer
questions or help you integrate the latest release of AutoCAD
software into your workflow.
NEW FEATURES OVERVIEW: CUSTOMIZATION

16
Mac Highlights
With more enhancements than ever before, AutoCAD’s latest
version on Mac OS can help you and your team be more
productive. Mixed platform team collaboration is easier than
ever with the ability to map XREF file paths from your Mac
to Windows machines, including networked servers. Sending
projects back and forth is easier than ever.
Other features specific to Mac users have been improved
upon, as well. For instance, you can now find high-definition
graphics throughout the user interface from toolbars and
icons to in-canvas line rendering that work beautifully with the
retina display’s high-resolution graphics capabilities. Other Mac
features like multi-touch gestures, overflow navigation, and an
elegant Mac interface have also been improved upon in this
iteration of AutoCAD.
NEW FEATURES OVERVIEW: MAC HIGHLIGHTS

User Interface Tour
The AutoCAD user interface was designed to be intuitive and user-friendly. Even if you are at the
beginner’s level for AutoCAD, you should still be able to easily navigate through the software.

Upon first opening the program, you can either start drawing from a template of your
choice, or open a recent document. If there is any product update information (like
the opportunity to get the current version of software), you’ll see it available in the
notifications button. Lastly, you can also log into A360 Connect from this screen.

The drawing area is where you can create and modify objects. This area allows for lots
of flexibility with view cubes, navigation bars, and much more. From this view, you have
many other options to aid in the creative process.
• Viewport controls allow you to adjust both visual styles and views directly on the
viewport canvas.
• Through the navigation bar, you’ll find frequently used tools such as steering wheels,
view cube, and show motion, as well as pan, zoom, and orbit.
• Planar segments can now be detected in point clouds using dynamic UCS tools,
allowing you to draw geometry directly on a point cloud.
• The AutoCAD ribbon gallery offers a fast and intuitive workflow while the quick
access toolbar lets you easily reach the tools you most commonly use.
USER INTERFACE TOUR

Command preview helps you reduce the number of Undo commands you make by letting
you evaluate the potential changes of commands such as Offset, Fillet, and Trim. When
you are ready to see your creation in 3D, use the workspace control buttons to get to a
3D workspace.

Customization of the user interface is done by modifying the XML-based customization
(CUIx) file with the Customize User Interface (CUI) Editor. After a command is defined, it
can be used to create a button or a response to an action in the drawing area. Default
shortcut keys are available for your reference on the Autodesk Knowledge Network.
You can edit customization (CUIx) files to make the following changes:
• Add, delete, or change user interface elements, such as ribbon tabs and panels,
and Quick Access toolbars
• Create or change workspaces
• Create or change macros and tooltips for commands
• Create or change double-click actions
• Create or change keyboard shortcuts and temporary overrides
• Control the properties displayed when using rollover tooltips and the
Quick Properties palette
• Create and load new CUIx files
USER INTERFACE TOUR

21
Basics:
This section reviews the basic AutoCAD
controls.
Viewing:
Pan and zoom in a drawing, and control
the order of overlapping objects.
Geometry:
Create basic geometric objects such as
lines, circles, and hatched areas.
Precision:
Ensure the precision required for your
models.
Layers:
Organize your drawing by assigning
objects to layers.
Properties:
You can assign properties such as color
and linetype to individual objects, or as
default properties assigned to layers.
Modifying:
Perform editing operations such as
erase, move, and trim on the objects in a
drawing.
Blocks:
Insert symbols and details into your
drawings from commercial online sources
or from your own designs.
Layouts:
Display one or more scaled views of your
design on a standard-size drawing sheet
called a layout.
Notes and Labels:
Create notes, labels, bubbles, and callouts.
Save and restore style settings by name.
Dimensions:
Create several types of dimensions and
save dimension settings by name.
Printing:
Output a drawing layout to a printer, a
plotter, or a file. Save and restore the
printer settings for each layout.
For questions, the product discussion
group is a great resource, as is the
AutoCAD blog.
GUIDE TO AUTOCAD BASICS
Guide to AutoCAD Basics
In this section, you’ll find a comprehensive technical AutoCAD tutorial which includes all the basic commands you will need when
creating 2D drawings with AutoCAD or AutoCAD LT.
If you have just completed your AutoCAD training, or if you are comfortable with AutoCAD basics but would like a refresher, this is a
great place to start. The included commands are grouped together according to types of activity, and are arranged to follow a general
workflow. The following sections are covered:

22
4.3 VIEWING
Basics
Review the basic AutoCAD controls.
After you launch AutoCAD, click the Start Drawing button to begin a new drawing.
AutoCAD includes a standard tabbed ribbon across the top of the drawing area. You can access
nearly all the commands presented in this guide from the Home tab. In addition, the Quick Access
toolbar shown below includes familiar commands such as New, Open, Save, Print, Undo, and so on.
NOTE: If the Home tab is not the current
tab, go ahead and click it.
GUIDE TO AUTOCAD BASICS: BASICS

23
The Command Window
At the heart of AutoCAD is the Command window, which is
normally docked at the bottom of the application window. The
Command window displays prompts, options, and messages.
You can enter commands directly in the Command window
instead of using the ribbon, toolbars, and menus. Many long-
time AutoCAD users prefer this method.
Notice that as you start to type a command, an autocomplete
menu appears. When several options are available, such as in
the example below, make your choice by clicking the correct
option or using the arrow keys and then pressing Enter or the
Spacebar to confirm your selection.

24
4.3 VIEWING
The Mouse
Most people use a mouse as their pointing device, but other devices have equivalent controls.
Here’s a Tip:
When looking for a command
or option, try right-clicking.
Depending on where your
cursor is located, different
menus will display relevant
commands and options.

25
New Drawings
You can easily conform to industry or company standards by
specifying settings for text, dimensions, linetypes, and several
other features. For example, this backyard deck design displays
two different dimension styles.
All these settings can be saved in a drawing template file. Click
New to choose from several drawing template files:
• For imperial drawings that assume your units are inches, use
acad.dwt or acadlt.dwt.
• For metric units that assume your units are millimeters, use
acadiso.dwt or acadltiso.dwt.
The “Tutorial” template files in the list are examples of the
architectural or mechanical design templates using both imperial
(i) and metric (m) measurements. You might want to experiment
with them.
Most companies use drawing template files that conform to
company standards, and they will often use different drawing
template files depending on the project or client.

26
4.3 VIEWING
Create Your Own Drawing Template File
You can save any drawing (.dwg) file as a drawing template (.dwt) file. You can also open any
existing drawing template file, modify it, and then save it again with a different filename if needed.
If you work independently, you can develop your drawing template files to suit your working
preferences, adding settings for additional features as you become familiar with them.
To modify an existing drawing template file, click Open, specify Drawing Template (*.dwt) in the
Select File dialog box, and choose the template file.
Important:
If your company has already
established a set of drawing
template files, check with
your CAD manager before
modifying any of them.

27
4.3 VIEWING
Units
When you first start a drawing, you need to decide what the length of one unit represents—an
inch, a foot, a centimeter, a kilometer, or some other unit of length. For example, the objects below
could represent two buildings that are each 125 feet long, or they could represent a section from a
mechanical part that is measured in millimeters.
Unit Display Settings
After you decide what unit of length that you want to use, the UNITS command lets you control
several unit display settings including the following:

Format (or Type): For example, a decimal length of 6.5 can be set to display as a fractional
length of 6-1/2 instead.

Precision: For example, a decimal length of 6.5 can be set to display as 6.50, 6.500, or 6.5000.
If you plan to work in feet and inches, use the UNITS command to set the unit type to
Architectural, and then when you create objects, specify their lengths in inches. If you plan to use
metric units, leave the unit type set to Decimal. Changing the unit format and precision does not
affect the internal precision of your drawing, it affects only how lengths, angles, and coordinates
are displayed in the user interface.
Here’s a Tip:
If you need to change the
UNITS settings, make sure
that you save the drawing as
a drawing template file (.dwt).
Otherwise, you will need to
change the UNITS settings for
each new drawing.

28
4.3 VIEWING
Model Scale
Always create your models at full size (1:1 scale). The term model refers to the geometry of your
design. A drawing includes the model geometry along with the views, notes, dimensions, callouts,
tables, and the title block displayed in the layout.
You can specify the scaling that is necessary to print a drawing on a standard-sized sheet later,
when you create the layout.
Recommendations

To open Help for information about the command in progress, press F1.

To repeat the previous command, press Enter or the Spacebar.

To see various options, select an object and right-click or right-click a user interface element.

To cancel a command in progress or if you ever feel stuck, press Esc. For example, if you click
in the drawing area before entering a command, you will see something like the following:
Here’s a Tip:
Press Esc to cancel this
preselection operation.

29
4.3 VIEWING
Viewing
Zoom in on a drawing to better control the order of overlapping objects.
The easiest way to change your view is by using the mouse wheel.
• Zoom in or out by rolling the wheel.
• Pan a view in any direction by holding the wheel down while moving your mouse.
• Zoom in on a specific area for greater detail holding your mouse over the area and clicking the
wheel twice.
Here’s a Tip:
When you zoom in or out,
the location of the cursor
is important. Think of your
cursor as a magnifying glass.
For example, if you position
the cursor in the upper-right
area of the floor plan as
shown below, zooming in
magnifies the dressing room
without shifting the view.
NOTE: If you cannot zoom or pan any
more, type REGEN in the Command
window and press Enter. This command
regenerates the drawing display and
resets the extents available for panning
and zooming.
GUIDE TO AUTOCAD BASICS: VIEWING

30
Overlapping Objects
If you create objects that overlap, you might need to change
which objects are displayed on top or in front of the others.
For example, if you want the yellow highway to cross the blue
river rather than the other way around, use the DRAWORDER
command to reorder the objects.
You can access several draw order options from the Modify
panel on the ribbon. Click to expand the Modify panel, and then
click the down-arrow as shown below.
The draw order options that are listed include sending all
hatches to the back, all text to the front, and so on.
GUIDE TO AUTOCAD BASICS: VIEWING

31
Geometry
Create basic geometric objects such as lines, circles, and hatched
areas.
You can create many different types of geometric objects in
AutoCAD, but you only need to know a few of them for most
2D drawings.
NOTE: If you want to simplify the display while creating geometric objects, press F12
to turn off dynamic input.
Lines
The line is the most basic and common object in AutoCAD
drawings. To draw a line, click the Line tool.
Alternatively, you can type LINE or just L in the Command
window, and then press Enter or the Spacebar.
Notice the prompt in the Command window for a point
location.
To specify the starting point for this line, you would type in
the coordinates 0,0. It is a good idea to locate one corner of
your model at 0,0, which is called the origin point. To locate
additional points, you could specify additional X,Y coordinate
locations in the drawing area, however more efficient methods
for specifying points are available, and will be presented in the
Precision topic.
After you specify the next point, the LINE command automatically
repeats itself, and it keeps prompting you for additional points.
Press Enter or the Spacebar to end the sequence.
GUIDE TO AUTOCAD BASICS: GEOMETRY

32
The User Coordinate System
The user coordinate system (UCS) icon indicates the direction of
the positive X and Y axis for any coordinates that you enter, and
it also defines the horizontal and vertical directions in a drawing.
In some 2D drawings, it can be convenient to click, drag, and
rotate the UCS to change the origin point, and the horizontal
and vertical directions.
Grid Display
Some people like working with grid lines as a reference, while
others prefer working in a blank area. To turn off the grid
display, press F7. Even with the grid turned off, you can force
your cursor to snap to grid increments by pressing F9.
Lines as Construction Aids
Lines can serve as reference and construction geometry such as:
• Property line setbacks
• The mirror line of a symmetrical mechanical part
• Clearance lines to avoid interferences
• Traversal path lines

33
Circles
The default option of the CIRCLE command requires you to
specify a center point and a radius.
The other circle options are available from the drop-down:
Alternatively, you can also enter CIRCLE or just C in the
Command window and click to choose an option. If you do,
you can specify a center point, or you can click one of the
highlighted command options as shown below.
Circles can be useful as reference geometry. For example, you
can see that the two doors in the illustration can interfere with
each other.

34
Polylines and Rectangles
A polyline is a connected sequence of line or arc segments that
is created as a single object.
Use the PLINE command to create open or closed polylines for:
• Geometry that requires fixed-width segments
• Continuous paths for which you need to know the total
length
• Contour lines for topographic maps and isobaric data
• Wiring diagrams and traces on printed circuit boards
• Process and piping diagrams
Polylines can have a constant width or they can have different
starting and ending widths. After you specify the first point of
the polyline, you can use the Width option to specify the width
of all subsequently created segments. You can change the width
value at any time, even as you create new segments.
Here is an example of a printed circuit board in which the traces
were created with wide polylines. The landing pads were created
with the DONUT command.

35
Polylines and Rectangles (continued)
Polylines can have different starting and ending widths for each
segment as shown here:
A fast way to create closed rectangular polylines is to use the
RECTANG command (enter REC in the Command window).
Simply click two diagonal points for the rectangle as illustrated.
If you use this method, turn on grid snap (F9) for precision.

36
4.3 VIEWING
Hatches and Fills
In AutoCAD, a hatch is a single, compound object that covers a specified area with a pattern of
lines, dots, shapes, a solid fill color, or a gradient fill.
When you start the HATCH command, the ribbon temporarily displays the Hatch Creation tab. On
this tab, you can choose from over 70 industry-standard imperial and ISO hatch patterns along with
many specialized options.
The simplest procedure is to choose a hatch pattern and scale from the ribbon, and click within any
area that is completely enclosed by objects. You must specify the scale factor for the hatch in order
to control its size and spacing.
After you create a hatch, you can move the bounding objects to adjust the hatch area, or you can
delete one or more of the bounding objects to create partially bounded hatches:
Here’s a Tip:
If you set a solid or gradient
fill hatch pattern, also consider
setting a transparency level
on the Hatch Creation tab for
interesting overlap effects.

37
4.3 VIEWING
Hatches and Fills (continued)
Here are some examples of how you can use solid-fill hatches:
Here’s a Tip:
If you need to align the
pattern in a hatch, which
might be the case with the
decking boards above, use the
Set Origin option to specify an
alignment point.
NOTE: If an area is not completely
enclosed, red circles appear to indicate
potential gaps. Enter REDRAW in the
Command window to dismiss the red
circles.

38
Precision
Ensure the precision required for your models.
There are several precision features available, including:

Polar tracking: Snap to the closest preset angle and
specify a distance along that angle.

Locking angles: Lock to a single, specified angle and
specify a distance along that angle.

Object snaps: Snap to precise locations on existing
objects, such as an endpoint of a polyline, the midpoint of
a line, or the center point of a circle.

Grid snaps: Snap to increments on a rectangular grid.

Coordinate entry: Specify a location by its Cartesian or
polar coordinates, either absolute or relative.
The three most commonly used features are polar tracking,
locking angles, and object snaps.
Polar Tracking
When you need to specify a point, such as when you create a
line, you can use polar tracking to guide the movement of your
cursor in certain directions.
For example, after you specify the first point of the line below,
move your cursor to the right, and then enter a distance in the
Command window to specify a precise horizontal length for the
line.
By default, polar tracking is turned on and guides your cursor in
a horizontal or vertical direction (0 or 90 degrees).
GUIDE TO AUTOCAD BASICS: PRECISION

39
Locking Angles
If you need to draw a line at a specified angle, you can lock the
angle for the next point. For example, if the second point of a
line needs to be created at a 45 degree angle, you would enter
‘45’ in the Command window.
After you move your cursor in the desired direction along the
45-degree angle, you can enter the length of the line.
Object Snaps
By far, the most important way for you to specify precise
locations on objects is to use object snaps. In the following
illustration, several different kinds of object snaps are
represented by markers.
Object snaps become available during a command whenever
AutoCAD prompts you to specify a point. For example, if you
start a new line and move your cursor near the endpoint of an
existing line, the cursor will automatically snap to it.

40
Set Default Object Snaps
Enter the OSNAP command to set the default object snaps,
which are also called “running” object snaps. For example,
you might find it useful to turn on the Midpoint object snap by
default.
Recommendations

At any prompt for a point, you can specify a single object
snap that overrides all other object snap settings. Hold
down Shift, right-click in the drawing area, and choose an
object snap from the Object Snap menu. Then move the
cursor to select a location on an object.

Make sure that you zoom in close enough to avoid
mistakes. In a densely populated model, snapping to the
wrong object will result in an error that can propagate
throughout your model.

41
Object Snap Tracking
During a command, you can align points both horizontally and
vertically from object snap locations. In the following illustration,
you first hover over endpoint 1 and then hover over endpoint
2. When you move your cursor near location 3, the cursor locks
into the horizontal and vertical location shown.
You can now finish creating the line, circle, or other object that
you were creating from that location.
Verify Your Work
Recheck your geometry to catch mistakes early. Enter the DIST
command (or just DI) to measure the distance between any two
points in your model.
For example, you might need to find the clearance between two
points shown, which might represent the corner of a wall and a
small table, or perhaps a 2D section of a plastic part and a wire.
After you enter DIST, click the endpoint on the corner (1). Next,
hold down Shift as you right-click, and then choose Perpendicular
from the object snap menu. Finally, click the circle (2).
The number of decimal places and unit style displayed in the
result is controlled by the UNITS command.

42
4.3 VIEWING
Handy Function Key Reference
All keyboard function keys have assignments in AutoCAD. The ones that are most commonly
turned on and off are indicated with a key.
Key Feature Description
F1 Help Displays Help for the active tooltip, command palette, or dialog
box.
F2 Expanded History Displays expanded command history in the Command Window.
F3 Object Snap Turns object snap on and off.
F4 3D Object Snap Turns on additional object snaps for 3D elements.
F5 Isoplane Cycles through 2-1/2D isoplane settings.
F6 Dynamic UCS Turns on UCS alignment with planar surfaces.
F7 Grid Display Turns the grid display on and off.
F8 Ortho Locks cursor movement to horizontal or vertical.
F9 Grid Snap Restricts cursor movement to specified grid intervals.
F10 Polar Tracking Guides cursor movement to specified angles.
F11 Object Snap Tracking Tracks the cursor horizontally or vertically from object snap
locations.
F12 Dynamic Input Displays distances and angles near the cursor and accepts input as
you use Tab between the fields.
NOTE: F8 and F10 are mutually
exclusive—turning either one on will
turn the other one off.

43
Layers
Organize your drawing by assigning objects to layers.
When a drawing becomes visually complex, you can hide objects
that you currently do not need to see.
In the drawing below, the doors and electrical wiring were
temporarily hidden by hiding their layers.
GUIDE TO AUTOCAD BASICS: LAYERS

44
4.3 VIEWING
Layers (continued)
You gain this level of control by organizing the objects in your drawing on layers that are associated
with a specific function or purpose. It might be helpful to think of layers as clear plastic sheets:
With layers, you can:
• Associate objects by their function or location
• Display or hide all objects related to a single operation
• Enforce linetype, color, and other property standards for each layer
Important:
Resist the temptation to
create everything on one layer.
Layers are the most important
organizing feature available in
AutoCAD drawings.

45
Layer Controls
To see how a drawing is organized, use the LAYER command to
open the Layer Properties Manager. You can either enter LAYER
or LA in the Command window, or you can click the Layer
Properties tool on the ribbon.
Here’s what the Layer Properties Manager displays for this
drawing.
As indicated, layer 10 WALLS is the current layer. All new objects
are automatically placed on that layer. In the list of layers, the
green check next to layer 10 WALLS indicates that it is the
current layer.
In the column labeled On, notice that the light bulb icons for
two layers are dark. This indicates that these layers were turned
off to hide the doors and electrical wiring in the floor plan.
Notice that each layer name starts with a two-digit number.
This convention makes it easy to control the order of the layers
because their order does not depend on the alphabet.
Here’s a Tip:
For complex drawings, you might want to consider a more
elaborate layer naming standard. For example, layer names
could begin with 3 digits followed by a naming code that
accommodates multiple floors in a building, project numbers,
sets of survey and property data, and so on.

46
Practical Recommendations

Layer 0 is the default layer that exists in all drawings and
has some esoteric properties. Instead of using this layer, it’s
best to create your own layers with meaningful names.

Any drawing that contains at least one dimension object
automatically includes a reserved layer named Defpoints.

Create a layer for behind-the-scenes construction
geometry, reference geometry, and notes that you usually
do not need to see or print.

Create a layer for layout viewports. Information about
layout viewports is covered in the Layouts topic.

Create a layer for all hatches and fills. This lets you to turn
them all on or off in one action.
Layer Settings
The following are the most commonly used layer settings in the
Layer Properties Manager. Click the icon to turn the setting on
and off.
Turn Off Layers: This will help
reduce the visual complexity of your
drawing while you work.
Freeze Layers: Freeze layers that you
do not need to access for a while.
Freezing layers is similar to turning
them off, but improves performance
in very large drawings.
Lock Layers: Locking layers prevents
accidental changes to the objects
on those layers. Also, the objects on
locked layers appear faded, which
helps reduce the visual complexity of
your drawing.
Set Default Properties: You can set the default properties
for each layer, including color, linetype, line weight, and
transparency. New objects that you create will use these
properties unless you override them. Overriding layer properties
is explained later in this topic.
COMMONLY
USER
LAYER
SETTINGS

47
Controls in the Layer Properties Manager
To create a new layer, click the button shown and enter the
name of the new layer. To make a different layer the current
one, click the layer and then click the indicated button.
Quick Access to Layer Settings
The Layer Properties Manager takes up a lot of space, and you
may not always need to access all the options. For quick access
to the most common layer controls, use the controls on the
ribbon. When no objects are selected, the Layers panel on the
Home tab displays the name of the current layer as shown here.
Occasionally, check to make sure that the objects you create will
be on the correct layer. It’s easy to forget to do this, but it’s also
easy to set. Click the drop-down arrow to display a list of layers,
and then click a layer on the list to make it the current layer. You
can also click on any layer setting icon in the list to change its
setting.

48
4.3 VIEWING
Maintain Your Standards
It’s important to either establish or conform to a company-wide layer standard. With a layer
standard, drawing organization will be more logical, consistent, compatible, and maintainable over
time and across departments. Layer standards are essential for team projects.
If you create a standard set of layers and save them in a drawing template file, those layers will
be available when you start a new drawing, and you can start working immediately. Additional
information about drawing template files is presented in the Basics topic.
Summary
Layers organize your drawing, enabling you to temporarily hide unneeded graphical data. You can
also assign default properties such as color and linetype to each layer.
NOTE: Some experienced AutoCAD
users set properties only with layers,
while others set properties independently
of layers or in combination with layers.
Assigning properties to objects is
covered in the Properties topic.

49
Properties
You can assign properties such as color and linetype to individual
objects, or as default properties assigned to layers.
In the following drawing, the walls, exterior stone facing, doors,
fixtures, cabinetry, HVAC, electrical, and text were created using
different colors to help differentiate them.
GUIDE TO AUTOCAD BASICS: PROPERTIES

50
The Properties Palette
The Properties palette is an essential tool. You can open it
with the PROPERTIES command (enter PR in the Command
window), you can press Ctrl + 1, or you can click the tiny arrow
in the Properties panel on the Home tab—whichever you prefer.
The Properties palette displays a list of all the important property
settings. You can click any of the available fields to change the
current settings. In the following example, if no objects are
selected, the current color will be changed from ByLayer to Red
and the UCS icon will be turned off.

51
4.3 VIEWING
Verify and Change Object Properties
You can use the Properties palette to verify and change property settings for selected objects. If you
click an object in your drawing to select it, here is what you might see in the Properties palette.
Notice that the current properties for the selected object are displayed in the palette. You can
change any of these properties by clicking and changing the setting.
A property that is set to “ByLayer” inherits its setting from the layer. In the previous example, the
objects that were created on the 20 ELECTRICAL layer are purple because that is the default color
of the objects on that layer.
If you select several objects, only their common properties are listed in the Properties palette. If
you change one of these properties, all the selected objects will change in one operation. Selecting
objects is covered in more detail in the Modifying topic.
NOTE: To clear the current selection,
press Esc.

52
Quick Access to Property Settings
The Properties palette can take up a lot of space. For quick
access to the most common properties, use the Properties panel.
As you can see in this example, the listed properties will all be
determined by the current layer.
The Properties panel works the same way as the Properties
palette. When you select an object, the current property settings
are replaced by the properties assigned to the selected object,
and you can use this panel to easily change the properties of
one or more selected objects.
Match the Properties of Objects
For a fast way to copy the properties of a selected object
to other objects, use the Match Properties tool, or enter
MATCHPROP or MA in the Command window.
Select the source object, and then select all of the objects that
you want to modify.

53

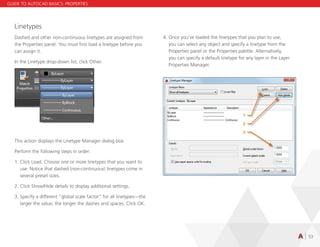

Linetypes
Dashed and other non-continuous linetypes are assigned from
the Properties panel. You must first load a linetype before you
can assign it.
In the Linetype drop-down list, click Other.
This action displays the Linetype Manager dialog box.
Perform the following steps in order:
1. Click Load. Choose one or more linetypes that you want to
use. Notice that dashed (non-continuous) linetypes come in
several preset sizes.
2. Click Show/Hide details to display additional settings.
3. Specify a different “global scale factor” for all linetypes—the
larger the value, the longer the dashes and spaces. Click OK.
4. Once you’ve loaded the linetypes that you plan to use,
you can select any object and specify a linetype from the
Properties panel or the Properties palette. Alternatively,
you can specify a default linetype for any layer in the Layer
Properties Manager.

54
4.3 VIEWING
Lineweights
The Lineweight property provides a way to display different thicknesses for selected objects. The
thickness of the lines remains constant regardless of the scale of the view. In a layout, lineweights
are always displayed and printed in real-world units. Lineweights can also be assigned from the
Properties panel.
You can leave the lineweight set to ByLayer, or you can specify a value that overrides the layer’s
lineweight. In some cases, the lineweight previews look the same because they are displayed in
approximated pixel widths on a monitor. However, they will print at the correct thickness.
To control the display of lineweights, click the Lineweight Settings button at the bottom of the
lineweight list. In the Lineweight Settings dialog box, you can choose whether you want to display
or hide lineweights.
Regardless of the display setting, lineweights will always be printed at the correct scale.
Here’s a Tip:
It’s usually best to leave
lineweights turned off while
you work. Heavy lineweights
can obscure nearby objects
when you use object snaps.
You might want to turn them
on for checking purposes just
before you print.

55
4.3 VIEWING
Modifying
Perform editing operations such as erase, move, and trim on the objects in a drawing.
The most common modifying tools are located on the Modify panel of the Home tab. Take a minute
to look through them.
Erase
To erase an object, use the ERASE command. You can enter E in the Command window, or click
the Erase tool. When you see the cursor change to a square pickbox, click each object that you
want to erase, and then press Enter or the Spacebar.
GUIDE TO AUTOCAD BASICS: MODIFYING
NOTE: Alternatively, before you enter any
command, you can select several objects
and then press the Delete key. Experienced
users often use this method as well.

56
4.3 VIEWING
Select Multiple Objects
Sometimes you may need to select a large number of objects. Instead of selecting each object
individually, you can select the objects in an area by clicking an empty location (1), moving your
cursor right or left, and then clicking a second time (2).
• With a crossing selection, any objects within or touching the green area are selected.
• With a window selection, only the objects completely contained within the blue area are
selected.
The result is called the selection set, which is the set of objects that will be processed by a
command.
Here’s a Tip:
You can easily remove
objects from the selection
set. For example, if you
select 42 objects, and two of
them should not have been
selected, hold down Shift and
then select the two that you
want to remove. Then, press
Enter or the Spacebar, or
right click to end the selection
process.
NOTE: Clicking and dragging results in
a different selection method called lasso
selection.

57
Move and Copy
Here’s how you would use the COPY command to lay out a row
of decorative tiles. Starting with a polyline that represents its
shape, you need to make copies that are 1/8” apart.
Click the Copy tool or enter CP in the Command window to
start the command. From here, you can choose between two
methods, depending on which is more convenient. You will use
these two methods frequently.
The Distance Method
The second tile needs to be a total of 9-7/8” + 1/8” = 10” to
the right of the original tile. Start by selecting the tile, pressing
Enter or the Spacebar to end your selection, and clicking
anywhere in the drawing area (1). This point does not have to be
located on the tile.
Next, move your cursor to the right, relying on the polar tracking
angle to keep the direction horizontal, and then enter 10 for the
distance. Press Enter or the Spacebar a second time to end the
command.
The specified distance and a direction from a point (1) is applied
to the tile that you selected.

58
4.3 VIEWING
Move and Copy (continued)
The Two Points Method
Another method, one that you will often use when you don’t want to add numbers together,
requires two steps. Enter the COPY command and select the tile as before, but this time click the
two endpoints as shown. These two points also define a distance and direction.
Next, to add the 1/8” space between the tiles, click the Move tool or enter M in the Command
window. The MOVE command is similar to the COPY command. Select the newly copied tile, and
press Enter or the Spacebar. As before, click anywhere in the drawing area and move your cursor to
the right. Enter 1/8 or .125 for the distance.
Here’s a Tip:
The two points that define
the distance and direction
don’t need to be located on
the object that you want to
copy. You can use two points
specified anywhere in your
model.

59
Create Multiple Copies
You can use the two-point method as a repeating sequence.
Let’s say that you want to make more copies of the circle at the
same horizontal distance. Enter the COPY command and select
the circle as shown.
Then, using the Center object snap, click the center of circle 1,
followed by the center of circle 2, and so on.
For larger numbers of copies, try experimenting with the Array
option of the COPY command. For example, here’s a linear
arrangement of deep foundation piles. From a base point, you
specify number of copies and the center-to-center distance.

60
4.3 VIEWING
Offset
Most models include a lot of parallel lines and curves. Creating them is easy and efficient with the
OFFSET command. Click the OFFSET tool or enter O in the Command window.
Select the object (1), specify the offset distance, and click to indicate on which side of the original
that you want the result (2). Here is an example of offsetting a polyline.
Here’s a Tip:
A fast way to create concentric
circles is to offset them.

61
4.3 VIEWING
Trim and Extend
A popular technique is to use the OFFSET command in combination with the TRIM and EXTEND
commands. In the Command window, you can enter TR for TRIM or EX for EXTEND. Trimming
and extending are some of the most commonly used operations.
In the following illustration, you want to extend the lines that represent the steps for this deck.
Enter the EXTEND command, select the boundary, and then press Enter or the Spacebar.
Pressing Enter or the Spacebar indicates that you’ve finished selecting the boundaries, and that
you’re now ready to select the objects to be extended.
Here’s a Tip:
A faster method is to press
Enter or the Spacebar right
away instead of selecting any
boundary objects. The result is
that all objects are available as
possible boundaries.

62
Trim and Extend (continued)
Next, select the objects to be extended (near the ends to be
extended), and then press Enter or the Spacebar to end the
command.
As you can see, the selected lines are extended to the boundary.
The TRIM command follows the same steps, except that when
you select the objects to trim, you select the portions to trim
away.

63
Mirror
The following illustration comes from a tile project. The walls in
this residential bathroom are flattened out to be able to lay out
the tile pattern and estimate the number of tiles needed.
You can save a lot of work by taking advantage of the symmetry
between the left and right walls. All you need to do is create the
tiles on one wall and then mirror the wall across the center of
the room.
In the example below, begin the MIRROR command (or enter
MI in the Command window), use window selection (1 and
2) to select the geometry on the right wall, press Enter or the
Spacebar, and then specify a mirror line (3 and 4) corresponding
to the centerline of the bathroom.
Finally, decline the option to “Erase source objects” by pressing
Enter or the Spacebar.
Here’s a Tip:
Always look for symmetry to save yourself extra work, even if
the symmetry is not 100% identical.

64
Stretch
You can stretch most geometric objects. This lets you lengthen
and shorten parts of your model. For example, this model might
be a gasket or the design for a public park.
Use the STRETCH command (or enter S in the Command
window) and select the objects with a crossing selection as
shown below (1 and 2). The crossing selection is mandatory—
only the geometry that is crossed by the crossing selection is
stretched. Then click anywhere in the drawing area (3), move the
cursor to the right, and enter 50 as the distance. This distance
might represent millimeters or feet.
To shorten the model by a specified amount, you’d move your
cursor to the left instead.
Fillet
The FILLET command (enter F in the Command window) creates
a rounded corner by creating an arc that is tangent to two
selected objects. Notice that the fillet is created relative to where
you select the objects.
You can create a fillet between most types of geometric objects,
including lines, arcs, and polyline segments.
Here’s a Tip:
If you specify 0 (zero) as the radius of the fillet (imagine a
circle shrinking to a radius of 0), the result trims or extends
the selected objects to a sharp corner.

65
4.3 VIEWING
Explode
The EXPLODE command (enter X in the Command window) disassociates a compound object into
its component parts. You can explode objects such as polylines, hatches, and blocks (symbols).
After you explode a compound object, you can modify each resulting individual object.
Edit Polylines
You can choose from several useful options when you want to modify a polyline. The PEDIT
command (enter PE in the Command window) is located on the drop-down list of the Modify
panel.
With this command, you can:
• Join two polylines into a single polyline if they share a common endpoint
• Convert lines and arcs into a polyline—simply enter PEDIT and select the line or arc
• Change the width of a polyline
Here’s a Tip:
In some cases, the easiest
method to modify a polyline
is to explode it, make the
modifications, and then
turn the objects back into a
polyline using the Join option
of the PEDIT command.

66
4.3 VIEWING
Grips
Grips are displayed when you select an object without starting a command. Grips are often handy
for light editing. For example, the line below accidentally snapped to the wrong endpoint. You can
select the misaligned line, click on a grip and then click to specify the correct location.
By default, when you click a grip, you automatically start in **STRETCH** mode as indicated in
the Command window. If you want to explore other ways of editing objects with grips, press Enter
or the Spacebar to cycle through several other editing modes. Some people perform most editing
operations using grips.

67
Blocks
Insert symbols and details into your drawings from commercial
online sources or from your own designs.
In AutoCAD, a block is a collection of objects that are combined
into a single named object. The following are some sample
blocks at various scales.
Some of these blocks are realistic representations of objects,
some are symbols, and one of them is an architectural title block
for a D-size drawing.
Insert a Block
Typically, each of these blocks is an individual drawing file,
perhaps saved in a folder with similar drawing files. When
you need to insert one into your current drawing file, use the
INSERT command (or enter I in the Command window).
GUIDE TO AUTOCAD BASICS: BLOCKS

68
Insert a Block (continued)
The first time you insert the drawing as a block, you must click
Browse to locate the drawing file. Make sure you organize your
blocks into easy-to-find folders.
Once inserted, the block definition is stored in your current
drawing. From then on, you can choose it from the Name drop-
down list without needing to click the Browse button.
Here’s a Tip:
The default settings in the Insert dialog box are usually
acceptable. After you choose the block name, click OK, and
then specify its location in your drawing. You can rotate it
later, if necessary.
Notice that when you insert a block, it is attached to your cursor
at the point indicated. This location is called the insertion point.
By default, the insertion point is the origin point (0,0) of the
original drawing.
After inserting the block, you can select it and a grip appears.
You can easily move and rotate this block using this grip.
In the following example, a drawing file is inserted into the
current drawing to provide a standard detail view.
NOTE: Inserting a drawing file as a block provides a static reference to the specified
drawing. For a reference that automatically updates, you can attach the drawing with
the External References palette (XREF command) instead.

69
You can enter the information for steps 3, 4, and 5 into the
Block Definition dialog box in any order.
Create a Block Definition
Instead of creating a drawing file to be inserted as a block, you
might want to create a block definition directly in your current
drawing. Use this method if you do not plan to insert the block
into any other drawing. In that case, use the BLOCK command
to create the block definition.
For example, this is how you could create a module for a cubicle
design.
1. Create the objects for the block.
2. Start the BLOCK command.
3. Enter a name for the block, in this case Quad-Cube.
4. Select the objects that you created for the block (click 1 and 2).
5. Specify the block insertion point.

70
4.3 VIEWING
Create a Block Definition (continued)
After creating the block definition, you can insert, copy, and rotate the block as needed.
Using the EXPLODE command, you can explode a block into its component objects if you need to
make changes. In the illustration below, the cubicle on the right was exploded and modified.
In this example, you would probably create a new block definition from the objects in the exploded block.
Recommendations
There are several different schemes for saving and retrieving block definitions.

You can create an individual drawing file for each block that you intend to use. You save these
drawing files in folders, each of which would contain a family of related drawing files.

You can include the block definitions for title blocks and common symbols in your drawing
template files to make them available immediately when starting a new drawing.

You can create several drawing files, which are sometimes called block library drawings. Each of
these drawings contains a family of related block definitions. When you insert a block library
drawing into your current drawing, all the blocks that are defined in that drawing become available.
Here’s a Tip:
With online access, you
can download AutoCAD
drawing files from the web
sites of commercial vendors
and suppliers. This can save
you time, but always check
to make sure that they are
drawn correctly and to scale.
Autodesk Seek (http://
seek.autodesk.com/) is a
convenient way of accessing
BIM (building information
modeling) libraries.
NOTE: You can create block definitions
that include one or more attributes
that store and display information. The
command that you would use is ATTDEF.
Typically, attributes include data such as
part number, name, cost, and date. You
can export block attribute information to
a table or to an external file.

71
Layouts
Display one or more scaled views of your design on a standard-
size drawing sheet called a layout.
After you finish creating a model at full size, you can switch to a
paper space layout to create scaled views of the model, and to
add notes, labels, and dimensions. You can also specify different
linetypes and line widths for display in paper space.
Model Space and Paper Space
As you know, you create the geometry of your model in model
space.
Originally, this was the only space available in AutoCAD. All
notes, labels, dimensions, and the drawing border and title block
were also created and scaled in the model space.
After paper space was introduced, you could click a layout tab
to access a space designed specifically for layouts and scaling.
In the following illustration, paper space is active. There are
currently only two objects in paper space: a drawing border
block, and a single layout viewport, which displays a view of
model space.
Working with layout viewports is described in more detail later
in this topic.
GUIDE TO AUTOCAD BASICS: LAYOUTS

72
4.3 VIEWING
Four Methods for Scaling
There are four different methods in AutoCAD that are used to scale views, notes, labels, and
dimensions. Each method has its advantages depending on how the drawing will be used.
Here’s a brief summary of each of the methods:

The Original Method: You create geometry, annotate, and print from model space.
Dimensions, notes, and labels must all be scaled in reverse. You set the dimension scale to
the inverse of the plot scale. With this method, scaling requires a little math. For example, a
common scale used in architecture is 1/4” = 1’-0” which is 1:48 scale. If a note is to be printed
1/4” high, then it must be created 48 times as large, or 12” high in model space. The same
scale factor also applies to dimensions, and an ARCH D drawing border at that scale is 144 feet
long. When the drawing is printed as a D-size sheet, everything scales down to the correct size.

The Layout Method: You create geometry and annotate in model space, and print from the
layout. Set the dimension scale to 0 and the dimensions will scale automatically.

The Annotative Method: You create geometry in model space, create annotative
dimensions, notes, and labels (using a special annotative style) in model space from the layout,
and you print from the layout. Annotative objects display only in layout viewports that share
the same scale. The dimension scale is automatically set to 0 and all annotative objects scale
automatically.

The Trans-Spatial Method: You create geometry in model space, create annotations in paper
space on a layout with dimension scale set to 1, and you print from the layout. This is arguably
the easiest, most direct method, and it is the method of choice for this guide.
Talk to other AutoCAD users in your discipline about these four methods and why they chose the
method that they use.
NOTE: Many AutoCAD drawings were
created with this method, and many
companies still use it. Once everything
is set up, the method works well for
2D drawings with single views and
inserted details.

73
Specifying the Paper Size of a Layout
The first thing you should do when you access a layout tab (1)
is right-click the tab (2) and rename it (3) to something more
specific than Layout 1. For a D-size layout, ARCH D or ANSI D
might be good choices.
Next, open the Page Setup Manager (4) to change the paper
size displayed in the layout tab.
NOTE: You might be wondering why there are two entries in the list for every
sheet size. This is because some printers and plotters do not recognize the drawing
orientation setting.

74
4.3 VIEWING
Layout Viewports
A layout viewport is an object that is created in paper space to display a scaled view of model
space. You can think of it as a closed-circuit TV monitor that displays part of model space. In the
illustration, model space is active and accessible from within the current layout viewport.
In a layout, when model space is active, you can pan and zoom, and anything else that you could
do on the Model tab. For example, let’s say that you created a backyard deck design in model
space, and now you want to lay out and print your design from a layout tab.
The view in the layout viewport is not yet set to the correct scale.
Important:
You can switch between
paper space and model space
by double-clicking inside or
outside the layout viewport.
NOTE: You can use the MVIEW (make
view) command to create additional
layout viewports in paper space. With
several layout viewports, you can display
several views of model space at the same
or at different scales.

75
Scaling Views and Trans-Spatial Annotation
Here are the steps to follow if you use the trans-spatial method
of annotating your drawing:
1. Click the layout tab. If you started the drawing with your own
custom drawing template file, several tasks might already
have been completed: the layout might already be set to
D-size, and the title block might already have been inserted in
the layout.
2. By default, paper space is active, so double-click within the
layout viewport to make the model space active. Notice that
the edge of the layout viewport becomes thicker as a result of
switching to model space.
3. Zoom out and center the model space view by panning. Note
that the displayed view will not yet be set to the correct scale.
4. Double-click outside the layout viewport to make paper space
active again.
5. Open the Properties palette and then click to select the edge
of the layout viewport.
6. In the Properties palette, specify a standard scale of 1/4” =
1’-0” from the drop-down list. This action scales your view of
model space precisely to the D-size drawing. You should also
set the Display Locked property from No to Yes, which will
prevent any unintentional display changes to the view.
NOTE: By default, the dashes and spaces in a non-continuous linetype appear the
same length regardless of the scale of the layout viewport.

76
Scaling Views and Trans-Spatial Annotation
(continued)
7. Move the layout viewport as needed, and adjust its edges
using grips.
8. Create notes, labels, and dimensions directly in paper space.
They will automatically appear at the correct size.
9. Turn off the layer on which you created the layout viewport
object. This hides the edges of the layout viewport as shown
below.
10. Print the drawing to paper or as a DWF or PDF file.
NOTE: After you have finished dimensioning, you can use the EXPORTLAYOUT
command to merge everything in model and paper space into the model space of
a separate drawing file. This operation creates a drawing file that conforms to the
original method of creating the model and all annotations in model space.

77
Notes and Labels
Create notes, labels, bubbles, and callouts. Save and restore
style settings by name.
You can create general notes using the MTEXT command (or
enter MT in the Command window), which stands for multiline
text. The multiline text tool is available on the Annotation panel.
After you start the MTEXT command, you are prompted to
create a “text box” with two diagonal clicks.
The exact size of the text box is not that important. After you
specify the text box, the In-Place Editor is displayed and you can
easily change the length and width of the note before, during,
or after typing the text.
All the usual controls are available in the In-Place Editor,
including tabs, indents, and columns. Also notice that when you
start the MTEXT command, the ribbon temporarily changes,
displaying many options such as text styles, columns, spell
checking, and so on.
• To exit the text editor after you finish entering the text, click
anywhere outside it.
• To edit a note, simply double-click it to open the text editor.
Here’s a Tip:
You can use the Properties palette to control the text style
used for one or more selected multiline text objects. For
example, after selecting five notes that use different styles,
click the Style column and choose a style from the list.
GUIDE TO AUTOCAD BASICS: NOTES AND LABELS

78
Create a Text Style
As with several other annotation features, multiline text provides
a lot of settings. You can save these settings as a text style
using the STYLE command, and then you can access the text
styles you’ve saved by clicking the drop-down arrow on the
Annotation panel. The current text style is displayed at the top
of the drop-down list.
To create a new text style, click the Text Style control as shown.
When you create a new text style, you will give it a name and
then choose a font and a font style. The order in which you click
the buttons is shown below:
Here’s a Tip:
Save any new or changed text styles in your drawing
template files. This will save you time by making them
available in all new drawings.

79
Multileaders
Multileader objects are used to create text with leader lines such
as general labels, reference labels, bubbles, and callouts.
Create a Multileader
To create a multileader, use the MLEADER command. Click
the Multileader tool in the Annotation panel or enter MLD in
the Command window. Follow the prompts and options in the
Command window. Feel free to experiment.
After you create a multileader, select it and then modify it by
clicking and moving its grips.
Grip menus appear when you hover over arrowhead and leader
grips. From these menus, you can add leader segments or
additional leaders.
You can edit the text in a multileader by double-clicking it.

80
4.3 VIEWING
Create a Multileader Style
You can create your own multileader styles from the drop-down list in the expanded Annotation
panel, or by entering MLEADERSTYLE in the Command window.
For example, to create a “detail callout” style, start the MLEADERSTYLE command. In the
Multileader Styles Manager, click New and choose a descriptive name for the new multileader style.
Click the Content tab, choose Block, and then Detail Callout as shown.
NOTE: As with text styles, once you
create one or more multileader styles,
save them in your drawing template files.

81

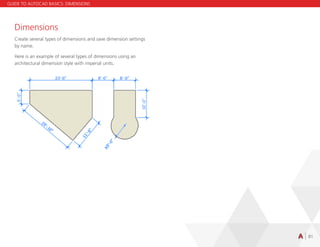

Dimensions
Create several types of dimensions and save dimension settings
by name.
Here is an example of several types of dimensions using an
architectural dimension style with imperial units.
GUIDE TO AUTOCAD BASICS: DIMENSIONS

82
4.3 VIEWING
Linear Dimensions
You can create horizontal, vertical, aligned, and radial dimensions with the DIM command. The
type of dimension depends on the object that you select and the direction that you drag the
dimension line.
The following illustration demonstrates one method for using the DIM command. Once you start
the command, press Enter or the Spacebar, select the line (1), and then click the location of the
dimension line (2).

83
4.3 VIEWING
Linear Dimensions (continued)
For the 8’-0” dimension below, you use another method. You start the DIM command, click two
endpoints (1 and 2) and then the location of the dimension line (3). To line up the dimension lines
point 3 was snapped to the endpoint of the previously created dimension line.
Use the DIM command to create dimensions that are parallel to an object by dragging the
dimension line at an angle rather than horizontally or vertically.
Here’s a Tip:
If points 1 and 2 are not on
the same horizontal line, press
Shift to force the dimension
line to be horizontal. In
addition, if the building or
part being dimensioned is at
an angle, enter DIMROTATED
for that case.
Another Tip:
Because it is easy to
accidentally snap to the wrong
feature or part of a dimension
object, be sure to zoom
in closely enough to avoid
mistakes.

84
4.3 VIEWING
Modify Dimensions
For simple adjustments to dimensions, nothing is faster than using grips.
In this example, you select the dimension to display its grips. Next, click the grip on the dimension
text and drag it to a new location, or click one of the grips at the end of the dimension line and
drag the dimension line.
Here’s a Tip:
If the changes are more
complicated than this, it might
be faster simply to delete and
then recreate the dimension.

85
Dimension Styles
Dimension styles help establish and enforce drafting standards.
There are many dimension variables that can be set with the
DIMSTYLE command to control virtually every nuance of the
appearance and behavior of dimensions. All these settings are
stored in each dimension style.
The default dimension style is named either Standard (imperial)
or ISO-25 (metric). It is assigned to all dimensions until another
style is set as the current dimension style.
The current dimension style name, Hitchhiker in this case, is
displayed in the drop-down list of the Annotation panel.
To open the Dimension Style Manager, click the indicated
button. You can create dimension styles that match nearly any
standard, but you will need to invest time into specifying them
completely. For this reason, you should save any dimension styles
that you create in one or more drawing template files.
Recommendations

When you save a dimension style, choose a descriptive name.

If applicable, check with your CAD manager regarding
existing dimension style standards and drawing template files.

86
Printing
Output a drawing layout to a printer, a plotter, or a file. Save
and restore the printer settings for each layout.
Originally, people printed text from printers and plotted
drawings from plotters. Now, you can perform both with
either device, so this guide will use the terms ‘print’ and ‘plot’
interchangeably.
The command to output a drawing is PLOT and you can access
it from the Quick Access toolbar.
To display all of the options in the Plot dialog box, click the More
Options button.
As you can see, there are many settings and options available.
For the sake of convenience, you can save and restore
collections of these settings by name. These are called page
setups. With page setups you can store the settings that you
need for different printers, printing in grayscale, creating a PDF
file from your drawing, and so on.
GUIDE TO AUTOCAD BASICS: PRINTING

87
Create a Page Setup
To open the Page Setup Manager, right-click on the Model tab
or a layout tab and choose Page Setup Manager. The command
is PAGESETUP.
Each layout tab in your drawing can have an associated page
setup. This is convenient when you use more than one output
device or format, or if you have several layouts with different
sheet sizes in the same drawing.
To create a new page setup, click New and enter the name of
the new page setup. The Page Setup dialog box that displays
next looks like the Plot dialog box. Choose all the options and
settings that you wish to save.
When you are ready to plot, simply specify the name of the page
setup in the Plot dialog box, and all your plot settings will be
restored. In the following illustration, the Plot dialog box is set to
use the Hitchhiker page setup, which will output a DWF (Design
Web Format) file rather than print to a plotter.
Here’s a Tip:
You can save page setups in your drawing template files, or
you can import them from other drawing files.

88
Output to a PDF File
The following example shows you how to create a page setup
for creating PDF files.
From the Printer/plotter drop-down list, choose AutoCAD PDF
(General Documentation).pc3:
Next, choose the size and scale options that you want to use:

Paper Size: The orientation (portrait or landscape) is built
into the choices in the drop-down list.

Plot Area: You can clip the area to be plotted with these
options, but typically everything will be plotted.

Plot Offset: This setting changes based on your printer,
plotter, or other output. Try centering the plot or adjusting
the origin, but remember that printers and plotters have a
built-in margin around the edges.

Plot Scale: Choose your plot scale from the drop-down
list. A scale such as 1/4” = 1’-0” is meant for printing to
scale from the Model tab. On a layout tab, you normally
print at a 1:1 scale.
The plot style table provides information about processing
colors. Colors that look good on your monitor might not be
suitable for a PDF file or for printing. For example, you might
want to create a drawing in color, but create monochrome
output. Here is how you specify monochrome output:
Here’s a Tip:
Always double-check your settings with the Preview option.

89
Output to a PDF File (continued)
The resulting Preview window includes a toolbar with several
controls, including Plot and Exit.
After you are satisfied with your plot settings, save them
to a page setup with a descriptive name such as “PDF-
monochrome.” Then, whenever you want to output to a
PDF file, all you need to do is click Print, choose the PDF-
monochrome page setup, and click OK.
Recommendations

If you want to share a static image of your drawing, you
can output a PDF file from a drawing file.

If you want to include additional data from your drawing,
use DWF (Design Web Format) files instead.

If you want to review an AutoCAD drawing file with a
person in a different location, consider using Autodesk
A360 and the AutoCAD 360 web and mobile applications,
which you can access from the Autodesk website.

AutoCAD software has helped professionals around the world continue
to innovate in the architecture, engineering, and design fields. In this
guide to Autodesk’s newest version of AutoCAD software, you’ll discover
improvements that have made it easier to use than ever–from new 3D
design tools to enhanced PDF support and improved documentation,
you’ll have access to an arsenal of robust features. As an added benefit,
this state-of-the-art software makes it easy to connect and collaborate
with other AED professionals, improving efficiency and accuracy where it
matters most.
To see how our newest features seamlessly integrate, download your free
trial subscription of AutoCAD today.
SUBSCRIBE
DOWNLOAD FREE TRIAL

Additional Resources
With a suite of tools as powerful as those available in AutoCAD, users are bound to have a few
questions. That is why there is an extensive Autodesk Knowledge Network that offers easily
accessible resources about all products, including AutoCAD. Additional learning opportunities
are also available through Autodesk University, where you can browse online classes by topic,
product, or industry. You can also find quick links to helpful, product-related blogs and you can
find out about events happening near you. AutoCAD training classes are especially popular and
are available for any level, from beginner to advanced. Watch the video “60 AutoCAD Tips in
60 Minutes” and then sign up for a Free AutoCAD Trial to test your knowledge.
WATCH VIDEO

Shortcut Keys
The customization (CUIx) file defines the default shortcut keys. You can use the default
shortcut keys as examples when creating your own shortcut keys. To access the table of default
shortcuts, visit the Autodesk Knowledge Network Short Keys Reference page.
VIEW KEYBOARD SHORTCUTS
ADDITIONAL RESOURCES

Enhanced Training Certification Options
From your academic career to your professional career, Autodesk provides educational resources
to help you stay competitive. Choose your program as you see fit; Autodesk offers instructor-led,
self-paced, or online training. You will also have the opportunity to earn certification credentials.
Education Services Support
Autodesk Authorized Academic Partners (AAP) provide customized training and support
services to educators, schools, colleges, and universities that shape the future of design
engineering education and aid in successful adoption of Autodesk solutions into a curriculum.
These services are designed to help prepare students for an ever-changing world in which
design will play a pivotal role. A worldwide network of AAPs is available to help shape the
future of design and engineering at your institution.
Learning Training
Kick-start your professional development with Autodesk authorized software product training.
Accelerate your Autodesk training by reaching out to an Autodesk Authorized Training
Center (ATC). Work with knowledgeable instructors in quiet classroom settings utilizing sample
projects and exercises that emphasize real-world, practical applications. ATC sites around the
world offer a variety of courses, and many can help you prepare for an Autodesk Certification.
Ask your local Autodesk ATC about earning credits for mandatory continuing education classes
and other professional development programs.
Certification
Earn an Autodesk credential, whether you are just starting out or have years of experience, and
gain industry recognition. Employers and educational institutions can offer Autodesk Certification
to employees and students to validate their skills. Autodesk offers a range of certification options
including Autodesk Certified User, Certified Professional, and Certified Specialist.
ADDITIONAL RESOURCES

Learn about AutoCAD

More Related Content

What's hot (20)

Similar to Learn about AutoCAD (20)

More from Bahzad5 (20)

Recently uploaded (20)

Learn about AutoCAD
