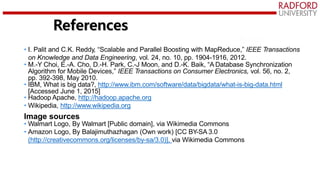

![• I. Palit and C.K. Reddy, “Scalable and Parallel Boosting with MapReduce,” IEEE Transactions
on Knowledge and Data Engineering, vol. 24, no. 10, pp. 1904-1916, 2012.
• M.-Y Choi, E.-A. Cho, D.-H. Park, C.-J Moon, and D.-K. Baik, “A Database Synchronization
Algorithm for Mobile Devices,” IEEE Transactions on Consumer Electronics, vol. 56, no. 2,
pp. 392-398, May 2010.
• IBM, What is big data?, http://www.ibm.com/software/data/bigdata/what-is-big-data.html
[Accessed June 1, 2015]
• Hadoop Apache, http://hadoop.apache.org
• Wikipedia, http://www.wikipedia.org
Image sources
• Walmart Logo, By Walmart [Public domain], via Wikimedia Commons
• Amazon Logo, By Balajimuthazhagan (Own work) [CC BY-SA 3.0
(http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons
References](https://image.slidesharecdn.com/lecture10cloudservicesmodelmapreducehdfs-220727132704-d6e0606f/85/Lecture10_CloudServicesModel_MapReduceHDFS-pptx-45-320.jpg)
Lecture10_CloudServicesModel_MapReduceHDFS.pptx
- 1. Cloud Computing Hwajung Lee Key Reference: Prof. Jong-Moon Chung’s Lecture Notes at Yonsei University
- 2. Cloud Computing • Cloud Introduction • Cloud Service Model • Big Data • Hadoop • MapReduce • HDFS (Hadoop Distributed File System)
- 3. MapReduce
- 4. MapReduce Hadoop • Hadoop is a Reliable Shared Storage and Analysis System • Hadoop = HDFS + MapReduce + α - HDFS provides Data Storage - HDFS: Hadoop Distributed FileSystem - MapReduce provides Data Analysis - MapReduce = Map Function + Reduce Function
- 5. MapReduce Scaling Out • Scaling out is done by the DFS (Distributed FileSystem), where the data is divided and stored in distributed computers & servers • Hadoop uses HDFS to move the MapReduce computation to several distributed computing machines that will process a part of the divided data assigned
- 6. MapReduce Jobs • MapReduce job is a unit of work that needs to be executed • Job types: Data input, MapReduce program, Configuration Information, etc. • Job is executed by dividing it into one of two types of tasks • Map Task • Reduce Task
- 7. MapReduce Node types for Job execution • Job execution is controlled by 2 types of nodes • Jobtracker • Tasktracker • Jobtracker coordinates all jobs • Jobtracker schedules all tasks and assigns the tasks to tasktrackers
- 8. MapReduce • Tasktracker will execute its assigned task • Tasktracker will send a progress reports to the Jobtracker • Jobtracker will keep a record of the progress of all jobs executed

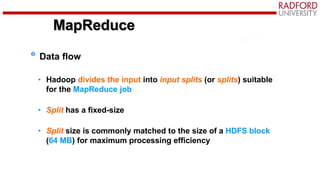

- 9. MapReduce Data flow • Hadoop divides the input into input splits (or splits) suitable for the MapReduce job • Split has a fixed-size • Split size is commonly matched to the size of a HDFS block (64 MB) for maximum processing efficiency
- 10. MapReduce Data flow • Map Task is created for each split • Map Task executes the map function for all records within the split • Hadoop commonly executes the Map Task on the node where the input data resides
- 11. MapReduce Data flow • Data-Local Map Task • Data locality optimization does not need to use the cluster network • Data-local flow process shows why the Optimal Split Size = 64 MB HDFS Block Size

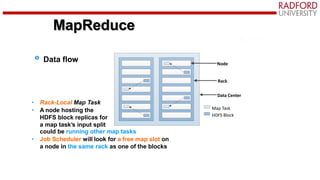

- 12. MapReduce • Rack-Local Map Task • A node hosting the HDFS block replicas for a map task’s input split could be running other map tasks • Job Scheduler will look for a free map slot on a node in the same rack as one of the blocks Map Task HDFS Block Node Rack Data Center Data flow
- 13. MapReduce • Off-Rack Map Task • Needed when the Job Scheduler cannot perform data-local or rack-local map tasks • Uses inter-rack network transfer Data flow
- 14. MapReduce Map • Map task will write its output to the local disk • Map task output is not the final output, it is only the intermediate output Reduce • Map task output is processed by Reduce Tasks to produce the final output • Reduce Task output is stored in HDFS • For a completed job, the Map Task output can be discarded
- 15. MapReduce Single Reduce Task • Node includes Split, Map, Sort, and Output unit • Light blue arrows show data transfers in a node • Black arrows show data transfers between nodes
- 16. MapReduce Single Reduce Task • Number of reduce tasks is specified independently, and is not based on the size of the input
- 17. MapReduce Combiner Function • User specified function to run on the Map output Forms the input to the Reduce function • Specifically designed to minimize the data transferred between Map Tasks and Reduce Tasks • Solves the problem of limited network speed on the cluster and helps to reduce the time in completing MapReduce jobs
- 18. MapReduce Multiple Reducer • Map tasks partition their output, each creating one partition for each reduce task • Each partition may use many keys and key associated values • All records for a key are kept in a single partition
- 19. MapReduce Multiple Reducers • Shuffle process is used in the data flow between the Map tasks and Reduce tasks Shuffle
- 20. MapReduce Zero Reducer • Zero reducer uses no shuffle process • Applied when all of the processing can be carried out in parallel Map tasks
- 21. HDFS
- 22. HDFS Hadoop • Hadoop is a Reliable Shared Storage and Analysis System • Hadoop = HDFS + MapReduce + α - HDFS provides Data Storage - HDFS: Hadoop Distributed FileSystem - MapReduce provides Data Analysis - MapReduce = Map Function + Reduce Function
- 23. HDFS HDFS: Hadoop Distributed FileSystem • DFS (Distributed FileSystem) is designed for storage management of a network of computers • HDFS is optimized to store large terabyte size files with streaming data access patterns
- 24. HDFS HDFS: Hadoop Distributed FileSystem • HDFS was designed to be optimal in performance for a WORM (Write Once, Read Many times) pattern • HDFS is designed to run on clusters of general computers & servers from multiple vendors
- 25. HDFS HDFS Characteristics • HDFS is optimized for large scale and high throughput data processing • HDFS does not perform well in supporting applications that require minimum delay (e.g., tens of milliseconds range)
- 26. HDFS Blocks • Files in HDFS are divided into block size chunks 64 Megabyte default block size • Block is the minimum size of data that it can read or write • Blocks simplifies the storage and replication process Provides fault tolerance & processing speed enhancement for larger files
- 27. HDFS HDFS • HDFS clusters use 2 types of nodes • Namenode (master node) • Datanode (worker node)

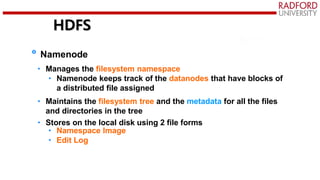

- 28. HDFS Namenode • Manages the filesystem namespace • Namenode keeps track of the datanodes that have blocks of a distributed file assigned • Maintains the filesystem tree and the metadata for all the files and directories in the tree • Stores on the local disk using 2 file forms • Namespace Image • Edit Log
- 29. HDFS Namenode • Namenode holds the filesystem metadata in its memory • Namenode’s memory size determines the limit to the number of files in a filesystem • But then, what is Metadata?

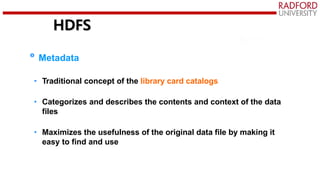

- 30. HDFS Metadata • Traditional concept of the library card catalogs • Categorizes and describes the contents and context of the data files • Maximizes the usefulness of the original data file by making it easy to find and use
- 31. HDFS Metadata Types • Structural Metadata • Focuses on the data structure’s design and specification • Descriptive Metadata • Focuses on the individual instances of application data or the data content
- 32. HDFS • Datanodes • Workhorse of the filesystem • Store and retrieve blocks when requested by the client or the namenode • Periodically reports back to the namenode with lists of blocks that were stored
- 33. HDFS Client Access • Client can access the filesystem (on behalf of the user) by communicating with the namenode and datanodes • Client can use a filesystem interface (similar to a POSIX (Portable Operating System Interface)) so the user code does not need to know about the namenode and datanodes to function properly

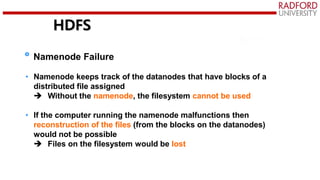

- 34. HDFS Namenode Failure • Namenode keeps track of the datanodes that have blocks of a distributed file assigned Without the namenode, the filesystem cannot be used • If the computer running the namenode malfunctions then reconstruction of the files (from the blocks on the datanodes) would not be possible Files on the filesystem would be lost
- 35. HDFS Namenode Failure Resilience • Namenode failure prevention schemes 1. Namenode File Backup 2. Secondary Namenode
- 36. HDFS Namenode File Backup • Back up the namenode files that form the persistent state of the filesystem’s metadata • Configure the namenode to write its persistent state to multiple filesystems Synchronous and atomic backup • Common backup configuration Copy to Local Disk and Remote FileSystem
- 37. HDFS Secondary Namenode • Secondary namenode does not act the same way as the namenode • Secondary namenode periodically merges the namespace image with the edit log to prevent the edit log from becoming too large • Secondary namenode usually runs on a separate computer to perform the merge process because this requires significant processing capability and memory

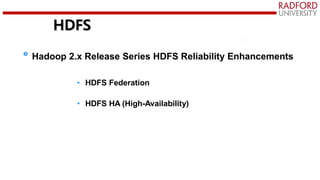

- 38. HDFS Hadoop 2.x Release Series HDFS Reliability Enhancements • HDFS Federation • HDFS HA (High-Availability)
- 39. HDFS HDFS Federation • Allows a cluster to scale by adding namenodes • Each namenode manages a namespace volume and a block pool • Namespace volume is made up of the metadata for the namespace • Block pool contains all the blocks for the files in the namespace

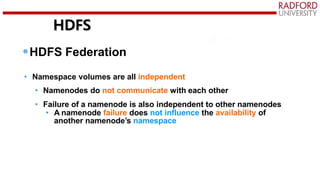

- 40. HDFS •HDFS Federation • Namespace volumes are all independent • Namenodes do not communicate with each other • Failure of a namenode is also independent to other namenodes • A namenode failure does not influence the availability of another namenode’s namespace

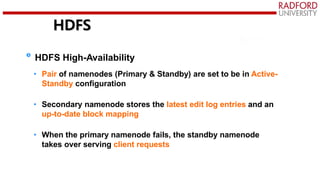

- 41. HDFS HDFS High-Availability • Pair of namenodes (Primary & Standby) are set to be in Active- Standby configuration • Secondary namenode stores the latest edit log entries and an up-to-date block mapping • When the primary namenode fails, the standby namenode takes over serving client requests

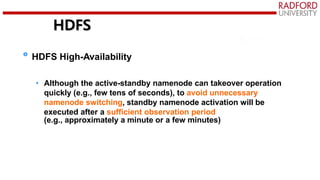

- 42. HDFS HDFS High-Availability • Although the active-standby namenode can takeover operation quickly (e.g., few tens of seconds), to avoid unnecessary namenode switching, standby namenode activation will be executed after a sufficient observation period (e.g., approximately a minute or a few minutes)
