The BLAST algorithm

BLAST Programming
3

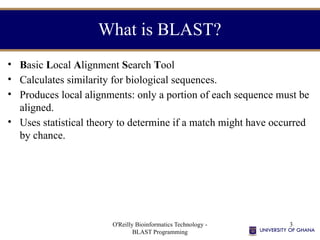

What is BLAST?
• Basic Local Alignment Search Tool
• Calculates similarity for biological sequences.
• Produces local alignments: only a portion of each sequence must be
aligned.
• Uses statistical theory to determine if a match might have occurred
by chance.

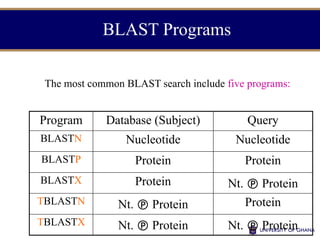

BLAST Programs
The most common BLAST search include five programs:
Program Database (Subject) Query
BLASTN Nucleotide Nucleotide
BLASTP Protein Protein
BLASTX Protein Nt.  Protein
TBLASTN Nt.  Protein Protein
TBLASTX Nt.  Protein Nt.  Protein

BLASTN
• BLASTN
– The query is a nucleotide sequence
– The database is a nucleotide database
– No conversion is done on the query or database
• DNA :: DNA homology
– Mapping oligos to a genome
– Annotating genomic DNA with transcriptome
data from ESTs and RNA-Seq
– Annotating untranslated regions

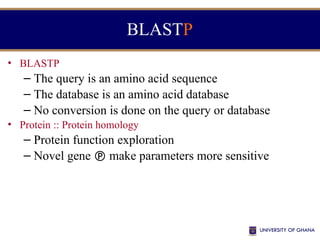

BLASTP
• BLASTP
– The query is an amino acid sequence
– The database is an amino acid database
– No conversion is done on the query or database
• Protein :: Protein homology
– Protein function exploration
– Novel gene  make parameters more sensitive

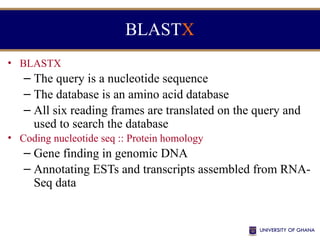

BLASTX
• BLASTX
– The database is an amino acid database
– All six reading frames are translated on the query and
used to search the database
• Coding nucleotide seq :: Protein homology
– Gene finding in genomic DNA
– Annotating ESTs and transcripts assembled from RNA-
Seq data

TBLASTN
• TBLASTN
– The query is an amino sequence
– All six frames are translated in the database and
searched with the protein sequence
• Protein :: Coding nucleotide DB homology
– Mapping a protein to a genome
– Mining ESTs and RNA-Seq data for protein similarities

TBLASTX
• TBLASTX
– All six frames are translated on the query and on the
database
• Coding :: Coding homology
– Searching distantly-related species
– Sensitive but expensive

BLAST Programming
10

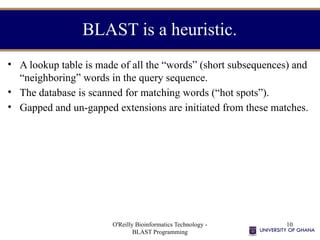

BLAST is a heuristic.
• A lookup table is made of all the “words” (short subsequences) and
“neighboring” words in the query sequence.
• The database is scanned for matching words (“hot spots”).
• Gapped and un-gapped extensions are initiated from these matches.

BLAST Programming
11

The Databases (1)
• GenBank NR (protein and nucleotide versions)
– Non-redundant large databases (compile and
remove duplicates)
– Anyone can submit, you can call your sequence
anything
– Low quality; names can be meaningless
• Transcriptome Shotgun Assembly (TSA) Database
– Transcripts assembled from overlapping ESTs
and RNA-Seq reads
– Most of the sequences have no annotations

The Databases (2)
• UniProt/Swiss-Prot
– Curated from literature
– REAL proteins; REAL functions; small;
• Genomic databases
– Human, Mouse, Drosophila, Arabidopsis, etc.
– NCBI, species-specific web pages

BLAST Programming
14

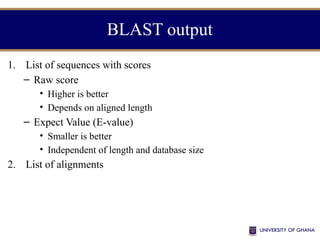

BLAST OUTPUT

BLAST output
1. List of sequences with scores
– Raw score
• Higher is better
• Depends on aligned length
– Expect Value (E-value)
• Smaller is better
• Independent of length and database size
2. List of alignments

BLAST Programming
16
There are many different BLAST output
formats.
• Pair-wise report
• Query-anchored report
• Hit-table
• Tax BLAST
• Abstract Syntax Notation 1
• XML

BLAST Programming
17
BLAST reports at the NCBI Web
page.

BLAST Programming
18

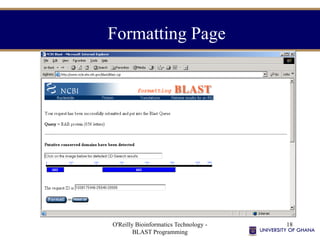

Formatting Page

BLAST Programming
19
Graphical Overview

BLAST Programming
20

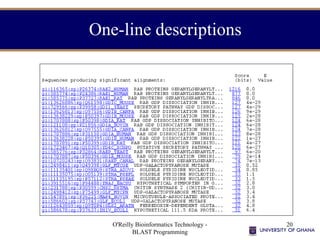

One-line descriptions

BLAST Programming
21
Pair-wise alignments

BLAST Programming
22

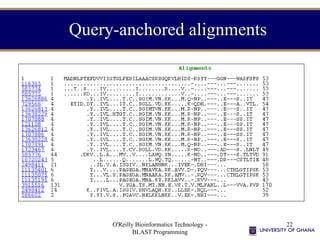

Query-anchored alignments

BLAST Programming
23

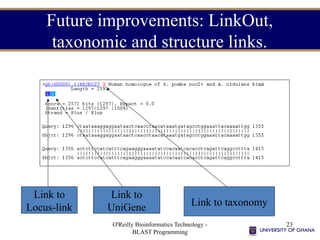

Future improvements: LinkOut,
taxonomic and structure links.
Link to
Locus-link
Link to
UniGene Link to taxonomy

BLAST Programming
24
BLAST report designed for human
readability.
• One-line descriptions provide overview designed
for human “browsing”.
• Redundant information is presented in the report
(e.g., one-line descriptions and alignments both
contain expect values, scores, descriptions) so a
user does not need to move back and forth
between sections.
• HTML version has lots of links for a user to
explore.
• It can change as new features/information
becomes available.

BLAST Programming
25
Hit-table
• Contains no sequence or definition lines, but does contain sequence
identifiers, starts/stops (one-offset), percent identity of match as well
as expect value etc.
• Simple format is ideal for automated tasks such as screening of
sequence for contamination or sequence assembly.

BLAST Programming
26

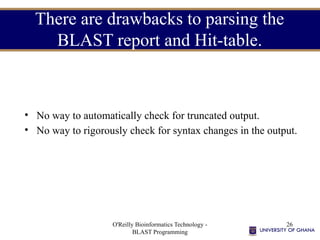

There are drawbacks to parsing the
BLAST report and Hit-table.
• No way to automatically check for truncated output.
• No way to rigorously check for syntax changes in the output.

BLAST Programming
27

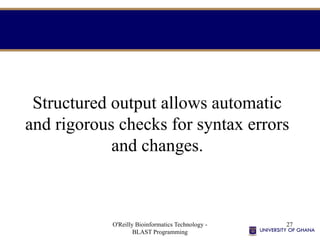

Structured output allows automatic
and rigorous checks for syntax errors
and changes.

BLAST Programming
28
Abstract Syntax Notation 1 (ASN.1)
• Is an International Standards Organization (ISO) standard
for describing structured data and reliably encoding it.
• Used extensively in the telecommunications industry.
• Both a binary and a text format.
• NCBI data model is written in ASN.1.
• Asntool can produce C object loaders from an ASN.1
specification.

BLAST Programming
29
ASN.1 is used for the NCBI BLAST Web
page.
server
ASN.1
Return formatted
results
BLAST DB
Fetch ASN.1 Fetch sequence
Request results

BLAST Programming
30

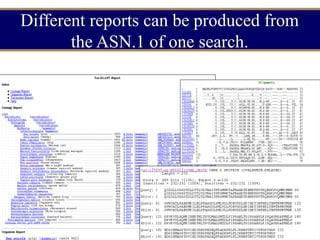

Different reports can be produced from
the ASN.1 of one search.

BLAST Programming
31
ASN.1
TaxBlast
report
Query-anchored
BLAST report
Pair-wise
BLAST report
HTML
text
Hit-table
XML
HTML
text

O'Reilly Bioinformati 32

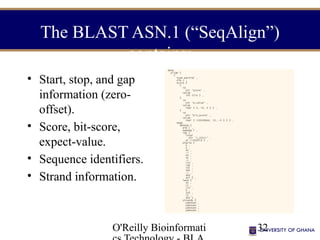

The BLAST ASN.1 (“SeqAlign”)
contains:
• Start, stop, and gap
information (zero-
offset).
• Score, bit-score,
expect-value.
• Sequence identifiers.
• Strand information.

BLAST Programming
33
Three flavors of Seq-Align,
Score-block(s) plus one of:
• Dense-diag: series of unconnected diagonals. No
coordinate “stretching” (e.g., cannot be used for protein-
nucl. alignments). Used for ungapped
BLASTN/BLASTP.
• Dense-seg: describes an alignment containing many
segments. No coordinate “stretching”. Used for gapped
BLASTN/BLASTP.
• Std-seg: a collection of locations. No restriction on
stretching of coordinates. Used for gapped/ungapped
translating searches. Generic.

BLAST Programming
34
Score Block
Score ::= SEQUENCE {
id Object-id OPTIONAL , -- identifies Score type
value CHOICE { -- actual value
real REAL , -- floating point value
int INTEGER } } -- integer
SEQUENCE is an ordered list of elements,
each of which is an ASN.1 type.
Required unless DEFAULT or OPTIONAL

BLAST Programming
35
Score Block example
2.45905555x10-9
38.1576692

BLAST Programming
36
Dense-seg definition
Dense-seg ::= SEQUENCE { -- for (multiway) global or partial alignments
dim INTEGER DEFAULT 2 , -- dimensionality
numseg INTEGER , -- number of segments here
ids SEQUENCE OF Seq-id , -- sequences in order
starts SEQUENCE OF INTEGER , -- start OFFSETS in ids order within segs
lens SEQUENCE OF INTEGER , -- lengths in ids order within segs
strands SEQUENCE OF Na-strand OPTIONAL ,
scores SEQUENCE OF Score OPTIONAL } -- score for each seg
SEQUENCE OF is an ordered list of
the same type of element.

BLAST Programming
37
Dense-seg
example

BLAST Programming
38
Std-seg definition
Std-seg ::= SEQUENCE {
dim INTEGER DEFAULT 2 , -- dimensionality
ids SEQUENCE OF Seq-id OPTIONAL , -- sequences identifiers
loc SEQUENCE OF Seq-loc , -- locations in ids order
scores SET OF Score OPTIONAL } -- score for each segment
SET is an unordered list of elements, each of which is an
ASN.1 type. Required unless DEFAULT or OPTIONAL.
SET OF is an unordered list of the same type of element.

BLAST Programming
39

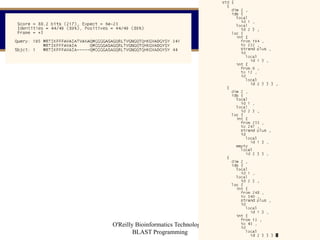

Std-seg example

BLAST Programming
40
Demo program (“blreplay”) to reproduce
BLAST results from ASN.1
• Start/stops and identifiers read in from ASN.1 (SeqAlign).
• Sequences and definition lines fetched from BLAST
databases.

Asntool can produce XML from
ASN.1
• Really a
transliteration, not a
new specification
• A Document Type
Definition (DTD) can
also be produced.

BLAST Programming
42
ASN.1 and XML validation differences.
• XML can be “well-formed” (does not break any XML
syntax rules) or “validated” (checked against a DTD).
• ASN.1 must always be valid (checked against a
specification).

BLAST Programming
43
Special purpose XML
• NCBI specification does not fit the needs of some users (the
sequence is not provided in the SeqAlign, when fetched the
sequence is packed 2/4 bp’s per byte).
• Possible to produce XML with more/less information or in a
different format.
• First done as an ASN.1 specification, which is then dumped as
XML.

BLAST XML designed to be self-
contained.
• Query sequence, database
sequence, etc.
• Sequence definition lines.
• Start, stop, etc. (one-
offset).
• Scores, expect values, %
identity etc.
• Produced by BLAST
binaries and on NCBI
Web page.

BLAST Programming
45
Overview of the BLAST
XML
<!ELEMENT BlastOutput (
BlastOutput_program , BLAST program, e.g., blastp, etc
BlastOutput_version , version of BLAST engine (e.g., 2.1.2)
BlastOutput_reference , Reference about algorithm
BlastOutput_db , Database(s) searched
BlastOutput_query-ID , query identifier
BlastOutput_query-def , query definition
BlastOutput_query-len , query length
BlastOutput_query-seq? , query sequence
BlastOutput_param , BLAST search parameters
BlastOutput_iterations BLAST results for each iteration/run
)>

BLAST Programming
46
<!ELEMENT BlastOutput (
BlastOutput_program ,
BlastOutput_version ,
BlastOutput_reference ,
BlastOutput_db ,
BlastOutput_query-ID ,
BlastOutput_query-def ,
BlastOutput_query-len ,
BlastOutput_query-seq? ,
BlastOutput_param ,
BlastOutput_iterations )>
<!ELEMENT Iteration (
Iteration_iter-num , Iteration number (one for non PSI-BLAST)
Iteration_hits? , Hits (one for each database sequence)
Iteration_stat? , Search statistics
Iteration_message? Error messages
)>
<!ELEMENT BlastOutput_iterations ( Iteration+ )>

BLAST Programming
47
<!ELEMENT Iteration (
Iteration_iter-num ,
Iteration_hits? ,
Iteration_stat? ,
Iteration_message? )>
<!ELEMENT Hit (
Hit_num , ordinal number of the hit, one-offset (e.g., "1, 2...").
Hit_id , ID of db sequence (e.g., "gi|7297267|gb|AAF52530.1|")
Hit_def , definition of the db sequence
Hit_accession , accession of the db sequence (e.g., "AAF57408")
Hit_len , length of the database sequence
Hit_hsps? describes individual alignments
)>
<!ELEMENT Iteration_hits ( Hit* )>

BLAST Programming
48

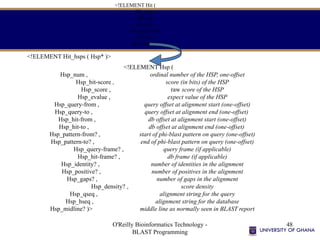

<!ELEMENT Hit (
Hit_num ,
Hit_id ,
Hit_def ,
Hit_accession ,
Hit_len ,
Hit_hsps? )>
<!ELEMENT Hsp (
Hsp_num , ordinal number of the HSP, one-offset
Hsp_bit-score , score (in bits) of the HSP
Hsp_score , raw score of the HSP
Hsp_evalue , expect value of the HSP
Hsp_query-from , query offset at alignment start (one-offset)
Hsp_query-to , query offset at alignment end (one-offset)
Hsp_hit-from , db offset at alignment start (one-offset)
Hsp_hit-to , db offset at alignment end (one-offset)
Hsp_pattern-from? , start of phi-blast pattern on query (one-offset)
Hsp_pattern-to? , end of phi-blast pattern on query (one-offset)
Hsp_query-frame? , query frame (if applicable)
Hsp_hit-frame? , db frame (if applicable)
Hsp_identity? , number of identities in the alignment
Hsp_positive? , number of positives in the alignment
Hsp_gaps? , number of gaps in the alignment
Hsp_density? , score density
Hsp_qseq , alignment string for the query
Hsp_hseq , alignment string for the database
Hsp_midline? )> middle line as normally seen in BLAST report
<!ELEMENT Hit_hsps ( Hsp* )>

Parsing BLAST XML with Expat.
• Expat is a popular
free-ware used for
parsing XML.
• Non-validating.
• Simple C (demo)
program to parse
BLAST output.

BLAST Programming
50
Output sizes for a BLASTP search of gi|
178628 vs. nr.
• Hit-table: 16 kb
• Binary ASN.1 (SeqAlign): 35 kb
• Text ASN.1 (SeqAlign): 144 kb
• XML (SeqAlign): 392 kb
• XML: 288 kb
• BLAST report (text): 232 kb
• BLAST report (html): 272 kb

BLAST Programming
51
Specification (i.e., “data model”)
issues should not be confused with
the question about whether to use
ASN.1 or XML.

BLAST Programming
52
Structured output is not a panacea.
• Design issues must still be addressed.
• Semantic issues still exist, e.g. is a start/stop value zero-offset or
one-offset.
• Data issues still exist, e.g., is the correct sequence shown, are the
offsets correct, was the DNA translated with the correct genetic
code?

BLAST Programming
53
Overview of BLAST code.

BLAST Programming
54
NCBI toolkit
• Has many low-level functions to make it platform
independent; supported under LINUX, many flavors of
UNIX, NT, and MacOS.
• Contains portable types such as Int2, Int4, FloatHi.
• Developer should write a “Main” function that is called by
a toolkit “main”.
• Contains the BLAST code in the “tools” library.
• A C++ toolkit is now being developed.

BLAST Programming
55
BLAST code has a modular design.
• API for retrieval from databases independent of the
compute engine.
• Compute engine independent of formatter.

BLAST Programming
56
Readdb API can be used to easily extract
information from the BLAST databases.
• Date produced.
• Title of database.
• Number of letters, number of sequences, longest sequence.
• Sequence and description of an entry.
• Function prototypes in readdb.h.

BLAST Programming
57
Dump a BLAST record in FASTA
format (db2fasta.c):
Get or display command-line arguments
“Main” is called by “main” in the toolkit.
Allocate an object for reading the database
Get the ordinal number (zero-offset) of the
record given a ‘FASTA’identifier
(e.g., “gb|AAH06766.1|AAH0676”).
Fetch the Bioseq (contains sequence,
description, and identifiers) for this record
Dump the sequence as FASTA.

BLAST Programming
58
Only a few function calls are needed to
perform a BLAST search (doblast.c):
Perform a BLAST search of the BioseqPtr query_bsp.
The BioseqPtr could have been obtained from the
BLAST databases, Entrez or from FASTA using
the function call FastaToSeqEntry
Allocate a BLASTOptionsBlk with default values
for the specified program (e.g., “blastp”),
the boolean argument specifies a gapped search
Set the expect value cutoff to a non-default value.

BLAST Programming
59
BlastOptionNew
BLAST_OptionsBlkPtr BLASTOptionNew (CharPtr progname, Boolean gapped)
CharPtr progname: name of program. Legal values are blastp, blastn, blastx, tblastn, and tblastx.
Boolean gapped: if TRUE gapped parameters are set, if FALSE ungapped.
Non-default values may be specified by changing elements of the allocated structure (typedef in blastdef.h).
The most often changed elements (options) are:
Nlm_FloatHi expect_value Expect value cutoff
Int2 wordsize Number of letters used in making words for lookup table.
Int2 penalty Penalty for a mismatch (only BLASTN and MegaBLAST)
Int2 reward Reward for a match (only BLASTN and MegaBLAST
CharPtr matrix Matrix used for comparison (not BLASTN or MegaBLAST)
Int4 gap_open Cost for gap existence
Int4 gap_extend Cost to extend a gap one more letter (including first).
CharPtr filter_string Filtering options (e.g., “L”, “mL”)
Int4 hitlist_size Number of database sequences to save hits for.
Int2 number_of_cpus Number of CPU’s to use.

BLAST Programming
60
BioseqBlastEngine
SeqAlignPtr BioseqBlastEngine (BioseqPtr bsp, CharPtr progname, CharPtr database,
BLAST_OptionsBlkPtr options, ValNodePtr *other_returns, ValNodePtr *error_returns
int (LIBCALLBACK *callback) (Int4 done, Int4 positives))
BioseqPtr bsp: contains the query sequence, identifier, and definition line.
CharPtr progname: name of program (one of blastp, blastn, blastx, tblastn, or tblastx).
CharPtr database: name (and path) to BLAST database(s). Multiple databases to be searched should
be separated by a space (e.g., “nt est”).
BLAST_OptionsBlkPtr options: BLAST option structure obtained from BLASTOptionNew.
If NULL default values will be used.
ValNodePtr *other_returns: a linked list of ValNodePtr’s, each one containing information about things
like the database(s) searched, the Karlin-Altschul parameters, the region of query masked.
See blastall.c to see how to use this information.
May be set to NULL.
ValNodePtr *error_returns: a linked list of error messages, these may be printed with a call to
BlastErrorPrint(error_returns).
May be set to NULL.
int (LIBCALLBACK *callback) (Int4 done, Int4 positives): callback function to mark progress through
the database. May be set to NULL.

BLAST Programming
61
What can I do with the SeqAlignPtr?
SeqAlignId gets the (C-structure) identifier
for the first (zeroth) sequence.
SeqIdWrite formats the information in “query_id”
into a FASTA identifier (e.g., “gi|129295”) and
places it into query_id_buf.
SeqAlignStop returns the end values (zero-offset)
for the first and second sequences.
SeqAlignStart returns the start value (zero-offset)
for the first and second sequences.

BLAST Programming
62

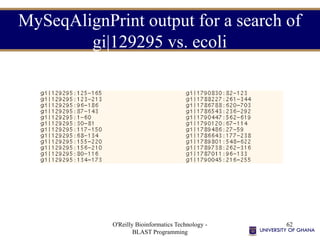

MySeqAlignPrint output for a search of
gi|129295 vs. ecoli

BLAST Programming
63
Notes on Traditional BLAST printing.
A call to the fetch function
ReadDBBioseqFetchEnable ("blastall", blast_database, db_is_na, TRUE);
tells the formatter where to obtain sequences. Entrez or a network connection to the
BLAST server could have been used.
The one-line descriptions are printed by
PrintDefLinesFromSeqAlignEx2(seqalign, 80, outfp, print_options,
FIRST_PASS, NULL, number_of_descriptions, NULL, NULL);
The pair-wise alignments are printed by
ShowTextAlignFromAnnot(seqannot, 60, outfp, NULL, NULL, align_options,
txmatrix, mask_loc, FormatScoreFunc);
Look at blreplay.c and blastall.c to see details of how these are called.

BLAST Programming
64
Resources
• BLAST Home page: http://www.ncbi.nlm.nih.gov/BLAST/
• NCBI Information Engineering Branch home page:
http://www.ncbi.nlm.nih.gov/IEB/
• Demonstration programs (parsing XML with EXPAT,
blreplay.c, doblast.c, db2fasta.c):
ftp://ftp.ncbi.nih.gov/blast/demo

BLAST Programming
65
ASN.1 RESOURCES
• The Open Book : A Practical Perspective on OSI
by Marshall T. Rose (Prentice Hall).
• OSS Nokalva Web site:
http://www.oss.com/asn1/overview.html
• NCBI toolkit documentation on ASN.1:
http://www.ncbi.nlm.nih.gov/IEB/ToolBox/
SDKDOCS/ASNLIB.HTML

BLAST Programming
66
Email addresses
• General questions about running BLAST:
blast-help@ncbi.nlm.nih.gov
• Questions about compiling the toolkit and requests for hard-copy of
documentation: toolbox@ncbi.nlm.nih.gov

Lecture_4_Blast_Programming_Slide Title: Applications of Bioinformatics.pptx

More Related Content

Similar to Lecture_4_Blast_Programming_Slide Title: Applications of Bioinformatics.pptx (20)

Recently uploaded (20)

Lecture_4_Blast_Programming_Slide Title: Applications of Bioinformatics.pptx

Editor's Notes
