2. Introduction
• This module is intended to present
information on the widely used method of
magnetic particle inspection.
• Magnetic particle inspection can detect
both production discontinuities (seams,
laps, grinding cracks and quenching
cracks) and in-service damage (fatigue
and overload cracks).

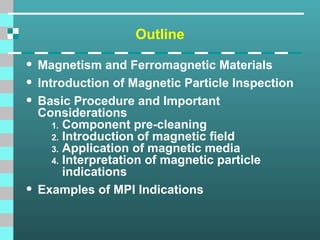

3. Outline
• Magnetism and Ferromagnetic Materials
• Introduction of Magnetic Particle Inspection
• Basic Procedure and Important
Considerations
1. Component pre-cleaning
2. Introduction of magnetic field
3. Application of magnetic media
4. Interpretation of magnetic particle
indications
• Examples of MPI Indications
4. Magnetic lines of force
around a bar magnet
Opposite poles attracting Similar poles repelling
Introduction to Magnetism
Magnetism is the ability of matter to
attract other matter to itself. Objects
that possess the property of
magnetism are said to be magnetic or
magnetized and magnetic lines of
force can be found in and around the
objects. A magnetic pole is a point
where the a magnetic line of force
exits or enters a material.
Magnetic field lines:
• Form complete loops.
• Do not cross.
• Follow the path of least
resistance.
• All have the same strength.
• Have a direction such that
they cause poles to attract
or repel.
5. How Does Magnetic Particle
Inspection Work?
A ferromagnetic test specimen is magnetized with
a strong magnetic field created by a magnet or
special equipment. If the specimen has a
discontinuity, the discontinuity will interrupt the
magnetic field flowing through the specimen and a
leakage field will occur.
6. How Does Magnetic Particle
Inspection Work? (Cont.)
Finely milled iron particles coated with a dye
pigment are applied to the test specimen. These
particles are attracted to leakage fields and will
cluster to form an indication directly over the
discontinuity. This indication can be visually
detected under proper lighting conditions.
7. Basic Procedure
Basic steps involved:
1. Component pre-cleaning
2. Introduction of magnetic field
3. Application of magnetic media
4. Interpretation of magnetic particle indications
8. Pre-cleaning
When inspecting a test part with the magnetic
particle method it is essential for the particles to
have an unimpeded path for migration to both
strong and weak leakage fields alike. The part’s
surface should be clean and dry before
inspection.
Contaminants such as oil,
grease, or scale may not
only prevent particles from
being attracted to leakage
fields, they may also
interfere with interpretation
of indications.
9. Introduction of the Magnetic Field
The required magnetic field can be introduced into a
component in a number of different ways.
1. Using a permanent magnet or an electromagnet that
contacts the test piece
2. Flowing an electrical current through the specimen
3. Flowing an electrical current through a coil of wire
around the part or through a central conductor running
near the part.
10. Direction of the Magnetic Field
Two general types of magnetic fields (longitudinal
and circular) may be established within the
specimen. The type of magnetic field established is
determined by the method used to magnetize the
specimen.
• A longitudinal magnetic field has
magnetic lines of force that run
parallel to the long axis of the
part.
• A circular magnetic field has
magnetic lines of force that run
circumferentially around the
perimeter of a part.
11. Importance of Magnetic Field Direction
Being able to magnetize the part in two
directions is important because the best
detection of defects occurs when the lines of
magnetic force are established at right angles to
the longest dimension of the defect. This
orientation creates the largest disruption of the
magnetic field within the part and the greatest
flux leakage at the surface of the part. An
orientation of 45 to 90 degrees between the
magnetic field and the defect is necessary to
form an indication.
Since defects may
occur in various and
unknown directions,
each part is normally
magnetized in two
directions at right
angles to each other.
Flux Leakage
No Flux Leakage
12. Question
?
? From the previous slide regarding the optimum
test sensitivity, which kinds of defect are easily
found in the images below?
Longitudinal (along the axis) Transverse (perpendicular the axis)
13. Producing a Longitudinal Magnetic
Field Using a Coil
A longitudinal magnetic
field is usually established
by placing the part near the
inside or a coil’s annulus.
This produces magnetic
lines of force that are
parallel to the long axis of
the test part.
Coil on Wet Horizontal Inspection Unit
Portable Coil
14. Producing a Longitudinal Field Using
Permanent or Electromagnetic Magnets
Permanent magnets and
electromagnetic yokes
are also often used to
produce a longitudinal
magnetic field. The
magnetic lines of force
run from one pole to the
other, and the poles are
positioned such that any
flaws present run normal
to these lines of force.
15. Circular Magnetic Fields
Circular magnetic fields are produced by
passing current through the part or by
placing the part in a strong circular
magnet field.
A headshot on a wet horizontal test unit
and the use of prods are several common
methods of injecting current in a part to
produce a circular magnetic field.
Placing parts on a central conductors
carrying high current is another way to
produce the field.
Magnetic Field
Electric
Current
16. Application of Magnetic
Media (Wet Versus Dry)
MPI can be performed using either
dry particles, or particles
suspended in a liquid. With the
dry method, the particles are
lightly dusted on to the surface.
With the wet method, the part is
flooded with a solution carrying
the particles.
The dry method is more portable.
The wet method is generally more
sensitive since the liquid carrier
gives the magnetic particles
additional mobility.
17. Dry Magnetic Particles
Magnetic particles come in a variety of colors. A
color that produces a high level of contrast
against the background should be used.
18. Wet Magnetic Particles
Wet particles are typically supplied
as visible or fluorescent. Visible
particles are viewed under normal
white light and fluorescent particles
are viewed under black light.
19. Interpretation of Indications
After applying the magnetic field, indications that
form must interpreted. This process requires that
the inspector distinguish between relevant and
non-relevant indications.
The following series of images depict
relevant indications produced from a
variety of components inspected
with the magnetic particle method.
27. Lack of Fusion in SMAW Weld
Visible, Dry Powder Method
Indication
28. Toe Crack in SMAW Weld
Visible, Dry Powder Method
29. Throat and Toe Cracks in
Partially Ground Weld
Visible, Dry Powder Method
30. Demagnetization
• Parts inspected by the magnetic particle method may
sometimes have an objectionable residual magnetic
field that may interfere with subsequent manufacturing
operations or service of the component.
• Possible reasons for demagnetization include:
– May interfere with welding and/or machining
operations
– Can effect gauges that are sensitive to magnetic
fields if placed in close proximity.
– Abrasive particles may adhere to components
surface and cause and increase in wear to engines
components, gears, bearings etc.
31. Demagnetization (Cont.)
• Demagnetization requires that the residual
magnetic field is reversed and reduced by the
inspector.
• This process will scramble the magnetic domains
and reduce the strength of the residual field to an
acceptable level.
Demagnetized
Magnetized
32. Advantages of
Magnetic Particle Inspection
• Can detect both surface and near sub-surface defects.
• Can inspect parts with irregular shapes easily.
• Precleaning of components is not as critical as it is for
some other inspection methods. Most contaminants
within a flaw will not hinder flaw detectability.
• Fast method of inspection and indications are visible
directly on the specimen surface.
• Considered low cost compared to many other NDT
methods.
• Is a very portable inspection method especially when
used with battery powered equipment.
33. Limitations of
Magnetic Particle Inspection
•Cannot inspect non-ferrous materials such as
aluminum, magnesium or most stainless steels.
•Inspection of large parts may require use of equipment
with special power requirements.
•Some parts may require removal of coating or plating
to achieve desired inspection sensitivity.
•Limited subsurface discontinuity detection capabilities.
Maximum depth sensitivity is approximately 0.6” (under ideal
conditions).
•Post cleaning, and post demagnetization is often
necessary.
•Alignment between magnetic flux and defect is
important
34. Glossary of Terms
• Black Light: ultraviolet light which is filtered to
produce a wavelength of approximately 365
nanometers. Black light will cause certain materials to
fluoresce.
• Central conductor: an electrically conductive bar
usually made of copper used to introduce a circular
magnetic field in to a test specimen.
• Coil: an electrical conductor such a copper wire or
cable that is wrapped in several or many loops that
are brought close to one another to form a strong
longitudinal magnetic field.
35. Glossary of Terms
• Discontinuity: an interruption in the structure of the
material such as a crack.
• Ferromagnetic: a material such as iron, nickel and
cobalt or one of it’s alloys that is strongly attracted to a
magnetic field.
• Heads: electrical contact pads on a wet horizontal
magnetic particle inspection machine. The part to be
inspected is clamped and held in place between the
heads and shot of current is sent through the part from
the heads to create a circular magnetic field in the part.
• Leakage field: a disruption in the magnetic field. This
disruption must extend to the surface of the part for
particles to be attracted.
36. Glossary of Terms
• Non-relevant indications: indications produced due
to some intended design feature of a specimen such
a keyways, splines or press fits.
• Prods: two electrodes usually made of copper or
aluminum that are used to introduce current in to a
test part. This current in turn creates a circular
magnetic field where each prod touches the part.
(Similar in principal to a welding electrode and ground
clamp).
• Relevant indications: indications produced from
something other than a design feature of a test
specimen. Cracks, stringers, or laps are examples of
relevant indications.
37. Glossary of Terms
• Suspension: a bath created by mixing particles with
either oil or water.
• Yoke: a horseshoe magnet used to create a
longitudinal magnetic field. Yokes may be made from
permanent magnets or electromagnets.
38. For More Information
The Collaboration for
NDT Education
www.ndt-ed.org
The American Society
for Nondestructive
Testing
www.asnt.org
Editor's Notes
#1:This presentation was developed to provide students in industrial technology programs, such as welding, an introduction to magnetic particle testing. The material by itself is not intended to train individuals to perform NDT functions but rather to acquaint individuals with the NDT equipment and methods that they are likely to encounter in industry. More information has been included than might necessarily be required for a general introduction to the subject as some instructors have requested at least 60 minutes of material. Instructors can modify the presentation to meet their needs by simply hiding slides in the “slide sorter” view of PowerPoint.”
This presentation is one of eight developed by the Collaboration for NDT Education. The topics covered by the other presentations are:
Introduction to Nondestructive Testing
Visual Inspection
Penetrant Testing
Radiographic Testing
Ultrasonic Testing
Eddy Current Testing
Welder Certification
All rights are reserved by the authors and the presentation cannot be copied or distributed except by the Collaboration for NDT Education.
A free copy of the presentations can be requested by contacting the Collaboration at NDT-ed@cnde.iastate.edu.
