Manual CPE User guide

IEEE 802.11a/n Wireless Outdoor CPE
User’s Manual
V2.0 July 2010

Copyright
Copyright © 2010 all rights reserved. No part of this publication may be reproduced, adapted, stored in
a retrieval system, translated into any language, or transmitted in any form or by any means without
the written permission of the supplier.
About This Manual
This user manual is intended to guide professional installer to install the IEEE 802.11a/n Wireless CPE
and how to build the infrastructure centered on it. It includes procedures to assist you in avoiding
unforeseen problems.
Conventions
For your attention on important parts, special characters and patterns are used in this manual:
This indicates an important note that you must pay attention to.
This indicates a warning or caution that you have to abide.
Bold: Indicates the function, important words, and so on.
Warning:
Note:

Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.

FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
To avoid the possibility of exceeding radio frequency exposure limits, you shall beep a distance of at
least 100cm between you and the antenna of the installed equipment. This transmitter must not be
co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination. The
firmware setting is not accessible by the end user.

Warranty
Hardware warranty is for one (1) year from date of shipment from Distributor warrants that hardware
will conform to the current relevant published specifications and will be free from material defects in
material and workmanship under normal use and service.
IN NO EVENT SHALL Distributor BE LIABLE TO YOU OR ANY OTHER PARTY FOR ANY DIRECT,
INDIRECT, GENERAL, SPECIAL, INCIDENTAL, CONSEQUENTIAL, EXEMPLARY OR OTHER
DAMAGE RISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT (INCLUDING,
WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, LOSS OF BUSINESS INFORMATION OR ANY OTHER PECUNIARY LOSS, OR
FROM ANY BREACH OF WARRANTY, EVEN IF Distributor HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN NO CASE SHALL EXCEED THE AMOUNT YOU PAID
FOR THE PRODUCT.

Content
Chapter 1 Introduction......................................................................................................................... 1
Introduction......................................................................................................................................... 1
Appearance ........................................................................................................................................ 1
Key Features ...................................................................................................................................... 2
Typical Application.............................................................................................................................. 2
Chapter 2 Hardware Installation ......................................................................................................... 3
Preparation before Installation............................................................................................................ 3
Professional Installation Required .................................................................................................. 3
Safety Precautions.......................................................................................................................... 3
Installation Precautions................................................................................................................... 4
Product Package............................................................................................................................. 4
Hardware Installation.......................................................................................................................... 6
Connect up...................................................................................................................................... 6
Using the External Antenna ............................................................................................................ 9
Pole Mounting............................................................................................................................... 10
Chapter 3 Basic Settings..................................................................................................................... 6
Factory Default Settings ....................................................................................................................11
System Requirements ...................................................................................................................... 12
How to Login the Web-based Interface............................................................................................ 12
Basic System Settings...................................................................................................................... 14
Time Settings.................................................................................................................................... 17
RADIUS Settings .............................................................................................................................. 18
Firewall Settings ............................................................................................................................... 19
Basic Wireless Settings.................................................................................................................... 23
Site Survey ....................................................................................................................................... 25
Chapter 4 Advanced Settings ........................................................................................................... 27
Advanced Wireless Settings............................................................................................................. 27

Wireless Security Settings................................................................................................................ 30
Security Settings........................................................................................................................... 30
Access Control.............................................................................................................................. 32
WDS Settings................................................................................................................................ 33
Chapter 5 Management...................................................................................................................... 34
SNMP Management ......................................................................................................................... 34
Configure SNMPv3 User Profile ................................................................................................... 35
Upgrade Firmware............................................................................................................................ 36
Backup/ Retrieve Settings ................................................................................................................ 37
Restore Factory Default Settings ..................................................................................................... 37
Reboot .............................................................................................................................................. 38
Password.......................................................................................................................................... 39
System Log....................................................................................................................................... 39
Site Survey ....................................................................................................................................... 40
Ping Watch Dog................................................................................................................................ 41
Chapter 6 Status................................................................................................................................. 42
View Basic Information ..................................................................................................................... 42
View Association List ........................................................................................................................ 42
View Network Flow Statistics............................................................................................................ 43
View ARP Table ................................................................................................................................ 44
View Bridge Table............................................................................................................................. 44
View Active DHCP Client Table ........................................................................................................ 45
Chapter 7 Troubleshooting ............................................................................................................... 46
Appendix A. ASCII.............................................................................................................................. 48
Appendix B. GPL Declamation ......................................................................................................... 49

TABLE
Table 1 Factory Default Settings ...........................................................................................................11
Table 2 Table 2 ACSII...........................................................................................................................57
Table 3 Table 3 Public Software Name and Description……………………………………………………59

Chapter 1 Introduction
Introduction
Designed for outdoor environment application, the IEEE 802.11a/n Wireless Outdoor CPE is a
high-performance 802.11 a/n 2x2 MIMO broadband solution that provides fast and reliable wireless
network coverage. Designed with IEEE 802.11n draft 2.0 standard, high output power and built-in
16dBi dual-polarity antenna makes it possible to deliver several times faster data rate than normal
wireless device and higher bandwidth with longer range for outdoor applications.
The IEEE 802.11a/n Wireless Outdoor CPE supports four wireless communication connectivity (AP,
Wireless Client, WDS and AP Repeater), allowing for various application requirements thus helping to
find the key to the “last mile” with least effort.
With high output power and reliable performance, the IEEE 802.11a/n Wireless Outdoor CPE is an
ideal wireless broadband solution for wireless Internet service providers and system integrators!
Appearance
Figure 1 IEEE 802.11a/n Wireless Outdoor CPE

Key Features
Compliant with IEEE 802.11a and IEEE 802.11n draft 2.0 as well
Support Power Through Ethernet which is supplied with 15V.
High reliable watertight housing endures almost any harsh environments
Four operating modes including AP, Wireless Client, WDS and AP Repeater
Support 64/128/152-bit WEP and 802.1X, WPA, WPA2, WPA&WPA2,WPA-PSK, WPA2-PSK, and
WPA-PSK&WPA2-PSK etc
User-friendly Web and SNMP-based management interface
Typical Application
This section describes the typical applications of the IEEE 802.11a/n Wireless Outdoor CPE. By
default, it is set to AP mode which allows it to establish a wireless coverage; besides, it is also able to
join any available wireless network under wireless client mode. the IEEE 802.11a/n Wireless Outdoor
CPE is able to deliver stable and efficient broadband connectivity for various applications.
Figure 2 Typical Application

Chapter 2 Hardware Installation
This chapter describes safety precautions and product information you have to know and check before
installing the IEEE 802.11a/n Wireless Outdoor CPE.
Preparation before Installation
Professional Installation Required
Please seek assistance from a professional installer who is well trained in the RF installation and
knowledgeable in the local regulations.
Safety Precautions
1. To keep you safe and install the hardware properly, please read and follow these safety
precautions.
2. If you are installing the IEEE 802.11a/n Wireless Outdoor CPE for the first time, for your safety
as well as others’, please seek assistance from a professional installer who has received safety
training on the hazards involved.
3. Keep safety as well as performance in mind when selecting your installation site, especially
where there are electric power and phone lines.
4. When installing the CPE, please note the following things:
♦ Do not use a metal ladder;
♦ Do not work on a wet or windy day;
♦ Wear shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.
5. When the system is operational, avoid standing directly in front of it. Strong RF fields are present
when the transmitter is on.

Installation Precautions
To keep the IEEE 802.11a/n Wireless Outdoor CPE well while you are installing it, please read and
follow these installation precautions.
1. Users MUST use a proper and well-installed surge arrestor with the CPE; otherwise, a random
lightening could easily cause fatal damage to the unit. EMD (Lightning) DAMAGE IS NOT
COVERED UNDER WARRNTY.
2. Users MUST use the “Power cord & PoE Injector” shipped in the box with the CPE. Use of
other options will cause damage to the unit.
3. Users MUST power off the IEEE 802.11a/n Wireless Outdoor CPE first before connecting the
external antenna to it. Do not switch from built-in antenna to the external antenna from WEB
management without physically attaching the external antenna onto the CPE; otherwise,
damage might be caused to the device itself.
Product Package
The product package you have received should contain the following items. If any of them are not
included or damaged, please contact your local vendor for support.
IEEE 802.11a/n Wireless Outdoor CPE ×1
Pole Mounting Ring ×2
Power Cord & PoE Injector ×1
Product CD ×1
Product CD contains Quick Installation Guide and User Manual!
Note:

Pole Mounting Ring
Power Cord & PoE Injector
Users MUST use the “Power cord & PoE Injector” shipped in the box with the IEEE
802.11a/n Wireless Outdoor CPE. Use of other options will cause damage to the
unit.
Warning:

Hardware Installation
Connect up
1. The bottom of IEEE 802.11a/n wireless outdoor CPE is a movable cover. Loosen the screw
with a Philips screwdriver. Grab the cover and pull it back harder to take it out as the figure
shown below.
Figure 3 Move the Cover
2. Plug a standard Ethernet cable into the RJ45 port labeled “LAN 1”. Do not plug the cable into
the RJ45 port labeled “LAN 2”.
Figure 4 Cable Connection

The secondary Ethernet port (labeled LAN 2) is for IP video integration. To use it you need to
enable the secondary port in advance before connecting with the IP camera from the CPE’s
Web Management as shown below.
3. Take out the power cord and PoE injector from the gift box, and plug the power cord into the DC
port of the PoE injector as the below picture shows.
Figure 5 Connect to PoE Injector
4. Put what in the Step.2 and Step.3 together by plugging the other side of the Ethernet cable in
the Step.2 into the PoE port of the PoE injector in the Step.3. When you finish the Step.4, the
set will be like the following picture:

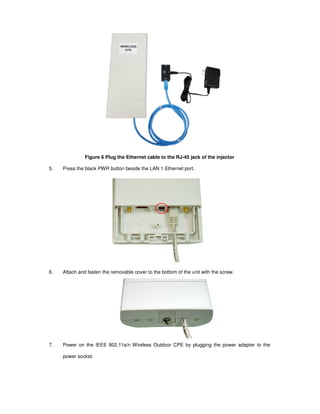

Figure 6 Plug the Ethernet cable to the RJ-45 jack of the injector
5. Press the black PWR button beside the LAN 1 Ethernet port.
6. Attach and fasten the removable cover to the bottom of the unit with the screw.
7. Power on the IEEE 802.11a/n Wireless Outdoor CPE by plugging the power adapter to the
power socket.

Using the External Antenna
The IEEE 802.11a/n Wireless Outdoor CPE provides two reverse SMA antenna connectors if you
prefer to use the external antenna for your application instead of the built-in directional antenna,
please follow the steps below.
1. Remove the two plugs as circled below:
2. Connect your external antenna to the SMA-type connectors at the bottom of the CPE.
Users MUST power off the CPE first before connecting the external antenna to it. Do
not switch from built-in antenna to the external antenna from WEB management
without physically attaching the external antenna onto the CPE; otherwise, damage
might be caused to the unit itself.
Follow the steps described in Connect Up to finish the installation.
Warning:

Pole Mounting
1. Turn the CPE over. Put the pole mounting rings through the middle hole of it. Note that you
should unlock the pole mounting ring with a screw driver before putting it through the CPE as the
following right picture shows.
Figure 5 Pole Mounting – Step 1
2. Mount the IEEE 802.11a/n Wireless Outdoor CPE steadily to the pole by locking the pole
mounting ring tightly. The mounting ring supports pole diameter 32mm to 70mm.
Figure 6 Pole Mounting – Step 2
3. Now you have completed the hardware installation of the IEEE 802.11a/n Wireless Outdoor
CPE.

Chapter 3 Basic Settings
Factory Default Settings
We’ll elaborate the Wireless Outdoor CPE factory default settings. You can re-acquire these
parameters by default. If necessary, please refer to the “Restore Factory Default Settings”.
Table 1 Factory Default Settings
Features Factory Default Settings
Username admin
Password password
Wireless Device Name apXXXXXX (X represents the last 6
digits of Ethernet MAC address)
Operating Mode AP
Data Rate Auto
IP Address 192.168.1.1
Subnet Mask 255.255.255.0
Gateway 0.0.0.0
Primary DNS Server 0.0.0.0
LAN
Secondary DNS Server 0.0.0.0
Spanning Tree Enable
802.11 Mode 802.11a/n
Country/Region United States
Channel Number 149
SSID Wireless
Broadcast SSID Enable
HT Protect Disable
Data Rate Auto
Output Power 100% (Full)
Channel Mode 20MHz
WMM Enabled
RTS Threshold (byte) 2346
Fragmentation Length (byte) 2346
Beacon Interval 100
DTIM Interval 1
Space in Meter 0
Flow Control by AP Disable
Security Open System

Encryption None
Wireless Separation Disable
Access Control Disable
Enable/Disable Enable
Read Community Name Public
Write Community Name Private
SNMP
IP Address 0.0.0.0
System Requirements
Before configuration, please make sure your system meets the following requirements:
A computer coupled with 10/ 100 Base-TX adapter;
Configure the computer with a static IP address of 192.168.1.x, as the default IP address of the
CPE is 192.168.1.1. (X cannot be 0, 1, nor 255);
A Web browser on PC for configuration such as Microsoft Internet Explorer 6.0 or above,
Netscape or Firefox.
How to Login the Web-based Interface
The IEEE 802.11a/n Wireless Outdoor CPE provides you with user-friendly Web-based management
tool.
Open Web browser and enter the IP address (Default: 192.168.1.1) of the CPE into the address
field. You will see the login page as below.
Figure 10 Login Page

Enter the username (Default: admin) and password (Default: password) respectively and click
“Login” to login the main page of the CPE. As you can see, this management interface provides
six main options in the black bar above, which are Status, System, Wireless, Firewall,
Management and Tools.
Figure 11 Main Page
The username and password are case-sensitive, and the password should be no
more than 19 characters!
Note:

Basic System Settings
For users who use the IEEE 802.11a/n Wireless Outdoor CPE for the first time, it is recommended that
you begin configuration from “Basic Settings” in “System” shown below:
Figure 7 Basic System Settings
Basic Settings
Device Name: Specify the device name, which is composed of no more than 15 characters with
(0-9), (A-Z), (a-z) or (-).
Network Mode: Specify the network mode, including Bridge and Router. It is easy to configure
parameters in Bridge Mode; however, users must pay extra attention to the way they configure the
device when it is set to Router Mode. For details, please refer to “IP Settings (Router)”.
Ethernet Data Rate: Specify the transmission rate of data. Default is Auto.
Country Region: The availability of some specific channels and/or operational frequency bands
is country dependent.
Secondary RJ45 Power: The secondary Ethernet port (labeled LAN 2) is for IP video integration.
To use it you need to enable the secondary port via WEB UI in advance before connecting with
the IP camera.
Spanning Tree: Spanning Tree Protocol (STP) is a link management protocol for AP which
provides path redundancy while preventing loops in a network. STP allows only one active path

at a time between the access points but establish the redundant link as a backup if the initial link
fails.
STP Forward Delay: STP Forward Delay is the time spent in detecting and learning network tree
topology state before entering the forward state. Default time value is 1 sec.
TCP/IP Settings
Open “TCP/IP Settings (Bridge)” in “System” as below to configure the parameters for LAN
which connects to the LAN port of the CPE. In this page, users may change the settings for IP
Address, Subnet Mask, and DHCP Server.
Figure 13 TCP/IP Settings (Bridge)
Obtain IP Address Automatically: If a DHCP server exists in your network, you can check this
option, thus the IEEE 802.11a/n Wireless Outdoor CPE is able to obtain IP settings automatically
from that DHCP server.
When the IP address of the CPE is changed, the clients on the network often need to
wait for a while or even reboot before they can access the new IP address. For an
immediate access to the bridge, please flush the netbios cache on the client computer by
running the “nbtstat –r” command before using the device name of the CPE to access its
Web Management page.
Note:

Use Fixed IP Address: Check this option. You have to specify a static IP address, subnet mask,
default gateway and DNS server for the CPE manually. Make sure the specified IP address is
unique on your network in order to prevent IP conflict.
If the IEEE 802.11a/n Wireless Outdoor CPE is configured as Router mode, you need to configure
some additional TCP/IP parameters for accessing the Internet.
Figure 14 TCP/IP Settings (Router)
WAN Settings: Specify the Internet access method to Static IP, DHCP or PPPOE. Users must
enter WAN IP Address, Subnet Mask, Gateway settings provided by your ISPs.
LAN Settings: When DHCP Server is disabled, users can specify IP address and subnet mask
for the CPE manually. Make sure the specified IP address is unique on your network in order to
prevent IP conflict. When DHCP Server is enabled, users may specify DHCP IP Address Range,
DHCP Subnet Mask, DHCP Gateway and Lease Time (15-44640 minutes).

In AP mode, the IEEE 802.11a/n Wireless Outdoor CPE must establish connection
with another wireless device before it is set to Router mode. In Router mode, it is
impossible for users to access device via wired port, for WAN is on wired port and LAN
is on wireless port. Users can access device through the wireless device connected
with the CPE.
In wireless client mode, users can access the CPE via its wired port, for WAN is on
wireless port and LAN is on wired port when device is set to Router mode.
Bridge mode and AP Repeater mode are similar to AP mode when device is set to
Router mode; WAN is on wired port and LAN is on wireless port. Thus users must also
connect the CPE with another wireless device before it is set to Router mode and
access the CPE via the connected wireless device.
Time Settings
Compliant with NTP, the IEEE 802.11a/n Wireless Outdoor CPE is capable of keeping its time in
complete accord with the Internet time. Make configuration in “Time Settings” from “System”. To use
this feature, check “Enable NTP Client Update” in advance.
Figure 15 Time Settings
Current Time
Display the present time in Yr, Mon, Day, Hr, Min and Sec.
Warning:

Time Zone Select
Select the time zone from the dropdown list.
NTP Server
Select the time server from the “NTP Server” dropdown list or manually input the IP address of
available time server into “Manual IP”.
Hit “Apply” to save settings.
RADIUS Settings
RADIUS (Remote Authentication Dial-In User Service) is a server for remote user authentication and
accounting; playing a central role in the network in providing the capabilities of authenticating,
authorizing, accounting, auditing, alarming and etc. It allows an organization to maintain user profiles
in a central database that all remote servers can share.
Open “RADIUS Settings” in “System” to make RADIUS configuration.
Figure 168 RADIUS Settings
Authentication RADIUS Server
This is for RADIUS authentication. It can communicate with RADIUS through IP Address, Port and
Shared Secret.
IP Address: Enter the IP address of the Radius Server;
Port: Enter the port number of the Radius Server;

Shared Secret: This secret, which is composed of no more than 31 characters, is shared by the
AP and RADIUS during authentication.
Re-authentication Time: Set the time interval between two authentications.
Global-Key Update: Check this option and specify the time interval between two global-key
updates.
Firewall Settings
The firewall is a system or group of systems that enforce an access control policy between two
networks. It may also be defined as a mechanism used to protect a trusted network from an
un-trusted network. The IEEE 802.11a/n Wireless Outdoor CPE has capabilities of Source IP
Filtering, Destination IP Filtering, Source Port Filtering, Destination Port Filtering, Port Forwarding as
well as DMZ. This is available only under Router Mode.
Source IP Filtering: The source IP filtering gives users the ability to restrict certain types of data
packets from your local network to Internet through the IEEE 802.11a/n Wireless Outdoor CPE. Use of
such filters can be helpful in securing or restricting your local network.
Figure 17 Source IP Filtering
Destination IP Filtering: The destination IP filtering gives you the ability to restrict the computers in
LAN from accessing certain websites in WAN according to specified IP addresses. Check the

“Enable Destination IP Filtering” checkbox and enter the IP address of the clients to be restricted.
Hit Apply to make the setting take effect.
Figure 18 Destination IP Filtering
Source Port Filtering: The source port filtering enable you to restrict certain ports of data packets
from your local network to Internet through the IEEE 802.11a/n Wireless Outdoor CPE. Use of such
filters can be helpful in securing or restricting your local network.
Figure 19 Source Port Filtering

Destination Port Filtering: The destination port filtering enables you to restrict certain ports of data
packets from your local network to Internet through the IEEE 802.11a/n Wireless Outdoor CPE. Use of
such filters can be helpful in securing or restricting your local network.
Figure 20 Destination Port Filtering
Port Forwarding: The port forwarding allows you to automatically redirect common network services
to a specific machine behind the NAT firewall. These settings ne are only necessary if you wish to host
some sort of server like a web server or mail server on the private local network behind the router’s
NAT firewall.

Figure 21 Port Forwarding
DMZ: A Demilitarized Zone is used to provide Internet services without sacrificing unauthorized access
to its local private network. Typically, the DMZ host contains devices accessible to the Internet traffic,
such as Web (HTTP) servers, FTP servers, SMTP (e-mail) servers and DNS servers.
Figure 22 DMZ

Basic Wireless Settings
Open “Basic Settings” in “Wireless” as below to make basic wireless configuration.
Figure 23 Basic Wireless Settings
Disable Wireless LAN Interface
Check this option to disable WLAN interface, then the wireless module of the CPE will stop
working and no wireless device can connect to it.
Wireless Mode
Four operating modes are available on the IEEE 802.11a/n Wireless Outdoor CPE.
AP: The IEEE 802.11a/n Wireless Outdoor CPE establishes a wireless coverage and receives
connectivity from other wireless devices.
Wireless Client: The IEEE 802.11a/n Wireless Outdoor CPE is able to connect to the AP and
thus join the wireless network around it.
Bridge: The IEEE 802.11a/n Wireless Outdoor CPE establishes wireless connectivity with other
APs by keying in remote MAC address. Please refer to the “WDS Setting” for detailed
configuration.
AP Repeater: The IEEE 802.11a/n Wireless Outdoor CPE servers as AP and Bridge concurrently.
In other words, it can provide connectivity services for CPEs under WDS mode.

Wireless Network Name (SSID)
This wireless network name is shared among all associated devices in your wireless network.
Keep it identical on all those devices. Note that the SSID is case-sensitive and cannot exceed
32 characters.
Broadcast SSID
In AP mode, hiding network name is necessary when you are in a wireless environment that may
have potential risk. By disabling broadcast SSID, the STA cannot scan and find the IEEE
802.11a/n Wireless Outdoor CPE, so that malicious attack by some illegal STA could be avoided.
802.11 Mode
The IEEE 802.11a/n Wireless Outdoor CPE can communicate with wireless devices of 802.11n or
802.11a/n. You can also select Auto and make it work under an appropriate wireless mode
automatically.
HT Protect
Enable HT (High Throughput) protect to ensure HT transmission with MAC mechanism. Under
802.11n mode, wireless client can be divided into HT STA and Non-HT STA, among which the one
with HT protect enabled gets higher throughput.
Channel Number
Channel varies much as the available band differs from country to country. Select a proper
operating channel in the drop-down list according to your situation.
Antenna
By default, the IEEE 802.11a/n Wireless Outdoor CPE uses its built-in antenna for directional
transmission; however, if you prefer to use an external antenna for your case-dependent
applications, you can switch from “Internal (16 dBi)” to ”SMA Connector”.
You are able to choose “SMA Connector” only from the WEB UI when you have well
done installing the external antenna; otherwise, it might damage the unit itself.
Output Power
Specify the signal transmission power. The higher the output power is, the wider the signal can
cover, but the power consumption will be greater accordingly. Usually “Full” is preferred.
Note:

Data Rate
Usually “Auto” is preferred. Under this rate, the Wireless Outdoor CPE will automatically select
the highest available rate to transmit. In some cases, however, like where there is no great
demand for speed, you can have a relatively-low transmit rate for compromise of a long distance.
Channel Mode
Four levels are available: 5MHz, 10MHz, 20MHz and 40MHz. The last one can enhance data
throughput, but it takes more bandwidth, thus it might cause potential interference.
Extension Channel Protection Mode
This is to avoid conflict with other wireless network and boost the ability of your device to catch all
legacy devices transmissions. However, it may decrease wireless network performance.
Compared to CTS-Self; the transmission amount of CTS-RTS is much lower.
Enable MAC Clone
Available only under wireless client mode, it hides the MAC address of the CPE while displays the
one of associated wireless client or the MAC address designated manually.
Site Survey
Under wireless client mode, the IEEE 802.11a/n Wireless Outdoor CPE is able to perform site survey,
through which, information on the available access points will be detected.
Open “Basic Settings” in “Wireless”, by clicking the “Site Survey” button beside “Wireless Mode”
option, the wireless site survey window will pop up with a list of available wireless networks around.
Select the AP you would like to connect and click “Selected” to establish connection. The wireless site
survey window can also be viewed by opening the “Site Survey” page in “Tools”.

Chapter 4 Advanced Settings
Advanced Wireless Settings
Open “Advanced Settings” in “Wireless” to make advanced wireless settings.
Figure 25 Advanced Wireless Settings
WMM Support
WMM (Wi-Fi Multimedia) is a subset of 802.11e. It allows wireless communication to define a
priority limit on the basis of data type under AP mode only, thus those time-sensitive data, like
video/audio data, may own a higher priority than common one. To enable WMM, the wireless
client should also support it.
A-MPDU/A-MSDU Aggregation
The data rate of your CPE except wireless client mode could be enhanced greatly with this option
enabled; however, if your wireless clients don’t support A-MPDU/A-MSDU aggregation, it is not
recommended to enable it.
Short GI
Under 802.11n mode, enable it to obtain better data rate if there is no negative compatibility issue.

RTS Threshold
The IEEE 802.11a/n Wireless Outdoor CPE sends RTS (Request to Send) frames to certain
receiving station and negotiates the sending of a data frame. After receiving an RTS, that STA
responds with a CTS (Clear to Send) frame to acknowledge the right to start transmission. The
setting range is 0 to 2346 in byte. Setting it too low may result in poor network performance.
Leave it at its default of 2346 is recommended.
Fragmentation Length
Specify the maximum size in byte for a packet before data is fragmented into multiple packets.
Setting it too low may result in poor network performance. Leave it at its default of 2346 is
recommended.
Beacon Interval
Specify the frequency interval to broadcast packets. Enter a value between 20 and 1024.
DTIM Interval
DTIM, which stands for Delivery Traffic Indication Message, is contained in the data packets. It is
for enhancing the wireless transmission efficiency. The default is set to 1. Enter a value between 1
and 255.
IGMP Snooping
IGMP snooping is the process of listening to IGMP network traffic. By enabling IGMP snooping,
the AP will listen to IGMP membership reports, queries and leave messages to identify the ports
that are members of multicast groups. Multicast traffic will only be forwarded to ports identified as
members of the specific multicast group or groups.
Wireless Separation
Wireless separation is an ideal way to enhance the security of network transmission. Under the
mode except wireless client mode, enable “Wireless Separation” can prevent the communication
among associated wireless clients.
RIFS
RIFS (Reduced Interframe Spacing) is a means of reducing overhead and thereby increasing
network efficiency.

Link Integration
Available under AP/Bridge/AP repeater mode, it monitors the connection on the Ethernet port by
checking “Enabled”. It can inform the associating wireless clients as soon as the disconnection
occurs.
Max. Station Num
Available only under AP mode, it defines the maximum amount of wireless clients allowed to be
connected.
Space in Meter/ACK Timeout
To decrease the chances of data retransmission at long distance, the IEEE 802.11a/n Wireless
Outdoor CPE can automatically adjust proper ACK timeout value by specifying distance of the two
nodes.
Flow Control
It allows the administrator to specify the incoming and outgoing traffic limit by checking “Enable
Traffic Shaping”. This is only available in Router mode.
We strongly recommend you leave most advanced settings at their defaults except
“Distance in Meters” adjusted the parameter for real distance; any modification on them
may negatively impact the performance of your wireless network.
Note:

Wireless Security Settings
To prevent unauthorized radios from accessing data transmitting over the connectivity, the IEEE
802.11a/n Wireless Outdoor CPE provides you with rock solid security settings.
Security Settings
Open “Security Settings” in “Wireless” as below:
Figure 26 Security Settings
Network Authentication
Open System: It allows any device to join the network without performing any security check.
Shared Key: Data encryption and key are required for wireless authentication.
Legacy 802.1x: As an IEEE standard for port-based Network Access Control, it provides the
rights to access the wireless network and wired Ethernet. With User and PC identity, centralized
authentication as well as dynamic key management, it controls the security risk of wireless
network to the lowest. To serve the 802.1x, at least one EAP type should be supported by the
RADIUS Server, AP and wireless client.
WPA with RADIUS: With warrant (username, password and etc.) offered by user, this kind of
authentication can be realized with specific RADIUS server. This is the common way to be
adopted in large enterprise network.

WPA2 with RADIUS: As a new version of WPA, only all the clients support WPA2, can it be
available. If it is selected, AES encryption and RADIUS server is required.
WPA&WPA2 with RADIUS: It provides options of WPA (TKIP) or WPA2 (AES) for the client. If it is
selected, the data encryption type must be TKIP + AES and the RADIUS server must be set.
WPA-PSK: It is a simplified WPA mode with no need for specific authentication server. In this
so-called WPA Pre-Shared Key, all you have to do is just pre-enter a key in each WLAN node and
this is the common way to be adopted in large and middle enterprise as well as residential
network.
WPA2-PSK: As a new version of WPA, only all the clients support WPA2, can it be available. If it is
selected, the data encryption can only be AES and the passphrase is required.
WPA-PSK&WPA2-PSK: It provides options of WPA (TKIP) or WPA2 (AES) encryption for the
client. If it is selected, the data encryption can only be TKIP + AES and the passphrase is
required.
Data Encryption
If data encryption is enabled, the key is required and only sharing the same key with other
wireless devices can the communication be established.
None: Available only when the authentication type is open system.
64 bits WEP: It is made up of 10 hexadecimal numbers.
TKIP: Temporal Key Integrity Protocol, which is a kind of dynamic encryption, is co-used with
WPA-PSK, etc.
AES: Advanced Encryption Standard, it is usually co-used with WPA2-PSK, WPA, WPA2, etc.
TKIP + AES: It allows for backwards compatibility with devices using TKIP.
We strongly recommend you enable wireless security on your network!
Only setting the same Authentication, Data Encryption and Key in the CPE and
other associated wireless devices, can the communication be established!
Note:

Access Control
The Access Control appoints the authority to wireless client on accessing the IEEE 802.11a/n Wireless
Outdoor CPE, thus a further security mechanism is provided. This function is available only under AP
mode.
Open “Access Control” in “Wireless” as below.
Figure 27 Access Control
Access Control Mode
If you select “Allow Listed”, only those clients whose wireless MAC addresses are in the access
control list will be able to connect to your AP. While when “Deny Listed” is selected, those
wireless clients on the list will not be able to connect the AP.
MAC Address
Enter the MAC address of the wireless client that you would like to list into the access control list,
click “Apply” then it will be added into the table at the bottom.
Delete Selected/All
Check the box before one or more MAC addresses of wireless client(s) that you would like to
cancel, and click “Delete Selected” or “Delete All” to cancel that access control rule.

WDS Settings
Extend the range of your network without having to use cables to link the bridges by using the Wireless
Distribution System (WDS): Simply put, you can link the bridges wirelessly. Open “WDS Settings” in
“Wireless” as below:
Figure 28 WDS Settings
Enter the MAC address of another CPE you wirelessly want to connect to into the appropriate field and
click “Apply” to save settings.
WDS Settings is available only under Bridge and AP Repeater Mode.
Note:

Chapter 5 Management
SNMP Management
The IEEE 802.11a/n Wireless Outdoor CPE supports SNMP for convenient remote management.
Open “SNMP Configuration” in “Management” shown below. Set the SNMP parameters and obtain
MIB file before remote management.
Figure 29 SNMP Configuration
Enable SNMP
Check this box to enable SNMP settings.
Protocol Version
Select the SNMP version, and keep it identical on the CPE and the SNMP manager.
Server Port
Change the server port for a service if needed; however you have to use the same port to use that
service for remote management.
Get Community
Specify the password for the incoming Get and GetNext requests from the management station.
By default, it is set to public and allows all requests.

Set Community
Specify the password for the incoming Set requests from the management station. By default, it is
set to private.
Trap Destination
Specify the IP address of the station to send the SNMP traps to.
Trap Community
Specify the password sent with each trap to the manager. By default, it is set to public and allows
all requests.
Configure SNMPv3 User Profile
For SNMP protocol version 3, you can click “Configure SNMPv3 User Profile” in blue to set the
details of SNMPv3 user. Check “Enable SNMPv3 Admin/User” in advance and make further
configuration.
Figure 30 Configure SNMPv3 User Profile
User Name
Specify a user name for the SNMPv3 administrator or user. Only the SNMP commands carrying
this user name are allowed to access the CPE.
Password
Specify a password for the SNMPv3 administrator or user. Only the SNMP commands carrying
this password are allowed to access the CPE.

Confirm Password
Input that password again to make sure it is your desired one.
Access Type
Select “Read Only” or “Read and Write” accordingly.
Authentication Protocol
Select an authentication algorithm. SHA authentication is stronger than MD5 but is slower.
Privacy Protocol
Specify the encryption method for SNMP communication. None and DES are available.
None: No encryption is applied.
DES: Data Encryption Standard, it applies a 58-bit key to each 64-bit block of data.
Upgrade Firmware
Open “Firmware Upload” in “Management” and follow the steps below to upgrade firmware locally or
remotely through the CPE’s Web:
Figure 31 Upgrade Firmware
Click “Browse” to select the firmware file you would like to load;
Click “Upload” to start the upload process;
Wait a moment, the system will reboot after successful upgrade.
Do NOT cut the power off during upgrade, otherwise the system may crash!
Note:

Backup/ Retrieve Settings
It is strongly recommended you back up configuration information in case of something unexpected. If
tragedy hits your device, you may have an access to restore the important files by the backup. All
these can be done by the local or remote computer.
Open “Configuration File” in “Management” as below:
Figure 32 Backup/Retrieve Settings
Save Settings to File
By clicking “Save”, a dialog box will pop up. Save it, then the configuration file like ap.cfg will be
saved to your local computer.
Load Setting from File
By clicking “Browse”, a file selection menu will appear, select the file you want to load, like ap.cfg;
Click “Upload” to load the file. After automatically rebooting, new settings are applied.
Restore Factory Default Settings
The IEEE 802.11a/n Wireless Outdoor CPE provides two ways to restore the factory default settings:
Restore factory default settings via Web
From “Configuration File”, clicking “Reset” will eliminate all current settings and reboot your
device, then default settings are applied.

Figure 33 Restore Settings
Restore factory default settings via Reset Button
If software in the CPE is unexpectedly crashed and no longer reset the unit via Web, you may do
hardware reset via the reset button. Press and hold the button for at least 5 seconds and then
release it until the PWR LED gives a blink.
Reboot
You can reboot your CPE from “Configuration File” in “Management” as below:
Click “Reboot” and hit “Yes” upon the appeared prompt to start reboot process. This takes a few
minutes.
Figure 34 Reboot

Password
From “Password Settings” in “Management”, you can change the password to manage your CPE.
Enter the new password respectively in “New Password” and “Confirm Password” fields; click
“Apply” to save settings.
Figure 35 Password
The password is case-sensitive and its length cannot exceed 19 characters!
System Log
System log is used for recording events occurred on the CPE, including station connection,
disconnection, system reboot and etc.
Open “System Log” in “Tools” as below.
Note:

Figure 36 System Log
Remote Syslog Server
Enable Remote Syslog: Enable System log to alert remote server.
IP Address: Specify the IP address of the remote server.
Port: Specify the port number of the remote server.
Site Survey
Only available under Wireless Client mode, site survey allows you to scan all the APs within coverage.
Open “Site Survey” in “Tools” as below and select the desired AP to connect.
Figure 37 Site Survey Tool

Ping Watch Dog
If you mess your connection up and cut off your ability the log in to the unit, the ping watchdog has a
chance to reboot due to loss of connectivity.
Ping Watchdog
Enable Ping Watchdog: To activate ping watchdog, check this checkbox.
IP Address to Ping: Specify the IP address of the remote unit to ping.
Ping Interval: Specify the interval time to ping the remote unit.
Startup Delay: Specify the startup delay time to prevent reboot before the CPE is fully initialized.
Failure Count To Reboot: If the ping timeout packets reached the value, the CPE will reboot
automatically.

Chapter 6 Status
View Basic Information
Open “Information” in “Status” to check the basic information of the CPE, which is read only. Click
“Refresh” at the bottom to have the real-time information.
Figure 38 Basic Information
View Association List
Open “Association List” in “Connection” from “Status” to check the information of associated
wireless clients. All is read only. Click “Refresh” at the bottom to view the current association list.
Figure 39 Connection

View Network Flow Statistics
Open “Flow Statistics” in “Status” to check the data packets received on and transmitted from the
wireless and Ethernet ports. Click “Refresh” to view current statistics.
Figure 40 Network Flow Statistics
Poll Interval
Specify the refresh time interval in the box beside “Poll Interval” and click “Set Interval” to save
settings. “Stop” helps to stop the auto refresh of network flow statistics.

View ARP Table
Open “ARP Table” in “Status” as below. Click “Refresh” to view current table.
Figure 41 ARP Table
View Bridge Table
Open “Bridge Table” in “Status” as below. Click “Refresh” to view current connected status.
Figure 42 Bridge Table

View Active DHCP Client Table
Open “DHCP Client List” in “Status” as below to check the assigned IP address, MAC address and
time expired for each DHCP leased client. Click “Refresh” to view current table.
Figure 43 DHCP Client Table

Chapter 7 Troubleshooting
This chapter provides troubleshooting procedures for basic problems with the CPE. For warranty
assistance, contact your service provider or distributor for the process.
Q 1. How to know the MAC address of the IEEE 802.11a/n Wireless Outdoor CPE?
MAC Address distinguishes itself by the unique identity among network devices. There are two
ways available to know it.
• Each device has a label posted with the MAC address. Please refer below.
Figure 9 MAC Address
• On the CPE’s Web-based management interface, you can view the MAC Address from “View
Basic Information”.
Q 2. What if I would like to reset the unit to default settings?
You may restore factory default settings in “Configuration File” from “Management”.
Q 3. What if I would like to backup and retrieve my configuration settings?
You may do the backup by generating a configuration file or retrieve the settings you have backed
up previously in “Configuration File” from “Management”.
Q 4. What if I can not access the Web-based management interface?
Please check the followings:
• Check whether the power supply is OK; Try to power on the unit again.
• Check whether the IP address of PC is correct (in the same network segment as the unit);
• Login the unit via other browsers such as Firefox.
• Hardware reset the unit.

Q 5. In wireless client mode, what if the wireless connection is not stable after associating with
an AP?
• Since the CPE comes with a built-in directional antenna, it is recommended make it face to the
direction where the AP is to get the best connection quality.
• In addition, you can start “Site Survey” in “Wireless Basic Settings” to check the signal
strength. If it is weak or unstable (The smaller the number is, the weaker the signal strength
is.), please join other available AP for better connection.

Appendix A. ASCII
WEP can be configured with a 64-bit, 128-bit or 152-bit Shared Key (hexadecimal number or ACSII).
As defined, hexadecimal number is represented by 0-9, A-F or a-f; ACSII is represented by 0-9, A-F,
a-f or punctuation. Each one consists of two-digit hexadecimal.
Table 2 ACSII
ASCII
Character
Hex
Equivalent
ASCII
Character
Hex
Equivalent
ASCII
Character
Hex
Equivalent
ASCII
Character
Hex
Equivalent
! 21 9 39 Q 51 i 69
" 22 : 3A R 52 j 6A
# 23 ; 3B S 53 k 6B
$ 24 < 3C T 54 l 6C
% 25 = 3D U 55 m 6D
& 26 > 3E V 56 n 6E
‘ 27 ? 3F W 57 o 6F
( 28 @ 40 X 58 p 70
) 29 A 41 Y 59 q 71
* 2A B 42 Z 5A r 72
+ 2B C 43 [ 5B s 73
, 2C D 44 5C t 74
- 2D E 45 ] 5D u 75
. 2E F 46 ^ 5E v 76
/ 2F G 47 _ 5F w 77
0 30 H 48 ` 60 x 78
1 31 I 49 a 61 y 79
2 32 J 4A b 62 z 7A
3 33 K 4B c 63 { 7B
4 34 L 4C d 64 | 7C
5 35 M 4D e 65 } 7D
6 36 N 4E f 66 ~ 7E
7 37 O 4F g 67
8 38 P 50 h 68

Appendix B. GPL Declamation
PUBLIC SOFTWARE DECLAMATION
In the software we delivered, there may contains some public software, if it is, please read
below carefully:
1. Definition
“Public Software”, when applicable, shall mean that portion of the Licensed Software, in source code
form, set forth in the below Table, and provided under the terms set forth in the Section 5, the indicated
website, the complete license terms can be found.
“Public Software” shall mean each of:
(a) any computer code that contains, or is derived in any manner (in whole or in part) from, any
computer code that is distributed as open source software (e.g. Linux) or similar licensing or
distribution models; and
(b) any software that requires as a condition of use, modification and/or distribution of such software
that such software or other software incorporated into, derived from or distributed with such software (i)
be disclosed or distributed in source code form, (ii) be licensed for the purpose of making derivative
works, or (iii) be redistributable at no charge.
Public Software includes, without limitation, software licensed or distributed under any of the following
licenses or distribution models, or licenses or distribution models similar to any of the following: (1)
GNU’s General Public License (GPL) or Lesser/Library GPL (LGPL); (2) the Artistic License (e.g.,
PERL); (3) the Mozilla Public License; (4) the Netscape Public License; (5) the Sun Community
Source License (SCSL); (6) the Sun Industry Source License (SISL); and (7) the Apache Software
license.
2.
Limited Use
Any Public Software provided under the agreement shall be subject to the licenses, terms and
conditions of its model. Licensee hereby agrees to comply with the terms and conditions applicable

to any such Public Software, as set forth in its presentation on website.
3. Limited Liability
The supplier hereby express that the supplier shall have no liability for any costs, loss or damages
resulting from Licensee’s breach of the terms and conditions applicable to use, conversion or
combination of the licensed software with or into Public Software.
4. NO WARRANTY
This program or licensed software is distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY. THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO
THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH LICENSEE.
5. Public Software Name and Description
Table 2 Public Software Name and Description
Program
Name
Copy Right
Description
Origin Sour
Code
Licenses or
Distribution Models or
its special license
terms
License Terms
Website
Reference
U-boot Wolfgang Denk,
DENX Software
Engineering,
wd@denx.de
ftp://ftp.denx.de/
pub/u-boot/
GNU GENERAL
PUBLIC LICENSE
Version 2
GNU GENERAL
PUBLIC
LICENSE Version
2
Busybox http://www.busy
box.net/downloa
ds/busybox-1.01
.tar.bz2
GNU GENERAL
PUBLIC LICENSE
Version 2
http://www.gnu.or
g/licenses/old-lice
nses/gpl-2.0.html
Goahead Copyright (c)
GoAhead
http://data.goahe
ad.com/Software

Software Inc.,
1992-2000.
/Webserver/2.1.
8/webs218.tar.g
z
hostapd Copyright (c)
2002-2006, Jouni
Malinen
<jkmaline@cc.hut
.fi> and
contributors
http://hostap.epit
est.fi/releases/h
ostapd-0.4.8.tar.
gz
GNU GENERAL
PUBLIC LICENSE
Version 2
g/licenses/old-lice
nses/gpl-2.0.html
wpa_suppl
icant
Copyright (c)
2003-2005, Jouni
Malinen
<jkmaline@cc.hut
.fi> and
contributors
http://hostap.epit
est.fi/releases/w
pa_supplicant-0.
4.7.tar.gz
GNU GENERAL
PUBLIC LICENSE
Version 2
g/licenses/old-lice
nses/gpl-2.0.html
ntpclient Copyright 1997,
1999, 2000, 2003
Larry Doolittle
http://doolittle.ica
rus.com/ntpclien
t/ntpclient_2003
_194.tar.gz
GNU GENERAL
PUBLIC LICENSE
Version 2
g/licenses/old-lice
nses/gpl-2.0.html
net-snmp Copyright(c)
2001-2003,
Networks
Associates
Technology, Inc
All rights
reserved.
http://prdownloa
ds.sourceforge.n
et/net-snmp/net-
snmp-5.4.1.tar.g
z
GNU GENERAL
PUBLIC LICENSE
Version 2
g/licenses/old-lice
nses/gpl-2.0.html
vsftpd Author: Chris
Evans
ftp://vsftpd.beast
s.org/users/ceva
ns/vsftpd-1.1.2.t
GNU GENERAL
PUBLIC LICENSE
Version 2
g/licenses/old-lice
nses/gpl-2.0.html

ar.gz
linux ftp://ftp.kernel.or
g/pub/linux/kern
el/v2.6/linux-2.6.
15.tar.bz2
GNU GENERAL
PUBLIC LICENSE
Version 2
g/licenses/old-lice
nses/gpl-2.0.html
iptables Copyright
2000-2004
netfilter project
http://www.netfilter
.org/
ftp://ftp.netfilter.o
rg/pub/iptables/i
ptables-1.3.6.tar.
bz2
GNU GENERAL
PUBLIC LICENSE
Version 2
g/licenses/old-lice
nses/gpl-2.0.html
openssl Copyright (c)
1998-2008 The
OpenSSL Project.
All rights
reserved.
http://www.open
ssl.org/source/o
penssl-0.9.8k.tar
.gz
GNU GENERAL
PUBLIC LICENSE
Version 2
g/licenses/old-lice
nses/gpl-2.0.html
Igmpproxy Copyright (C)
2005 Johnny
Egeland
<johnny@rlo.org>
http://sourceforg
e.net/projects/ig
mpproxy/files/ig
mpproxy/0.1/igm
pproxy-0.1.tar.gz
/download
GNU GENERAL
PUBLIC LICENSE
Version 2
g/licenses/old-lice
nses/gpl-2.0.html
Dnrd Copyright (C)
1998 Brad M.
Garcia
<garsh@home.co
m>
http://sourceforg
e.net/projects/dn
rd/files/dnrd/2.12
/dnrd-2.12.tar.gz
/download
GNU GENERAL
PUBLIC LICENSE
Version 2
g/licenses/old-lice
nses/gpl-2.0.html
iproute Stephen
Hemminger
shemminger@osd
l.org
http://developer.
osdl.org/dev/ipro
ute2
GNU GENERAL
PUBLIC LICENSE
Version 2
g/licenses/old-lice
nses/gpl-2.0.html

Alexey Kuznetsov
kuznet@ms2.inr.a
c.ru
Pppd Paul Mackerras
<paulus@linuxcar
e.com>
ftp://ftp.samba.or
g/pub/ppp/

Manual CPE User guide

More Related Content

What's hot (17)

Viewers also liked (16)

Similar to Manual CPE User guide (20)

Recently uploaded (20)

Manual CPE User guide
