- 1. PRODUCTION LINE SERIES Metzer EngineeringDripline Laterals Production Lines & Technology metzer-group.com | Mail: engineeringinfo@metzerplas.com
- 2. Metzer Engineering is a division within Metzer Group, an innovative drip irrigation systems developer and manufacturer, and a drip irrigation market leader for more than 40 years. Metzer Engineering designs and builds innovative and cost effective dripline production-lines which are tailor-made to customers’ needs. Minimizing production down-time TO INCREASE YOUR PRODUCTION PROFITABILITY Our production-lines aim for one goal: METZER ENGINEERING YOUR TECHNOLOGY PARTNER Uncompromising after-sales service and real-time tech support Insuring production flexibility and end-user product usability Developing diversified applications and advanced solutions Increasing production speed while maintaining highest levels of quality Dripper design and manufacturing Dripline manufacturing Production technology and machinery Technical Support and post-sale service Turnkey agro projects Inclusive agronomic support METZER GROUP Metzer Engineering METZER GROUP A-Z SOLUTION PROVIDER

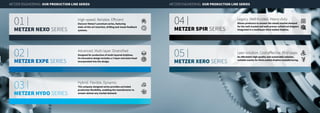

- 3. Hybrid. Flexible. Dynamic This uniquely designed series provides unrivaled production flexibility, enabling the manufacturer to answer almost any market demand. Advanced. Multi-layer. Diversified Designed for production of multi-layered driplines. Its innovative design includes a 3-layer extrusion head incorporated into the design. High-speed. Reliable. Efficient Discover Metzer’s premium series, featuring state-of-the-art insertion, drilling and visual-feedback systems.METZER NEXO SERIES METZER HYDO SERIES METZER EXPE SERIES METZER ENGINEERING OUR PRODUCTION LINE SERIES METZER ENGINEERING OUR PRODUCTION LINE SERIES 01 | 03 | 02 | Lean solution. Cost-effective. First-class An affordable high-quality and sustainable solution, suitable mainly for thick-walled dripline manufacturing. METZER XERO SERIES 05 | Legacy. Well-trusted. Heavy-duty Allows producers to answer the steady market demand for the well-trusted and well-proven cylindrical drippers integrated in a multilayer thick-walled dripline.METZER SPIR SERIES 04 |
- 4. 01 Cutting-edge drilling technology using a turbine spindle rotary drill METZER NEXO SERIES High-speed. Reliable. Efficient This reliable and efficient high-speed production line is Metzer’s flagship product, with a proven track record and global installations. The NEXO series incorporates state-of-the-art insertion, visual-inspection and drilling systems, allowing dripline producers to optimize their production output with higher product quality. Dripper type Flat (PC & non-PC) Max line speed 250 m/min Insertion rate 1600 drippers/min* Pipe diameter range 12-25 mm Wall thickness range 0.15-1.2 mm Drilling rate 1600 holes/min Minimum dripper spacing 10 cm Extruder output 200 Kg/hr Winder type Automatic + Accumulator *Applicable to symmetrical flat drippers • Flexibility to produce all wall thicknesses and pipe diameters in range • Can insert all Metzer flat dripper models by replacement of tooling sets (within a two hour set-up time) • Customizable to customer’s preferred extruder brand • Choice of extruder positioning; parallel or at 90◦ to production-line • Adaptable to customer’s drippers • Optional configuration of dripper-spacing in groups of drippers (ideal for orchards and citrus) NEXO SERIES FEATURES & OPTIONS
- 5. 02 METZER EXPE SERIES Advanced. Multi-layer. Diversified This series is designed for production of multi-layered driplines. Its innovative design includes a 3-layer extrusion head incorporated into the design, allowing varied production of driplines for diversified applications such as; Rootguard®, Anti-bacterial, usage of recycled raw- material and more. This line is suitable for experienced producers who wish the improve production profitability, introduce innovative and advanced products to their markets and gain technological advantage over their competitors. Dripper type Flat (PC & non-PC) Max line speed 200 m/min* Insertion rate 1000 drippers/min** Pipe diameter range 12-25 mm Wall thickness range 0.15-1.2 mm Drilling rate 1000 holes/min Minimum dripper spacing 10 cm Extruder output 320 Kg/hr Winder type Automatic + Accumulator * Applicable to thin-wall pipe production only ** Applicable to symmetrical flat drippers EXPE SERIES FEATURES & OPTIONS Multi layers Extrusion Head • Production of multilayer pipe with ABA/ABC, configurations • Incorporation of applicative layers such as: Anti-bectetial, Rootguard®, recycled raw-material • Flexibility to produce all wall thicknesses and pipe diameters in range • Adaptable to customer’s preferred extruder brand • Adaptable to customer’s drippers • Optional configuration of dripper-spacing in groups of drippers (ideal for orchards and citrus)
- 6. 03 METZER HYDO SERIES Hybrid. Flexible. Dynamic This innovative hybrid series is uniquely designed by Metzer for the production of driplines with both flat and cylindrical drippers (PC and non-PC). Its creative design provides an unrivaled flexibility, as it allows production of the widest product range in the market, enabling the manufacturer to answer almost any market demand. Whether it is a robust cylindrical PC dripper or an advanced light-weight flat dripper – this line can cope with the challenge. Dripper type Flat/cylindrical Max line speed 200/120 m/min Insertion rate 1000*/600 drippers/min Pipe diameter range 12-25 mm Wall thickness range 0.15-1.2 mm Drilling rate 1000/600 holes/min Minimum dripper spacing 10 cm Extruder output 320 Kg/hr Winder type Automatic Coiler & accumulator + Semi-automatic coiler * Applicable to symmetrical flat drippers • Flexibility to produce all wall thicknesses and diameters in range • Can insert all of Mezer’s flat/cylindrical drippers • Changing between flat and cylindrical drippers types takes one day’s work • Optional configuration of dripper spacing in groups of drippers (ideal for orchards and citrus) Double Function Insertion System HYDO SERIES FEATURES & OPTIONS CylindricalFlat integral

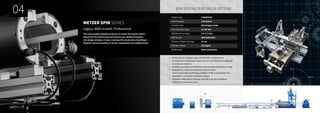

- 7. 04 METZER SPIR SERIES Legacy. Well-trusted. Professional This series enables dripline producers to answer the steady market- demand for the well-trusted and well-proven cylindrical drippers. Line design includes a 3-layer cross-head for production of multilayer driplines and incorporation of various applications and configurations. Dripper type Cylindrical Max line speed 120 m/min Insertion rate 600 drippers/min Pipe diameter range 12-25 mm Wall thickness range 0.6-1.2 mm Drilling rate 600 holes/min Minimum dripper spacing 10 cm Extruder output 320 Kg/hr Winder type Semi-automatic • Production of multilayer pipe with ABA/ABC, configurations • Incorporation of applicative layers such as: Anti-bectetial, Rootguard®, recycled raw-material • Flexibility to produce all wall thicknesses and pipe diameters in range • Adaptable to customer’s preferred extruder brand • Choice of extruder positioning; parallel or at 90° to production-line • Adaptable to customer’s cylindrical dripper • Optional configuration of dripper-spacing in groups of drippers (ideal for orchards and citrus) Cylindrical Drippers Drilling System SPIR SPECIAL FEATURES & OPTIONS
- 8. 05 METZER XERO SERIES Lean solution. Cost-effective. First-class This series presents an affordable high-quality solution for price-oriented business environments, providing a sustainable solution that insures profitable production even when margins are tight and seasonal demands change frequently. Dripper type Flat (PC & non-PC) Max line speed 150 m/min Insertion rate 1000 drippers/min* Pipe diameter range 12-25 mm Wall thickness range 0.15-1.2 mm Drilling rate 1000 holes/min Minimum dripper spacing 10 cm Extruder output 140 Kg/hr Winder type Automatic *Applicable to symmetrical flat drippers • Flexibility to produce all wall thicknesses and pipe diameters in range • Can insert all Metzer flat dripper models by replacement of tooling sets (within a two hour set-up time) • Adaptable to customer’s drippers • Optional configuration dripper-spacing in groups of drippers (ideal for orchards and citrus) XERO SERIES FEATURES & OPTIONS Image Analysis Software High-Speed Smart camera
