ML Module 3 Non Linear Learning.pptx
- 1. MACHINE LEARNING MODULE 3 NON-LINEAR LEARNING
- 2. Introduction of Non-Linear Model Stochastic Vs Batch Gradient Descent Neural Network Model Representations Different Activation Functions Perceptron Multi Layer Perceptron Back Propagation Regularization : Variance Vs Bias Support Vector Machine (SVM) K-Nearest Neighbors (KNN) THIS PRESENTATION IS ABOUT
- 4. LINEAR MODEL As long as we have weights in Linear combinations we call it linear model in machine learning. Linear Model Examples
- 5. LINEAR MODEL EXAMPLE Linear Model Example:
- 6. NON-LINEAR MODEL Non Linear Model Examples
- 9. NON-LINEAR MODEL Can Linear Model has Curve Shape? Yes Since, Linear means Linear Combinations of Weights, NOT the Shape of the Function.
- 10. NON-LINEAR MODEL
- 11. NON-LINEAR MODEL
- 12. NON-LINEAR MODEL
- 13. NON-LINEAR MODEL
- 14. NON-LINEAR MODEL
- 16. • In this method one training sample (example) is passed through the neural network at a time and the parameters (weights) of each layer are updated with the computed gradient. • So, at a time a single training sample is passed through the network and its corresponding loss is computed. The parameters of all the layers of the network are updated after every training sample. • For example, if the training set contains 100 samples then the parameters are updated 100 times that is one time after every individual example is passed through the network. STOCHASTIC GRADIENT DESCENT
- 17. 1. It is easier to fit into memory due to a single training sample being processed by the network 2. It is computationally fast as only one sample is processed at a time 3. For larger datasets it can converge faster as it causes updates to the parameters more frequently 4. Due to frequent updates the steps taken towards the minima of the loss function have oscillations which can help getting out of local minimums of the loss function (in case the computed position turns out to be the local minimum) 1. Due to frequent updates the steps taken towards the minima are very noisy. This can often lead the gradient descent into other directions. 2. Also, due to noisy steps it may take longer to achieve convergence to the minima of the loss function 3. Frequent updates are computationally expensive due to using all resources for processing one training sample at a time 4. It loses the advantage of vectorized operations as it deals with only a single example at a time DISADVANTAGES OF STOCHASTIC GRADIENT DESCENT ADVANTAGES OF STOCHASTIC GRADIENT DESCENT
- 18. BATCH GRADIENT DESCENT • The concept of carrying out gradient descent is the same as stochastic gradient descent. The difference is that instead of updating the parameters of the network after computing the loss of every training sample in the training set, the parameters are updated once that is after all the training examples have been passed through the network. • For example, if the training dataset contains 100 training examples then the parameters of the neural network are updated once.
- 19. ADVANTAGES OF BATCH GRADIENT DESCENT 1. Less oscillations and noisy steps taken towards the global minima of the loss function due to updating the parameters by computing the average of all the training samples rather than the value of a single sample 2. It can benefit from the vectorization which increases the speed of processing all training samples together 3. It produces a more stable gradient descent convergence and stable error gradient than stochastic gradient descent 4. It is computationally efficient as all computer resources are not being used to process a single sample rather are being used for all training samples. DISADVANTAGES OF BATCH GRADIENT DESCENT 1. Sometimes a stable error gradient can lead to a local minima and unlike stochastic gradient descent no noisy steps are there to help get out of the local minima. 2. The entire training set can be too large to process in the memory due to which additional memory might be needed. 3. Depending on computer resources it can take too long for processing all the training samples as a batch.
- 20. MINI BATCH GRADIENT DESCENT BATCH : A COMPROMISE • This is a mixture of both stochastic and batch gradient descent. The training set is divided into multiple groups called batches. Each batch has a number of training samples in it. • At a time a single batch is passed through the network which computes the loss of every sample in the batch and uses their average to update the parameters of the neural network. • For example, say the training set has 100 training examples which is divided into 5 batches with each batch containing 20 training examples. This means that the equation will be iterated over 5 times (number of batches). This ensures the following advantages of both stochastic and batch gradient descent are used due to which Mini Batch Gradient Descent is most commonly used in practice. 1. Easily fits in the memory 2. It is computationally efficient 3. Benefit from vectorization 4. If stuck in local minimums, some noisy steps can lead the way out of them 5. Average of the training samples produces stable error gradients and convergence.
- 21. NOISE IN GRADIENT DESCENT
- 22. NEURAL NETWORK
- 23. WHAT ARE NEURAL NETWORKS? Neural Networks are networks of neurons, for example, as found in real (i.e. biological) brains Artificial neurons are crude approximations of the neurons found in real brains. They may be physical devices, or purely mathematical constructs. Artificial Neural Networks (ANNs) are networks of Artificial Neurons and hence constitute crude approximations to parts of real brains. They maybe physical devices, or simulated on conventional computers. From a practical point of view, an ANN is just a parallel computational system consisting of many simple processing elements connected together in a specific way in order to perform a particular task
- 24. ADVANTAGES They are extremely powerful computational devices. Massive parallelism makes them very efficient. They can learn and generalize from training data – so there is no need for enormous feats of programming. They are particularly fault tolerant. They are very noise tolerant – so they can cope with situations where normal symbolic systems would have difficulty In principle, they can do anything a symbolic/logic system can do, and more.
- 25. BOOLEAN FUNCTIONS AND PERCEPTRON
- 26. TYPES OF NEURAL NETWORK
- 27. TYPES OF NEURAL NETWORKS
- 29. THE NEURON • Dendrites receives the signals for the neuron. • Axon transmits the signal from the neuron. • Dendrites are connected to axon of the other neuron. Signals from 1 neuron passes down to the next neuron via axon .
- 30. THE NEURON Input layer is showing all the independent variable for one observation.
- 31. THE NEURON Output can be continuous, binary or categorical.
- 32. THE NEURON If it is categorical then we might get multiple outputs in terms of dummy variables. Eg: x1= age, x2= salary, xm = name Y= yes/ no Will purchase a car?
- 33. THE NEURON • Weights are adjusted by the process of learning • It decides the importance/ strength of each signal • Training a Neural network is based on Adjusting Weights
- 34. STEP 1: COMPUTATION OF WEIGHTED SUM OF INPUT VALUES Weighted sum of all Input Values
- 35. STEP 2: COMPUTATION OF ACTIVATION FUNCTION Activation function: It decides if it needs to pass a signal or not to the output layer
- 36. STEP 3: SIGNAL PASSED TO THE OUTPUT Neuron passes down that signal to the next neuron down the line.
- 37. THE ACTIVATION FUNCTION If threshold function is >=0 then it passes 1 else 0
- 38. THE ACTIVATION FUNCTION • Sigmoid function looks smooth in comparison to threshold function. • It can be useful when predicting probabilities.

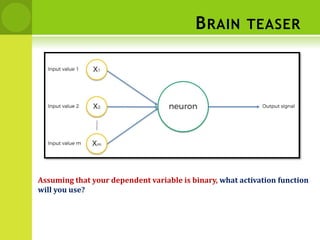

- 41. BRAIN TEASER Assuming that your dependent variable is binary, what activation function will you use?
- 42. BRAIN TEASER : ANSWER
- 44. May apply a rectifier function in the hidden layer Sigmoid function on output layer
- 45. HOW DOES NEURAL NETWORK WORK?
- 46. HOW DOES NEURAL NETWORK WORK?
- 47. HOW DOES NEURAL NETWORK WORK?
- 48. HOW DOES NEURAL NETWORK WORK?
- 49. HOW DOES NEURAL NETWORK WORK?
- 50. HOW NEURAL NETWORK LEARN Goal is to create a network that learns on its own. How can you distinguish cat and dog??? Can learn on its own.
- 51. HOW NEURAL NETWORK LEARN
- 52. HOW NEURAL NETWORK LEARN
- 53. HOW NEURAL NETWORK LEARN Cost function C tells the error
- 54. HOW NEURAL NETWORK LEARN We update the weight in order to reduce cost function
- 55. HOW NEURAL NETWORK LEARN
- 56. PERCEPTRON
- 57. PERCEPTRON
- 58. …PERCEPETRON
- 65. PERCEPTRON NODE – THRESHOLD LOGIC UNIT x1 xn x2 w1 w2 wn z q q q < = ³ å å = = i n i i i n i i w x z w x 1 1 if 0 if 1 𝜽 • Learn weights such that an objective function is maximized. • What objective function should we use? • What learning algorithm should we use?
- 66. PERCEPTRON LEARNING ALGORITHM x1 x2 z q q < = ³ å å = = i n i i i n i i w x z w x 1 1 if 0 if 1 0.4 -0.2 0.1 x1 x2 t 0 1 .1 .3 .4 .8
- 67. FIRST TRAINING INSTANCE q q < = ³ å å = = i n i i i n i i w x z w x 1 1 if 0 if 1 0.8 0.3 z 0.4 -0.2 0.1 net = .8*.4 + .3*(-0.2) = 0.26 =1 x1 x2 t 0 1 .1 .3 .4 .8
- 68. SECOND TRAINING INSTANCE q q < = ³ å å = = i n i i i n i i w x z w x 1 1 if 0 if 1 x1 x2 t 0 1 .1 .3 .4 .8 .4 .1 z .4 -.2 .01 net = .4*.4 + .1*-.2 = 0.14 =1 * c Dwi = (t - z) * xi
- 69. SECOND EXAMPLE
- 70. PERCEPTRON RULE LEARNING where wi is the weight from input i to perceptron node, c is the learning rate, t is the target for the current instance, z is the current output, xi is ith input Dwi = (t - z)*c*xi • Least perturbation principle • Only change weights if there is an error • small c rather than changing weights sufficient to make current pattern correct • Scale by xi • Create a perceptron node with n inputs • Iteratively apply a pattern from the training set and apply the perceptron rule • Each iteration through the training set is an epoch • Continue training until total training set error ceases to improve • Perceptron Convergence Theorem: Guaranteed to find a solution in finite time if a solution exists
- 71. THE EXCLUSIVE OR PROBELM
- 72. THE XOR PROBELM
- 75. BACKPROPOGATION
- 77. BACKPROPOGATION
- 79. 79 FORWARD PASS
- 81. BACKWARD PASS
- 83. STEP3: UPDATION OF WEIGHTS
- 91. Rough Work
- 93. VARIANCE VS BIAS
- 94. If no bias weight then the hyperplane must go through the origin VARIATION VS BIAS
- 105. In Training Phase
- 108. What is Bias? Bias is the difference between the average prediction of our model and the correct value which we are trying to predict. Model with high bias pays very little attention to the training data and oversimplifies the model. It always leads to high error on training and test data. What is Variance? Variance is the variability of model prediction for a given data point or a value which tells us spread of our data. Model with high variance pays a lot of attention to training data and does not generalize on the data which it hasn’t seen before. As a result, such models perform very well on training data but has high error rates on test data. BIAS AND VARIANCE
- 109. If our model is too simple and has very few parameters then it may have high bias and low variance. On the other hand if our model has large number of parameters then it’s going to have high variance and low bias. So we need to find the right/good balance without overfitting and underfitting the data. Total Error = Bias^ 2 + Variance + Irreducible Error WHY IS BIAS VARIANCE TRADEOFF? An optimal balance of bias and variance would never overfit or underfit the model.
- 111. INTRODUCTION
- 113. HYPERPLANE AS DECISION SURFACE
- 114. SUPPORT VECTORS
- 116. SUPPORT VECTOR MACHINE (SVM)
- 117. MAXIMUM MARGIN : FORMALIZATION
- 118. GEOMETRIC MARGIN
- 119. LINEAR SUPPORT VECTOR MACHINE
- 120. LINEAR SVM: THE LINEARLY SEPARABLE CASE
- 121. NON-LINEAR SVM
- 122. NON-LINEAR SVM: FEATURE SPACE
- 123. KERNELS
- 124. K-NEAREST NEIGHBOR
- 125. Simple Analogy.. • Tell me about your friends(who your neighbors are) and I will tell you who you are.
- 126. Instance-based Learning Its very similar to a Desktop!!
- 127. KNN – DIFFERENT NAMES 127 • K-Nearest Neighbors • Memory-Based Reasoning • Example-Based Reasoning • Instance-Based Learning • Lazy Learning
- 128. WHAT IS KNN? • A powerful classification algorithm used in pattern recognition. • K nearest neighbors stores all available cases and classifies new cases based on a similarity measure(e.g distance function) • One of the top data mining algorithms used today. • A non-parametric lazy learning algorithm (An Instance-based Learning method).
- 129. KNN: CLASSIFICATION APPROACH • An object (a new instance) is classified by a majority votes for its neighbor classes. • The object is assigned to the most common class amongst its K nearest neighbors (measured by a distant function ).
- 130. DISTANCE MEASURE Training Records Test Record Compute Distance Choose k of the “nearest” records
- 131. DISTANCE FUNCTIONS FOR CONTINUOUS VARIABLES
- 132. DISTANCE BETWEEN NEIGHBORS • Calculate the distance between new example (E) and all examples in the training set. • Euclidean distance between two examples. – X = [x1,x2,x3,..,xn] – Y = [y1,y2,y3,...,yn] – The Euclidean distance between X and Y is defined as n D(X ,Y) (xi yi ) i1 2
- 133. K-NEAREST NEIGHBOR ALGORITHM • Each instance is represented with a set of numerical attributes. • Each of the training data consists of a set of vectors and a class label associated with each vector. • Classification is done by comparing feature vectors of different K nearest points. • Select the K-nearest examples to E in the training set. • Assign E to the most common class among its K-nearest neighbors. All the instances correspond to points in an n- dimensional feature space.
- 134. 3-KNN: EXAMPLE(1)
- 135. HOW TO SELECT K? • If K is too small it is sensitive to noise points. • Larger K works well. But too large K may include majority points from other classes. • Rule of thumb is K < sqrt(n), n is number of examples. X
- 136. 136
- 137. X X X (a) 1-nearest neighbor (b) 2-nearest neighbor (c) 3-nearest neighbor K-nearest neighbors of a record x are data points that have the k smallest distance to x. 137
- 138. KNN FEATURE WEIGHTING • Scale each feature by its importance for classification. • Can use our prior knowledge about which features are more important • Can learn the weights wk using cross‐validation
- 139. FEATURE NORMALIZATION • Distance between neighbors could be dominated by some attributes with relatively large numbers. e.g., income of customers in our previous example. • Arises when two features are in different scales. • Important to normalize those features. – Mapping values to numbers between 0 – 1.
- 140. NOMINAL/CATEGORICAL DATA • Distance works naturally with numerical attributes. • Binary value categorical data attributes can be regarded as 1 or 0.
- 141. KNN CLASSIFICATION $50,000 $0 $100,000 $250,000 $200,000 $150,000 0 10 20 30 40 50 60 70 Non-Default Default Age Loan$ 20
- 142. KNN CLASSIFICATION – DISTANCE Age Loan Default Distance 25 $40,000 N 102000 35 $60,000 N 82000 45 $80,000 N 62000 20 $20,000 N 122000 35 $120,000 N 22000 52 $18,000 N 124000 23 $95,000 Y 47000 40 $62,000 Y 80000 60 $100,000 Y 42000 48 $220,000 Y 78000 33 $150,000 Y 8000 48 $142,000 ? 2 2 2 1 2 1 y ) D (x x ) (y 142
- 143. KNN CLASSIFICATION – STANDARDIZED DISTANCE Distance 0.7652 0.5200 0.3160 0.9245 0.3428 0.6220 0.6669 0.4437 0.3650 0.3861 0.3771 X Min Max Min X s 143 Age Loan Default 0.125 0.11 N 0.375 0.21 N 0.625 0.31 N 0 0.01 N 0.375 0.50 N 0.8 0.00 N 0.075 0.38 Y 0.5 0.22 Y 1 0.41 Y 0.7 1.00 Y 0.325 0.65 Y 0.7 0.61 ?
- 144. STRENGTHS OF KNN • Very simple and intuitive. • Can be applied to the data from any distribution. • Good classification if the number of samples is large enough. Weaknesses of KNN • Takes more time to classify a new example. need to calculate and compare distance from new example to all other examples. • Choosing k may be tricky. • Need large number of samples for accuracy.
