CSS3 Refresher

CSS3 Refresher
Ivano Malavolta
ivano.malavolta@univaq.it
http://www.di.univaq.it/malavolta

Roadmap

• Intro
• Basics
• Selectors
• Box Model
• Positioning & Floats
• Fonts
• Visual Effects
• Media Queries

Intro

CSS3 is the presentation companion of HTML5

Intro
Let’s imagine Flipboard without CSS3

Intro

Its features are
supported by almost any
mobile browser

CSS3 Main Drivers
Simplicity
– less images
– less markup
– less Javascript
– less Flash
Better performance
– fewer HTTP requests
Better Search Engine Placement
– text as real text, not images or Flash
– speed

Basics

Generic Syntax:
Syntax:

selector {
property: value;
property2: value2, value3;
...
}

Inheritance

If an HTML element B is nested into another element A -
B inherits the style of A
unless B has an explicit style definition

body {
background-color: red;
}
div {
background-color: green;
}

Combining Selectors

Selectors can be combined

h1, h2, h3 {
background-color: red;
}

Lists
div {
list-style-image: url(image.png);
list-style-position: inside;
list-style-style: circle;
}
Style
disc | circle
square | decimal
Position lower-roman |
inside | outside upper-roman |
lower-alpha |
upper-alpha |
none

Backgrounds

You can style a background of any element

div {
background:url(img.png), url(img2.png);
background-size:80px 60px;
background-repeat:no-repeat;
background-origin:content-box;
} origin
top left | top center | top right |
repeat center left | border-box | content-box
no-repeat | repeat etc.
repeat-x | repeat-y

Background & Colors
div {
background-color: blue;
background-color: rgba(0, 0, 255, 0.2);
background-color: hsla(240, 100%, 50%, 0.2);
}

HSL RGBA = RGB + opacity
hue
saturation
lightness HSLA = HSL + opacity

Gradients

They can be used in every place you can use an image

div {
background: -webkit-gradient(linear, right top,
left bottom, from(white), to(black));
}

linear the type of gradient (also radial, or repeating-linear)
right-top start of the gradient
left-bottom end of the gradient
from starting color
to final color

Text
p { Text-align
color: grey; left | right
letter-spacing: 5px; center | justify
text-align: center;
text-decoration: underline;
text-indent: 10px;
text-transform: capitalize; Text-decoration
word-spacing: 10px; none
underline
}
text-transform overline
None | capitalize | line through
Lowercase | uppercase

Text Effects
p {
text-shadow: 2px 10px 5px #FF0000;
text-overflow: ellipsis;
word-wrap:break-word;
}

2px horizontal shadow
10px vertical shadow
5px blur distance
#FF0000 color

Selectors
Classical ways to select elements in CSS2:

• by type
a { color: red; }
• by id
#redLink { color: red; }
• by class
.redLink { color: red; }

Other Selectors from CSS1 & CSS2

• div p all <p> elements inside a <div>
• div>p all <p> elements where the parent is a <div>
• div+p all <p> elements that are placed immediately
after <div>
• [target] all elements with a target attribute
• [target=_blank] all elements with target=
"_blank“
• p:first-child
p:first- every <p> element that is the first
child of its parent

Some selectors introduced in CSS3
• a[src^="https"]
a[src^="https"]
src every <a> element whose src
attribute value begins with "https”
a[src$=".pdf
src$=".pdf"]
• a[src$=".pdf"] every <a> element whose src attribute
value ends with ".pdf”
a[src
src*=“mobile"]
• a[src*=“mobile"] every <a> element whose src
attribute value contains the substring “mobile“
p:nth-
• p:nth-child(2) every <p> element that is the second
child of its parent
p:nth-last-
• p:nth-last-child(2) every <p> element that is the
second child of its parent, counting from the last child
• :not(p) every element that is not a <p> element

The Box Model

All HTML elements can be considered as boxes

Borders & dimensions
div {
width: 100px;
height: 40px;
padding: 10px;
border: 5px solid gray;
margin: 10px;
border-radius: 10px;
box-shadow: 10px 10px 5px red;
}

Images as borders
div {
border-image:url(border.png) 30 30 round;
}

The Display Property

It specifies if/how an element is displayed

div {
display: none;
}

The element will be hidden, and the page will be
displayed as if the element is not there

The Display Property
Other usual values:

block
• a block element is an element that takes up the full width
available, and has a line break before and after it

inline
• an inline element only takes up as much width as necessary
• it can contain only other inline elements

inline-block
• the element is placed as an inline element (on the same line
as adjacent content), but it behaves as a block element
– you can set width and height, top and bottom margins and paddings

Flex Box
It helps in styling elements to be arranged horizontally or
vertically

box:
• a new value for the display property
• a new property box-orient

#div {
display: box;
box-orient: horizontal;
}

Flex Box main elements
display: box
opts an element and its immediate children into the
flexible box model

box-orient
Values: horizontal | vertical | inherit
How should the box's children be aligned
aligned?

box-direction
Values: normal | reverse | inherit
sets the order in which the elements will be displayed

box-pack
Values: start | end | center | justify
Sets the alignment of the box along the box-
orient axis

box-pack: end;

box-align
Values: start | end | center | baseline | stretch
Sets how the box's children are aligned in the box

box-align: center;

Flex Box Children
by default child elements are not flexible
their dimension is set according to their width

box-flex can be set to any integer
It sets how a child element occupy the #box1 {
box’s space width: 100px;
}
#box2 {
box-flex: 1;
}
#box3 {
box-flex: 2;
}

The visibility Property
It specifies if an element should be visible or hidden

div.hidden {
visibility: hidden;
}

The element will be hidden, but still affect the layout

It can also be set to
visible, collapse, inherit

Positioning

• Static
• Relative
• Absolute
• Fixed
• Inherit

Static Positioning

Elements will stack one on top of the next

http://bit.ly/I8cEaF

Relative Positioning
Elements behave exactly the same
way as statically positioned elements

we can adjust a relatively positioned
element with offset properties:
top, right, bottom, and left


Relative Positioning

It is possible to create a coordinate system for child
elements


Absolute Positioning

an absolutely positioned element is removed from the
normal flow

it won’t affect or be
affected by any other
element in the flow



Fixed Positioning

shares all the rules of an absolutely positioned element

a fixed element does not scroll with the document

Inherit Positioning

The element inherits the value of its parent element

Typically, position property elements do not naturally
inherit their parent’s values the static value is
assigned if no position value is given


Float

A floated element will move as far to the left or
right as it can

Elements are floated only horizontally

The float CSS property can accept one of 4 values:
left, right, none, and inherit

Float
The elements before the floating element will not be
affected

The elements after the floating element will flow around it
- to avoid this, use the clear property

Generally, a floated element should have an explicitly set
width

For a deeper explanation of CSS float: http://bit.ly/I8cAb5

Fonts
Before CSS3, web designers had to use fonts that were
already installed on the user's device

With CSS3, web designers can use whatever font they like

@font-face { font-weight
font-family: NAME; normal
src: url(Dimbo.ttf); bold
font-weight: normal; 100
font-style: normal; font-style 200
} normal …
italic
oblique

Fonts Usage

To use the font for an HTML element, refer to the name
of the font (NAME) through the font-family
font-
property

div {
font-family: NAME;
}

Some Fonts Sources...

www.dafont.com
www.urbanfonts.com
www.losttype.com

Visual Effects

Three main mechanisms:

1. Transforms (both 2D and 3D)
2. Transitions
3. Animations

Transforms

A transform is an effect that lets an element
change shape, size, position …
position,

You can transform your elements using 2D or 3D
transformations

http://bit.ly/IroJ7S

Transforms

http://bit.ly/IrpUnX

Transitions
They are used to add an effect when changing from one
style to another

The effect can be gradual

A transition is composed of 2 parts:
1. The CSS property to add the effect
2. The duration of the effect

The effect will start when the specified CSS property
changes value

Transition syntax

A transition contains 4 properties:
• property
– the name of the CSS property the transition effect is for
(can be all)
• duration
– how many seconds (or milliseconds) the transition effect
takes to complete
• timing-function
timing-
– linear, ease, ease-in, ease-out, ease-in-out
• delay
– when the transition effect will start

Example
.imageThumbnail {
width; 200px;
transition: all ease-in 3s;
}

.zoomed {
position: absolute;
left: 0px;
top: 0px;
width: 480px;
}

$(‘.imageThumbnail’).addClass(‘zoomed’);

Animations
An animation is an effect that lets an element gradually
change from one style to another

You can change style in loop, repeating, etc.

To bind an animation to an element, you have to specify at
least:
1. Name of the animation
2. Duration of the animation
div {
animation: test 5s ease-in;
}

Animation Definition
An animation is defined in a keyframe

It splits the animation into parts, and assign a specific style
to each part

The various steps within an animation are given as percentuals

0% beginning of the animation (from)
100% end of the animation (to)

Example
@keyframes test{
0% {background: red; left:0px; top:0px;}
25% {background: yellow; left:200px; top:0px;}
50% {background: blue; left:200px; top:200px;}
75% {background: green; left:0px; top:200px;}
100% {background: red; left:0px; top:0px;}
}

results in
http://bit.ly/IrtfTY

Animation Properties

http://bit.ly/IrpUnX

Transitions VS Animations

• Trigger
– Transitions must be bound to a CSS property change
– Animations start autonomously
• States
– Transitions have start and end states
– Animations can have multiple states
• Repeats
– Transitions can be perfomed once for each activation
– Animations can be looped

Media Types

Media Queries are based on Media Types

A media type is a specification of the actual media that
is being used to access the page

Examples of media types include
• screen computer screens
screen:
• print printed document
print:
• braille for Braille-based devices
braille:
• tv for television devices
tv:

Media Types

There are two main ways to specify a media type:
• <link> in the HTML page
<link rel=“stylesheet”
href=“style.css” media=“screen” />

• @media within the CSS file
@media screen {
div { color: red; }
}

Media Queries

They allow you to to change style based on specific
conditions

For example, they can be about
• device’s display size
• orientation of the device
• Resolution of the display
• ...

Example

http://bit.ly/I5mR1u

Media Queries
A media query is a boolean expression

The CSS associated with the media query expression is
applied only if it evaluates to true

A media query consists of
1. a media type
2. a set of media features

@media screen and orientation: portrait

The Full Media Feature List

http://slidesha.re/I5oFHZ

The AND operator

You can combine multiple expressions by using
the and operator

@media screen and (max-device-width: 480px){
/* your style */
}

The COMMA operator

The comma keyword acts as an or operator

@media screen and (color),
handheld and (color) {

/* your style */

}

The NOT operator

You can explicitly ignore a specific type of device by
using the not operator

@media not (width:480px) {
/* your style */
}

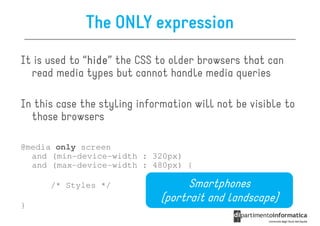

The ONLY expression
It is used to “hide the CSS to older browsers that can
hide”
hide
read media types but cannot handle media queries

In this case the styling information will not be visible to
those browsers

@media only screen
and (min-device-width : 320px)
and (max-device-width : 480px) {

/* Styles */ Smartphones
(portrait and landscape)
}

Examples

Retina Displays
@media only screen and -webkit-min-device-pixel-ratio: 2

iPad in landscape orientation
@media only screen and
(device-width: 768px) and (orientation: landscape)

iPhone and Android devices
@media only screen and
(min-device-width: 320px) and (max-device-width: 480px)

References
http://www.w3schools.com

CSS3 Refresher

More Related Content

What's hot (20)

Viewers also liked (13)

Similar to CSS3 Refresher (20)

More from Ivano Malavolta (20)

Recently uploaded (20)

CSS3 Refresher
