- 1. ETeMoX: explaining reinforcement learning J. M. Parra-Ullauri1 , A. García-Domínguez2 , N. Bencomo3 , C. Zheng4 , C. Zhen5 , J. Boubeta-Puig6 , G. Ortiz6 , S. Yang7 1: Aston University, 2: University of York, 3: Durham University 4: University of Oxford, 5: University of Science and Technology of China 6: University of Cadiz, 7: Edinburgh Napier University MODELS 2022 - Thursday October 27th , 2022
- 2. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning Rising need for explanations in self-adaptation / AI ● Software is being written to deal with more and more complex environments, where they need to reconfigure themselves and learn from experience ● If not careful, these systems can be “black boxes” where we can only take their decisions at face value - it will be hard to calibrate our trust on them ● We want to be able to ask things like: ○ Why did they take that action? ○ Why did they not take that *other* action? ○ How do you (roughly) work? ● The “right to explanation” is being enshrined in the GDPR, or the IEEE P7001 standard for transparency of autonomous systems ● There is an entire field on eXplainable AI (XAI) 2
- 3. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning Types of explanations and stages involved ● Explanations can be broadly classified by scope into: ○ Local - for a specific decision ○ Global - for the overall behaviour of the system (usually, a simplified behavioural model) ● Adadi et al. identified four uses for explanations: ○ To justify decisions impacting people ○ To control systems into an envelope of good behaviour ⬅ ○ To discover knowledge from the system behaviour ○ To improve the system by highlighting flaws ⬅ ● Neerincx considered three stages for producing these explanations: ○ Generation - obtain necessary data and reason about it ⬅ ○ Communication - show it to consumer (human / system) ⬅ ○ Reception - was it effective and efficient? 3

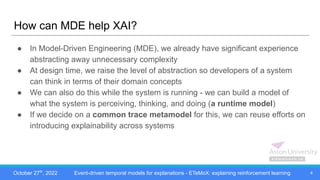

- 4. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning How can MDE help XAI? ● In Model-Driven Engineering (MDE), we already have significant experience abstracting away unnecessary complexity ● At design time, we raise the level of abstraction so developers of a system can think in terms of their domain concepts ● We can also do this while the system is running - we can build a model of what the system is perceiving, thinking, and doing (a runtime model) ● If we decide on a common trace metamodel for this, we can reuse efforts on introducing explainability across systems 4
- 5. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning MDE: Reusable Trace Metamodel - common half 5
- 6. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning MDE: Reusable Trace Metamodel - specific half ● First half of the metamodel is reusable across systems making their own decisions ● Second half of the metamodel is specific - this one is for systems using Q-Learning (a type of Reinf. Learning) ● A decision takes into account the Q-values of each Action ● Observations have rewards associated to them, and map to a state in the Q-table 6
- 7. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning MDE: Indexing Models into Temporal Graph DBs ● At each system timeslice, the runtime model is indexed into a temporal graph ● Efficient representation of a graph’s full history, using copy-on-write state chunks ● Implemented by Greycat (from Hartmann et al.), and used by Eclipse Hawk for automated model indexing ● More details here: https://www.eclipse.org/hawk/ad vanced-use/temporal-queries/ 7
- 8. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning MDE: History-Aware Model Querying ● For explanation generation, we can query the temporal graph ● We created a Hawk-specific dialect of EOL with time-aware predicates and properties ● More details in our MODELS 2019 paper AGD, NB, JMPU and LGP, ‘Querying and annotating model histories with time-aware patterns’, http://dx.doi.org/10.1109/MODELS. 2019.000-2 8 Version traversal x.versions, x.next, x.prev, x.time, x.earliest, x.latest… Temporal assertions x.always(version | p), x.never(v | p), x.eventually(v | p)... Predicate-based scoping x.since(v | p), x.until(v | p)... Context-based scoping x.sinceThen, x.untilThen… Unscoping x.unscoped
- 9. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning Scaling up temporal graphs to large event volumes ● We first applied history-based expls. to Bayesian Learning-based systems ○ Partially Observable Markov Decision Processes (POMDP) ○ Had a case study on data mirroring over the network (Remote Data Mirroring) ○ Wasn’t too resource-intensive (we could simply record all versions) ● Then we tried applying it to a Reinforcement Learning system ○ Tens of training epochs, each with thousands of episodes ○ Original RL system had per-timeslice MongoDB with GBs of records to be indexed ○ RL system changed to send updates directly to Hawk - CoW reduced storage needs ○ Still a lot of history to go through - queries could take a long time! ● Do we really need all this history? ○ Answer: No. ○ How do we select the “right” moments, without imposing too much load? 9
- 10. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning Event-Driven Monitoring: Complex Event Processing 10
- 11. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning Event-driven Temporal Models for eXplanations (ETeMoX) 11
- 12. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning Case study: airborne base stations 12
- 13. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning Experiment 1: Evolution of metrics (optionally sampled) ● We evaluated the impact of sampling at different rates on the accuracy of a query providing the historic reward values during the RL training ● We set up the CEP engine with Esper EPL rules as in the top right ● We observed linear decreases in storage required depending on sampling rate ● 10% sampling is safe, more than that depended on the RL algorithm (DQN is sensitive!) 13 Q-Learning DQN
- 14. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning Experiment 2: Exploration vs Exploitation (1/2) 14 ● RL systems don’t always pick the best option (exploitation): they try things sometimes to learn more (exploration) ● How often does this happen? ● We compared two approaches to track this: a. CEP pattern to detect exploration/exploitation and only index episodes with exploration b. EOL query on full history, to check CEP pattern correctness ● Q-Learning explored 1.41% of the time, SARSA 7.99%, DQN 7.82%
- 15. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning Experiment 2: Exploration vs Exploitation (2/2) 15 ● We tried using the exploration CEP rule as a filter for metric evolution, too
- 16. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning Experiment 3: user handovers between stations ● To provide continuous service, a user may be handed over to another station ● We wrote an EOL query to detect handovers in the system history ○ Handover: signal-to-noise ratio changes significantly across stations between timepoints ○ Found 1784 handovers in Q-Learning, 590 in SARSA, 82176 in DQN ● These queries required many checks: ○ 10 episodes, 2000 time steps ○ 2 stations, 1050 users ○ All together: 42M combinations to check! ● Required times: ○ 917s for Q-Learning ○ 1,132s for SARSA ○ 7,914s for DQN 16
- 17. October 27th , 2022 Event-driven temporal models for explanations - ETeMoX: explaining reinforcement learning What’s next? ● Optimise queries via Hawk timeline annotations and CEP time windows ● Explanations for other uses: ○ Human-in-the-loop (SAM 2022 presentation on Monday showed early work) ○ Hyper-parameter optimisation (external system requests explanations and drives change) ○ Global explanations of the system behaviour (event graphs) ● Studying explanation reception: ○ Effectiveness of explanation formats: plots, results, generated text, diagrams… ○ Focused on system developers so far: look into less technical audiences ○ Consider existing models for evaluation ■ Technology Acceptance Model (Davis) ■ XAI metrics (Rosenfeld) 17
