Models for hierarchical data

Models for Hierarchical Data
with SQL and PHP
Bill Karwin, Percona Inc.

Me
• Software developer
• C, Java, Perl, PHP, Ruby
• SQL maven
• MySQL Consultant at Percona
• Author of SQL Antipatterns:
Avoiding the Pitfalls of
Database Programming

www.percona.com

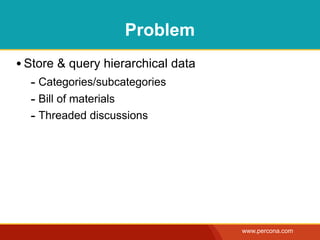

Problem
• Store & query hierarchical data
- Categories/subcategories
- Bill of materials
- Threaded discussions

www.percona.com

Example: Bug Report
Comments
(1) Fran:
What’s the cause
of this bug?

(2) Ollie: (4) Kukla:
I think it’s a null We need to check
pointer. valid input.

(3) Fran: (6) Fran:
(5) Ollie:
No, I checked for Yes, please add a
Yes, that’s a bug.
that. check.

(7) Kukla:
That fixed it.

www.percona.com

Solutions

•Adjacency list
•Path enumeration
•Nested sets
•Closure table

www.percona.com

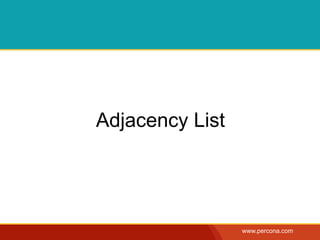

Adjacency List

www.percona.com

Adjacency List
• Naive solution nearly everyone uses
• Each entry knows its immediate parent

comment_id parent_id author comment
1 NULL Fran What’s the cause of this bug?
2 1 Ollie I think it’s a null pointer.
3 2 Fran No, I checked for that.
4 1 Kukla We need to check valid input.
5 4 Ollie Yes, that’s a bug.
6 4 Fran Yes, please add a check
7 6 Kukla That fixed it.

www.percona.com

Insert a New Node
INSERT INTO Comments (parent_id, author, comment)
VALUES (5, ‘Fran’, ‘I agree!’);
(1) Fran:
What’s the cause of
this bug?


(3) Fran: (6) Fran:
(5) Ollie:
that. check.

(7) Kukla:
That fixed it.

www.percona.com

Insert a New Node
INSERT INTO Comments (parent_id, author, comment)
(1) Fran:
this bug?


(3) Fran: (6) Fran:
(5) Ollie:
that. check.

(8) Fran: (7) Kukla:
I agree! That fixed it.

www.percona.com

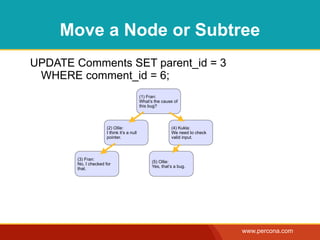

Move a Node or Subtree
UPDATE Comments SET parent_id = 3
WHERE comment_id = 6;
(1) Fran:
this bug?


(3) Fran: (6) Fran:
(5) Ollie:
that. check.

(7) Kukla:
That fixed it.

www.percona.com

(1) Fran:
this bug?


(3) Fran:
(5) Ollie:
No, I checked for
that.

www.percona.com

(1) Fran:
this bug?


(3) Fran:
(5) Ollie:
No, I checked for
that.

(6) Fran:
Yes, please add a
check.

(7) Kukla:
That fixed it. www.percona.com

Query Immediate Child/Parent
• Query a node’s children:
SELECT * FROM Comments c1
LEFT JOIN Comments c2
ON (c2.parent_id = c1.comment_id);

• Query a node’s parent:
JOIN Comments c2
ON (c1.parent_id = c2.comment_id);

www.percona.com

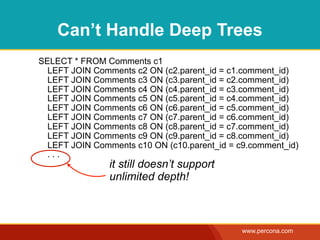

Can’t Handle Deep Trees
LEFT JOIN Comments c2 ON (c2.parent_id = c1.comment_id)
...

www.percona.com

Can’t Handle Deep Trees
...
it still doesn’t support
unlimited depth!

www.percona.com

SQL-99 recursive syntax
WITH [RECURSIVE] CommentTree
(comment_id, bug_id, parent_id, author, comment, depth)
AS (
SELECT *, 0 AS depth FROM Comments
WHERE parent_id IS NULL
UNION ALL
SELECT c.*, ct.depth+1 AS depth FROM CommentTree ct
JOIN Comments c ON (ct.comment_id = c.parent_id)
)
SELECT * FROM CommentTree WHERE bug_id = 1234;

✓
PostgreSQL, Oracle 11g,
IBM DB2, Microsoft SQL
Server, Apache Derby ✗ MySQL, SQLite, Informix,
Firebird,etc.

www.percona.com

Path Enumeration

www.percona.com

Path Enumeration
• Store chain of ancestors in each node

comment_id path author comment
1 1/ Fran What’s the cause of this bug?
2 1/2/ Ollie I think it’s a null pointer.
3 1/2/3/ Fran No, I checked for that.
4 1/4/ Kukla We need to check valid input.
5 1/4/5/ Ollie Yes, that’s a bug.
6 1/4/6/ Fran Yes, please add a check
7 1/4/6/7/ Kukla That fixed it.

www.percona.com

Path Enumeration
• Store chain of ancestors in each node
good for
breadcrumbs
comment_id path author comment
1 1/ Fran What’s the cause of this bug?
2 1/2/ Ollie I think it’s a null pointer.
3 1/2/3/ Fran No, I checked for that.
4 1/4/ Kukla We need to check valid input.
5 1/4/5/ Ollie Yes, that’s a bug.
6 1/4/6/ Fran Yes, please add a check
7 1/4/6/7/ Kukla That fixed it.

www.percona.com

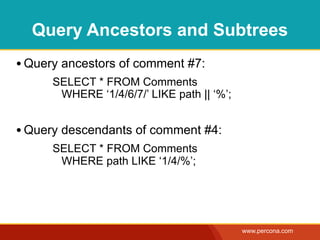

Query Ancestors and Subtrees
• Query ancestors of comment #7:
SELECT * FROM Comments
WHERE ‘1/4/6/7/’ LIKE path || ‘%’;

• Query descendants of comment #4:
SELECT * FROM Comments
WHERE path LIKE ‘1/4/%’;

www.percona.com

Add a New Child of #7
INSERT INTO Comments (author, comment)
VALUES (‘Ollie’, ‘Good job!’);
SELECT path FROM Comments
UPDATE Comments
SET path = $parent_path || LAST_INSERT_ID() || ‘/’
WHERE comment_id = LAST_INSERT_ID();

www.percona.com

Nested Sets

www.percona.com

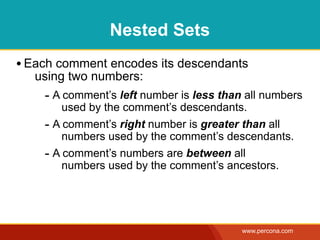

Nested Sets
• Each comment encodes its descendants
using two numbers:
- A comment’s left number is less than all numbers
used by the comment’s descendants.
- A comment’s right number is greater than all
numbers used by the comment’s descendants.
- A comment’s numbers are between all
numbers used by the comment’s ancestors.

www.percona.com

What Does This Look Like?

(1) Fran:
What’s the
cause of this
bug?

(4) Kukla:
(2) Ollie:
We need to
I think it’s a null
pointer. check valid
input.

(3) Fran: (5) Ollie: (6) Fran:
No, I checked Yes, that’s a Yes, please add
for that. bug. a check.

(7) Kukla:
That fixed it.

www.percona.com


(1) Fran:
What’s the
cause of this
bug?
1 14
(4) Kukla:
(2) Ollie:
We need to
input.
2 5 6 13

3 4 7 8 9 12

(7) Kukla:
That fixed it.

10 11

www.percona.com


comment_id nsleft nsright author comment
1 1 14 Fran What’s the cause of this bug?
2 2 5 Ollie I think it’s a null pointer.
3 3 4 Fran No, I checked for that.
4 6 13 Kukla We need to check valid input.
5 7 8 Ollie Yes, that’s a bug.
6 9 12 Fran Yes, please add a check
7 10 11 Kukla That fixed it.

www.percona.com


comment_id nsleft nsright author comment
1 1 14 Fran What’s the cause of this bug?
2 2 5 Ollie I think it’s a null pointer.
3 3 4 Fran No, I checked for that.
4 6 13 Kukla We need to check valid input.
5 7 8 Ollie Yes, that’s a bug.
6 9 12 Fran Yes, please add a check
7 10 11 Kukla That fixed it.

these are not
foreign keys

www.percona.com

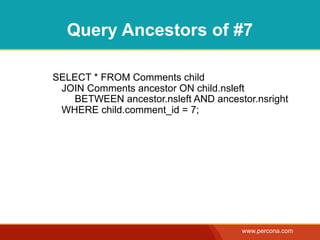

Query Ancestors of #7

(1) Fran: ancestors
What’s the
cause of this
bug?
1 14
(4) Kukla:
(2) Ollie:
We need to
input.
2 5 6 13 child
3 4 7 8 9 12

(7) Kukla:
That fixed it.

10 11

www.percona.com


SELECT * FROM Comments child
JOIN Comments ancestor ON child.nsleft
BETWEEN ancestor.nsleft AND ancestor.nsright
WHERE child.comment_id = 7;

www.percona.com

Query Subtree Under #4

(1) Fran:
What’s the
parent
cause of this
bug?
1 14

(2) Ollie: (4) Kukla: descendants
We need to
input.
2 5 6 13

3 4 7 8 9 12

(7) Kukla:
That fixed it.

10 11

www.percona.com

Query Subtree Under #4

SELECT * FROM Comments parent
JOIN Comments descendant ON descendant.nsleft
BETWEEN parent.nsleft AND parent.nsright
WHERE parent.comment_id = 4;

www.percona.com

Insert New Child of #5

(1) Fran:
What’s the
cause of this
bug?
1 14
(4) Kukla:
(2) Ollie:
We need to
input.
2 5 6 13

3 4 7 8 9 12

(7) Kukla:
That fixed it.

10 11

www.percona.com


(1) Fran:
What’s the
cause of this
bug?
1 16
14
(4) Kukla:
(2) Ollie:
We need to
input.
2 5 6 15
13

3 4 7 10 11
8 9 14
12

(7) Kukla:
That fixed it.

12
10 13
11

www.percona.com


(1) Fran:
What’s the
cause of this
bug?
1 16
14
(4) Kukla:
(2) Ollie:
We need to
input.
2 5 6 15
13

3 4 7 10 11
8 9 14
12


8 9 10
12 13
11

www.percona.com

UPDATE Comments
SET nsleft = CASE WHEN nsleft >= 8 THEN nsleft+2
ELSE nsleft END,
nsright = nsright+2
WHERE nsright >= 7;
INSERT INTO Comments (nsleft, nsright, author, comment)
VALUES (8, 9, 'Fran', 'I agree!');
• Recalculate left values for all nodes to the right of
the new child. Recalculate right values for all
nodes above and to the right.

www.percona.com

Query Immediate Parent of #6

(1) Fran:
What’s the
cause of this
bug?
1 14
(4) Kukla:
(2) Ollie:
We need to
input.
2 5 6 13

3 4 7 8 9 12

(7) Kukla:
That fixed it.

10 11

www.percona.com

• Parent of #6 is an ancestor who has no
descendant who is also an ancestor of #6.
SELECT parent.* FROM Comments AS c
JOIN Comments AS parent
ON (c.nsleft BETWEEN parent.nsleft AND parent.nsright)
LEFT OUTER JOIN Comments AS in_between
ON (c.nsleft BETWEEN in_between.nsleft AND in_between.nsright
AND in_between.nsleft BETWEEN parent.nsleft AND parent.nsright)
WHERE c.comment_id = 6 AND in_between.comment_id IS NULL;

www.percona.com

• Parent of #6 is an ancestor who has no
descendant who is also an ancestor of #6.
SELECT parent.* FROM Comments AS c
JOIN Comments AS parent
ON (c.nsleft BETWEEN parent.nsleft AND parent.nsright)
LEFT OUTER JOIN Comments AS in_between
ON (c.nsleft BETWEEN in_between.nsleft AND in_between.nsright
AND in_between.nsleft BETWEEN parent.nsleft AND parent.nsright)
WHERE c.comment_id = 6 AND in_between.comment_id IS NULL;

querying immediate child
is a similar problem

www.percona.com

Closure Table

www.percona.com

Closure Table
CREATE TABLE TreePaths (
ancestor INT NOT NULL,
descendant INT NOT NULL,
PRIMARY KEY (ancestor, descendant),
FOREIGN KEY(ancestor)
REFERENCES Comments(comment_id),
FOREIGN KEY(descendant)
REFERENCES Comments(comment_id)
);

www.percona.com

Closure Table
• Many-to-many table
• Stores every path from each node
to each of its descendants
• A node even connects to itself

www.percona.com

Closure Table illustration

(1) Fran:
What’s the
cause of this
bug?

(4) Kukla:
(2) Ollie:
We need to
input.


(7) Kukla:
That fixed it.

www.percona.com

ancestor descendant
comment_id author comment 1 1
1 2
1 Fran What’s the cause of this
bug? 1 3
1 4
2 Ollie I think it’s a null pointer. 1 5
3 Fran No, I checked for that. 1 6
1 7
4 Kukla We need to check valid
2 2
input.
2 3
5 Ollie Yes, that’s a bug. 3 3
4 4
6 Fran Yes, please add a check
4 5
7 Kukla That fixed it. 4 6
4 7
5 5

requires O(n²) rows 6
6
6
7
7 7

www.percona.com

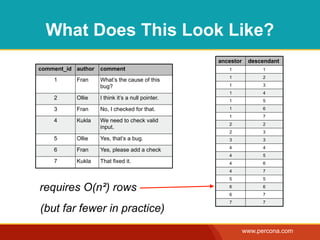

ancestor descendant
comment_id author comment 1 1
1 2
1 Fran What’s the cause of this
bug? 1 3
1 4
2 Ollie I think it’s a null pointer. 1 5
3 Fran No, I checked for that. 1 6
1 7
4 Kukla We need to check valid
2 2
input.
2 3
5 Ollie Yes, that’s a bug. 3 3
4 4
6 Fran Yes, please add a check
4 5
7 Kukla That fixed it. 4 6
4 7
5 5

requires O(n²) rows 6
6
6
7
7 7
(but far fewer in practice)
www.percona.com

Query Descendants of #4

SELECT c.* FROM Comments c
JOIN TreePaths t
ON (c.comment_id = t.descendant)
WHERE t.ancestor = 4;

www.percona.com

Paths Starting from #4

(1) Fran:
What’s the
cause of this
bug?

(4) Kukla:
(2) Ollie:
We need to
input.


(7) Kukla:
That fixed it.

www.percona.com


SELECT c.* FROM Comments c
JOIN TreePaths t
ON (c.comment_id = t.ancestor)
WHERE t.descendant = 6;

www.percona.com

Paths Terminating at #6

(1) Fran:
What’s the
cause of this
bug?

(4) Kukla:
(2) Ollie:
We need to
input.


(7) Kukla:
That fixed it.

www.percona.com

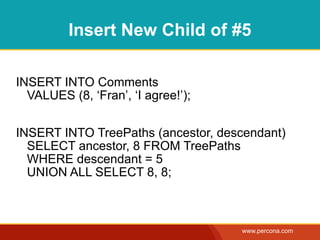

INSERT INTO Comments

INSERT INTO TreePaths (ancestor, descendant)
SELECT ancestor, 8 FROM TreePaths
WHERE descendant = 5
UNION ALL SELECT 8, 8;

www.percona.com

Copy Paths from Parent

(1) Fran:
What’s the
cause of this
bug?

(4) Kukla:
(2) Ollie:
We need to
input.



www.percona.com

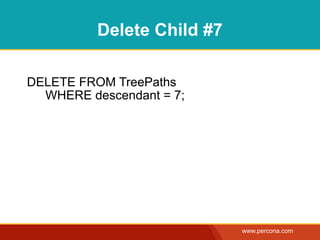

Delete Child #7

DELETE FROM TreePaths
WHERE descendant = 7;

www.percona.com

Delete Paths Terminating at #7

(1) Fran:
What’s the
cause of this
bug?

(4) Kukla:
(2) Ollie:
We need to
input.


(7) Kukla:
That fixed it.

www.percona.com

Delete Paths Terminating at #7

(1) Fran:
What’s the
cause of this
bug?

(4) Kukla:
(2) Ollie:
We need to
input.


www.percona.com

Delete Subtree Under #4

DELETE FROM TreePaths
WHERE descendant IN
(SELECT descendant FROM TreePaths
WHERE ancestor = 4);

www.percona.com

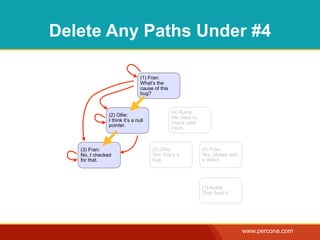

Delete Any Paths Under #4

(1) Fran:
What’s the
cause of this
bug?

(4) Kukla:
(2) Ollie:
We need to
input.


(7) Kukla:
That fixed it.

www.percona.com


(1) Fran:
What’s the
cause of this
bug?

(2) Ollie:
pointer.

(3) Fran:
No, I checked
for that.

www.percona.com


(1) Fran:
What’s the
cause of this
bug?

(4) Kukla:
(2) Ollie: We need to
I think it’s a null check valid
pointer. input.


(7) Kukla:
That fixed it.

www.percona.com

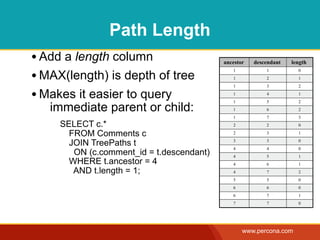

Path Length
• Add a length column ancestor descendant length

• MAX(length) is depth of tree
1 1 0
1 2 1
1 3 2

• Makes it easier to query 1
1
4
5
1
2
immediate parent or child: 1 6 2
1 7 3
SELECT c.* 2 2 0

FROM Comments c 2 3 1

JOIN TreePaths t 3 3 0
4 4 0
ON (c.comment_id = t.descendant) 4 5 1
WHERE t.ancestor = 4 4 6 1
AND t.length = 1; 4 7 2
5 5 0
6 6 0
6 7 1
7 7 0

www.percona.com

Choosing the Right Design

Design Tables Query Query Delete Insert Move Referential
Child Subtree Node Node Subtree Integrity
Adjacency 1 Easy Hard Easy Easy Easy Yes
List
Path 1 Hard Easy Easy Easy Easy No
Enumeration
Nested Sets 1 Hard Easy Hard Hard Hard No

Closure 2 Easy Easy Easy Easy Easy Yes
Table

www.percona.com

PHP Demo
of Closure Table

www.percona.com

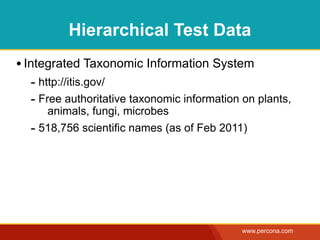

Hierarchical Test Data
• Integrated Taxonomic Information System
- http://itis.gov/
- Free authoritative taxonomic information on plants,
animals, fungi, microbes
- 518,756 scientific names (as of Feb 2011)

www.percona.com

California Poppy
Kingdom: Plantae
Division: Tracheobionta
Class: Magnoliophyta
Order: Magnoliopsida
unranked: Magnoliidae
unranked: Papaverales
Family: Papaveraceae
Genus: Eschscholzia
Species: Eschscholzia californica

www.percona.com

California Poppy
Kingdom: Plantae
Division: Tracheobionta
Class: Magnoliophyta
Order: Magnoliopsida
unranked: Magnoliidae
unranked: Papaverales
Family: Papaveraceae
Genus: Eschscholzia
Species: Eschscholzia californica

id=18956

www.percona.com

California Poppy: ITIS Entry

SELECT * FROM Hierarchy
WHERE hierarchy_string LIKE ‘%-18956’;

hierarchy_string
202422-564824-18061-18063-18064-18879-18880-18954-18956

www.percona.com

California Poppy: ITIS Entry

SELECT * FROM Hierarchy
WHERE hierarchy_string LIKE ‘%-18956’;

hierarchy_string
202422-564824-18061-18063-18064-18879-18880-18954-18956

ITIS data uses ...but I converted
path enumeration it to closure table

www.percona.com

Hierarchical Data Classes
abstract class ZendX_Db_Table_TreeTable
extends Zend_Db_Table_Abstract
{
public function fetchTreeByRoot($rootId, $expand)
public function fetchBreadcrumbs($leafId)
}

www.percona.com

Hierarchical Data Classes
class ZendX_Db_Table_Row_TreeRow
extends Zend_Db_Table_Row_Abstract
{
public function addChildRow($childRow)
public function getChildren()
}
class ZendX_Db_Table_Rowset_TreeRowset
extends Zend_Db_Table_Rowset_Abstract
{
public function append($row)
}

www.percona.com

Using TreeTable
class ItisTable extends ZendX_Db_Table_TreeTable
{
protected $_name = “longnames”;
protected $_closureName = “treepaths”;
}
$itis = new ItisTable();

www.percona.com

Breadcrumbs
$breadcrumbs = $itis->fetchBreadcrumbs(18956);
foreach ($breadcrumbs as $crumb) {
print $crumb->completename . “ > ”;
}

Plantae > Tracheobionta > Magnoliophyta > Magnoliopsida >
Magnoliidae > Papaverales > Papaveraceae > Eschscholzia >
Eschscholzia californica >

www.percona.com

Breadcrumbs SQL

SELECT a.* FROM longnames AS a
INNER JOIN treepaths AS c ON a.tsn = c.a
WHERE (c.d = 18956)
ORDER BY c.l DESC

www.percona.com

How Does it Perform?
• Query profile = 0.0006 sec
• MySQL EXPLAIN:
table type key ref rows extra

c ref tree_dl const 9 Using where; Using index

a eq_ref primary c.a 1

www.percona.com

Dump Tree
$tree = $itis->fetchTreeByRoot(18880); // Papaveraceae
print_tree($tree);

function print_tree($tree, $prefix = ‘’)
{
print “{$prefix} {$tree->completename}n”;
foreach ($tree->getChildren() as $child) {
print_tree($child, “{$prefix} ”);
}
}

www.percona.com

Dump Tree Result
Papaveraceae Romneya
Platystigma Romneya coulteri
Platystigma linearis Romneya trichocalyx
Glaucium Dendromecon
Glaucium corniculatum Dendromecon harfordii
Glaucium flavum Dendromecon rigida
Chelidonium Eschscholzia
Chelidonium majus Eschscholzia californica
Bocconia Eschscholzia glyptosperma
Bocconia frutescens Eschscholzia hypecoides
Stylophorum Eschscholzia lemmonii
Stylophorum diphyllum Eschscholzia lobbii
Stylomecon Eschscholzia minutiflora
Stylomecon heterophylla Eschscholzia parishii
Canbya Eschscholzia ramosa
Canbya aurea Eschscholzia rhombipetala
Canbya candida Eschscholzia caespitosa
Chlidonium etc...
Chlidonium majus
www.percona.com

Dump Tree SQL
SELECT d.*, p.a AS _parent
FROM treepaths AS c
INNER JOIN longnames AS d ON c.d = d.tsn
LEFT JOIN treepaths AS p ON p.d = d.tsn
AND p.a IN (202422, 564824, 18053, 18020)
AND p.l = 1
WHERE (c.a = 202422)
AND (p.a IS NOT NULL OR d.tsn = 202422)
ORDER BY c.l, d.completename;

www.percona.com

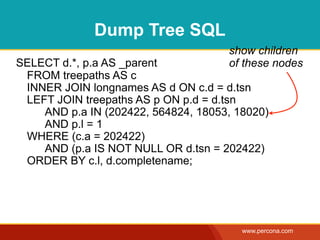

Dump Tree SQL
show children
SELECT d.*, p.a AS _parent of these nodes
FROM treepaths AS c
INNER JOIN longnames AS d ON c.d = d.tsn
LEFT JOIN treepaths AS p ON p.d = d.tsn
AND p.a IN (202422, 564824, 18053, 18020)
AND p.l = 1
WHERE (c.a = 202422)
AND (p.a IS NOT NULL OR d.tsn = 202422)
ORDER BY c.l, d.completename;

www.percona.com

How Does it Perform?
• Query profile = 0.20 sec on Macbook Pro
• MySQL EXPLAIN:
table type key ref rows extra

c ref tree_adl const 114240 Using index; Using
temporary; Using filesort
d eq_ref primary c.d 1

p ref tree_dl c.d, 1 Using where; Using index
const

www.percona.com

SHOW CREATE TABLE
CREATE TABLE `treepaths` (
à` int(11) NOT NULL DEFAULT '0',
`d` int(11) NOT NULL DEFAULT '0',
`l` tinyint(3) unsigned NOT NULL DEFAULT '0',
PRIMARY KEY (à`,`d`),
KEY `tree_adl` (à`,`d`,`l`),
KEY `tree_dl` (`d`,`l`),
CONSTRAINT FOREIGN KEY (à`)
REFERENCES `longnames` (`tsn`),
CONSTRAINT FOREIGN KEY (`d`)
REFERENCES `longnames` (`tsn`)
) ENGINE=InnoDB

www.percona.com

SHOW TABLE STATUS
Name: treepaths
Engine: InnoDB
Version: 10
Row_format: Compact
Rows: 4600439
Avg_row_length: 62
Data_length: 288276480
Max_data_length: 0
Index_length: 273137664
Data_free: 7340032

www.percona.com

Demo Time!

www.percona.com

SQL Antipatterns

http://www.pragprog.com/titles/bksqla/
www.percona.com

Models for hierarchical data

More Related Content

What's hot (20)

Viewers also liked (17)

More from Karwin Software Solutions LLC (12)

Recently uploaded (20)

Models for hierarchical data
