mod_perl 2.0 For Speed Freaks!

Philippe M. Chiasson - http://gozer.ectoplasm.org/talks/
mod_perl For Speed Freaks!
Philippe M. Chiasson
gozer@ectoplasm.org

This is NOT what we will be talking about

This is what we will be
talking about

This is what we will be
talking about
Requests per second: 1159.49 [#/sec] (mean)
Time per request: 17.249 [ms] (mean)
Time per request: 0.862 [ms] (mean, across all concurrent
requests)
Transfer rate: 5681.49 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 2 1.6 3 5
Processing: 7 12 2.5 13 18
Waiting: 3 7 2.6 7 12
Total: 11 15 2.7 15 22

First, assumptions
• You have Apache/mod_perl running
• Your code is now much faster
• You think you could need a speedup

Information gathering
• Apples vs.Apples
• Reliable information
• metrics

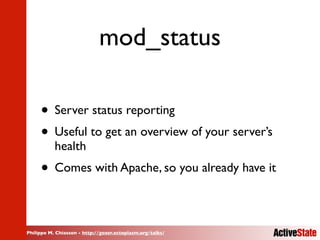

mod_status
• Server status reporting
• Useful to get an overview of your server’s
health
• Comes with Apache, so you already have it

Enabling mod_status
LoadModule status_module modules/mod_status.so
ExtendedStatus On
<Location /server-status>
SetHandler server-status
</Location>

mod_status

mod_status explained
Current Time: Monday, 24-Oct-2005 19:36:37 PDT
Restart Time: Wednesday, 05-Oct-2005 09:28:50 PDT
Parent Server Generation: 19
Server uptime: 19 days 10 hours 7 minutes 47 seconds
Total accesses: 48321153 - Total Traffic: 1391.0 GB
CPU Usage: u651.234 s827.719 cu1619.3 cs0 - .185% CPU load
28.8 requests/sec - 0.8 MB/second - 30.2 kB/request
154 requests currently being processed, 189 idle workers

__W____KW___W___K__K__K_W_RKK__K_K___WK__KKK___KKK__KKKWK__C_WK_
KKR_K__W_KC__K___WWW_RW____KK_KC_KW_WRK__R__CW___KKC___K_K__K___
_K___K_K_W_KK_W____CW__W___RW__KR____KCCKK____KC_W__CWKWWKWK__K_
K_WWCC_W_K_K_WW_W_K__W__W___K_____K__WWWK__KK____W_K_______K_W__
K___KK___C___W_W_K_W_KK__WK______K_W_KK__WW_K_W___W_W_WKK__K__K_
_W____K_K___KKW_KW_W_K_.........................................
Scoreboard Key:
"_" Waiting for Connection, "S" Starting up, "R" Reading Request,
"W" Sending Reply, "K" Keepalive (read), "D" DNS Lookup,
"C" Closing connection, "L" Logging, "G" Gracefully finishing,
"I" Idle cleanup of worker, "." Open slot with no current process

$> wget -O- http://www.apache.org/server-status?auto
Total Accesses: 48340863
Total kBytes: 1459565806
CPULoad: .18793
Uptime: 1678505
ReqPerSec: 28.8
BytesPerSec: 890432
BytesPerReq: 30917.8
BusyWorkers: 140
IdleWorkers: 203

Apache2::Status
• Perl status reporting
• Great to poke at a running mod_perl server
• Comes with mod_perl, so you already have
it

Enabling Apache2::Status
<Location /perl-status>
SetHandler perl-script
PerlHandler Apache2::Status
PerlSetVar StatusOptionsAll On
</Location>
$> cpan
Data::Dumper
Devel::Peek
Apache::Peek
B::LexInfo
B::Deparse
B::Terse
B::TerseSize
Devel::Symdump
B::Fathom
B::Graph

Apache2::Status

But exactly how fast are
you?
• Comparison points
• Benchmark early
• Benchmark often

ab
• Apache Bench
• A good HTTP benchmark tool
• There are others

ab usage
$> ab -h
Usage: ab [options] [http://]hostname[:port]/path
Options are:
-n requests Number of requests to perform
-c concurrency Number of multiple requests to make
-t timelimit Seconds to max. wait for responses
-V Print version number and exit
-k Use HTTP KeepAlive feature
-e filename Output CSV file with percentages served
-h Display usage information (this message)

ab output
$> ab -c10 -n50 http://www.google.com/
This is ApacheBench, Version 2.0.41-dev <$Revision: 1.121.2.12 $> a
Copyright (c) 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeus
Copyright (c) 1998-2002 The Apache Software Foundation, http://www.
Benchmarking www.google.com (be patient).....done
Server Software: GWS/2.1
Server Hostname: www.google.com
Server Port: 80
Document Path: /
Document Length: 151 bytes

ab output
Concurrency Level: 10
Time taken for tests: 0.313241 seconds
Complete requests: 50
Failed requests: 0
Write errors: 0
Non-2xx responses: 50
Total transferred: 24100 bytes
HTML transferred: 7550 bytes
Requests per second: 159.62 [#/sec] (mean)
Time per request: 62.648 [ms] (mean)
Time per request: 6.265 [ms] (mean, across all concurrent requests)
Transfer rate: 73.43 [Kbytes/sec] received

ab output
Connection Times (ms)
min mean[+/-sd] median max
Connect: 23 24 1.9 24 28
Processing: 27 32 9.1 29 67
Waiting: 27 32 9.0 29 66
Total: 51 57 9.0 56 91
Percentage of the requests served within a certain time (ms)
50% 56
66% 57
75% 57
80% 58
90% 74
95% 79
98% 91
99% 91
100% 91 (longest request)

Memory usage
• Total physical RAM is the limit
• SWAP doesn’t count
• Wired counts
• Shared, Resident,Total

top
Processes: 81 total, 2 running, 79 sleeping... 237 threads 22:06:18
Load Avg: 1.48, 1.31, 1.23 CPU usage: 90.9% user, 9.1% sys, 0.0% idle
SharedLibs: num = 30, resident = 7.40M code, 904K data, 2.71M LinkEdit
MemRegions: num = 14341, resident = 192M + 12.3M private, 109M shared
PhysMem: 77.3M wired, 284M active, 142M inactive, 504M used, 7.84M free
VM: 6.45G + 21.0M 1417790(0) pageins, 375968(0) pageouts
PID COMMAND %CPU TIME #TH #PRTS #MREGS RPRVT RSHRD RSIZE VSIZE
27068 Grab 0.0% 0:06.77 3 160 195 2.09M 6.77M 3.01M 153M
26955 TextWrangl 0.0% 1:14.01 4 110 260 4.77M 18.4M 15.6M 174M
26905 bash 0.0% 0:00.66 1 14 18 220K 668K 768K 27.1M
26904 login 0.0% 0:00.04 1 16 37 0K 320K 188K 26.9M
26890 firefox-bi 0.0% 9:31.50 12 213 514 38.3M 19.9M 48.3M 398M
26887 Keynote 0.0% 24:04.87 5 124 598 52.7M 24.4M 58.6M 284M
26882 thunderbir 0.0% 2:08.07 10 124 582 36.3M 24.4M 43.0M 230M
26792 bash 0.0% 0:00.24 1 14 17 196K 668K 548K 27.1M
26791 login 0.0% 0:00.05 1 16 37 0K 320K 16K 26.9M
26789 iTerm 0.0% 10:00.31 6 380 204 5.31M 10.3M 9.25M 159M

GTop
use GTop;
my $gtop = GTop->new;
my $proc_mem = $gtop->proc_mem($$);
for (qw(size vsize share rss)) {
printf " %s => %dn", $_, $proc_mem->$_();
}
size => 1900544
vsize => 3108864
share => 1392640
rss => 1900544

BSD::Resource
use BSD::Resource;
($usertime,
$systemtime,
$maxrss,
$ixrss,
$idrss,
$isrss,
$minflt,
$majflt,
$nswap,
$inblock,
$oublock,
$msgsnd,
$msgrcv,
$nsignals,
$nvcsw,
$nivcsw) = getrusage();

Shared memory
• Identical memory shared by more than one
process
• You want to get as much as possible
• Copy on write

Module Preloading
PerlModule CGI
PerlModule DBI
PerlModule DBD::mysql
PerlModule Apache2::RequestRec
PerlModule Apache2::ServerRec

• DBI->install_driver(‘mysql’);
• CGI->compile(‘:all’);
• Check the doc of the modules you use
Module initialization

Registry Preloading
#startup.pl
use ModPerl::RegistryLoader ();
my $rl = ModPerl::RegistryLoader->new(
package => ‘ModPerl::Registry’,
debug => 1,
);
$rl->handler($url, $filename);

use Foo vs. use Foo ();
use POSIX;
use POSIX added 696k
use POSIX ();
use POSIX () added 316k
• use Foo: Importing default EXPORTS
• use Foo (): Importing nothing by default

Apache2::Const
use Apache2::Const -compile => qw(OK DECLINED);
use Apache2::Const qw(OK DECLINED);
return OK;
return Apache2::Const::OK;

Apache conﬁguration

perl-script vs. modperl
• SetHandler perl-script
• STDIN/STDOUT tied
• %ENV, @INC saved/restored
• %ENV changes propagated
• SetHandler modperl
• nada

PerlOptions
• PerlOptions Autoload
• PerlOptions GlobalRequest
• PerlOption ParseHeader
• PerlOption SetupEnv

KeepAlive Off
• KeepAlives are an HTTP feature
• Generally a good idea
• mod_perl not so much so

Memory leaks
• OS memory usually not reclaimed
• Perl designed for run fast, then terminate
• mod_perl is a long running process
• Some Perl optimizations don’t apply
• all sort of thing can (and will) leak

Slurping
sub handler {
my $r = shift;
open (my $fh, “/tmp/motd.txt”);
my $motd = join ‘’,<$fh>;
print $motd;
return OK;
}
sub handler {
my $r = shift;
while (my $line = <$motd>) {
print $line;
}
return OK;
}

Refﬁng
sub handler {
my $r = shift;
print_motd($motd);
return OK;
}
sub print_motd {
my $motd = shift;
print $motd;
}
sub handler {
my $r = shift;
print_motd($motd);
return OK;
}
sub print_motd {
my $motd = shift;
print $$motd;
}

Apache2::SizeLimit
#startup.pl
use Apache2::SizeLimit;
$Apache2::SizeLimit::MAX_PROCESS_SIZE = 12000;
$Apache2::SizeLimit::MIN_SHARE_SIZE = 6000;
$Apache2::SizeLimit::MAX_UNSHARED_SIZE = 5000;
$Apache2::SizeLimit::CHECK_EVERY_N_REQUESTS = 4;
#httpd.conf
PerlCleanupHandler Apache2::SizeLimit

Proﬁling
• Finding bottlenecks in Perl code
• Don’t guess
• Proﬁlers are out there
• use them

Apache::DProf
PerlModule Apache::DProf
$> apachectl restart
$> cd /var/httpd/logs/prof/12345
$> dprofpp
Total Elapsed Time = 6.238159 Seconds
User+System Time = 1.188159 Seconds
Exclusive Times
%Time ExclSec CumulS #Calls sec/call Csec/c Name
10.8 0.129 0.463 19 0.0068 0.0244 Mail::SpamAssassin::BEGIN
9.17 0.109 0.207 71 0.0015 0.0029 Mail::SpamAssassin::PerMsgStatus::
BEGIN
6.73 0.080 0.138 4 0.0200 0.0345 Mail::Transport::IMAP4::BEGIN
6.65 0.079 1.121 24 0.0033 0.0467 main::BEGIN
3.96 0.047 0.079 3 0.0158 0.0265 Mail::IMAPClient::_read_line
3.37 0.040 0.049 8 0.0050 0.0062 Mail::SpamAssassin::Conf::BEGIN
3.37 0.040 0.059 17 0.0023 0.0035 Net::DNS::Resolver::Base::BEGIN
3.37 0.040 0.186 16 0.0025 0.0117 Mail::Box::IMAP4::BEGIN
3.28 0.039 0.293 32 0.0012 0.0092 base::import
2.86 0.034 0.034 1425 0.0000 0.0000 MIME::Type::simplified
2.52 0.030 0.089 3 0.0100 0.0297 Net::DNS::Resolver::UNIX::BEGIN

Devel::Proﬁler::Apache
• Drop in replacement for Apache::DProf
• dprofpp compatible log ﬁles
• Pure Perl implementation

Odd Speedups

Compressed output
• Most modern browsers support gzip’ed
• Adds CPU cycles on the server
• Adds CPU cycles on the client
• Can reduce latency
• Saves bandwidth

mod_deﬂate
• A good compression module

mod_deﬂate
LoadModule deflate_module modules/mod_defalte.so
<Location />
SetOutputFilter DEFLATE
DeflateFilterNote Input instream
DeflateFilterNote Output outstream
DeflateFilterNote Ratio ratio
</Location>
LogFormat '"%r" %{outstream}n/%{instream}n (%{ratio}n%%)' deflate
CustomLog logs/deflate_log deflate
"GET /PPMPackages/zips/ HTTP/1.1" 1080/4825 (22%)
"GET /ppm.css HTTP/1.1" 278/399 (69%)
"GET /BuildStatus/5.6plus/solaris/Test-ClassAPI-1.02.txt HTTP/1.0" 503/1157 (43%)
"GET /robots.txt HTTP/1.0" 105/328 (32%)
"GET /BuildStatus/5.8-hpux/hpux-ia64-5.8/Acme-Your-0.01.txt HTTP/1.0" 972/10103 (9%)
"GET /BuildStatus/5.8-windows/windows-5.8/DBD-PgPP-0.05.txt HTTP/1.1" 371/1507 (24%)
"GET /BuildStatus/5.6plus/linux/Data-Page-Pageset-1.02.txt HTTP/1.0" 640/1606 (39%)

Databases
• Such a common back-end
• Slow & expensive
• Bottleneck

Apache::DBI
• Wrapper to DBI
• Plug & Play, no code change
• Persistent DB connections

Apache::DBI
PerlModule Apache::DBI
PerlModule DBI
use DBI;
my $dbh = DBI->connect(“dsn”,$user, $pass);

connect_on_init
• Pre-connects to hot DBs
• Once for each httpd child
Apache::DBI->connect_on_init($DSN, $user, $pass);

prepare_cached
• DB handles are cached
• prepare_cached() caches preapred
statements into DB handles
my $sth = $dbh->prepare_cached(“SELECT id from User where name = ?”);

stat()
• System call
• File information (size, owner, lastmod)
• Relatively expensive

AllowOverride
• Depends on default conﬁg
• .htaccess ﬁles are searched for:
- /.htaccess
- /var/.htaccess
- /var/www/.htaccess
- /var/www/htdocs/.htaccess

AllowOverride
• We are using mod_perl
• We are speed freaks
• When we need to override, we do it with
Perl

AllowOverride None
<Directory>
AllowOverride None
</Directory>

PerlTransHandler
DocumentRoot /var/www/html/root
<Location /news/story/print/pdf>
SetHandler modperl
PerlHandler Story::Print::Pdf
</Location>
$> GET http://localhost:8529/news/story/print/pdf/12345
stat(“/var/www/html/root/news/story/print/pdf/12345”);
stat(“/var/www/html/root/news/story/print/pdf”);
stat(“/var/www/html/root/news/story/print”);
stat(“/var/www/html/root/news/story”);
stat(“/var/www/html/root/news”);
stat(“/var/www/html/root”);

PerlTransHandler
DocumentRoot /var/www/html/root
<Location /news/story/print/pdf>
SetHandler modperl
PerlHandler Story::Print::Pdf
PerlTransHandler Apache2::Const::OK
</Location>
$> GET http://localhost:8529/news/story/print/pdf/12345

$r->ﬁnfo
• When httpd is serving a ﬁle, it had to stat()
it
• It’s cached
• We can use it

$r->ﬁnfo
sub handler {
my $r = shift;
my $file = $r->filename;
if (-M $file) { # extra stat() / extra time()
use APR::Finfo ();
sub handler {
my $r = shift;
my $finfo = $r->finfo;
if ($finfo->mtime > $r->request_time) {

print()
• STDOUT connected to the client
• Might not be buffered
• Generally expensive

print ... print ... print
print “<HTML>n”;
print “<BODY>n”;
print “<H1>Hello</H1>n”;
print “</BODY>n”;
print “</HTML>n”;
print <<’EOF’;
<HTML><BODY>
<H1>Hello</H1>
</BODY></HTML>
EOF

$|
• $|++;
• Buffering causes slower page loads

$r->rﬂush();
$|++;
print $header;
print $info;
print $news;
my $results = some_slow_search();
print $results;
print $footer;
print
$header,
$info,
$news,
;
$r->rflush();
my $results = some_slow_search();
print
$result,
$footer,
;

Thank you!

More info
• mod_perl User’s mailing-list
– http://perl.apache.org/maillist/modperl.html
– <modperl@perl.apache.org>
• mod_perl Developer's Cookbook
– http://www.modperlcookbook.org/
• Practical mod_perl
– http://www.modperlbook.org/
• mod_perl at the ASF
– http://perl.apache.org/

ThankYou!
Slides and bonus material:
http://gozer.ectoplasm.org/talk/

mod_perl 2.0 For Speed Freaks!

More Related Content

What's hot (20)

Similar to mod_perl 2.0 For Speed Freaks! (20)

Recently uploaded (20)

mod_perl 2.0 For Speed Freaks!
