Real-Time Integration Between MongoDB and SQL Databases
- 1. 1 Distributed, fault-tolerant, transactional Real-Time Integration: MongoDB and SQL Databases Eugene Dvorkin Architect, WebMD
- 2. 2 WebMD: A lot of data; a lot of traffic ~900 millions page view a month ~100 million unique visitors a month
- 3. 3 How We Use MongoDB User Activity
- 4. 4 Why Move Data to RDBMS? Preserve existing investment in BI and data warehouse To use analytical database such as Vertica To use SQL
- 5. 5 Why Move Data In Real-time? Batch process is slow No ad-hoc queries No real-time reports
- 6. 6 Challenge in moving data Transform Document to Relational Structure Insert into RDBMS at high rate
- 7. 7 Challenge in moving data Scale easily as data volume and velocity increase
- 8. 8 Our Solution to move data in Real-time: Storm tem.Storm – open source distributed real- time computation system. Developed by Nathan Marz - acquired by Twitter
- 9. 9 Hadoop Storm Our Solution to move data in Real-time: Storm

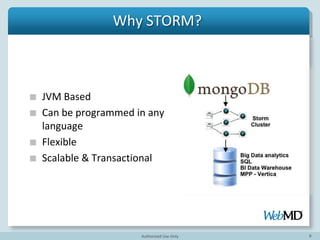

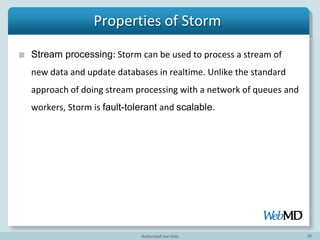

- 10. 10 Why STORM? JVM-based framework Guaranteed data processing Supports development in multiple languages Scalable and transactional Easy to learn and use
- 11. 11 Overview of Storm cluster Master Node Cluster Coordination run worker processes

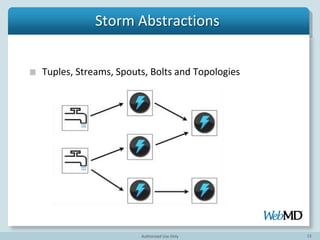

- 12. 12 Storm Abstractions Tuples, Streams, Spouts, Bolts and Topologies
- 14. 14 Stream Unbounded sequence of tuples Example: Stream of messages from message queue
- 15. 15 Spout Read from stream of data – Queues, web logs, API calls, mongoDB oplog Emit documents as tuples Source of Streams
- 16. 16 Bolts Process tuples and create new streams
- 17. 17 Bolts Apply functions /transforms Calculate and aggregate data (word count!) Access DB, API , etc. Filter data Map/Reduce Process tuples and create new streams
- 18. 18 Topology
- 19. 19 Topology Storm is transforming and moving data
- 20. 20 MongoDB How To Read All Incoming Data from MongoDB?
- 21. 21 MongoDB How To Read All Incoming Data from MongoDB? Use MongoDB OpLog
- 22. 22 What is OpLog? Replication mechanism in MongoDB It is a Capped Collection
- 23. 23 Spout: reading from OpLog Located at local database, oplog.rs collection
- 24. 24 Spout: reading from OpLog Operations: Insert, Update, Delete
- 25. 25 Spout: reading from OpLog Name space: Table – Collection name
- 26. 26 Spout: reading from OpLog Data object:
- 28. 28 Automatic discovery of sharded cluster

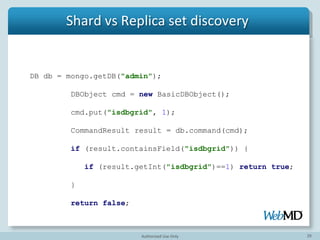

- 29. 29 Example: Shard vs Replica set discovery
- 31. 31 Spout: Reading data from OpLog How to Read data continuously from OpLog?
- 32. 32 Spout: Reading data from OpLog How to Read data continuously from OpLog? Use Tailable Cursor
- 33. 33 Example: Tailable cursor - like tail –f

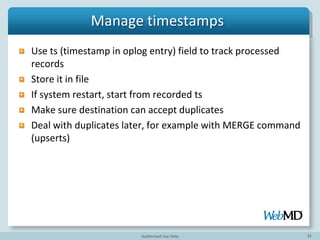

- 34. 34 Manage timestamps Use ts (timestamp in oplog entry) field to track processed records If system restart, start from recorded ts
- 35. 35 Spout: reading from OpLog
- 36. 36 SPOUT – Code Example
- 37. 37 TOPOLOGY
- 38. 38 Working With Embedded Arrays Array represents One-to-Many relationship in RDBMS

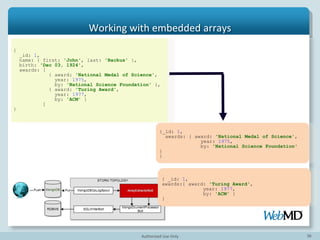

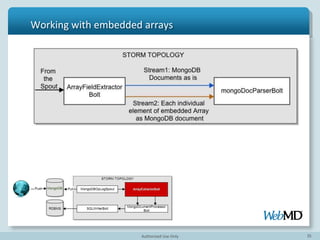

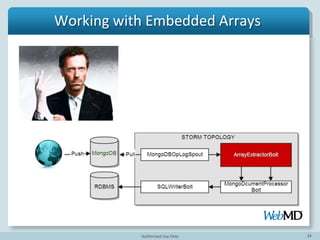

- 39. 39 Example: Working with embedded arrays
- 40. 40 Example: Working with embedded arrays {_id: 1, ns: “person_awards”, o: { award: 'National Medal of Science', year: 1975, by: 'National Science Foundation' } } { _id: 1, ns: “person_awards”, o: {award: 'Turing Award', year: 1977, by: 'ACM' } }
- 41. 41 Example: Working with embedded arrays public void execute(Tuple tuple) { ......... if (field instanceof BasicDBList) { BasicDBObject arrayElement=processArray(field) ...... outputCollector.emit("documents", tuple, arrayElement);
- 42. 42 Parse documents with Bolt
- 43. 43 {"ns": "people", "op":"i", o : { _id: 1, name: { first: 'John', last: 'Backus' }, birth: 'Dec 03, 1924’ } ["ns": "people", "op":"i", “_id”:1, "name_first": "John", "name_last":"Backus", "birth": "DEc 03, 1924" ] Parse documents with Bolt
- 44. 44 @Override public void execute(Tuple tuple) { ...... final BasicDBObject oplogObject = (BasicDBObject)tuple.getValueByField("document"); final BasicDBObject document = (BasicDBObject)oplogObject.get("o"); ...... outputValues.add(flattenDocument(document)); outputCollector.emit(tuple,outputValues); Parse documents with Bolt

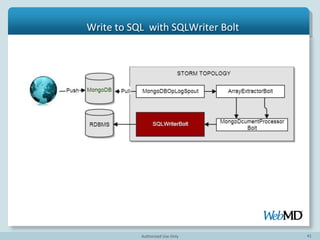

- 45. 45 Write to SQL with SQLWriter Bolt
- 46. 46 Write to SQL with SQLWriter Bolt ["ns": "people", "op":"i", “_id”:1, "name_first": "John", "name_last":"Backus", "birth": "Dec 03, 1924" ] insert into people (_id,name_first,name_last,birth) values (1,'John','Backus','Dec 03,1924') , insert into people_awards (_id,awards_award,awards_award,awards_by) values (1,'Turing Award',1977,'ACM'), insert into people_awards (_id,awards_award,awards_award,awards_by) values (1,'National Medal of Science',1975,'National Science Foundation')
- 47. 47 @Override public void prepare(.....) { .... Class.forName("com.vertica.jdbc.Driver"); con = DriverManager.getConnection(dBUrl, username,password); @Override public void execute(Tuple tuple) { String insertStatement=createInsertStatement(tuple); try { Statement stmt = con.createStatement(); stmt.execute(insertStatement); stmt.close(); Write to SQL with SQLWriter Bolt

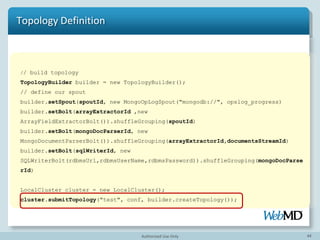

- 48. 48 Topology Definition TopologyBuilder builder = new TopologyBuilder(); // define our spout builder.setSpout(spoutId, new MongoOpLogSpout("mongodb://", opslog_progress) builder.setBolt(arrayExtractorId ,new ArrayFieldExtractorBolt(),5).shuffleGrouping(spoutId) builder.setBolt(mongoDocParserId, new MongoDocumentParserBolt()).shuffleGrouping(arrayExtractorId, documentsStreamId) builder.setBolt(sqlWriterId, new SQLWriterBolt(rdbmsUrl,rdbmsUserName,rdbmsPassword)).shuffle Grouping(mongoDocParserId) LocalCluster cluster = new LocalCluster(); cluster.submitTopology("test", conf, builder.createTopology());
- 49. 49 Topology Definition TopologyBuilder builder = new TopologyBuilder(); // define our spout builder.setSpout(spoutId, new MongoOpLogSpout("mongodb://", opslog_progress) builder.setBolt(arrayExtractorId ,new ArrayFieldExtractorBolt(),5).shuffleGrouping(spoutId) builder.setBolt(mongoDocParserId, new MongoDocumentParserBolt()).shuffleGrouping(arrayExtractorId ,documentsStreamId) builder.setBolt(sqlWriterId, new SQLWriterBolt(rdbmsUrl,rdbmsUserName,rdbmsPassword)).shuffl eGrouping(mongoDocParserId) LocalCluster cluster = new LocalCluster(); cluster.submitTopology("test", conf, builder.createTopology());
- 50. 50 Topology Definition TopologyBuilder builder = new TopologyBuilder(); // define our spout builder.setSpout(spoutId, new MongoOpLogSpout("mongodb://", opslog_progress) builder.setBolt(arrayExtractorId ,new ArrayFieldExtractorBolt(),5).shuffleGrouping(spoutId) builder.setBolt(mongoDocParserId, new MongoDocumentParserBolt()).shuffleGrouping(arrayExtractorId, documentsStreamId) builder.setBolt(sqlWriterId, new SQLWriterBolt(rdbmsUrl,rdbmsUserName,rdbmsPassword)).shuffle Grouping(mongoDocParserId) LocalCluster cluster = new LocalCluster(); cluster.submitTopology("test", conf, builder.createTopology());
- 51. 51 Topology Definition TopologyBuilder builder = new TopologyBuilder(); // define our spout builder.setSpout(spoutId, new MongoOpLogSpout("mongodb://", opslog_progress) builder.setBolt(arrayExtractorId ,new ArrayFieldExtractorBolt(),5).shuffleGrouping(spoutId) builder.setBolt(mongoDocParserId, new MongoDocumentParserBolt()).shuffleGrouping(arrayExtractorId, documentsStreamId) builder.setBolt(sqlWriterId, new SQLWriterBolt(rdbmsUrl,rdbmsUserName,rdbmsPassword)).shuffle Grouping(mongoDocParserId) StormSubmitter.submitTopology("OfflineEventProcess", conf,builder.createTopology())
- 52. 52 Lesson learned By leveraging MongoDB Oplog or other capped collection, tailable cursor and Storm framework, you can build fast, scalable, real-time data processing pipeline.
- 53. 53 Resources Book: Getting started with Storm Storm Project wiki Storm starter project Storm contributions project Running a Multi-Node Storm cluster tutorial Implementing real-time trending topic A Hadoop Alternative: Building a real-time data pipeline with Storm Storm Use cases
- 54. 54 Resources (cont’d) Understanding the Parallelism of a Storm Topology Trident – high level Storm abstraction A practical Storm’s Trident API Storm online forum Mongo connector from 10gen Labs MoSQL streaming Translator in Ruby Project source code New York City Storm Meetup
- 55. 55 Questions Eugene Dvorkin, Architect, WebMD edvorkin@webmd.net Twitter: @edvorkin LinkedIn: eugenedvorkin
