Transactions and Durability: Putting the “D” in ACID Sue LoVerso - Senior Staff Engineer, Storage Team MongoDB, Inc sue@mongodb.com
Sue LoVerso Senior Staff Engineer, MongoDB Kernel Storage Team
Transaction Concepts
ACID - Atomicity • “All or nothing” • Set of operations are an indivisible unit • Example: Bank transfer: • Withdraw from Account A • Deposit into Account B
ACID - Consistency • Database constraints aren’t violated (“constraints” individually defined) • Most common in Relational Databases: constraints, triggers or cascades • Example: • [EndDate] >= [StartDate] • [Value] < 100
ACID - Isolation • Data visibility (or not) by other concurrently running transactions • Isolation levels: what data can a transaction read or write and when • WiredTiger offers visibility choices with tradeoffs
ACID - Durability • Provides guarantee that committed transactions survive permanently • Common implementation is write-ahead log (aka journal) • WiredTiger gives durability-related choices • This is not the replication oplog. This is per-node in a cluster • These are not user-level transactions
ACID - Durability Modes In-memory mode WT memory
ACID - Durability Modes In-memory mode write-no-sync mode WT memory WT memory write(2) file system buffer cache
ACID - Durability Modes Disk In-memory mode write-no-sync mode full-sync mode WT memory write(2) file system buffer cache WT memory WT memory write(2) file system buffer cache
ACID - Durability Durability Guarantee Performance Full Sync In-memory Write-no-Sync
ACID - Durability Synchronization Level Process Crash System Crash in-memory (“sync=disabled”) Potential data loss Potential data loss write-no-sync (“sync=off”) Data always recoverable Potential data loss full sync (“sync=on”) Data always recoverable Data always recoverable
Why Do We Care?
What keeps me up at night?
What keeps me up at night?
What keeps me up at night? • For storage engineers - “Losing people’s data”
How I sleep better • Durability - keep data stable and consistent
How I sleep better • Durability - keep data stable and consistent • If we say it’s stable, it really is written and synced
How I sleep better • Durability - keep data stable and consistent • If we say it’s stable, it really is written and synced • Crash: we can recover your durably written data
How I sleep better • Round the clock testing 24/7 • Randomized • Kill process • Power cycle • Both WiredTiger only and via MongoDB • Any failure is top priority work (and I mean absolute, top priority)
How I sleep better • Constant testing gives confidence in code • We think long and hard about durability guarantees • We pay close attention to OS and system call issues • We think long and hard about feature impacts on durability • We take the responsibility of keeping your data seriously
Durability All The Way Down
Layers All The Way Down Content Repo IoT Sensor Backend Ad Service Customer Analytics Archive Example Future State
Layers All The Way Down Content Repo IoT Sensor Backend Ad Service Customer Analytics Archive MongoDB Query Language (MQL) + Native Drivers Example Future State
Layers All The Way Down Content Repo IoT Sensor Backend Ad Service Customer Analytics Archive MongoDB Query Language (MQL) + Native Drivers MongoDB Document Data Model Management Security Example Future State
Layers All The Way Down Content Repo IoT Sensor Backend Ad Service Customer Analytics Archive MongoDB Query Language (MQL) + Native Drivers MongoDB Document Data Model MMAP V1 WiredTiger RocksDB Mobile Management Security Example Future State In-memory
WiredTiger Architecture Database Files Log Files WiredTiger C API Schema & Cursors Transactions Row Storage Column Storage Snapshots Cache Page read/write Block Manager Logging MongoDB Storage Engine Layer
WiredTiger Architecture Database Files Log Files WiredTiger C API Schema & Cursors Transactions Row Storage Column Storage Snapshots Cache Page read/write Block Manager Logging
Layers of Trust
Layers of Trust - User • User wants assured stability of some data User
Layers of Trust - User • User wants assured stability of some data • User gives write concern: { j : true } j:true turtles User
Layers of Trust • User gives write concern: { j : true } • https://docs.mongodb.com/manual/reference/write-concern/: • Write concern describes the level of acknowledgement requested from MongoDB for write operations … • If j: true, [the user] requests acknowledgement that the mongod instances ... have written to the on-disk journal.
Layers of Trust - MongoDB src/mongo/db/write_concern.cpp: Status waitForWriteConcern(...) { ... case WriteConcernOptions::SyncMode::JOURNAL: opCtx->recoveryUnit()->waitUntilDurable(); ... } j:true turtles User MDB
Layers of Trust - MongoDB void WiredTigerSessionCache::waitUntilDurable(...) { ... // Use the journal when available, or a checkpoint otherwise. if (_engine->isDurable()) { invariantWTOK(_Session->log_flush(_Session, "sync=on")); ... } else { invariantWTOK(_Session->checkpoint(_Session, NULL)); ... } } j:true turtles User MDB
Layers of Trust - MongoDB • MongoDB calls WT: _Session->log_flush(_Session, “sync=on”)
Layers of Trust - MongoDB • MongoDB calls: _Session->log_flush(_Session, “sync=on”) • http://source.wiredtiger.com/3.0.0/struct_w_t___s_e_s_s_i_o_n.html: log_flush: • forcibly flush the log and wait for it to achieve the synchronization level specified. The on setting forces log records to be written to the storage device.
Layers of Trust - WiredTiger int __session_log_flush(...) { ... if (WT_STRING_MATCH("on", cval.str, cval.len)) flags = WT_LOG_FSYNC; ret = __wt_log_flush(session, flags); ... } int __wt_log_flush(...) { ... if (FLAG_ISSET(WT_LOG_FSYNC)) return (__wt_log_force_sync(...)); } j:true turtles User MDB WT
Layers of Trust - WiredTiger int __wt_log_force_sync() { ... ret = __wt_fsync(session, log_fh, true)); } int __posix_sync() { ... #ifdef … WT_SYSCALL(fdatasync(fd), ret); #else WT_SYSCALL(fsync(fd), ret); #endif ... } j:true turtles User MDB WT
Layers of Trust - WiredTiger • WiredTiger calls: fsync(fd) or fdatasync(fd) • http://man7.org/linux/man-pages/man2/fdatasync.2.html • fsync() transfers ("flushes") all modified ... data of the file to the disk device ... so that all changed information can be retrieved even if the system crashes or is rebooted. ... The call blocks until the device reports that the transfer has completed.
Layers of Trust - Operating System https://elixir.bootlin.com/linux/v4.17-rc4/source/ fs/sync.c: SYSCALL_DEFINE1(fsync, unsigned int, fd) { ... ret = vfs_fsync_range(...); int vfs_fsync_range(...) ... return (file->f_op->fsync(...)); fs/xfs/xfs_file.c: int xfs_file_sync(...) ... blkdev_issue_flush(...); j:true turtles User MDB WT OS
Layers of Trust - Operating System block/blk-flush.c int blkdev_issue_flush(...) { ... bio_set_dev(...); bio->bi_opf = REQ_OP_WRITE | REQ_PREFLUSH; ret = submit_bio_wait(...); }
Layers of Trust - Device driver • Device driver sends some kind of flush operation. • Code is device specific. • Hardware is the recipient. j:true turtles User MDB WT OS Dev
Layers of Trust - Hardware • Device driver is trusting the hardware. • If the hardware lies, data could be lost in a crash. • May need to disable device write-caching: • sudo hdparm -i /dev/sda • /etc/hdparm.conf • #write-cache=off j:true turtles User MDB WT OS Dev HW
Layers of Trust - Summary

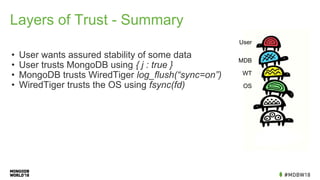

Layers of Trust - Summary • User wants assured stability of some data User
Layers of Trust - Summary • User wants assured stability of some data • User trusts MongoDB using { j : true } User MDB
Layers of Trust - Summary • User wants assured stability of some data • User trusts MongoDB using { j : true } • MongoDB trusts WiredTiger log_flush(“sync=on”) User MDB WT
Layers of Trust - Summary • User wants assured stability of some data • User trusts MongoDB using { j : true } • MongoDB trusts WiredTiger log_flush(“sync=on”) • WiredTiger trusts the OS using fsync(fd) User MDB WT OS
Layers of Trust - Summary • User wants assured stability of some data • User trusts MongoDB using { j : true } • MongoDB trusts WiredTiger log_flush(“sync=on”) • WiredTiger trusts the OS using fsync(fd) • Operating System trusts device driver User MDB WT OS Dev
Layers of Trust - Summary • User wants assured stability of some data • User trusts MongoDB using { j : true } • MongoDB trusts WiredTiger log_flush(“sync=on”) • WiredTiger trusts the OS using fsync(fd) • Operating System trusts device driver • The device driver trusts the hardware User MDB WT OS Dev HW
WiredTiger Durability
What Does Durability Mean? • Writing any data to stable storage for later retrieval • In WiredTiger: ○ Checkpoints - coarse-grained durability ○ Write-ahead logging - fine-grained durability
WiredTiger Architecture Database Files Log Files WiredTiger C API Schema & Cursors Transactions Row Storage Column Storage Snapshots Cache Page read/write Block Manager Logging
Checkpoints • Who: • Called via WT_SESSION::checkpoint() API (MongoDB) • What: • Writes all modified collections, all visible dirty data • When: • API call, internal thread period, on close • How: • Checkpoint opens a snapshot transaction, writes data
Checkpoints • Create Table:Collection
Checkpoints • Create Table:Collection Collection.wt (Disk)WT Cache (Memory)
Checkpoints • Insert some data Collection.wt (Disk)WT Cache (Memory) Apple
Checkpoints • Insert some data Collection.wt (Disk)WT Cache (Memory) Apple Banana
Checkpoints • Insert some data Collection.wt (Disk)WT Cache (Memory) Apple Banana Cherry
Checkpoints • Call WT_SESSION::checkpoint() Collection.wt (Disk)WT Cache (Memory) Apple Banana Cherry
Checkpoints • WT_SESSION::checkpoint() Collection.wt (Disk)WT Cache (Memory) Apple Banana Cherry
Checkpoints • Insert more data Collection.wt (Disk)WT Cache (Memory) Apple Banana Cherry Orange Pineapple
Crash
Crashing and Recovery • Open collection from most recent checkpoint • Any data after checkpoint is lost
Checkpoints • Restart Collection.wt (Disk)WT Cache (Memory) Apple Banana Cherry
WiredTiger Architecture Database Files Log Files WiredTiger C API Schema & Cursors Transactions Row Storage Column Storage Snapshots Cache Page read/write Block Manager Logging
Write-ahead log (aka journal) • Who: • Enabled/disabled when first creating the database • What: • Logical recording of all transaction modifications • When: • Every time a transaction commits
Write-ahead log (aka journal) • Create Table:Collection Collection.wt (Disk)WT Cache (Memory) WT Log (Disk)
Write-ahead log (aka journal) • Insert some data Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Commit(Apple)
Write-ahead log (aka journal) • Insert some data Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana)
Write-ahead log (aka journal) • Insert some data Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana) Cherry Commit(Cherry)
Write-ahead log (aka journal) • Insert some more data Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana) Cherry Commit(Cherry) Orange Commit(Orange)
Write-ahead log (aka journal) • Insert some more data Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana) Cherry Commit(Cherry) Orange Commit(Orange) Pineapple Commit(Pineapple)
Crash
Crashing and Recovery • First table open: if it exists, most recent checkpoint taken • Recovery replays the entire applicable write-ahead log
Write-ahead log (aka journal) • Restart and recovery Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Commit(Apple) Commit(Banana) Commit(Cherry) Commit(Orange) Commit(Pineapple)
Write-ahead log (aka journal) • Recovery replays the operations Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana) Cherry Commit(Cherry) Orange Commit(Orange) Pineapple Commit(Pineapple)
Write-ahead log (aka journal) • Recovery checkpoints on completion Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana) CherryCommit(Cherry) OrangeCommit(Orange) PineappleCommit(Pineapple)
Checkpoints + Logging = • Faster Recovery • Less disk usage • Best of both worlds
Checkpoint + Logging • Create Table:Collection Collection.wt (Disk)WT Cache (Memory) WT Log (Disk)
Checkpoint + Logging • Insert some data Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Commit(Apple)
Checkpoint + Logging • Insert some data Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana)
Checkpoint + Logging • Insert some data Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana) Cherry Commit(Cherry)
Checkpoint + Logging • WT_SESSION::checkpoint() Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana) CherryCommit(Cherry) Checkpoint
Checkpoint + Logging • Insert some more data Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana) CherryCommit(Cherry) Orange Commit(Orange) Checkpoint
Checkpoint + Logging • Insert some more data Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana) CherryCommit(Cherry) Orange Commit(Orange) Pineapple Commit(Pineapple) Checkpoint
Crash
Checkpoint + Logging • Restart and Recovery Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana) CherryCommit(Cherry) Commit(Orange) Commit(Pineapple) Checkpoint
Checkpoint + Logging • Restart and Recovery Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana) CherryCommit(Cherry) Commit(Orange) Commit(Pineapple) Checkpoint Recovery starts here
Checkpoint + Logging • Recovery replays the operations Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana) CherryCommit(Cherry) Orange Commit(Orange) Pineapple Commit(Pineapple) Checkpoint
Checkpoint + Logging • Recovery checkpoints on completion Collection.wt (Disk)WT Cache (Memory) WT Log (Disk) Apple Banana Commit(Apple) Commit(Banana) CherryCommit(Cherry) Orange Commit(Orange) Pineapple Commit(Pineapple) Checkpoint Checkpoint
Checkpoints + Logging = • Faster Recovery • Checkpoints bound recovery time. Recovery starts at previous checkpoint • Less disk usage • Checkpoints allow archival of earlier write-ahead log files • Archiving happens on whole-file basis • Fine-grained durability • Logging allows recovery of intermediary data
Transactions and Logging
Transactions + Logging • Who: • WT_SESSION::commit_transaction() • WT_SESSION::checkpoint() • Internal operations • What: • Logical recording of all transaction modifications • When: • Every time a transaction commits, before making visible
Write-Ahead Modes WT Log (Disk) Commit(Apple) Checkpoint Commit(Banana) Commit(Cherry) Commit(Orange) Commit(Pineapple) Checkpoint
Write-Ahead Modes Diskfull-sync mode WT memory write(2) file system buffer cache WT memory WT memory write-no-sync mode in-memory mode write(2) file system buffer cache WT Log (Disk) Commit(Apple) Checkpoint Commit(Banana) Commit(Cherry) Commit(Orange) Commit(Pineapple) Checkpoint
Write-Ahead Modes • Guarantees on return from commit transaction: • in-memory durability (default/MongoDB): none • write-no-sync: recoverable after process crash • full-sync: recoverable from process crash or system crash Synchronization Level Process Crash System Crash in-memory Potential data loss Potential data loss write-no-sync Data always recoverable Potential data loss full sync Data always recoverable Data always recoverable
Write-ahead In-memory Mode • Why have it? Why use it? • When does it become durable?
Write-ahead In-memory Mode • Why have it? Why use it? • When does it become durable? • Filling the memory buffer. • Any later log record requiring greater durability. • Changing to a new log file. • Idle system write log memory buffer every 50 msecs.
WT Transactions + Logging + MongoDB • MongoDB uses least persistent sync mode (in-memory). • Most performant (by a lot). • MongoDB can generate multiple transactions at a time. • WT_SESSION::log_flush() API available. • MongoDB calls just before returning guarantee to user.
Conclusion
Conclusions • This is cool stuff • I hope you enjoyed learning about it • We take the responsibility of keeping your data seriously
How do you sleep at night? Z Z Z Z Z Z Z Z Z
Transactions and Durability: Putting the “D” in ACID Sue LoVerso - Senior Staff Engineer, Storage Team MongoDB, Inc sue@mongodb.com
