Monitoring Application Attack Surface and Integrating Security into DevOps Pipelines
- 1. 8-‐12 May, 2017 Monitoring Attack Surface and Integrating Security into DevOps Pipelines Dan Cornell, CTO Denim Group
- 2. Agenda • Background • Importance of Attack Surface • What Does Attack Surface Have to Do with DevOps? • Hybrid Analysis Mapping (HAM) Background • Installation Instructions • Use Cases • Questions
- 3. My Background • Dan Cornell, founder and CTO of Denim Group • Software developer by background (Java, .NET, etc) • OWASP San Antonio 3
- 4. Denim Group Background • Secure software services and products company – Builds secure software – Helps organizations assess and mitigate risk of in-‐house developed and third party software – Provides classroom training and e-‐Learning so clients can build software securely • Software-‐centric view of application security – Application security experts are practicing developers – Development pedigree translates to rapport with development managers – Business impact: shorter time-‐to-‐fix application vulnerabilities • Culture of application security innovation and contribution – Develops open source tools to help clients mature their software security programs • Remediation Resource Center, ThreadFix – OWASP national leaders & regular speakers at RSA, SANS, OWASP, ISSA, CSI – World class alliance partners accelerate innovation to solve client problems 4
- 5. OWASP ZAP • Open source web proxy and dynamic application security testing tool • https://www.owasp.org/index.php/OWASP_Zed_Attack_Proxy_Project
- 6. Example Codebases • BodgeIt Store – Example vulnerable web application – https://github.com/psiinon/bodgeit • Java Spring Petstore – Example Spring application – https://github.com/spring-‐projects/spring-‐petclinic • Railsgoat – Example vulnerable web application – https://github.com/OWASP/railsgoat
- 7. ThreadFix Community Edition • Application vulnerability management – And some other stuff • https://github.com/denimgroup/threadfix
- 8. Downloads • https://dl.dropboxusercontent.com/u/737351/endpoints-‐json.jar • https://dl.dropboxusercontent.com/u/737351/threadfix-‐release-‐2.zap • https://github.com/denimgroup/threadfix-‐examples/tree/master/web_app_attack_surface
- 9. Importance of Attack Surface
- 10. Importance of Attack Surface • This is where an attacker can “reach out and touch” your application – Web: Mostly in the HTTP request: URL, parameters, headers (cookies) – Mobile, IoT: More complicated – We will focus on web today • Target for dynamic testing – Automated DAST – Manual assessment/penetration testing
- 11. What Does Attack Surface Have to Do With DevOps? • If you want your talk to be accepted, it has to have DevOps in the title • Let’s look at what we want from security in the DevOps pipeline

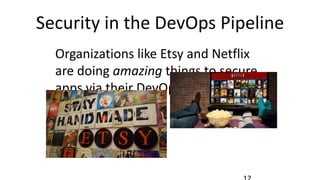

- 12. Security in the DevOps Pipeline Organizations like Etsy and Netflix are doing amazing things to secure apps via their DevOps pipelines
- 13. Security in the DevOps Pipeline • Testing – Synchronous – Asynchronous • Decision • Reporting Blog Post: Effective Application Security Testing in DevOps Pipelines http://www.denimgroup.com/blog/2016/12/effective-‐application-‐security-‐testing-‐in-‐devops-‐pipelines/ https://www.denimgroup.com/resources/effective-‐application-‐security-‐for-‐devops/
- 14. Focus on Testing in DevOps Pipeline • Many security tools run too long to include in many pipeline builds – Full SAST, DAST • Security testing also includes manual testing – Which is way too slow for most pipeline builds • Tracking attack surface changes over time can help us: – Focus testing activities – Trigger testing activities
- 15. Hybrid Analysis Mapping • Goal: Merge the results of SAST and DAST testing • Funded via DHS S&T SBIR contracts • Facilitated the creation of our attack surface modeling engine
- 16. Department of Homeland Security Support • Currently in Phase 2 of a DHS S&T CSD SBIR • Acronyms! – DHS = Department of Homeland Security – S&T = Directorate of Science and Technology – CSD = CyberSecurity Division – SBIR = Small Business Innovation Research • Geared toward developing new technologies for Federal customers • Hybrid Analysis Mapping (HAM) • Technology has been included with ThreadFix • Has also resulted in some other released components we will talk about today • Please do not assume this talk is endorsed by DHS – This is just me talking about what we have done
- 17. Hybrid Analysis Mapping (HAM) • Initial goal: Correlate and merge results from SAST and DAST • After we made that work, we found other stuff we could do with the technology
- 18. Hybrid Analysis Mapping (HAM) • Determine the feasibility of developing a system that can reliably and efficiently correlate and merge the results of automated static and dynamic security scans of web applications. HP Fortify SCA IBM AppScan Standard
- 19. Dynamic Application Security Testing (DAST) • Spider to enumerate attack surface – Crawl the site like Google would – But with authentication / session detection • Fuzz to identify vulnerabilities based on analysis of request/response patterns – If you send a SQL control character and get a JDBC error message back, that could indicate a SQL injection vulnerability • A finding looks like (CWE, relative URL, [entry point])
- 20. Static Application Security Testing (SAST) • Use source or binary to create a model of the application – Kind of like a compiler or VM • Perform analysis to identify vulnerabilities and weaknesses – Data flow, control flow, semantic, etc • A finding looks like (CWE, code/data flow)
- 21. Hybrid Analysis Mapping Sub-‐Goals • Standardize vulnerability types – Settled on MITRE Common Weakness Enumeration (CWE) • Match dynamic and static locations – Use knowledge of language/web framework to build attack surface database • Improve static parameter parsing – Parse out of source code to match with DAST result
- 22. Information Used • Source Code – Git, Subversion, Local Copy • Framework Type – Java: JSP, Spring, Struts – C#: .NET WebForms, .NET MVC – Ruby: Rails – PHP: in progress • Extra information from SAST results (if available)
- 23. Unified Endpoint Database • EndpointQuery – dynamicPath – staticPath – Parameter – httpMethod – codePoints [List<CodePoint>] – informationSourceType • EndpointDatabase – findBestMatch(EndpointQuery query): Endpoint – findAllMatches(EndpointQuery query): Set<Endpoint> – getFrameworkType(): FrameworkType

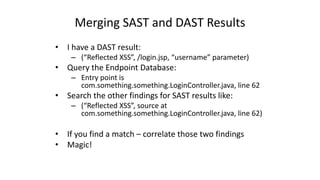

- 24. Merging SAST and DAST Results • I have a DAST result: – (“Reflected XSS”, /login.jsp, “username” parameter) • Query the Endpoint Database: – Entry point is com.something.something.LoginController.java, line 62 • Search the other findings for SAST results like: – (“Reflected XSS”, source at com.something.something.LoginController.java, line 62) • If you find a match – correlate those two findings • Magic!
- 25. That’s Great But I Want More • So our research produced a successful/valuable outcome – Hooray • But – given these data structures, what else can we do? • From an EndpointDatabase we can: – Get all of the application’s attack surface – Map DAST results to a specific line of code • Given those capabilities we can: – Pre-‐seed scanners with attack surface – Map DAST results to lines of code in a developer IDE – Map DAST results to lines of code in SonarQube
- 26. Final Thoughts on SBIR Work with DHS S&T • Great use of the SBIR program – In my humble and totally unbiased opinion • Proved to be the tipping point to developing HAM – HAM was interesting, but required material investment • Research produced a successful outcome (we think) • We found other things we could do with the technology • Released much of it open source to increase adoption
- 27. Scanner Seeding • What if we could give the DAST spidering process a head start? • Pre-‐seed with all of the attack surface – Landing pages that link in to the application – Hidden directories – Backdoor or “unused” parameters • Currently have plugins for OWASP ZAP and BurpSuite – Plugin for IBM Rational AppScan Standard is in progress https://github.com/denimgroup/threadfix/wiki/Scanner-‐Plugins
- 28. Getting the Plugins • Main ThreadFix site – https://github.com/denimgroup/threadfix/ • ThreadFix build instructions – https://github.com/denimgroup/threadfix/wiki/Development-‐Environment-‐Setup – “Running ThreadFix Without an IDE” • Download plugins from ThreadFix
- 29. Plugin Installation • OWASP ZAP plugin installation instructions – https://github.com/denimgroup/threadfix/wiki/Zap-‐Plugin • Plugins also available for: – Portswigger BurpSuite Professional – IBM Rational AppScan (soon)
- 30. Attack Surface Enumeration • Find all of the attack surface – URLs – Parameters that will change application behavior – Future: Cookies, other HTTP headers • Why is this a problem? – Hidden landing pages – Multi-‐step processes that automated crawls don’t traverse – Unknown parameters – Debug/backdoor parameters (will discuss this further) • Great for REST APIs support single-‐page web applications and mobile applications
- 31. Attack Surface Enumeration Benefits • Reduce false negatives from scanners – Better coverage for standard fuzzing • Pen test all of the application
- 32. Endpoints CLI Notes • Syntax: java –jar [jar-‐name].jar /path/to/source • JAR name will change based on build ID • After Maven build, can also be found in: $GIT/threadfix/threadfix-‐cli-‐ endpoints/target/ • You want the ”-‐jar-‐with-‐dependencies” JAR • Will output list of HTTP methods, URLs and parameters based on analysis of the source code • Attack surface! • Add “-‐json” to the end of the command to get output in JSON format – Easier to manipulate
- 34. Scanner Attack Surface Seeding Demo
- 35. attack_surface_lib.py • Warning! • What’s the opposite of ”Pythonic?” • Race conditions, sloppy file handling, etc • Possibly even some command injection – That you can currently exploit from … the command line – Some mitigations in place, but… • Please be careful what you attach this to
- 36. attack_surface_lib.py • What does it do? – Takes JSON output of cli-‐endpoints • Creates attack surface tree data structure • Calculates differences between trees – Some git utility tasks • Used as the basis for upcoming examples • https://github.com/denimgroup/threadfix-‐examples/blob/master/web_app_attack_surface/attack_surface_lib.py
- 37. Attack Surface Visualization Demo Code: https://github.com/denimgroup/threadfix-‐examples/blob/master/web_app_attack_surface/make_d3_tree_json.py HTML framework: https://github.com/denimgroup/threadfix-‐examples/tree/master/web_app_attack_surface/html
- 38. Attack Surface Comparison Visualization Demo Code: https://github.com/denimgroup/threadfix-‐examples/blob/master/web_app_attack_surface/make_d3_tree_json.py HTML framework: https://github.com/denimgroup/threadfix-‐examples/tree/master/web_app_attack_surface/html
- 39. Diffing Attack Surface Demo Code: https://github.com/denimgroup/threadfix-‐examples/blob/master/web_app_attack_surface/diff_attack_surface_git_commits.py
- 40. What About Behavior Changes? • Identify files that have changed that are associated with attack surface • Mark that attack surface as possibly having changed behavior • Is this perfect? No. • Does it provide additional information with potential value? Yes.
- 41. Potential Behavior Modified Demo
- 42. Applications for DevOps Pipelines • Target DAST testing to focus on new attack surface in latest build – “Run an authenticated ZAP scan against the three new URLs added in the last commit” • Set thresholds for when manual assessment/penetration testing is triggered – “Schedule a manual penetration test when the attack surface has increased by 10 URLs” – “Schedule a manual penetration test when the attack surface has increased by 5%” – Focus those efforts on new attack surface • ChatOps: Attack surface delta notifications on commit – “Commit beb78c835706efe5d619148b9a8dc9e35ee9572b added attack surface: /advanced.jsp, /preferenes.jsp”
- 43. attacksurface_notifier.py • Watch a git repository for new commits • When there are commits, check for attack surface changes • On attack surface changes – do stuff • In production: would be done via CI/CD server • BUT for demo purposes… • https://github.com/denimgroup/threadfix-‐examples/blob/master/web_app_attack_surface/attacksurface_notifier.py
- 44. Attack Surface ChatOps Demo Code: https://github.com/denimgroup/threadfix-‐examples/blob/master/web_app_attack_surface/attacksurface_notifier.py
- 45. Manual Test JIRA Ticket Demo Code: https://github.com/denimgroup/threadfix-‐examples/blob/master/web_app_attack_surface/attacksurface_notifier.py
- 46. Differential ZAP Scan Demo Code: https://github.com/denimgroup/threadfix-‐examples/blob/master/web_app_attack_surface/attacksurface_notifier.py
- 48. Scripting Attack Surface Interactions • [Anywhere] – Script using endpoints-‐cli.jar JSON outputs • That’s most of what we’ve seen here – Script using JSON output from ThreadFix API • Can be useful in environments with limited access to source code • Java: Use endpoints-‐cli.jar as a library – We need to do a better job of documenting the APIs • Jython: Use endpoints-‐cli.jar as a library
- 49. Jython Use of HAM Library Demo Code: https://github.com/denimgroup/threadfix-‐examples/blob/master/web_app_attack_surface/jython_endpoints_cli.py
- 50. Next Steps • Expand the model of application attack surface – Currently: Parameters, HTTP verbs – Working on: HTTP headers (cookies) – Future: Other application types: Mobile, IoT • Better visualization – More details – Better granularity – Track changes over time • Native integrations: Jenkins, Slack, HipChat, JIRA, etc – This is very “scripty” right now
- 51. Questions / Contact Information Dan Cornell Principal and CTO dan@denimgroup.com Twitter @danielcornell (844) 572-‐4400 www.threadfix.it 51
