Moo at System::Image::Update

Moo in practice - System::Image::Update
Jens Rehsack
Niederrhein Perl Mongers
2015
Jens Rehsack (Niederrhein.PM) Moo in practice - System::Image::Update 2015 1 / 33

Introduction Motivation
Motivation
Moo and System::Image::Update
real world examples over far-fetched conceptuals
MooX::ConfigFromFile and MooX::Options provide way more features and
flexibility than MooseX competitors
2nd
generation of modern OO in Perl5
System::Image::Update
Provides an out-of-the-box solution for managing updates on embedded
devices
Easy to re-use in several layers of the firmware
◮ self-sustaining (automatic) update management including forced updates
(mind heartbleed)
◮ embeddable into middleware
◮ ability for shortcuts
self-healing capabilities

Introduction Audience
Audience
Audience
Developer who want to create or improve Perl5 software
Developer who want to learn how to develop modern OO with Perl5
Developer who are interested in embedded update concepts
Prerequisites of the Audience
Following knowledge is expected:
General knowledge about object oriented programming or concepts like
◮ classes
◮ objects
◮ polymorphism, inheritance and/or roles
◮ methods, class functions
◮ attributes, properties
slightly above basic Perl experience
ever heard of Smalltalk and its OO-concept is a strong bonus

Modules Classes and Roles
Classes in Moo
classes can be instantiated
one can inherit from classes
one can aggregate classes
distinguish naming conﬂicts is up to developer
{
package System :: Image :: Update;
use Moo;
use MooX :: Options with_config_from_file => 1;
use IO:: Async ();
...
use File :: ConfigDir :: System :: Image :: Update qw( system_image_update_dir );
around BUILDARGS => sub {...};
sub run {..}
sub collect_savable_config {}
sub reset_config {}
sub save_config {}
}
System :: Image :: Update ->new_with_options ->run;

Modules Classes and Roles
Roles in Moo
roles describe a dedicated behavior (e.g. logger)
roles can be composed into classes
one can’t inherit from roles - only consume
roles cannot exist stand-alone
roles are consumed once
naming conﬂicts cause compile time error
{ package System :: Image :: Update :: Role :: HTTP;
use Moo:: Role; # now it’s a role - no ’is a’ relationship anymore
sub do_http_request { ... }
around collect_savable_config => sub {...};
}
{ package System :: Image :: Update :: Role :: Scan;
use Moo:: Role;
with "System :: Image :: Update :: Role :: HTTP"; # consumes a role
sub scan { my $self = shift; $self -> do_http_request (...) };
}

Attributes Attributes in Moo
Attributes in Moo
package System :: Image :: Update :: Role :: Scan;
use Moo:: Role;
has scan_ interval => ( is => "ro", default => 6*60*60 );
has update_mani fest_uri => ( is => "lazy" );
1;
use ”has” keyword to deﬁne a attribute
attributes ”scan interval” and ”update manifest uri”
those attributes are immutable
scan interval is initialized with a constant
update manifest uri is initialized by a builder

Attributes Attribute Options
Attribute options - Selection I
is required behavior description
ro defines the attribute is read-only
rw defined the attribute is read/writable
lazy defines the attribute is read-only with a lazy
initialization, implies builder => 1
required when set to a true value, attribute must be passed on instantiation
isa defines a subroutine (coderef) which is called to validate values to
set
coerce defines a subroutine (coderef) which forces attribute values
trigger takes a subroutine (coderef) which is called anytime the attribute
is set
special: the value of 1 means to generate a (coderef) which
calles the method trigger ${attr name} (This is called
attribute shortcut)
default subroutine (coderef) which is called to initialize an attribute

Attributes Attribute Options
Attribute options - Selection II
builder takes a method name (string) which is called to initialize an
attribute (supports attribute shortcut)
init arg Takes the name of the key to look for at instantiation time of the
object. A common use of this is to make an underscored attribute
have a non-underscored initialization name. undef means that
passing the value in on instantiation is ignored.
clearer takes a method name (string) which will clear the attribute
(supports attribute shortcut)
predicate takes a method name (string) which will return true if an
attribute has a value (supports attribute shortcut)

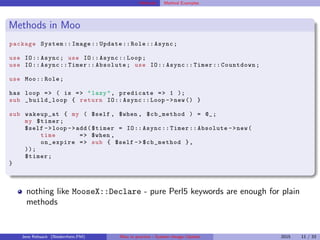

Methods Method Examples
Methods in Moo
package System :: Image :: Update :: Role :: Async;
use IO:: Async; use IO:: Async :: Loop;
use IO:: Async :: Timer :: Absolute; use IO:: Async :: Timer :: Countdown;
use Moo:: Role;
has loop => ( is => "lazy", predicate => 1 );
sub _build_loop { return IO:: Async ::Loop ->new() }
sub wakeup_at { my ( $self , $when , $cb_method ) = @_;
my $timer;
$self ->loop ->add($timer = IO:: Async :: Timer :: Absolute ->new(
time => $when ,
on_expire => sub { $self -> $cb_method },
));
$timer;
}
nothing like MooseX::Declare - pure Perl5 keywords are enough for plain
methods

Methods Method Modifiers
Method Modifiers
Method modifiers are a convenient feature from the CLOS (Common Lisp Object
System) world:
before before method(s) => sub { ...}
before is called before the method it is modifying. Its return value
is totally ignored.
after after method(s) => sub { ...}
after is called after the method it is modifying. Its return value is
totally ignored.
around around method(s) => sub { ...}
around is called instead of the method it is modifying. The method
you’re overriding is passed as coderef in the first argument.
- No support for super, override, inner or augment

Method Modiﬁers - Advantages
supersedes $self->SUPER::foo(@ ) syntax
cleaner interface than SUPER
allows multiple modiﬁers in single namespace
also possible from within roles and not restricted to inheritance
ensures that inherited methods invocation happens right (mostly - remember
around)
no need to change packages

Methods Modiﬁers - around avoid calling $orig
package Update :: Status;
use strict; use warnings; use Moo;
extends "System :: Image :: Update";
around _build_config_prefix => sub { " sysimg_update " };
captures control
receives responsibility
runtime of modiﬁed method completely eliminated

Methods Modifiers - around modifying $orig return value
package System :: Image :: Update :: Role :: Scan;
use strict; use warnings; use Moo :: Role;
around collect_savable_config => sub {
my $next = shift;
my $self = shift;
my $collect_savable_config = $self ->$next(@_);
$self -> update_server eq $default_update_server
or $collect_savable_config ->{ update_server } = $self -> update_server ;
...
$collect_savable_config
}
modifies only required part
leaves most responsibility in modified method
runtime of modified method added to this method’s runtime

Domain Company
Rademacher Elektronik GmbH, Rhede
Successor of Guruplug based
Homepilot 1
Full update abilities (including boot
loader, kernel and system
components)
Multimedia features (Mediaplayer
with HDMI video and Coaxial audio)
Closer Adoption to Rademacher
Way: Control from Hardware
development until Customer Service

Domain Application
HomePilot 2
service console moved from PHP to
Perl5, PSGI and Dancer
system management and
automation full Perl5 powered
company infrastructure improved by
Perl (eg. production of HP2)
PoC use Perl6 + NativeCall to
eliminate wrapper processes
created Yocto CPAN Layer for cross
compiling lot’s of CPAN modules

Update Service Self-Sustaining Daemon
State-Machine with togglable states and protected states
Begin
Initialisations
Scan Newer Image Information? scan image info Contain Update?
Reset
analyse update details
Want download? download Download successful?
Verify download? veriﬁed
Want apply? apply Reboot
Yes
No No
scan
YesBut already
Yes
Not yet
check
Yes
But already
No
No
But already
Not yet

State Control
with "System :: Image :: Update :: Role :: Scan", "System :: Image :: Update :: Role :: Check",
has status => ( is => "rw", lazy => 1, builder => 1, predicate => 1,
isa => sub { __PACKAGE__ ->can( $_[0] ) or die "Invalid status: $_ [0]" }
);
sub _build_status { -f $_[0]-> update_manifest ? "check" :
$_[0]-> has_recent_update && -e $_[0]-> download_image ? "prove" : "scan";
}
automatic recovering after down-state (power outage, Vodka party, . . . )
room for improvements like continue aborted download
no direct path to ”download” or ”apply” to avoid mistakes

State Control II
with "System :: Image :: Update :: Role :: Scan", "System :: Image :: Update :: Role :: Check",
has status => ( ... );
around BUILDARGS => sub {
my $next = shift; my $class = shift; my $params = $class ->$next(@_);
$params ->{ status} and $params ->{ status} eq "apply"
and $params ->{ status} = "prove";
$params ->{ status} and $params ->{ status} eq "prove"
and $params ->{ recent_update }
and $params ->{ recent_update }->{apply} = DateTime ->now ->epoch;
$params;
};
toggleable are ”download” and ”prove”
”apply” is protected by ”prove” to ensure no corrupted image is applied
protection needs to be improved before releasing to wildlife

Middleware Interception ”ReadOnly”
Middleware Information Center
around _trigger _recent_update => sub {};
exists $params ->{ status} and delete $params ->{ status };
$params;
};
derive from ”System::Image::Update” to get the real world picture
ensure no construction argument wastes the self-diagnostics
prevent triggering actions when recent update is found
What information?

Middleware Information Center
around _build _config_prefix => sub { " sysimg_update " };
around _trigger_recent_update => sub {};
exists $params ->{ status} and delete $params ->{ status };
$params;
};
default builder guesses ’’config prefix’’ from $0
override with $0 from the daemon

Middleware Delivery Center
package hp2sm;
use strict; use warnings; use Dancer2 ’:syntax ’; ...; use Update :: Status;
get ’/status ’ => sub {
my $us = Update :: Status ->new; my $status = "idle";
$us ->has _recent_update and $status = "available";
$us ->stat us eq "prove" and $status = " downloading ";
$us -> has_recent_update and -f $us -> download_image
and $us ->download_sums ->{size} == stat( $us -> download_image )->size
and $status = "proved";
my $pl = get_process_stats ();
firstval { $pl -> process_name($_) =~ /flash -device/ } (0 .. $pl ->entries () -
and $status = "applying";
return $json ->encode ({ status => $status });
};
Load and guess current status of ”System::Image::Update” instance
start with ”idle” and prove from earliest to latest
better status overrides earlier measures - ’’prove’’ implies
has recent update
’’apply’’ is currently done by an external process
use Unix::Statgrab to grep for processes

Middleware Interception ”WriteBack”
Middleware Strikes Back
package hp2sm;
use strict; use warnings; use Dancer2 ’:syntax ’; ...; use Update :: Status;
put ’/status/ downloading ’ => sub {
my $us = Update :: Status ->new ();
$us -> has_recent_update or return $json ->encode( { result => "n/a" } );
$us ->status("download"); $us -> save_config ;
system("svc -t /etc/ daemontools /service/ sysimg_update /");
return $json ->encode( { result => "ok" } );
};
Middleware Information Boosted Persistency
around collect_savable_config => sub {
my $next = shift; my $self = shift; my $save_cfg = $self ->$next(@_);
$self -> has_status and $save_cfg ->{ status} = $self ->status;
$self -> has_download_file
and $save_cfg ->{ download_file } = $self -> download_file ;
$save_cfg; };

Glue Into Target Filesystem
system-image-update git.bb top
DESCRI PTION = "System :: Image :: Update helps managing updates of OS images ..."
SRC_URI = "git :// github.com/rehsack/System -Image -Update.git;rev =646 fa928 ...
file :// run file :// sysimg_update .json"
RDEPENDS_${PN} += "archive -peek -libarchive -perl crypt -ripemd160 -perl"
RDEPENDS_${PN} += "datetime -format -strptime -perl"
RDEPENDS_${PN} += "log -any -adapter -dispatch -perl"
RDEPENDS_${PN} += "file -configdir -system -image -update -perl"
RDEPENDS_${PN} += "moo -perl moox -configfromfile -perl moox -log -any -perl"
RDEPENDS_${PN} += "moox -options -perl net -async -http -perl"
RDEPENDS_${PN} += "digest -md5 -perl digest -md6 -perl"
RDEPENDS_${PN} += "digest -sha -perl digest -sha3 -perl"
RDEPENDS_${PN} += " daemontools system -image"
S = "${WORKDIR }/ git"
BBCLASSEXTEND = "native"
inherit cpan
do_configure_append () {
oe_runmake manifest
}
typical package stuﬀ . . . , like runtime dependencies
git checkouts need adoption of source path
build as any cpan package is built, but allow native packages and create
missing MANIFEST

Glue Into Target Filesystem
system-image-update git.bb bottom
SERVICE_ROOT = "${ sysconfdir }/ daemontools /service"
SYSUPDT_SERVICE_ DIR = "${ SERVICE_ROOT }/ sysimg_update "
do_install_append () {
install -d -m 755 ${D}${ sysconfdir}
install -m 0644 ${WORKDIR }/ sysimg_update .json ${D}${sysconfdir}
install -d ${D}${ SYSUPDT_SERVICE_DIR }
install -m 0755 ${WORKDIR }/ run ${D}${ SYSUPDT_SERVICE_DIR }/ run
}
FILES_${PN} += "${ sysconfdir}"
define location of startup scripts and install to there
install configuration file
tell bitbake to put files from ${sysconfdir} into package

Configuration file Distributions and Moo Initialization Glue
sysimg update.json
{
" log_adapter " : [
"Dispatch",
"outputs", [
[ "File", "min_level", "debug", "filename",
"/var/log/ sysimg_update .log", "newline", 1, "mode", ">>" ],
[ "File", "min_level", "error", "filename",
"/var/log/ sysimg_update .error", "newline", 1, "mode", ">>" ],
[ "Screen", "min_level", "notice", "newline", 1, "stderr", 1 ]
]
],
" update_manifest_dirname" : "/rwmedia/update/",
"http_user" : "b01f ..."
}
Provides settings for Log::Any (mind trigger log adapter in
System::Image::Update::Role::Logging consuming MooX::Log::Any)
redirect place to store update manifest (files)
Provide authentication to update server for development boxes (avoid
builder being called)

Conclusion
Conclusion
lazy attributes allow designing a multi-stage initialization phase
beneﬁt of common runtime (faster load) when using
improve design by
◮ using roles for behavioral design (avoid duck typing)
◮ using explicit patterns for clear separation of concerns
◮ express intentions clearer for method overloading by using method modiﬁers

Resources Resources
Resources
Software on MetaCPAN
https://metacpan.org/pod/Moo
https://metacpan.org/search?q=MooX
https://metacpan.org/pod/MooX::Options
https://metacpan.org/pod/MooX::ConfigFromFile
https://metacpan.org/pod/IO::Async
Software on GitHub
https://github.com/moose/Moo
https://github.com/rehsack/System-Image-Update
https://github.com/perl5-utils/File-ConfigDir-System-Image-Update
Software for Cross-Building Perl-Modules
https://www.yoctoproject.org/
https://github.com/rehsack/meta-cpan

Resources Resources
Resources
IRC
irc://irc.perl.org/#moose
irc://irc.perl.org/#web-simple
irc://irc.perl.org/#dancer
irc://irc.freenode.org/#yocto
Hints
http://sck.pm/WVO # proper usage of the roles in perl
https://metacpan.org/pod/Moo#CLEANING-UP-IMPORTS

Resources Thank you
Thank You For Listening
Questions?
Jens Rehsack <rehsack@cpan.org>

Moo at System::Image::Update

More Related Content

What's hot (20)

Similar to Moo at System::Image::Update (20)

More from Jens Rehsack (7)

Recently uploaded (20)

Moo at System::Image::Update
