groovy & grails - lecture 11
Download as KEY, PDF1 like669 views
The document discusses domain-driven design and object-relational mapping using Grails. It covers basic CRUD operations for a single domain class like Person and how those map to SQL commands and Grails URLs. It also discusses validation, dynamic finders, and integrating tests. Relationships between domain classes are covered through an example of a one-to-many relationship between a Person and Message domain class.
![Explicit controller
‣ It is possible to generate scaffold controller code
generate-controller eop.lec11.twitter.Person
‣ PersonController.groovy write operation & test
‣ For example, read:
def show = {
def personInstance = Person.get(params.id)
if (!personInstance) {
flash.message = "${message(code:
'default.not.found.message', .....)}"
redirect(action: "list")
}
else {
[personInstance: personInstance]
}
}](https://image.slidesharecdn.com/mpb-eop-2011-lec11-110913135051-phpapp02/85/groovy-grails-lecture-11-35-320.jpg)
![One-to-many relationship
‣Message.groovy
//Person commiter
static belongsTo = [commiter:Person]](https://image.slidesharecdn.com/mpb-eop-2011-lec11-110913135051-phpapp02/85/groovy-grails-lecture-11-66-320.jpg)
![One-to-many relationship
‣Message.groovy
//Person commiter
static belongsTo = [commiter:Person]
‣Person.groovy
static hasMany = [messages: Message]](https://image.slidesharecdn.com/mpb-eop-2011-lec11-110913135051-phpapp02/85/groovy-grails-lecture-11-67-320.jpg)
groovy & grails - lecture 11
- 1. Groovy: Efficiency Oriented Programming Lecture 11 Master Proteomics & Bioinformatics - University of Geneva Alexandre Masselot - summer 2011
- 2. Agenda ‣ CRUD ‣ Integration tests ‣ Domain relationships ‣ Application configuration
- 4. One domain based app ↔ one database
- 5. One domain class ↔ one table
- 6. One domain bean ↔ one table entry
- 7. One bean operations: CRUD
- 8. One bean operations: CRUD Action Create Read Update Delete
- 9. One bean operations: CRUD Action Create Read Update Delete
- 10. One bean operations: CRUD Action Create Read Update Delete
- 11. One bean operations: CRUD Action Create Read Update Delete
- 12. One bean operations: CRUD Action SQL Grails url Create INSERT create Read SELECT show Update UPDATE update Delete DELETE delete
- 13. One bean operations: CRUD Action SQL Grails url Create INSERT create Read SELECT show Update UPDATE update Delete DELETE delete
- 14. One bean operations: CRUD Action SQL Grails url Create INSERT create Read SELECT show Update UPDATE update Delete DELETE delete
- 15. Person joe = new Person(params) ➙ bean but no database entry creation
- 16. joe.save() ➙ insertion into table (only if valid bean - constraints)
- 17. Validation ‣ Create only a valid bean ‣ 3 validation ways
- 18. Validation ‣ Create only a valid bean ‣ 3 validation ways ‣ Check explicitly for validation joe.validate()
- 19. Validation ‣ Create only a valid bean ‣ 3 validation ways ‣ Check explicitly for validation joe.validate() ‣ Save a catch exception joe.save(failOnError:true)
- 20. Validation ‣ Create only a valid bean ‣ 3 validation ways ‣ Check explicitly for validation joe.validate() ‣ Save a catch exception joe.save(failOnError:true) ‣ Save a check for non-null return assert joe.save()
- 21. Registered bean ⇔ joe.id != null
- 22. Reading a bean from the database

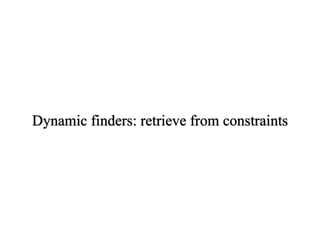

- 24. Dynamic finders: retrieve from constraints
- 25. Dynamic finders (for single return) ‣ Domain class definition generate static methods def p = Person.findByUsername(‘lucky_luke’) def p = Person.findByFirstName(‘Lucky’) def p = Person.findByFirstNameAndLastName(‘Joe’, ‘Dalton’)
- 26. Dynamic finders (for single return) ‣ Domain class definition generate static methods def p = Person.findByUsername(‘lucky_luke’) def p = Person.findByFirstName(‘Lucky’) def p = Person.findByFirstNameAndLastName(‘Joe’, ‘Dalton’) ‣ Multiple results => returns first (sorted on id) def p = Person.findByLastName(‘Dalton’)
- 27. Dynamic finders (for single return) ‣ Domain class definition generate static methods def p = Person.findByUsername(‘lucky_luke’) def p = Person.findByFirstName(‘Lucky’) def p = Person.findByFirstNameAndLastName(‘Joe’, ‘Dalton’) ‣ Multiple results => returns first (sorted on id) def p = Person.findByLastName(‘Dalton’) ‣ findByXxxx efficient with unique:true fields
- 28. Update ‣ Update: change fields values and save into database
- 29. Update ‣ Update: change fields values and save into database 1. modify bean as usual
- 30. Update ‣ Update: change fields values and save into database 1. modify bean as usual 2. validate/save as for creation
- 31. joe.delete() removes entry from table
- 32. Scaffolded controller hides CRUD operations
- 33. Explicit controller ‣ It is possible to generate scaffold controller code generate-controller eop.lec11.twitter.Person
- 34. Explicit controller ‣ It is possible to generate scaffold controller code generate-controller eop.lec11.twitter.Person ‣ PersonController.groovy write operation & test
- 35. Explicit controller ‣ It is possible to generate scaffold controller code generate-controller eop.lec11.twitter.Person ‣ PersonController.groovy write operation & test ‣ For example, read: def show = { def personInstance = Person.get(params.id) if (!personInstance) { flash.message = "${message(code: 'default.not.found.message', .....)}" redirect(action: "list") } else { [personInstance: personInstance] } }
- 36. Time to go back to test!
- 37. Unit testing ↔ no dependency
- 38. Integration testing ↔ more complex biotope
- 39. Integration tests ‣ Resides under test/integration/ PersonIntegrationTests.groovy
- 40. Integration tests ‣ Resides under test/integration/ PersonIntegrationTests.groovy ‣ Launched with test-app -integration
- 41. Integration tests ‣ Resides under test/integration/ PersonIntegrationTests.groovy ‣ Launched with test-app -integration ‣ Results: - summary on the console output (count success/failures) - html files under target/tests-reports/html - plain text files under target/tests-reports/html - failure summary available - stdout/stderr accessible for each test case
- 42. Faster grails command ‣ Launch command (<alt><ctrl>G) interactive
- 43. Faster grails command ‣ Launch command (<alt><ctrl>G) interactive ‣ On the console, enter command test-app -integration
- 44. Faster grails command ‣ Launch command (<alt><ctrl>G) interactive ‣ On the console, enter command test-app -integration ‣ Hit enter to relaunch last command
- 45. Faster grails command ‣ Launch command (<alt><ctrl>G) interactive ‣ On the console, enter command test-app -integration ‣ Hit enter to relaunch last command ‣ After several commands, PermGenException can occur - terminate - relaunch interactive
- 46. Grails integration testing cons ‣ Slower to execute than unit
- 47. Grails integration testing cons ‣ Slower to execute than unit ‣ Test report is not integrated into eclipse
- 48. Grails integration testing cons ‣ Slower to execute than unit ‣ Test report is not integrated into eclipse ‣ Use only when unit test not possible
- 49. mockDomain: unit testing with domain class
- 50. mockDomain ‣ It is possible to make some unit testing with domain
- 51. mockDomain ‣ It is possible to make some unit testing with domain ‣ No real database is connected, but a fake layer
- 52. mockDomain ‣ It is possible to make some unit testing with domain ‣ No real database is connected, but a fake layer ‣ In each method (not setup()) mockDomain(Person) mockDomain(Person, initialBeanList)
- 53. mockDomain ‣ It is possible to make some unit testing with domain ‣ No real database is connected, but a fake layer ‣ In each method (not setup()) mockDomain(Person) mockDomain(Person, initialBeanList) ‣ All single domain CRUD (and more) operations possible
- 54. mockDomain example void testDelete(){ //buildDaltonFamily() return a list of 4 Person mockDomain(Person, buildDaltonFamily()) assert Person.count() == 4 Person p=Person.findByUsername('joe_dalton') assertNotNull p p.delete() // we should only have 3 members left assert Person.count() == 3 p=Person.findByUsername('joe_dalton') assertNull p }
- 55. mockDomain limits ‣ No explicit database operation (hibernate criteria, HQL) are possible
- 56. mockDomain limits ‣ No explicit database operation (hibernate criteria, HQL) are possible ‣ Multiple domain class interaction are fully possible (cf. relationships)
- 57. mockDomain limits ‣ No explicit database operation (hibernate criteria, HQL) are possible ‣ Multiple domain class interaction are fully possible (cf. relationships) ‣ Connection with data already entered in a database
- 58. Hermit domain not very useful
- 59. Need for relationships Twitter: Person ↔ Message
- 61. Message domain create-domain-class Domain ‣ Just a text (String) and a commiter (Person) class Message { String text Person commiter static constraints = { text(size:1..140, blank:false) commiter(nullable:false) } }
- 62. Message + Person ‣ Attach two messages to a user Person joe=Person.findByUsername('joe_dalton') new Message(text:'hello', commiter:joe).save() new Message(text:'world', commiter:joe).save()
- 63. Message + Person ‣ Attach two messages to a user Person joe=Person.findByUsername('joe_dalton') new Message(text:'hello', commiter:joe).save() new Message(text:'world', commiter:joe).save() ‣ Look for message from joe Message.findAllByCommiter(joe)
- 64. Message + Person ‣ Attach two messages to a user Person joe=Person.findByUsername('joe_dalton') new Message(text:'hello', commiter:joe).save() new Message(text:'world', commiter:joe).save() ‣ Look for message from joe Message.findAllByCommiter(joe) ‣ Not possible to access to message directly from joe bean - one solution: explicitly declare setCommiter(Person p) in Message.groovy that would add the message to a list in joe; - problem for deletion, save inconsistency...
- 65. Define a one-to-many relationship
- 66. One-to-many relationship ‣Message.groovy //Person commiter static belongsTo = [commiter:Person]
- 67. One-to-many relationship ‣Message.groovy //Person commiter static belongsTo = [commiter:Person] ‣Person.groovy static hasMany = [messages: Message]
- 68. One-to-many relationship (cont’d) ‣ Add a message: joe.addToMessages(new Message(text:‘hello world’)).save()
- 69. One-to-many relationship (cont’d) ‣ Add a message: joe.addToMessages(new Message(text:‘hello world’)).save() ‣ Will execute the following actions - create a message with joe as commiter - save the message - add the message to joe’s list
- 70. One-to-many relationship (cont’d) ‣ Access to the list joe.messages
- 71. One-to-many relationship (cont’d) ‣ Access to the list joe.messages ‣ Deleting will cascade joe.delete() - all messages with joe as commiter will also be deleted
- 72. Testing ‣ Test database consistency with two domain: integration testing // taken from MessageIntegrationTests.groovy // 4 Person are added in the setup() method public void testListMessagesUserDeletion(){ Person joe=Person.findByUsername('joe_dalton') Person averell=Person.findByUsername('averell_dalton') joe.addToMessages(new Message(text:'hello world')).save() joe.addToMessages(new Message(text:'i'm running')).save() averell.addToMessages(new Message(text:'i'm eating')).save() assert Message.count() == 3 assert Person.count() == 4 joe.delete() assert Person.count() == 3 //having deleted joe should delete all message related to joe assert Message.count() == 1 }
- 73. Back to the web: 2 scaffolded controllers
